DLS713
DLS713

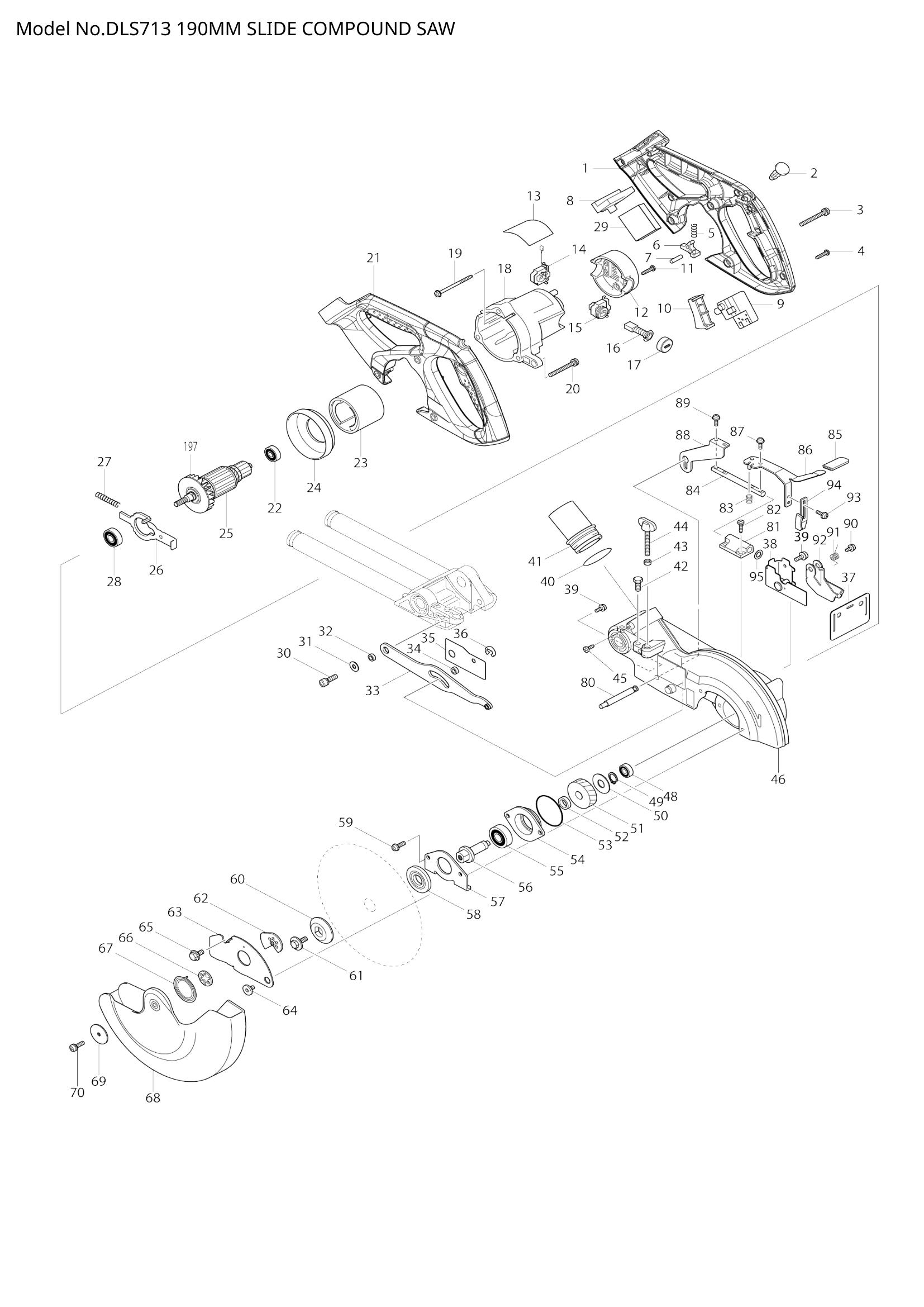

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 188961-5 | HANDLE SET | 1 | €44.53 | 1-4 weeks to ship | |
| 188961-5 | HANDLE SET | 1 | €44.53 | 1-4 weeks to ship | ||
| 002 | 417113-4 | SWITCH BUTTON | 1 | €0.83 | 1-4 weeks to ship | |
| 417113-4 | SWITCH BUTTON | 1 | €0.83 | 1-4 weeks to ship | ||
| 003 | 911268-2 | PAN HEAD SCREW M5X45 | 3 | €0.56 | 1-4 weeks to ship | |
| 911268-2 | PAN HEAD SCREW M5X45 | 3 | €0.56 | 1-4 weeks to ship | ||
| 911268-2 | PAN HEAD SCREW M5X45 | 3 | €0.56 | 1-4 weeks to ship | ||
| 911268-2 | PAN HEAD SCREW M5X45 | 3 | €0.56 | 1-4 weeks to ship | ||
| 005 | 231026-3 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 231026-3 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 006 | 416533-9 | LOCK OFF LEVER | 1 | €0.56 | 1-4 weeks to ship | |
| 416533-9 | LOCK OFF LEVER | 1 | €0.56 | 1-4 weeks to ship | ||
| 007 | 256123-4 | PIN 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 256123-4 | PIN 5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 008 | 644808-8 | TERMINAL | 1 | €4.17 | 1-4 weeks to ship | |
| 644808-8 | TERMINAL | 1 | €4.17 | 1-4 weeks to ship | ||
| 009 | 651956-6 | SWITCH TG72BD | 1 | €13.92 | 1-4 weeks to ship | |
| 651956-6 | SWITCH TG72BD | 1 | €13.92 | 1-4 weeks to ship | ||
| 010 | 452130-7 | SWITCH LEVER | 1 | €2.78 | 1-4 weeks to ship | |
| 452130-7 | SWITCH LEVER | 1 | €2.78 | 1-4 weeks to ship | ||
| 012 | 416639-3 | REAR COVER | 1 | €4.17 | 1-4 weeks to ship | |
| 416639-3 | REAR COVER | 1 | €4.17 | 1-4 weeks to ship | ||
| 013 | DLS713 NAME PLATE | 1 | Not available in store | |||
| DLS713 NAME PLATE | 1 | Not available in store | ||||
| 014 | 643864-5 | BRUSH HOLDER | 1 | €3.62 | 1-4 weeks to ship | |
| 643864-5 | BRUSH HOLDER | 1 | €3.62 | 1-4 weeks to ship | ||
| 015 | 643863-7 | BRUSH HOLDER | 1 | €3.76 | 1-4 weeks to ship | |
| 643863-7 | BRUSH HOLDER | 1 | €3.76 | 1-4 weeks to ship | ||
| 017 | 643941-3 | BRUSH HOLDER CAP | 2 | €0.56 | 1-4 weeks to ship | |
| 643941-3 | BRUSH HOLDER CAP | 2 | €0.56 | 1-4 weeks to ship | ||
| 018 | 416909-0 | MOTOR HOUSING | 1 | €30.61 | 1-4 weeks to ship | |
| 416909-0 | MOTOR HOUSING | 1 | €30.61 | 1-4 weeks to ship | ||
| 019 | 266209-6 | TAPPING SCREW 4X60 | 2 | €1.11 | 1-4 weeks to ship | |
| 266209-6 | TAPPING SCREW 4X60 | 2 | €1.11 | 1-4 weeks to ship | ||
| 020 | 911268-2 | PAN HEAD SCREW M5X45 | 3 | €0.56 | 1-4 weeks to ship | |
| 911268-2 | PAN HEAD SCREW M5X45 | 3 | €0.56 | 1-4 weeks to ship | ||
| 911268-2 | PAN HEAD SCREW M5X45 | 3 | €0.56 | 1-4 weeks to ship | ||
| 911268-2 | PAN HEAD SCREW M5X45 | 3 | €0.56 | 1-4 weeks to ship | ||
| 021 | 188961-5 | HANDLE SET | 1 | €44.53 | 1-4 weeks to ship | |
| 188961-5 | HANDLE SET | 1 | €44.53 | 1-4 weeks to ship | ||
| 023 | 632828-4 | YOKE UNIT | 1 | €22.26 | 1-4 weeks to ship | |
| 632828-4 | YOKE UNIT | 1 | €22.26 | 1-4 weeks to ship | ||
| 024 | 416907-4 | BAFFLE PLATE | 1 | €4.17 | 1-4 weeks to ship | |
| 416907-4 | BAFFLE PLATE | 1 | €4.17 | 1-4 weeks to ship | ||
| 025 | 519269-0 | ARMATURE ASS'Y 18V | 1 | €27.41 | 1-4 weeks to ship | |
| 519269-0 | ARMATURE ASS'Y 18V | 1 | €27.41 | 1-4 weeks to ship | ||
| 026 | 344681-3 | SHAFT LOCK | 1 | €1.11 | 1-4 weeks to ship | |
| 344681-3 | SHAFT LOCK | 1 | €1.11 | 1-4 weeks to ship | ||
| 027 | 233092-6 | COMPRESSION SPRING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 233092-6 | COMPRESSION SPRING 5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 028 | 211088-7 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 211088-7 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | ||
| 029 | 620263-8 | CONTROLLER | 1 | €28.53 | 1-4 weeks to ship | |
| 620263-8 | CONTROLLER | 1 | €28.53 | 1-4 weeks to ship | ||
| 030 | 922331-6 | HEX. SOCKET HEAD BOLT M6X20 | 1 | €0.56 | 1-4 weeks to ship | |
| 922331-6 | HEX. SOCKET HEAD BOLT M6X20 | 1 | €0.56 | 1-4 weeks to ship | ||
| 031 | 253804-1 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 253804-1 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 032 | 257163-5 | RING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 257163-5 | RING 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 033 | 154643-1 | LINK PLATE COMPLETE | 1 | €19.48 | 1-4 weeks to ship | |
| 154643-1 | LINK PLATE COMPLETE | 1 | €19.48 | 1-4 weeks to ship | ||
| 034 | 257163-5 | RING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 257163-5 | RING 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 035 | 346330-8 | LINK COVER | 1 | €0.70 | 1-4 weeks to ship | |
| 346330-8 | LINK COVER | 1 | €0.70 | 1-4 weeks to ship | ||
| 036 | 961018-5 | STOP RING E-5 | 1 | €0.56 | 1-4 weeks to ship | |
| 961018-5 | STOP RING E-5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 037 | 421626-9 | GUARD | 1 | €0.56 | 1-4 weeks to ship | |
| GUARD | 1 | Not available in store | ||||
| 421626-9 | GUARD | 1 | €0.56 | 1-4 weeks to ship | ||
| GUARD | 1 | Not available in store | ||||
| 038 | 165414-1 | GUARD PLATE COMPLETE | 1 | €2.78 | 1-4 weeks to ship | |
| 345438-5 | GUARD PLATE | 1 | €1.11 | 1-4 weeks to ship | ||
| 165414-1 | GUARD PLATE COMPLETE | 1 | €2.78 | 1-4 weeks to ship | ||
| 345438-5 | GUARD PLATE | 1 | €1.11 | 1-4 weeks to ship | ||
| 039 | 911113-1 | PAN HEAD SCREW M4X10 WITH | 1 | €0.56 | 1-4 weeks to ship | |
| 911113-1 | PAN HEAD SCREW M4X10 WITH | 1 | €0.56 | 1-4 weeks to ship | ||
| 040 | 213460-9 | O RING 35 | 1 | €0.56 | 1-4 weeks to ship | |
| 213460-9 | O RING 35 | 1 | €0.56 | 1-4 weeks to ship | ||
| 041 | 419277-0 | DUST NOZZLE | 1 | €2.78 | 1-4 weeks to ship | |
| 419277-0 | DUST NOZZLE | 1 | €2.78 | 1-4 weeks to ship | ||
| 042 | 266757-5 | HEX. SOCKET HEAD BOLT M6X16 | 1 | €0.28 | 1-4 weeks to ship | |
| 266757-5 | HEX. SOCKET HEAD BOLT M6X16 | 1 | €0.28 | 1-4 weeks to ship | ||
| 043 | 262001-8 | URETHANE RING 5 | 1 | €1.11 | 1-4 weeks to ship | |
| 262001-8 | URETHANE RING 5 | 1 | €1.11 | 1-4 weeks to ship | ||
| 044 | 265717-4 | SCREW M6X43 | 1 | €2.78 | 1-4 weeks to ship | |
| 265717-4 | SCREW M6X43 | 1 | €2.78 | 1-4 weeks to ship | ||
| 045 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 266026-4 | TAPPING SCREW BIND CT 4X12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 048 | 211021-9 | BALL BEARING 607LLB | 1 | €5.57 | 1-4 weeks to ship | |
| 211021-9 | BALL BEARING 607LLB | 1 | €5.57 | 1-4 weeks to ship | ||
| 049 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 050 | 253813-0 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 253813-0 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 051 | 226512-7 | HELICAL GEAR 60 | 1 | €16.70 | 1-4 weeks to ship | |
| 226512-7 | HELICAL GEAR 60 | 1 | €16.70 | 1-4 weeks to ship | ||
| 052 | 257011-8 | RING 12 | 1 | €0.83 | 1-4 weeks to ship | |
| 257011-8 | RING 12 | 1 | €0.83 | 1-4 weeks to ship | ||
| 053 | 213623-7 | O RING 46 | 1 | €0.56 | 1-4 weeks to ship | |
| 213623-7 | O RING 46 | 1 | €0.56 | 1-4 weeks to ship | ||
| 054 | 317193-9 | BEARING BOX | 1 | €11.13 | 1-4 weeks to ship | |
| 317193-9 | BEARING BOX | 1 | €11.13 | 1-4 weeks to ship | ||
| 055 | 211129-9 | BALL BEARING 6201DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 211129-9 | BALL BEARING 6201DDW | 1 | €5.57 | 1-4 weeks to ship | ||
| 056 | 323798-5 | SPINDLE | 1 | €8.35 | 1-4 weeks to ship | |
| 323798-5 | SPINDLE | 1 | €8.35 | 1-4 weeks to ship | ||
| 057 | 285736-4 | BEARING RETAINER 58 | 1 | €1.67 | 1-4 weeks to ship | |
| 285736-4 | BEARING RETAINER 58 | 1 | €1.67 | 1-4 weeks to ship | ||
| 058 | 224370-5 | INNER FLANGE 40 | 1 | €2.78 | 1-4 weeks to ship | |
| 224370-5 | INNER FLANGE 40 | 1 | €2.78 | 1-4 weeks to ship | ||
| 059 | 911223-4 | PAN HEAD SCREW M5X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 911223-4 | PAN HEAD SCREW M5X16 | 2 | €0.56 | 1-4 weeks to ship | ||
| 911223-4 | PAN HEAD SCREW M5X16 | 2 | €0.56 | 1-4 weeks to ship | ||
| 911223-4 | PAN HEAD SCREW M5X16 | 2 | €0.56 | 1-4 weeks to ship | ||
| 060 | 224275-9 | OUTER FLANGE 40 | 1 | €2.78 | 1-4 weeks to ship | |
| 224275-9 | OUTER FLANGE 40 | 1 | €2.78 | 1-4 weeks to ship | ||
| 061 | 266733-9 | HEX. S.F.H. BOLT M6X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 266733-9 | HEX. S.F.H. BOLT M6X16 | 1 | €0.56 | 1-4 weeks to ship | ||
| 062 | 345585-2 | CENTER PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 345585-2 | CENTER PLATE | 1 | €2.78 | 1-4 weeks to ship | ||
| 063 | 346232-8 | CENTER COVER | 1 | €11.13 | 1-4 weeks to ship | |
| 346232-8 | CENTER COVER | 1 | €11.13 | 1-4 weeks to ship | ||
| 064 | 265985-9 | HEX.SOCKET HEAD BOLT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 265985-9 | HEX.SOCKET HEAD BOLT M6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 065 | 266732-1 | HEX. SOCKET HEAD BOLT M6X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 266732-1 | HEX. SOCKET HEAD BOLT M6X16 | 1 | €0.56 | 1-4 weeks to ship | ||
| 066 | 345589-4 | CENTER WASHER | 1 | €1.11 | 1-4 weeks to ship | |
| 345589-4 | CENTER WASHER | 1 | €1.11 | 1-4 weeks to ship | ||
| 067 | 231934-8 | SPIRAL SPRING 26 | 1 | €1.67 | 1-4 weeks to ship | |
| 231934-8 | SPIRAL SPRING 26 | 1 | €1.67 | 1-4 weeks to ship | ||
| 068 | SAFETY COVER | 1 | Not available in store | |||
| 453298-2 | SAFETY COVER | 1 | €21.57 | 1-4 weeks to ship | ||
| SAFETY COVER | 1 | Not available in store | ||||
| 453298-2 | SAFETY COVER | 1 | €21.57 | 1-4 weeks to ship | ||
| 069 | 267136-0 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 267136-0 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 080 | 324455-8 | LOCK PIN | 1 | €2.78 | 1-4 weeks to ship | |
| 324455-8 | LOCK PIN | 1 | €2.78 | 1-4 weeks to ship | ||
| 081 | 452134-9 | ROD HOLDER | 1 | €3.90 | 1-4 weeks to ship | |
| 452134-9 | ROD HOLDER | 1 | €3.90 | 1-4 weeks to ship | ||
| 082 | 266034-5 | TAPPING SCREW CT 4X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 266034-5 | TAPPING SCREW CT 4X16 | 2 | €0.56 | 1-4 weeks to ship | ||
| 083 | 231316-4 | COMPRESSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 231316-4 | COMPRESSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | ||
| 084 | 325980-2 | ROD 8 | 1 | €1.39 | 1-4 weeks to ship | |
| 325980-2 | ROD 8 | 1 | €1.39 | 1-4 weeks to ship | ||
| 085 | 421589-9 | CAP | 1 | €1.11 | 1-4 weeks to ship | |
| 421589-9 | CAP | 1 | €1.11 | 1-4 weeks to ship | ||
| 086 | 346320-1 | LOCK LEVER | 1 | €2.64 | 1-4 weeks to ship | |
| 346320-1 | LOCK LEVER | 1 | €2.64 | 1-4 weeks to ship | ||
| 087 | 911113-1 | PAN HEAD SCREW M4X10 WITH | 2 | €0.56 | 1-4 weeks to ship | |
| 911113-1 | PAN HEAD SCREW M4X10 WITH | 2 | €0.56 | 1-4 weeks to ship | ||
| 088 | 346322-7 | LOCK PLATE | 1 | €1.81 | 1-4 weeks to ship | |
| 346322-7 | LOCK PLATE | 1 | €1.81 | 1-4 weeks to ship | ||
| 089 | 911113-1 | PAN HEAD SCREW M4X10 WITH | 2 | €0.56 | 1-4 weeks to ship | |
| 911113-1 | PAN HEAD SCREW M4X10 WITH | 2 | €0.56 | 1-4 weeks to ship | ||
| 090 | 911114-9 | PAN HEAD SCREW M4X10 | 1 | €0.56 | 1-4 weeks to ship | |
| 911114-9 | PAN HEAD SCREW M4X10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 091 | 231690-0 | TORSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 231690-0 | TORSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 092 | 346550-4 | GUARD | 1 | €1.67 | 1-4 weeks to ship | |
| 346550-4 | GUARD | 1 | €1.67 | 1-4 weeks to ship | ||
| 093 | 911113-1 | PAN HEAD SCREW M4X10 WITH | 2 | €0.56 | 1-4 weeks to ship | |
| 911113-1 | PAN HEAD SCREW M4X10 WITH | 2 | €0.56 | 1-4 weeks to ship | ||
| 094 | 346321-9 | SUB LEVER | 1 | €1.11 | 1-4 weeks to ship | |
| 346321-9 | SUB LEVER | 1 | €1.11 | 1-4 weeks to ship | ||
| 095 | 253215-0 | FLAT WASHER 8 | 1 | €2.09 | 1-4 weeks to ship | |
| 253215-0 | FLAT WASHER 8 | 1 | €2.09 | 1-4 weeks to ship | ||
| 113 | 231325-3 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 231325-3 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 115 | 922344-7 | H.S.H.BOLT M6X25 WITH WG | 3 | €0.42 | 1-4 weeks to ship | |
| 922344-7 | H.S.H.BOLT M6X25 WITH WG | 3 | €0.42 | 1-4 weeks to ship | ||
| 922344-7 | H.S.H.BOLT M6X25 WITH WG | 3 | €0.42 | 1-4 weeks to ship | ||
| 922344-7 | H.S.H.BOLT M6X25 WITH WG | 3 | €0.42 | 1-4 weeks to ship | ||
| 116 | 251887-5 | SCREW M6X10 | 1 | €0.83 | 1-4 weeks to ship | |
| 251887-5 | SCREW M6X10 | 1 | €0.83 | 1-4 weeks to ship | ||
| 117 | 416535-5 | SLEEVE 17 | 1 | €1.11 | 1-4 weeks to ship | |
| 416535-5 | SLEEVE 17 | 1 | €1.11 | 1-4 weeks to ship | ||
| 118 | 231638-2 | TORSION SPRING 28 | 1 | €8.35 | 1-4 weeks to ship | |
| 231638-2 | TORSION SPRING 28 | 1 | €8.35 | 1-4 weeks to ship | ||
| 119 | 416535-5 | SLEEVE 17 | 1 | €1.11 | 1-4 weeks to ship | |
| 416535-5 | SLEEVE 17 | 1 | €1.11 | 1-4 weeks to ship | ||
| 120 | 265790-4 | THUMB SCREW M6X28 | 1 | €0.56 | 1-4 weeks to ship | |
| 265790-4 | THUMB SCREW M6X28 | 1 | €0.56 | 1-4 weeks to ship | ||
| 121 | 231325-3 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 231325-3 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 122 | 257214-4 | RING 26 | 1 | €11.13 | 1-4 weeks to ship | |
| 257214-4 | RING 26 | 1 | €11.13 | 1-4 weeks to ship | ||
| 123 | 318651-8 | PIPE HOLDER | 1 | €8.35 | 1-4 weeks to ship | |
| 318651-8 | PIPE HOLDER | 1 | €8.35 | 1-4 weeks to ship | ||
| 124 | 266208-8 | H.S.SET SCREW(CUP POINT)M6X8 | 2 | €0.56 | 1-4 weeks to ship | |
| 266208-8 | H.S.SET SCREW(CUP POINT)M6X8 | 2 | €0.56 | 1-4 weeks to ship | ||
| 127 | 687045-1 | STRAIN RELIEF | 1 | €2.09 | 1-4 weeks to ship | |
| 687045-1 | STRAIN RELIEF | 1 | €2.09 | 1-4 weeks to ship | ||
| 128 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 266026-4 | TAPPING SCREW BIND CT 4X12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 129 | 911113-1 | PAN HEAD SCREW M4X10 WITH | 1 | €0.56 | 1-4 weeks to ship | |
| 911113-1 | PAN HEAD SCREW M4X10 WITH | 1 | €0.56 | 1-4 weeks to ship | ||
| 130 | 416006-2 | LEVER 100 | 1 | €1.39 | 1-4 weeks to ship | |
| 416006-2 | LEVER 100 | 1 | €1.39 | 1-4 weeks to ship | ||
| 131 | 913106-4 | SET SCREW M4X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 913106-4 | SET SCREW M4X8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 132 | 252144-4 | HEX. NUT M10-17 | 1 | €2.78 | 1-4 weeks to ship | |
| 252144-4 | HEX. NUT M10-17 | 1 | €2.78 | 1-4 weeks to ship | ||
| 133 | 231266-3 | COMPRESSION SPRING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 231266-3 | COMPRESSION SPRING 5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 134 | 253024-7 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 253024-7 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 135 | 286236-7 | CAP 16 | 1 | €0.83 | 1-4 weeks to ship | |
| 286236-7 | CAP 16 | 1 | €0.83 | 1-4 weeks to ship | ||
| 136 | 140609-7 | ARM COMPLETE | 1 | €94.62 | 1-4 weeks to ship | |
| 140609-7 | ARM COMPLETE | 1 | €94.62 | 1-4 weeks to ship | ||
| 137 | 324295-4 | RELEASE PIN | 1 | €2.78 | 1-4 weeks to ship | |
| 324295-4 | RELEASE PIN | 1 | €2.78 | 1-4 weeks to ship | ||
| 138 | 266757-5 | HEX. SOCKET HEAD BOLT M6X16 | 2 | €0.28 | 1-4 weeks to ship | |
| 266757-5 | HEX. SOCKET HEAD BOLT M6X16 | 2 | €0.28 | 1-4 weeks to ship | ||
| 139 | 345299-3 | STOPPER PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 345299-3 | STOPPER PLATE | 1 | €0.56 | 1-4 weeks to ship | ||
| 140 | 253726-5 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 253726-5 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 141 | 231663-3 | TORSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 231663-3 | TORSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 142 | 265113-6 | +PAN HEAD SCREW M5 | 1 | €0.56 | 1-4 weeks to ship | |
| 265113-6 | +PAN HEAD SCREW M5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 143 | 343678-9 | POINTER | 1 | €0.56 | 1-4 weeks to ship | |
| 343678-9 | POINTER | 1 | €0.56 | 1-4 weeks to ship | ||
| 144 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 266026-4 | TAPPING SCREW BIND CT 4X12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 145 | 140608-9 | FRONT ARM COMPLETE | 1 | €69.58 | 1-4 weeks to ship | |
| 140608-9 | FRONT ARM COMPLETE | 1 | €69.58 | 1-4 weeks to ship | ||
| 146 | 344643-1 | STOPPER ARM | 1 | €0.56 | 1-4 weeks to ship | |
| 344643-1 | STOPPER ARM | 1 | €0.56 | 1-4 weeks to ship | ||
| 147 | 253948-7 | WAVE WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 253948-7 | WAVE WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 148 | 253835-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 253835-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 149 | 251267-5 | + PAN HEAD SCREW M6 | 1 | €0.83 | 1-4 weeks to ship | |
| 251267-5 | + PAN HEAD SCREW M6 | 1 | €0.83 | 1-4 weeks to ship | ||
| 150 | 251961-9 | H.S.SET SCREW(FLAT POINT)M6X | 1 | €0.56 | 1-4 weeks to ship | |
| 251961-9 | H.S.SET SCREW(FLAT POINT)M6X | 1 | €0.56 | 1-4 weeks to ship | ||
| 151 | 251961-9 | H.S.SET SCREW(FLAT POINT)M6X | 1 | €0.56 | 1-4 weeks to ship | |
| 251961-9 | H.S.SET SCREW(FLAT POINT)M6X | 1 | €0.56 | 1-4 weeks to ship | ||
| 152 | 271601-3 | KNOB 20 | 1 | €0.56 | 1-4 weeks to ship | |
| 271601-3 | KNOB 20 | 1 | €0.56 | 1-4 weeks to ship | ||
| 153 | 213021-5 | O RING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 213021-5 | O RING 5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 154 | 324183-5 | STOPPER PIN | 1 | €1.11 | 1-4 weeks to ship | |
| 324183-5 | STOPPER PIN | 1 | €1.11 | 1-4 weeks to ship | ||
| 155 | 331350-5 | PIN 16-90 | 1 | €8.35 | 1-4 weeks to ship | |
| 331350-5 | PIN 16-90 | 1 | €8.35 | 1-4 weeks to ship | ||
| 156 | 140610-2 | ARM HOLDER COMPLETE | 1 | €64.01 | 1-4 weeks to ship | |
| 140610-2 | ARM HOLDER COMPLETE | 1 | €64.01 | 1-4 weeks to ship | ||
| 157 | 256123-4 | PIN 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 256123-4 | PIN 5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 158 | 266320-4 | SCREW M10 | 1 | €4.17 | 1-4 weeks to ship | |
| 266320-4 | SCREW M10 | 1 | €4.17 | 1-4 weeks to ship | ||
| 159 | 253024-7 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 253024-7 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 160 | 216413-7 | THRUST NEEDLE CAGE 1024 | 1 | €2.78 | 1-4 weeks to ship | |
| 216413-7 | THRUST NEEDLE CAGE 1024 | 1 | €2.78 | 1-4 weeks to ship | ||
| 161 | 253024-7 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 253024-7 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 162 | 252130-5 | HEX. LOCK NUT M10-17 | 1 | €0.56 | 1-4 weeks to ship | |
| 252130-5 | HEX. LOCK NUT M10-17 | 1 | €0.56 | 1-4 weeks to ship | ||
| 163 | 257214-4 | RING 26 | 1 | €11.13 | 1-4 weeks to ship | |
| 257214-4 | RING 26 | 1 | €11.13 | 1-4 weeks to ship | ||
| 164 | 265790-4 | THUMB SCREW M6X28 | 1 | €0.56 | 1-4 weeks to ship | |
| 265790-4 | THUMB SCREW M6X28 | 1 | €0.56 | 1-4 weeks to ship | ||
| 165 | 252105-4 | HEX. LOCK NUT M8-13 | 1 | €0.56 | 1-4 weeks to ship | |
| 252105-4 | HEX. LOCK NUT M8-13 | 1 | €0.56 | 1-4 weeks to ship | ||
| 166 | 253731-2 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 253731-2 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 167 | 416355-7 | INDICATION PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 416355-7 | INDICATION PLATE | 1 | €0.56 | 1-4 weeks to ship | ||
| 168 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 266026-4 | TAPPING SCREW BIND CT 4X12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 169 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 266026-4 | TAPPING SCREW BIND CT 4X12 | 2 | €0.56 | 1-4 weeks to ship | ||
| 170 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 266026-4 | TAPPING SCREW BIND CT 4X12 | 2 | €0.56 | 1-4 weeks to ship | ||
| 171 | 419103-3 | KERF BOARD | 1 | €1.67 | 1-4 weeks to ship | |
| 419103-3 | KERF BOARD | 1 | €1.67 | 1-4 weeks to ship | ||
| 172 | 419103-3 | KERF BOARD | 1 | €1.67 | 1-4 weeks to ship | |
| 419103-3 | KERF BOARD | 1 | €1.67 | 1-4 weeks to ship | ||
| 173 | 140614-4 | TURN BASE COMPLETE | 1 | €157.52 | 1-4 weeks to ship | |
| 140614-4 | TURN BASE COMPLETE | 1 | €157.52 | 1-4 weeks to ship | ||
| 174 | 922111-0 | HEX. SOCKET HEAD BOLT M4X10 | 1 | €0.56 | 1-4 weeks to ship | |
| 922111-0 | HEX. SOCKET HEAD BOLT M4X10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 175 | 153580-6 | SQUARE ROD COMPLETE | 1 | €11.13 | 1-4 weeks to ship | |
| 153580-6 | SQUARE ROD COMPLETE | 1 | €11.13 | 1-4 weeks to ship | ||
| 176 | 925251-3 | HEX.BOLT M5X30 | 2 | €0.56 | 1-4 weeks to ship | |
| 925251-3 | HEX.BOLT M5X30 | 2 | €0.56 | 1-4 weeks to ship | ||
| 177 | 266034-5 | TAPPING SCREW CT 4X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 266034-5 | TAPPING SCREW CT 4X16 | 2 | €0.56 | 1-4 weeks to ship | ||
| 178 | 344601-7 | LOCK PLATE | 1 | €1.39 | 1-4 weeks to ship | |
| 344601-7 | LOCK PLATE | 1 | €1.39 | 1-4 weeks to ship | ||
| 179 | 317616-7 | PIN HOLDER | 1 | €12.11 | 1-4 weeks to ship | |
| 317616-7 | PIN HOLDER | 1 | €12.11 | 1-4 weeks to ship | ||
| 180 | 256158-5 | PIN 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 256158-5 | PIN 3 | 1 | €0.56 | 1-4 weeks to ship | ||
| 181 | 324288-1 | LOCK PIN | 1 | €4.17 | 1-4 weeks to ship | |
| 324288-1 | LOCK PIN | 1 | €4.17 | 1-4 weeks to ship | ||
| 182 | 231325-3 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 231325-3 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 183 | 324289-9 | ROD 6 | 1 | €1.39 | 1-4 weeks to ship | |
| 324289-9 | ROD 6 | 1 | €1.39 | 1-4 weeks to ship | ||
| 184 | 416450-3 | LOCK LEVER | 1 | €1.67 | 1-4 weeks to ship | |
| 416450-3 | LOCK LEVER | 1 | €1.67 | 1-4 weeks to ship | ||
| 185 | 345272-3 | LOCK LEVER PLATE | 1 | €1.39 | 1-4 weeks to ship | |
| 345272-3 | LOCK LEVER PLATE | 1 | €1.39 | 1-4 weeks to ship | ||
| 186 | 266034-5 | TAPPING SCREW CT 4X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 266034-5 | TAPPING SCREW CT 4X16 | 2 | €0.56 | 1-4 weeks to ship | ||
| 187 | 231418-6 | COMPRESSION SPRING 9 | 1 | €0.56 | 1-4 weeks to ship | |
| 231418-6 | COMPRESSION SPRING 9 | 1 | €0.56 | 1-4 weeks to ship | ||
| 188 | 253731-2 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 253731-2 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 189 | 266432-3 | ADJUST BOLT M8X27 | 1 | €2.78 | 1-4 weeks to ship | |
| 266432-3 | ADJUST BOLT M8X27 | 1 | €2.78 | 1-4 weeks to ship | ||
| 190 | 273658-0 | GRIP 32 | 1 | €13.92 | 1-4 weeks to ship | |
| 273658-0 | GRIP 32 | 1 | €13.92 | 1-4 weeks to ship | ||
| 191 | 286212-1 | CAP 20 | 5 | €0.56 | 1-4 weeks to ship | |
| 286212-1 | CAP 20 | 5 | €0.56 | 1-4 weeks to ship | ||
| 192 | 921472-5 | HEX. BOLT M8X50 | 1 | €0.56 | 1-4 weeks to ship | |
| 921472-5 | HEX. BOLT M8X50 | 1 | €0.56 | 1-4 weeks to ship | ||
| 194 | 140612-8 | BASE COMPLETE | 1 | €95.60 | 1-4 weeks to ship | |
| 140612-8 | BASE COMPLETE | 1 | €95.60 | 1-4 weeks to ship | ||
| 195 | 344646-5 | SLIDE PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 344646-5 | SLIDE PLATE | 1 | €2.78 | 1-4 weeks to ship | ||
| 196 | 344646-5 | SLIDE PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 344646-5 | SLIDE PLATE | 1 | €2.78 | 1-4 weeks to ship | ||
| 197 | 241873-4 | FAN 55 | 1 | €4.17 | 1-4 weeks to ship | |
| 241873-4 | FAN 55 | 1 | €4.17 | 1-4 weeks to ship | ||
