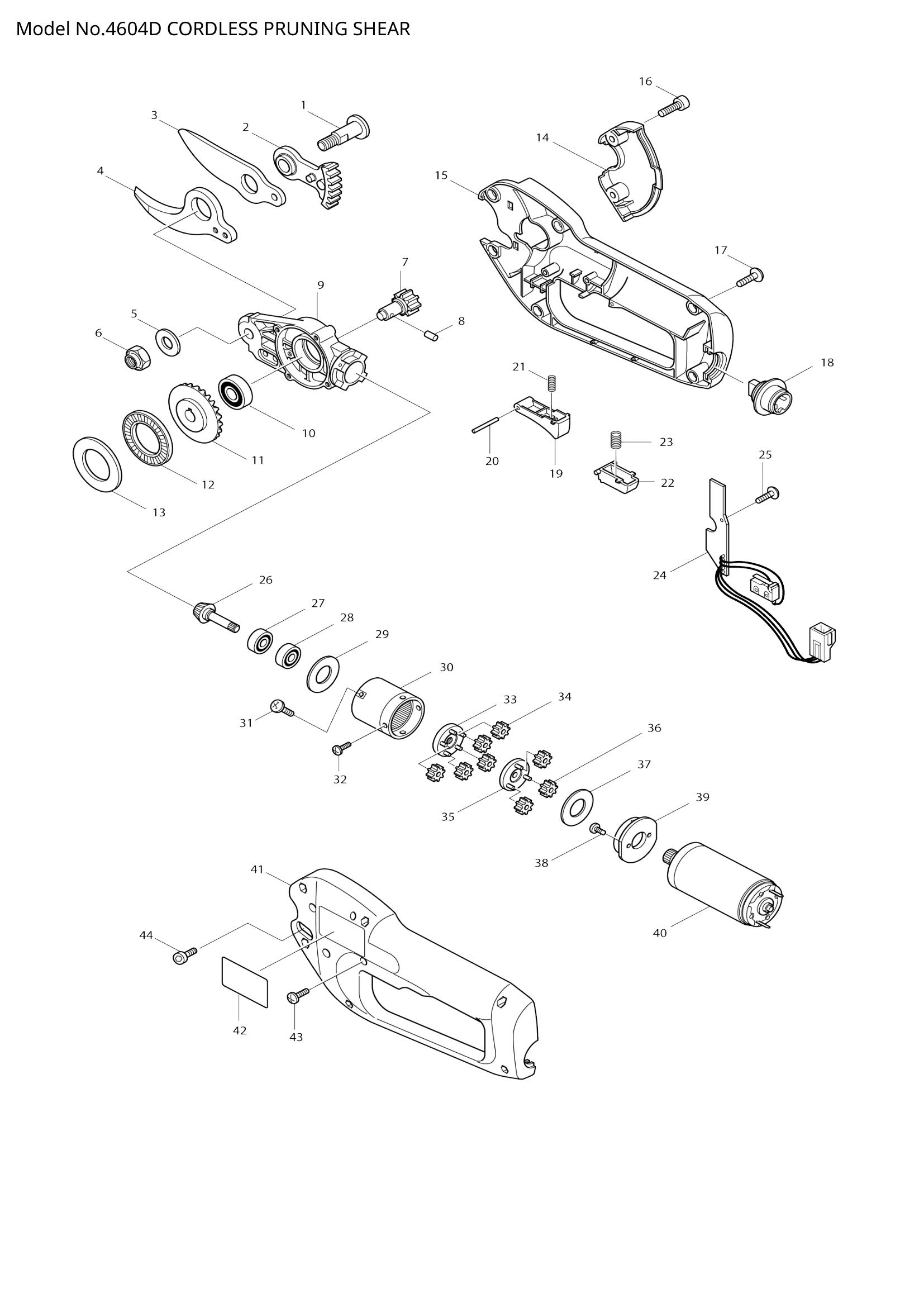

4604D
4604D
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 266230-5 | Round head bolt M8X31 | 1 | €9.74 | 1-4 weeks to ship | |
| 003 | SHEAR BLADE(U) | 1 | Not available in store | |||
| 004 | SHEAR BLADE(L) | 1 | Not available in store | |||
| 005 | 941201-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 941201-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 006 | 252128-2 | HEX.NUT M8-13 | 1 | €2.92 | 1-4 weeks to ship | |
| 007 | 226394-7 | Spur gear 9 | 1 | €18.09 | 1-4 weeks to ship | |
| 008 | 256014-9 | PIN 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 317231-7 | Gear housing | 1 | €65.12 | 1-4 weeks to ship | |
| 010 | 211051-0 | BALL BEARING 609LLB | 1 | €5.57 | 1-4 weeks to ship | |
| 011 | 226785-2 | Zerol bevel gear 45 | 1 | €28.66 | 1-4 weeks to ship | |
| 012 | 216416-1 | Thrust needle cage 2542 | 1 | €5.57 | 1-4 weeks to ship | |
| 013 | 216207-0 | WASHER 2542 | 1 | €4.45 | 1-4 weeks to ship | |
| 014 | 416961-8 | Blade cover (blue) | 1 | €4.45 | 1-4 weeks to ship | |
| 015 | 183142-6 | Housing set (blue) | 1 | €48.42 | 1-4 weeks to ship | |
| 017 | 911028-2 | PAN HEAD SCREW M3X16 | 4 | €0.83 | 1-4 weeks to ship | |
| 019 | 416967-6 | Switch lever | 1 | €2.78 | 1-4 weeks to ship | |
| 020 | 256176-3 | PIN 2.5 | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | 231473-8 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 416966-8 | Lock off lever | 1 | €2.78 | 1-4 weeks to ship | |
| 023 | 233075-6 | COMPRESSION SPRING 6 | 1 | €2.09 | 1-4 weeks to ship | |
| 025 | 911002-0 | Pan head screw M3X6 | 1 | €0.83 | 1-4 weeks to ship | |
| 026 | 226784-4 | Zerol bevel gear 13 | 1 | €21.57 | 1-4 weeks to ship | |
| 027 | 211012-0 | BALL BEARING 606ZZ | 1 | €4.17 | 1-4 weeks to ship | |
| 028 | 211012-0 | BALL BEARING 606ZZ | 1 | €4.17 | 1-4 weeks to ship | |
| 029 | 267198-8 | FLAT WASHER 14 | 1 | €2.78 | 1-4 weeks to ship | |
| 030 | 226392-1 | Internal gear 44 | 1 | €51.21 | 1-4 weeks to ship | |
| 031 | 911002-0 | Pan head screw M3X6 | 4 | €0.83 | 1-4 weeks to ship | |
| 032 | 265954-0 | TAPPING SCREW BIND PT3X8 | 2 | €0.56 | 1-4 weeks to ship | |
| 033 | 151718-7 | SUPPORTER COMPLETE | 1 | €30.47 | 1-4 weeks to ship | |
| 034 | 226386-6 | Spur gear 14 | 5 | €2.78 | 1-4 weeks to ship | |
| 035 | 153269-6 | Spur gear 16 Complete | 1 | €4.45 | 1-4 weeks to ship | |
| 036 | 226386-6 | Spur gear 14 | 3 | €2.78 | 1-4 weeks to ship | |
| 037 | 267198-8 | FLAT WASHER 14 | 1 | €2.78 | 1-4 weeks to ship | |
| 038 | 265078-2 | Pan head screw M2.5X12 | 2 | €0.83 | 1-4 weeks to ship | |
| 039 | 416968-4 | MOTOR HOLDER | 1 | €4.45 | 1-4 weeks to ship | |
| 040 | 629742-3 | DC motor | 1 | €837.82 | 1-4 weeks to ship | |
| 041 | 183142-6 | Housing set (blue) | 1 | €48.42 | 1-4 weeks to ship | |
| 042 | Name plate 4604D | 1 | Not available in store | |||
| 043 | 911018-5 | PAN HEAD SCREW M3X12 | 4 | €0.56 | 1-4 weeks to ship | |
