4603D
4603D

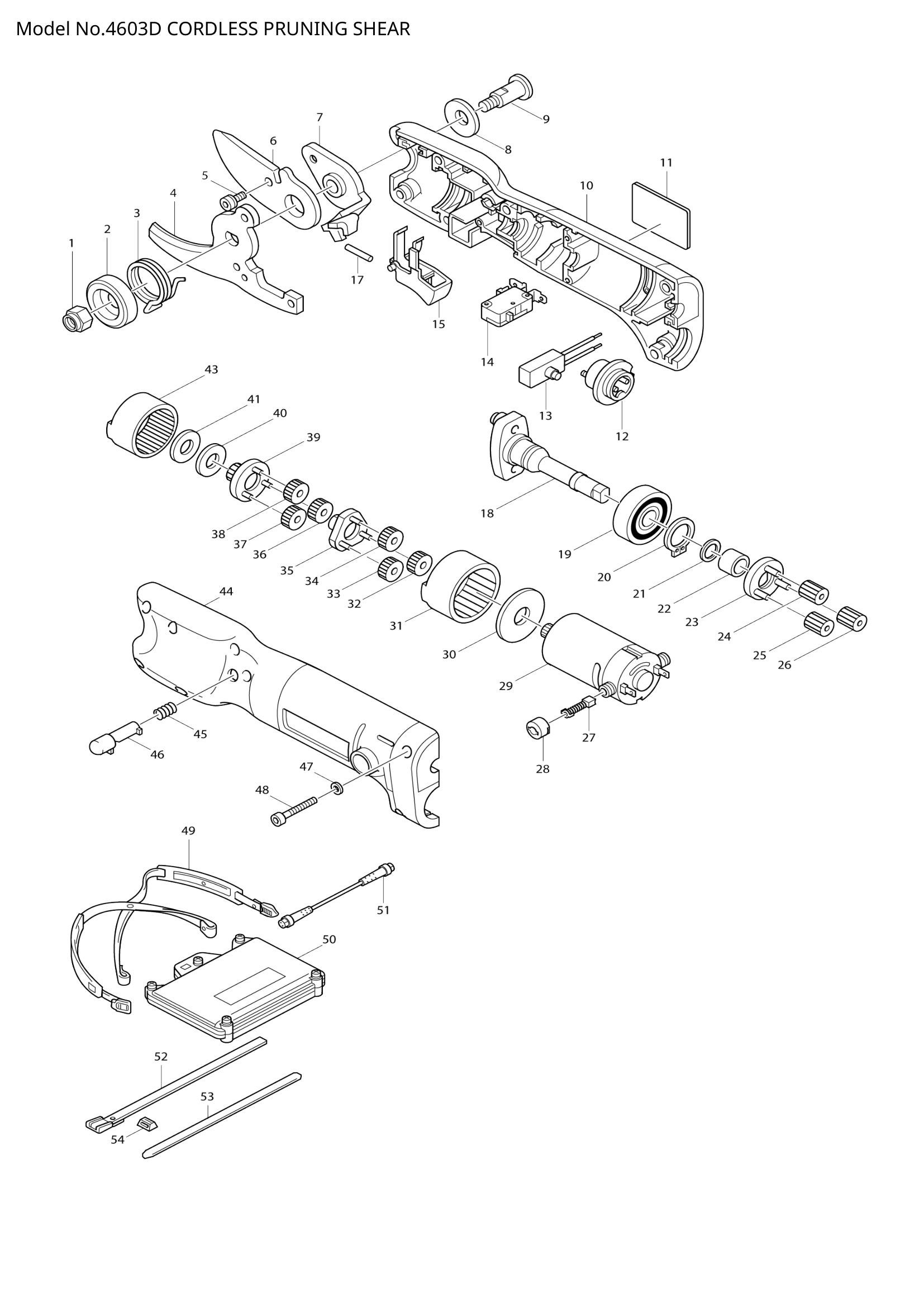

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 252128-2 | HEX.NUT M8-13 | 1 | €2.92 | 1-4 weeks to ship | |
| 006 | 792704-5 | Shear blade U (1 pc) | 1 | €74.72 | 1-4 weeks to ship | |
| 008 | 267052-6 | FLAT WASHER 10 | 1 | €2.78 | 1-4 weeks to ship | |
| 011 | 857002-5 | Name plate 4603D | 1 | €2.09 | 1-4 weeks to ship | |
| 012 | INLET | 1 | Not available in store | |||
| 013 | 652633-3 | Overcurrent relay | 1 | €10.16 | 1-4 weeks to ship | |
| 014 | 651900-3 | SWITCH V-15-1A6 | 1 | €11.13 | 1-4 weeks to ship | |
| 015 | 154378-4 | Switch lever complete | 1 | €9.74 | 1-4 weeks to ship | |
| 020 | 961057-5 | RETAINING RING S-17 | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | 267070-4 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 214056-9 | PLANE BEARING 10 | 1 | €2.78 | 1-4 weeks to ship | |
| 024 | 226232-3 | Spur gear 15 | 1 | €10.44 | 1-4 weeks to ship | |
| 025 | 226232-3 | Spur gear 15 | 1 | €10.44 | 1-4 weeks to ship | |
| 026 | 226232-3 | Spur gear 15 | 1 | €10.44 | 1-4 weeks to ship | |
| 027 | 191949-6 | Carbon brush CB-414 | 1 | €5.57 | 1-4 weeks to ship | |
| 028 | 643919-6 | BRUSH HOLDER CAP | 2 | €4.45 | 1-4 weeks to ship | |
| 030 | 267067-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 031 | 226205-6 | INTERNAL GEAR 67 | 1 | €16.70 | 1-4 weeks to ship | |
| 032 | 226204-8 | SPUR GEAR 28 | 1 | €1.67 | 1-4 weeks to ship | |
| 033 | 226204-8 | SPUR GEAR 28 | 1 | €1.67 | 1-4 weeks to ship | |
| 034 | 226204-8 | SPUR GEAR 28 | 1 | €1.67 | 1-4 weeks to ship | |
| 035 | 153196-7 | SPUR GEAR 11 COMPLETE | 1 | €19.48 | 1-4 weeks to ship | |
| 036 | 226204-8 | SPUR GEAR 28 | 1 | €1.67 | 1-4 weeks to ship | |
| 037 | 226204-8 | SPUR GEAR 28 | 1 | €1.67 | 1-4 weeks to ship | |
| 038 | 226204-8 | SPUR GEAR 28 | 1 | €1.67 | 1-4 weeks to ship | |
| 039 | 153201-0 | Spur gear 9 Complete | 1 | €22.54 | 1-4 weeks to ship | |
| 040 | 253180-3 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 045 | 231393-6 | COMPRESSION SPRING 6 | 1 | €2.09 | 1-4 weeks to ship | |
| 046 | 414464-6 | LOCK-OFF BUTTON | 1 | €2.92 | 1-4 weeks to ship | |
| 049 | 163318-1 | SHOULDER STRAP | 1 | €37.29 | 1-4 weeks to ship | |
| 052 | 163315-7 | WAIST BELT | 1 | €25.60 | 1-4 weeks to ship | |
| 053 | 444015-1 | ADJUST BELT | 1 | €8.91 | 1-4 weeks to ship | |
| 054 | 414755-5 | SQUARE RING | 1 | €4.45 | 1-4 weeks to ship | |
