DKP181
DKP181

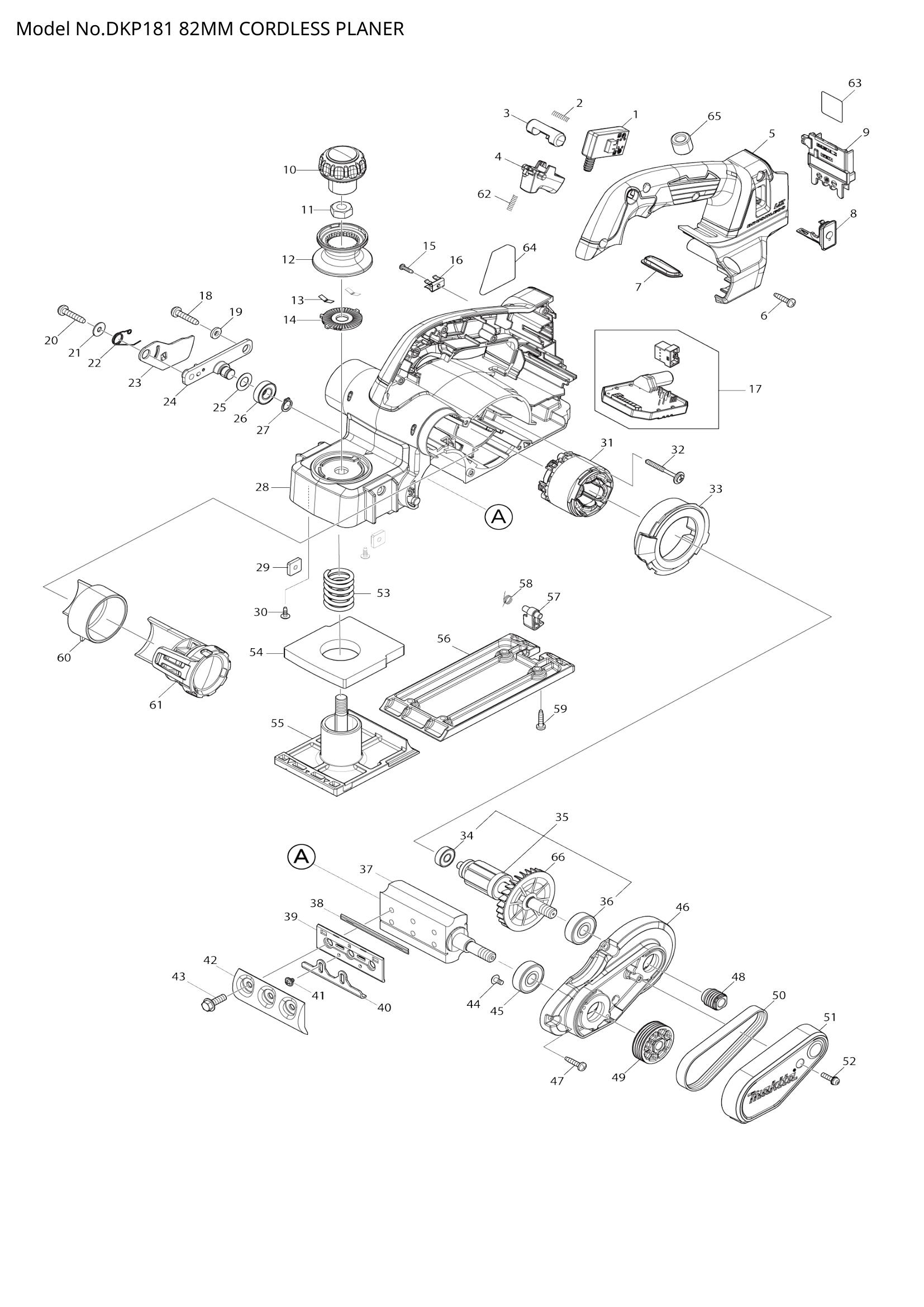

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | |
| 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | ||
| 002 | 231433-0 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 003 | 419704-7 | LOCK OFF BUTTON | 1 | €1.11 | 1-4 weeks to ship | |
| 004 | SWITCH LEVER | 1 | Not available in store | |||
| 006 | 265995-6 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | |
| 007 | 142948-1 | INDICATION PLATE COMPLETE | 1 | €1.11 | 1-4 weeks to ship | |
| 008 | CAP COMPLETE | 1 | Not available in store | |||
| 009 | 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | |
| 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | ||
| 010 | 451328-3 | KNOB COVER | 1 | €1.67 | 1-4 weeks to ship | |
| 011 | HEX. NUT M10 | 1 | Not available in store | |||
| 012 | KNOB | 1 | Not available in store | |||
| 013 | 232185-6 | LEAF SPRING | 2 | €2.78 | 1-4 weeks to ship | |
| 014 | CAM PLATE | 1 | Not available in store | |||
| 015 | 266556-5 | TAPPING SCREW 3X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | LEAF SPRING | 1 | Not available in store | |||
| 018 | 266041-8 | TAPPING SCREW 5X25 | 1 | €0.56 | 1-4 weeks to ship | |
| 019 | 267012-8 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 020 | 266041-8 | TAPPING SCREW 5X25 | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | 253194-2 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 233521-9 | TORSION SPRING 10 | 1 | €1.11 | 1-4 weeks to ship | |
| 023 | 345765-0 | DRUM COVER | 1 | €2.78 | 1-4 weeks to ship | |
| 025 | 253758-2 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 026 | 210057-5 | BALL BEARING 6900LLB | 1 | €8.35 | 1-4 weeks to ship | |
| 027 | 961006-2 | RETAINING RING S-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 029 | 264002-2 | SQUARE NUT M5 | 2 | €0.56 | 1-4 weeks to ship | |
| 030 | TAPPING SCREW 3X10 | 2 | Not available in store | |||
| 032 | TAPPING SCREW 4X40 | 2 | Not available in store | |||
| 033 | BAFFLE PLATE | 1 | Not available in store | |||
| 034 | 210034-7 | BALL BEARING 607LLB | 1 | €1.39 | 1-4 weeks to ship | |
| 035 | 519590-7 | ROTOR ASS'Y | 1 | €24.80 | 1-4 weeks to ship | |
| 036 | 211087-9 | BALL BEARING 6200DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 037 | 158156-4 | DRUM COMPLETE | 1 | €58.44 | 1-4 weeks to ship | |
| 039 | 343433-9 | SET PLATE F/MINI BLADE | 2 | €4.17 | 1-4 weeks to ship | |
| 040 | 345644-2 | ADJUST PLATE | 2 | €0.74 | 1-4 weeks to ship | |
| 041 | 251246-3 | + PAN HEAD SCREW M4X5 | 4 | €0.56 | 1-4 weeks to ship | |
| 042 | 187676-1 | DRUM PLATE SET | 1 | €13.92 | 1-4 weeks to ship | |
| 043 | 251609-3 | HEX. FLANGE HEAD BOLT M6X17 | 6 | €0.56 | 1-4 weeks to ship | |
| 044 | 251291-8 | + TRUSS HEAD SCREW M4X8 | 2 | €0.56 | 1-4 weeks to ship | |
| 045 | 211087-9 | BALL BEARING 6200DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 046 | BRACKET COMPLETE | 1 | Not available in store | |||
| 047 | 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 048 | V-PULLEY 4-17L | 1 | Not available in store | |||
| 049 | V-PULLEY 4-39.5 | 1 | Not available in store | |||
| 050 | 225071-8 | POLY V-BELT 4-241 | 1 | €11.13 | 1-4 weeks to ship | |
| 051 | BELT COVER | 1 | Not available in store | |||
| 052 | 911133-5 | PAN HEAD SCREW M4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 054 | RUBBER PACKING | 1 | Not available in store | |||
| 055 | FRONT BASE | 1 | Not available in store | |||
| 058 | 231698-4 | TORSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 059 | 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 060 | NOZZLE | 1 | Not available in store | |||
| 061 | 125353-7 | DUCT ASS'Y | 1 | €5.57 | 1-4 weeks to ship | |
| 062 | 231433-0 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 063 | DKP181 SERIAL NO. LABEL | 1 | Not available in store | |||
| 064 | DKP181 NAME PLATE | 1 | Not available in store | |||
| 066 | 240079-1 | FAN 62 | 1 | €2.78 | 1-4 weeks to ship | |
| 067 | CONTROLLER B S | 1 | Not available in store | |||
| 068 | PAN HEAD SCREW M2X6 S | 6 | Not available in store | |||
