DKP180
DKP180

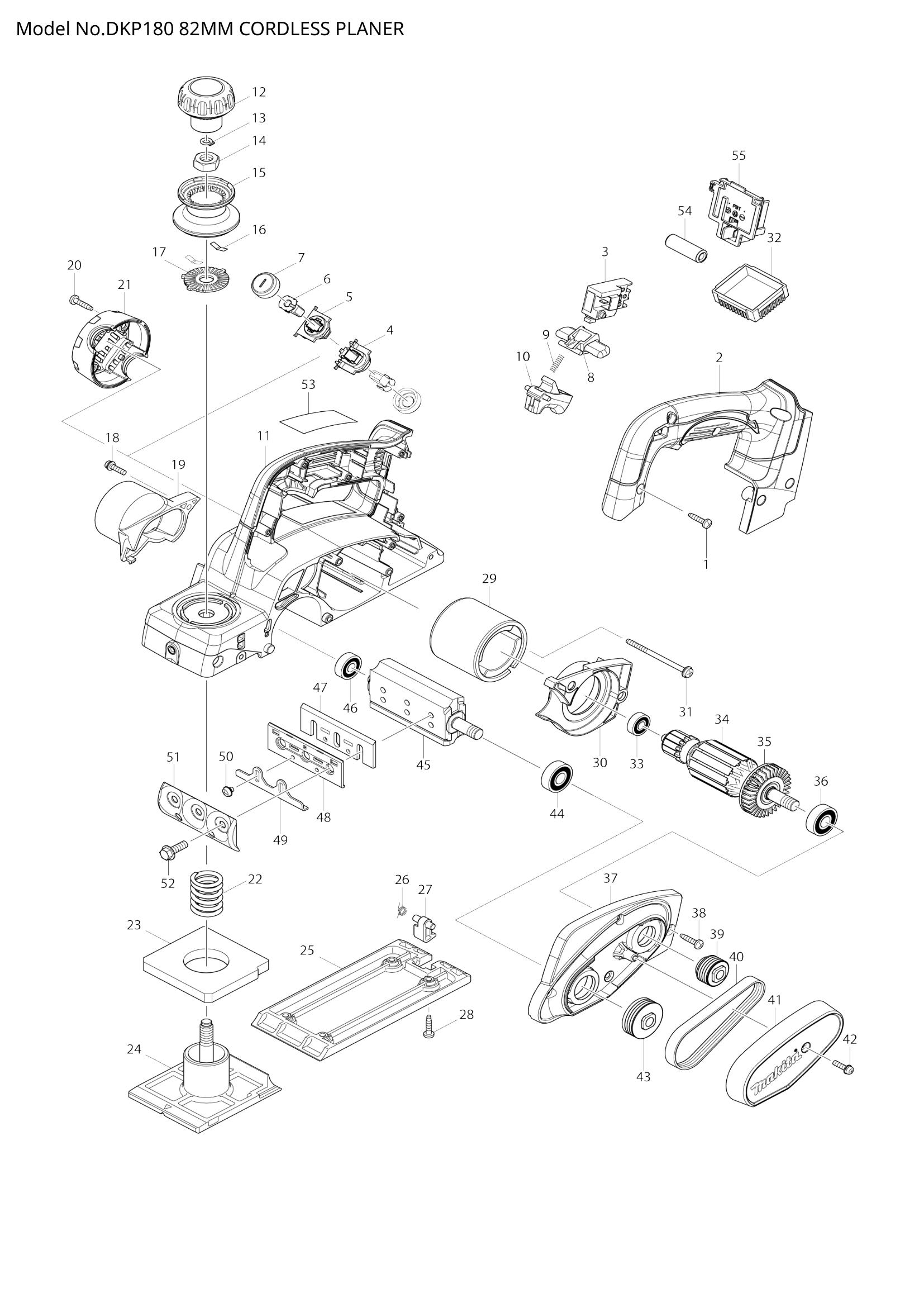

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 266326-2 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | |
| 002 | 140905-3 | HANDLE COVER COMPLETE | 1 | €9.60 | 1-4 weeks to ship | |
| 003 | 650631-1 | SWITCH | 1 | €19.48 | 1-4 weeks to ship | |
| 004 | 643872-6 | BRUSH HOLDER | 1 | €1.39 | 1-4 weeks to ship | |
| 005 | 643873-4 | BRUSH HOLDER | 1 | €1.39 | 1-4 weeks to ship | |
| 007 | 643829-7 | HOLDER CAP | 2 | €0.56 | 1-4 weeks to ship | |
| 008 | 419664-3 | LOCK OFF LEVER | 1 | €0.83 | 1-4 weeks to ship | |
| 010 | 419665-1 | SWITCH LEVER | 1 | €0.83 | 1-4 weeks to ship | |
| 011 | 140904-5 | MAIN FRAME COMPLETE | 1 | €30.75 | 1-4 weeks to ship | |
| 012 | 451328-3 | KNOB COVER | 1 | €1.67 | 1-4 weeks to ship | |
| 013 | 961004-6 | RETAINING RING (EXT) S-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | 264028-4 | HEX. NUT M10 | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | 232185-6 | LEAF SPRING | 2 | €2.78 | 1-4 weeks to ship | |
| 018 | 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 019 | NOZZLE | 1 | Not available in store | |||
| 020 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 021 | 419281-9 | REAR COVER | 1 | €4.17 | 1-4 weeks to ship | |
| 023 | 421007-7 | RUBBER PACKING | 1 | €0.97 | 1-4 weeks to ship | |
| 024 | 319011-7 | FRONT BASE | 1 | €17.53 | 1-4 weeks to ship | |
| 025 | 319009-4 | BASE | 1 | €10.99 | 1-4 weeks to ship | |
| 026 | 231698-4 | TORSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 029 | 638571-3 | YOKE UNIT | 1 | €13.92 | 1-4 weeks to ship | |
| 030 | 452479-5 | BAFFLE PLATE | 1 | €1.11 | 1-4 weeks to ship | |
| 033 | 210017-7 | BALL BEARING 607DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 034 | 519272-1 | ARMATURE ASS'Y DC18V | 1 | €22.82 | 1-4 weeks to ship | |
| 035 | 240052-1 | FAN 46 | 1 | €4.17 | 1-4 weeks to ship | |
| 036 | 211088-7 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 037 | 140753-0 | BRACKET COMPLETE | 1 | €11.13 | 1-4 weeks to ship | |
| 038 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 039 | 222172-3 | V-PULLEY 4-24L | 1 | €1.39 | 1-4 weeks to ship | |
| 040 | 225007-7 | POLY V-BELT 4-241 | 1 | €8.35 | 1-4 weeks to ship | |
| 041 | 452478-7 | BELT COVER | 1 | €2.78 | 1-4 weeks to ship | |
| 043 | 222173-1 | V-PULLEY 4-33.5 | 1 | €2.78 | 1-4 weeks to ship | |
| 044 | 211088-7 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 045 | 161061-6 | DRUM | 1 | €27.83 | 1-4 weeks to ship | |
| 046 | 211032-4 | BALL BEARING 608ZZ | 1 | €1.67 | 1-4 weeks to ship | |
| 048 | 343433-9 | SET PLATE F/MINI BLADE | 2 | €4.17 | 1-4 weeks to ship | |
| 050 | 265132-2 | + PAN HEAD SCREW M4X5 | 4 | €0.56 | 1-4 weeks to ship | |
| 051 | 187679-5 | DRUM PLATE SET | 1 | €11.13 | 1-4 weeks to ship | |
| 052 | 251609-3 | HEX. FLANGE HEAD BOLT M6X17 | 6 | €0.56 | 1-4 weeks to ship | |
| 053 | DKP180 NAME PLATE | 1 | Not available in store | |||
| 054 | 688165-4 | LINE FILTER | 1 | €0.56 | 1-4 weeks to ship | |
| 055 | 644808-8 | TERMINAL | 1 | €4.17 | 1-4 weeks to ship | |
