DJV185
DJV185

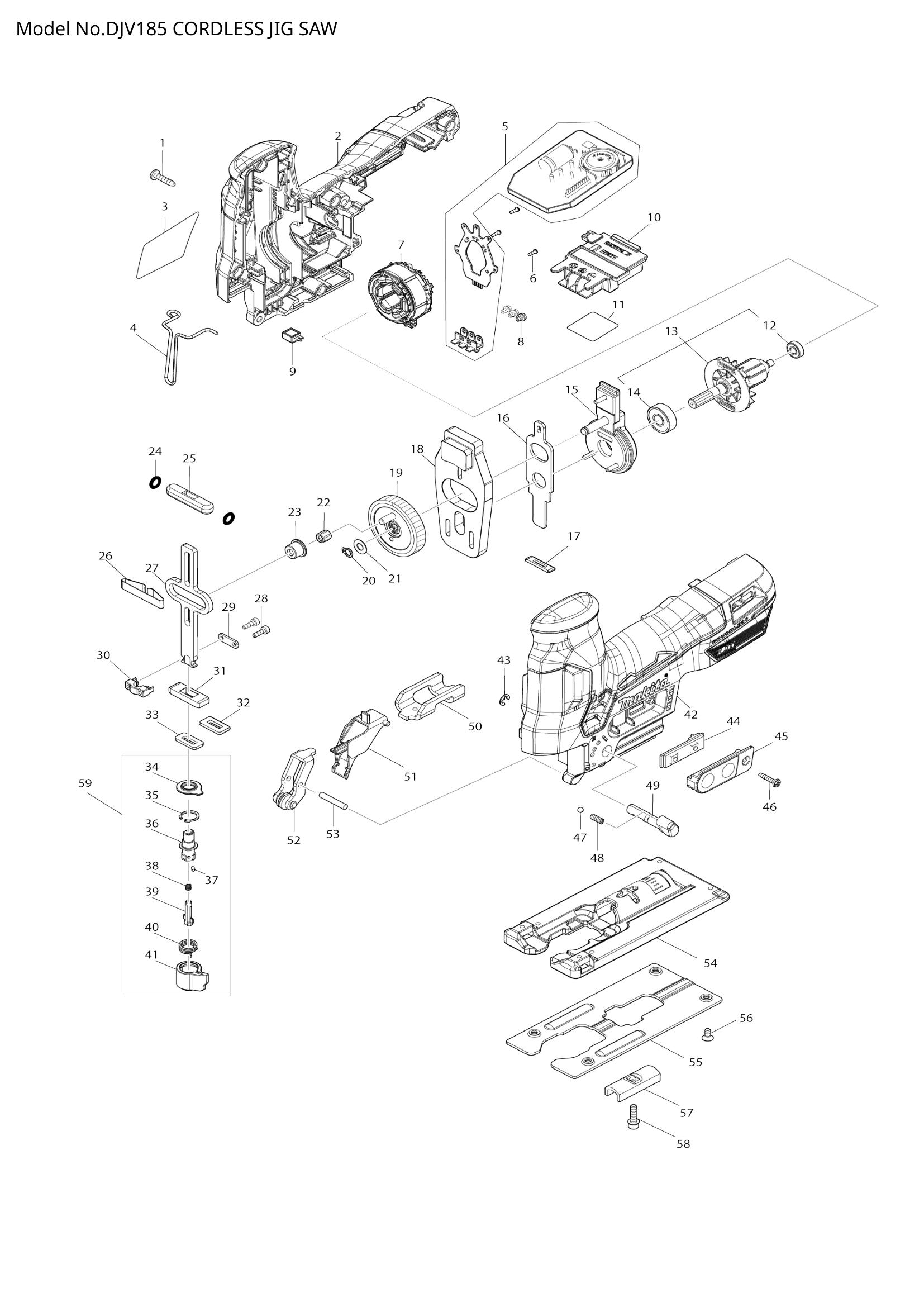

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 266326-2 | TAPPING SCREW 4X18 | 9 | €0.56 | 1-4 weeks to ship | |
| 002 | HOUSING SET | 1 | Not available in store | |||
| 003 | DJV185 NAME PLATE | 1 | Not available in store | |||
| 004 | 323748-0 | SAFETY WIRE | 1 | €0.56 | 1-4 weeks to ship | |
| 005 | CONTROLLER | 1 | Not available in store | |||
| 006 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 007 | STATOR | 1 | Not available in store | |||
| 008 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 009 | 620712-5 | LED CIRCUIT | 1 | €5.86 | 1-4 weeks to ship | |
| 620712-5 | LED CIRCUIT | 1 | €5.86 | 1-4 weeks to ship | ||
| 010 | 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | |
| 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | ||
| 011 | DJV185 SERIAL NO. LABEL | 1 | Not available in store | |||
| 012 | BALL BEARING 695DDW | 1 | Not available in store | |||
| 013 | ROTOR ASSEMBLY | 1 | Not available in store | |||
| 014 | 210005-4 | BALL BEARING 608DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 015 | 144820-3 | BEARING CASE COMPLETE | 1 | €10.44 | 1-4 weeks to ship | |
| 016 | 347249-4 | PUSH PLATE | 1 | €0.97 | 1-4 weeks to ship | |
| 017 | 416703-0 | DUST SEAL | 1 | €0.56 | 1-4 weeks to ship | |
| 018 | 310812-6 | BALANCE PLATE | 1 | €8.27 | 1-4 weeks to ship | |
| 019 | GEAR COMPLETE | 1 | Not available in store | |||
| 020 | 961002-0 | RETAINING RING S-6 | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | 253715-0 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | NEEDLE CAGE 508 | 1 | Not available in store | |||
| 023 | SHOULDER SLEEVE 8 | 1 | Not available in store | |||
| 024 | 213038-8 | O RING 5 | 2 | €0.56 | 1-4 weeks to ship | |
| 025 | 313082-6 | SLIDER GUIDE | 1 | €1.11 | 1-4 weeks to ship | |
| 026 | 232183-0 | LEAF SPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | SLIDER | 1 | Not available in store | |||
| 028 | 266177-3 | HEX. SOCKET HEAD BOLT M3X10 | 2 | €0.56 | 1-4 weeks to ship | |
| 029 | 347247-8 | PLATE | 1 | €0.13 | 1-4 weeks to ship | |
| 030 | 310811-8 | BLADE CLAMP | 1 | €4.13 | 1-4 weeks to ship | |
| 031 | 313086-8 | SLIDER SUPPORT | 1 | €0.56 | 1-4 weeks to ship | |
| 032 | 344686-3 | SEAL PLATE | 1 | €0.83 | 1-4 weeks to ship | |
| 033 | 423307-1 | POLYURETHANE SPONGE SEAL | 1 | €0.56 | 1-4 weeks to ship | |
| 034 | 424437-1 | DUST COVER | 1 | €0.29 | 1-4 weeks to ship | |
| 035 | 962063-3 | RETAINING RING R-13 | 1 | €0.42 | 1-4 weeks to ship | |
| 036 | 310810-0 | BLADE GUIDE | 1 | €5.40 | 1-4 weeks to ship | |
| 037 | 256528-8 | PIN 2 | 1 | €0.14 | 1-4 weeks to ship | |
| 038 | 233314-4 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 039 | 310485-5 | LOCK PIN | 1 | €3.76 | 1-4 weeks to ship | |
| 040 | 233591-8 | TORSION SPRING 10 | 1 | €0.14 | 1-4 weeks to ship | |
| 041 | INSERT HOLDER | 1 | Not available in store | |||
| 042 | HOUSING SET | 1 | Not available in store | |||
| 043 | 961011-9 | STOP RING E-4 | 1 | €0.56 | 1-4 weeks to ship | |
| 044 | SWITCH UNIT | 1 | Not available in store | |||
| 045 | 144628-5 | SWITCH PLATE COMPLETE | 1 | €1.89 | 1-4 weeks to ship | |
| 046 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 047 | 216008-6 | STEEL BALL 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 048 | 233151-6 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 050 | 347251-7 | HOLDER | 1 | €0.77 | 1-4 weeks to ship | |
| 051 | 457866-3 | RETAINER GUIDE | 1 | €0.50 | 1-4 weeks to ship | |
| 457866-3 | RETAINER GUIDE | 1 | €0.50 | 1-4 weeks to ship | ||
| 052 | 144629-3 | RETAINER COMPLETE | 1 | €6.50 | 1-4 weeks to ship | |
| 053 | 256206-0 | PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 054 | BASE | 1 | Not available in store | |||
| 055 | 345441-6 | BASE PLATE | 1 | €1.67 | 1-4 weeks to ship | |
| 056 | 912107-9 | COUNTERSUNK HEAD SCREW M4 | 4 | €0.56 | 1-4 weeks to ship | |
| 912107-9 | COUNTERSUNK HEAD SCREW M4 | 4 | €0.56 | 1-4 weeks to ship | ||
| 057 | 344685-5 | CLAMP PLATE | 1 | €1.11 | 1-4 weeks to ship | |
| 058 | 922128-3 | HEX. SOCKET HEAD BOLT M4X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 059 | 135941-2 | BLADE GUIDE ASS'Y | 1 | €18.09 | 1-4 weeks to ship | |
