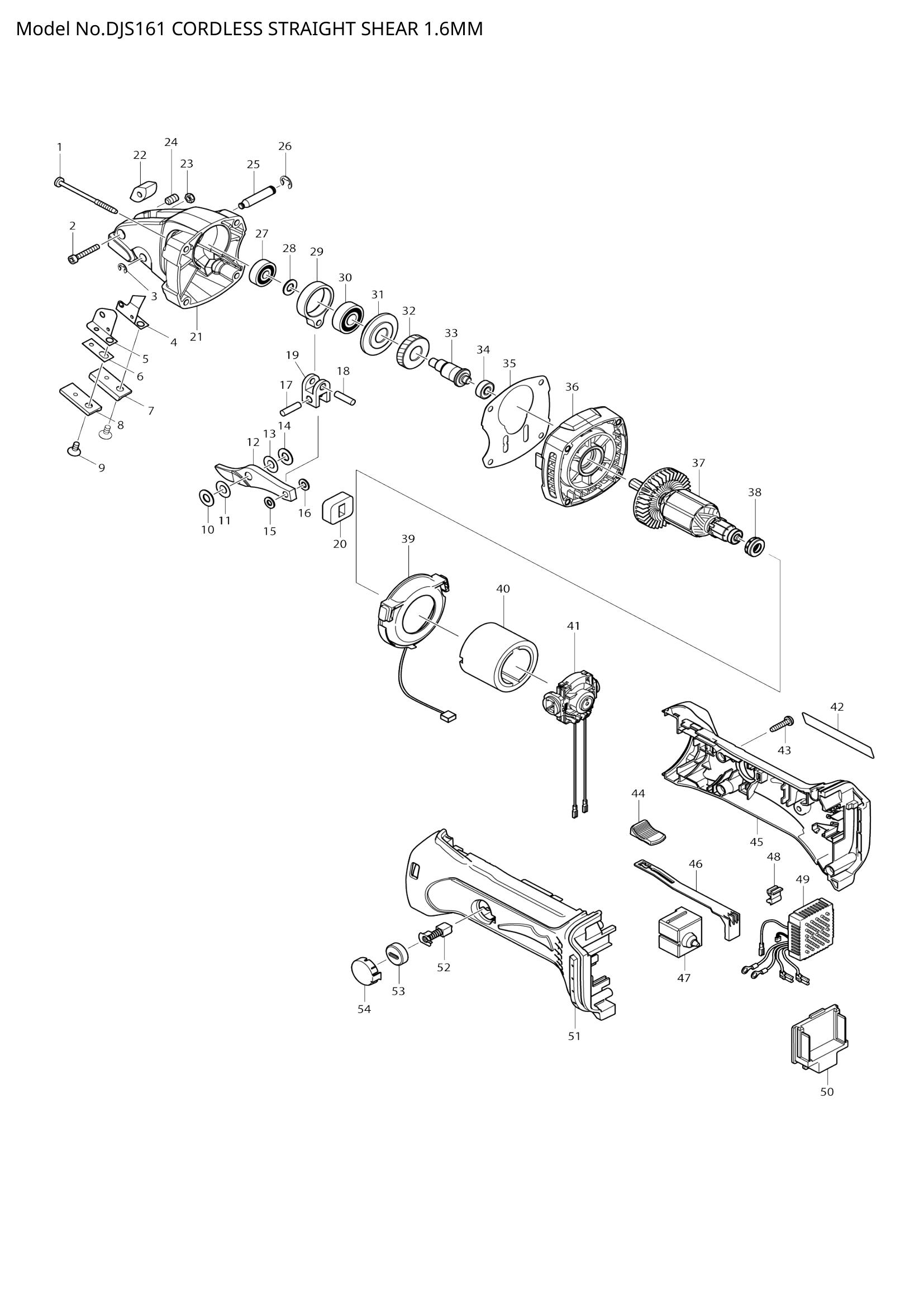

DJS161
DJS161
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 266091-3 | TAPPING SCREW 4X50 | 4 | €0.56 | 1-4 weeks to ship | |
| 266091-3 | TAPPING SCREW 4X50 | 4 | €0.56 | 1-4 weeks to ship | ||
| 002 | 922147-9 | HEX. SOCKET HEAD BOLT M4X25 | 1 | €0.56 | 1-4 weeks to ship | |
| 922147-9 | HEX. SOCKET HEAD BOLT M4X25 | 1 | €0.56 | 1-4 weeks to ship | ||
| 003 | 961011-9 | STOP RING E-4 | 1 | €0.56 | 1-4 weeks to ship | |
| 961011-9 | STOP RING E-4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 004 | 346131-4 | SLIP PLATE R | 1 | €4.17 | 1-4 weeks to ship | |
| 346131-4 | SLIP PLATE R | 1 | €4.17 | 1-4 weeks to ship | ||
| 005 | 343480-0 | SLIP PLATE L | 1 | €1.67 | 1-4 weeks to ship | |
| 343480-0 | SLIP PLATE L | 1 | €1.67 | 1-4 weeks to ship | ||
| 006 | 343481-8 | SPACER | 1 | €0.56 | 1-4 weeks to ship | |
| 343481-8 | SPACER | 1 | €0.56 | 1-4 weeks to ship | ||
| 007 | SIDE BLADE SET | 1 | Not available in store | |||
| SIDE BLADE SET | 1 | Not available in store | ||||
| 009 | 251951-2 | HEX. SOCKET C.S.H. SCREW M5X1 | 2 | €0.56 | 1-4 weeks to ship | |
| 251951-2 | HEX. SOCKET C.S.H. SCREW M5X1 | 2 | €0.56 | 1-4 weeks to ship | ||
| 011 | 253338-4 | THIN WASHER 7 | 1 | €1.11 | 1-4 weeks to ship | |
| 253338-4 | THIN WASHER 7 | 1 | €1.11 | 1-4 weeks to ship | ||
| 012 | CENTER BLADE | 1 | Not available in store | |||
| CENTER BLADE | 1 | Not available in store | ||||
| 013 | 253338-4 | THIN WASHER 7 | 1 | €1.11 | 1-4 weeks to ship | |
| 253338-4 | THIN WASHER 7 | 1 | €1.11 | 1-4 weeks to ship | ||
| 015 | 267010-2 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 267010-2 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 016 | 267010-2 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 267010-2 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 017 | 256155-1 | PIN 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 256155-1 | PIN 5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 018 | 256155-1 | PIN 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 256155-1 | PIN 5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 019 | 331329-6 | LINK | 1 | €16.70 | 1-4 weeks to ship | |
| 331329-6 | LINK | 1 | €16.70 | 1-4 weeks to ship | ||
| 020 | 423118-4 | DUST COVER | 1 | €0.56 | 1-4 weeks to ship | |
| 423118-4 | DUST COVER | 1 | €0.56 | 1-4 weeks to ship | ||
| 022 | 325727-4 | BLOCK | 1 | €11.13 | 1-4 weeks to ship | |
| 325727-4 | BLOCK | 1 | €11.13 | 1-4 weeks to ship | ||
| 023 | 252083-8 | HEX. LOCK NUT M4-7 | 1 | €0.56 | 1-4 weeks to ship | |
| 252083-8 | HEX. LOCK NUT M4-7 | 1 | €0.56 | 1-4 weeks to ship | ||
| 024 | 266085-8 | H.S.SET SCREW(FLAT POINT)M6X | 1 | €0.56 | 1-4 weeks to ship | |
| 266085-8 | H.S.SET SCREW(FLAT POINT)M6X | 1 | €0.56 | 1-4 weeks to ship | ||
| 025 | 256733-7 | PIN 7 | 1 | €2.78 | 1-4 weeks to ship | |
| 256733-7 | PIN 7 | 1 | €2.78 | 1-4 weeks to ship | ||
| 026 | 961012-7 | STOP RING E-6 | 1 | €0.56 | 1-4 weeks to ship | |
| 961012-7 | STOP RING E-6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 027 | 210023-2 | BALL BEARING 627DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 210023-2 | BALL BEARING 627DDW | 1 | €2.78 | 1-4 weeks to ship | ||
| 028 | 253133-2 | FLAT WASHER 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 253133-2 | FLAT WASHER 7 | 1 | €0.56 | 1-4 weeks to ship | ||
| 029 | 331273-7 | ROD | 1 | €16.70 | 1-4 weeks to ship | |
| 331273-7 | ROD | 1 | €16.70 | 1-4 weeks to ship | ||
| 030 | 210067-2 | BALL BEARING 6000ZZ | 1 | €2.78 | 1-4 weeks to ship | |
| 210067-2 | BALL BEARING 6000ZZ | 1 | €2.78 | 1-4 weeks to ship | ||
| 031 | 325716-9 | SEALING SCREW | 1 | €19.48 | 1-4 weeks to ship | |
| 325716-9 | SEALING SCREW | 1 | €19.48 | 1-4 weeks to ship | ||
| 032 | 227716-4 | HELICAL GEAR 34 | 1 | €16.70 | 1-4 weeks to ship | |
| 227716-4 | HELICAL GEAR 34 | 1 | €16.70 | 1-4 weeks to ship | ||
| 033 | 325715-1 | CRANK SHAFT | 1 | €41.75 | 1-4 weeks to ship | |
| 325715-1 | CRANK SHAFT | 1 | €41.75 | 1-4 weeks to ship | ||
| 034 | 210033-9 | BALL BEARING 696ZZ | 1 | €1.11 | 1-4 weeks to ship | |
| 210033-9 | BALL BEARING 696ZZ | 1 | €1.11 | 1-4 weeks to ship | ||
| 035 | 442150-9 | GASKET | 1 | €1.67 | 1-4 weeks to ship | |
| 442150-9 | GASKET | 1 | €1.67 | 1-4 weeks to ship | ||
| 036 | 140131-4 | GEAR HOUSING COMPLETE | 1 | €16.70 | 1-4 weeks to ship | |
| 140131-4 | GEAR HOUSING COMPLETE | 1 | €16.70 | 1-4 weeks to ship | ||
| 037 | 619249-7 | ARMATURE | 1 | €58.44 | 1-4 weeks to ship | |
| 619249-7 | ARMATURE | 1 | €58.44 | 1-4 weeks to ship | ||
| 038 | 421977-0 | RUBBER RING 13 | 1 | €0.83 | 1-4 weeks to ship | |
| 421977-0 | RUBBER RING 13 | 1 | €0.83 | 1-4 weeks to ship | ||
| 039 | 631714-6 | LED CIRCUIT | 1 | €11.13 | 1-4 weeks to ship | |
| 631714-6 | LED CIRCUIT | 1 | €11.13 | 1-4 weeks to ship | ||
| 040 | 638627-2 | YOKE UNIT | 1 | €19.48 | 1-4 weeks to ship | |
| 638627-2 | YOKE UNIT | 1 | €19.48 | 1-4 weeks to ship | ||
| 041 | 638921-2 | ENDBELL COMPLETE | 1 | €4.17 | 1-4 weeks to ship | |
| 638921-2 | ENDBELL COMPLETE | 1 | €4.17 | 1-4 weeks to ship | ||
| 042 | DJS161 NAME PLATE | 1 | Not available in store | |||
| DJS161 NAME PLATE | 1 | Not available in store | ||||
| 044 | 419566-3 | SWITCH KNOB | 1 | €0.56 | 1-4 weeks to ship | |
| 419566-3 | SWITCH KNOB | 1 | €0.56 | 1-4 weeks to ship | ||
| 045 | 187839-9 | HOUSING SET | 1 | €18.09 | 1-4 weeks to ship | |
| 187839-9 | HOUSING SET | 1 | €18.09 | 1-4 weeks to ship | ||
| 046 | 419519-2 | SWITCH LEVER | 1 | €0.56 | 1-4 weeks to ship | |
| 419519-2 | SWITCH LEVER | 1 | €0.56 | 1-4 weeks to ship | ||
| 048 | 424026-2 | CUSHION | 1 | €4.17 | 1-4 weeks to ship | |
| 424026-2 | CUSHION | 1 | €4.17 | 1-4 weeks to ship | ||
| 049 | 620243-4 | CONTROLLER | 1 | €44.53 | 1-4 weeks to ship | |
| 620243-4 | CONTROLLER | 1 | €44.53 | 1-4 weeks to ship | ||
| 620243-4 | CONTROLLER | 1 | €44.53 | 1-4 weeks to ship | ||
| 620243-4 | CONTROLLER | 1 | €44.53 | 1-4 weeks to ship | ||
| 050 | 644808-8 | TERMINAL | 1 | €4.17 | 1-4 weeks to ship | |
| 644808-8 | TERMINAL | 1 | €4.17 | 1-4 weeks to ship | ||
| 051 | 187839-9 | HOUSING SET | 1 | €18.09 | 1-4 weeks to ship | |
| 187839-9 | HOUSING SET | 1 | €18.09 | 1-4 weeks to ship | ||
| 052 | 191971-3 | CARBON BRUSH CB-430 | 1 | €2.78 | 1-4 weeks to ship | |
| 191971-3 | CARBON BRUSH CB-430 | 1 | €2.78 | 1-4 weeks to ship | ||
| 053 | 643929-3 | BRUSH HOLDER CAP | 2 | €0.56 | 1-4 weeks to ship | |
| 643929-3 | BRUSH HOLDER CAP | 2 | €0.56 | 1-4 weeks to ship | ||
| 054 | 419518-4 | HOLDER CAP COVER | 2 | €0.56 | 1-4 weeks to ship | |
| 419518-4 | HOLDER CAP COVER | 2 | €0.56 | 1-4 weeks to ship | ||
