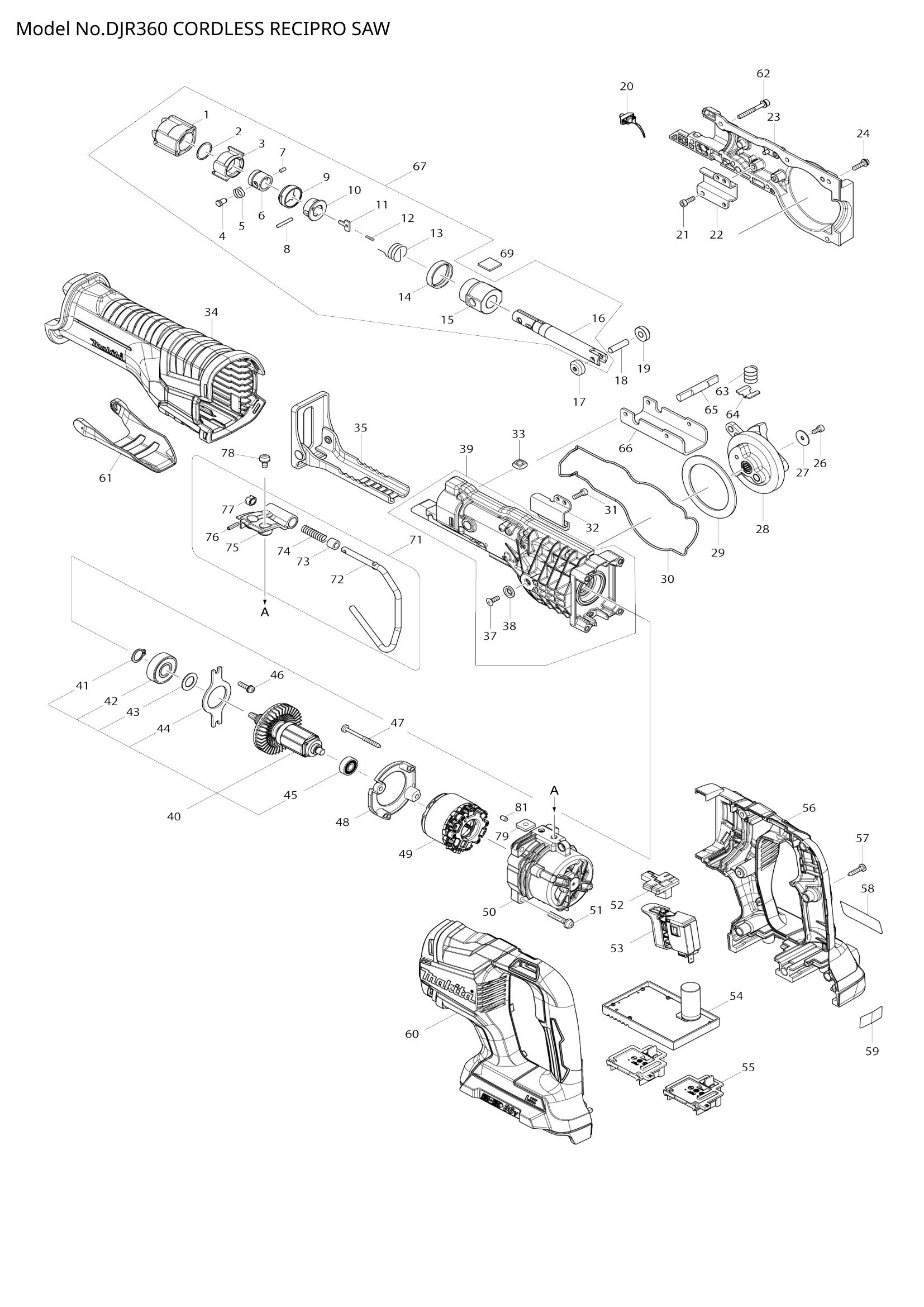

DJR360
DJR360
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 424763-8 | PROTECTOR | 1 | €0.56 | 1-4 weeks to ship | |
| 003 | 310662-9 | DRIVING SLEEVE | 1 | €8.35 | 1-4 weeks to ship | |
| 004 | 256569-4 | SHOULDER PIN 5 | 1 | €0.70 | 1-4 weeks to ship | |
| 005 | 234381-2 | COMPRESSION SPRING 6 | 1 | €0.14 | 1-4 weeks to ship | |
| 007 | 268094-3 | PIN 3 | 1 | €2.78 | 1-4 weeks to ship | |
| 008 | 256158-5 | PIN 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 417791-0 | DRIVING SLEEVE GUIDE | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | 418311-3 | SLEEVE | 1 | €0.56 | 1-4 weeks to ship | |
| 011 | 345214-7 | PUSH PLATE | 1 | €1.11 | 1-4 weeks to ship | |
| 012 | 233025-1 | COMPRESSION SPRING 2 | 1 | €0.56 | 1-4 weeks to ship | |
| 013 | 231687-9 | TORSION SPRING 17 | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | 424762-0 | RUBBER RING | 1 | €0.28 | 1-4 weeks to ship | |
| 015 | 144012-4 | SLIDER GUIDE COMPLETE | 1 | €12.66 | 1-4 weeks to ship | |
| 016 | 161376-1 | SLIDER | 1 | €15.17 | 1-4 weeks to ship | |
| 017 | 310663-7 | ROLLER | 1 | €0.28 | 1-4 weeks to ship | |
| 018 | 268341-2 | PIN 6 | 1 | €0.28 | 1-4 weeks to ship | |
| 019 | 310663-7 | ROLLER | 1 | €0.28 | 1-4 weeks to ship | |
| 020 | 620434-7 | LED CIRCUIT | 1 | €6.26 | 1-4 weeks to ship | |
| 620434-7 | LED CIRCUIT | 1 | €6.26 | 1-4 weeks to ship | ||
| 022 | 346936-2 | ROD GUIDE R | 1 | €0.83 | 1-4 weeks to ship | |
| 023 | 143362-4 | GEAR HOUSING R COMPLETE | 1 | €16.00 | 1-4 weeks to ship | |
| 024 | 911128-8 | P.H.SCREW M4X16 WITH WR | 5 | €0.56 | 1-4 weeks to ship | |
| 911128-8 | P.H.SCREW M4X16 WITH WR | 5 | €0.56 | 1-4 weeks to ship | ||
| 027 | 267491-0 | FLAT WASHER 4 | 1 | €0.14 | 1-4 weeks to ship | |
| 029 | 267490-2 | FLAT WASHER 54 | 1 | €1.81 | 1-4 weeks to ship | |
| 030 | 424764-6 | SEAL RING | 1 | €0.70 | 1-4 weeks to ship | |
| 032 | 346935-4 | ROD GUIDE L | 1 | €0.83 | 1-4 weeks to ship | |
| 034 | 424767-0 | INSULATION COVER B | 1 | €18.79 | 1-4 weeks to ship | |
| 038 | 253825-3 | FLAT WASHER 6 | 1 | €0.28 | 1-4 weeks to ship | |
| 041 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 043 | 253744-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 044 | 285740-3 | BEARING RETAINER 66 | 1 | €0.70 | 1-4 weeks to ship | |
| 045 | 210062-2 | BALL BEARING 607ZZ | 1 | €0.83 | 1-4 weeks to ship | |
| 046 | 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | €0.56 | 1-4 weeks to ship | |
| 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | €0.56 | 1-4 weeks to ship | ||
| 048 | 456178-1 | BAFFLE PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 456178-1 | BAFFLE PLATE | 1 | €0.56 | 1-4 weeks to ship | ||
| 051 | 911243-8 | PAN HEAD SCREW M5X25 | 4 | €0.56 | 1-4 weeks to ship | |
| 052 | 456177-3 | CHANGE BUTTON | 1 | €2.09 | 1-4 weeks to ship | |
| 456177-3 | CHANGE BUTTON | 1 | €2.09 | 1-4 weeks to ship | ||
| 053 | 650759-5 | SWITCH C3JW-6B-2 | 1 | €20.18 | 1-4 weeks to ship | |
| 650759-5 | SWITCH C3JW-6B-2 | 1 | €20.18 | 1-4 weeks to ship | ||
| 054 | 620455-9 | CONTROLLER A | 1 | €117.44 | 1-4 weeks to ship | |
| 620455-9 | CONTROLLER A | 1 | €117.44 | 1-4 weeks to ship | ||
| 055 | 644808-8 | TERMINAL | 2 | €4.17 | 1-4 weeks to ship | |
| 056 | 183C50-9 | HANDLE SET | 1 | €33.81 | 1-4 weeks to ship | |
| 057 | 266326-2 | TAPPING SCREW 4X18 | 7 | €0.56 | 1-4 weeks to ship | |
| 058 | DJR360 NAME PLATE | 1 | Not available in store | |||
| 060 | 183C50-9 | HANDLE SET | 1 | €33.81 | 1-4 weeks to ship | |
| 061 | 456176-5 | LOCK LEVER | 1 | €1.39 | 1-4 weeks to ship | |
| 456176-5 | LOCK LEVER | 1 | €1.39 | 1-4 weeks to ship | ||
| 062 | 266979-7 | HEX.SOCKET HEAD BOLT M4X35 | 2 | €0.14 | 1-4 weeks to ship | |
| 063 | 231231-2 | COMPRESSION SPRING 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 064 | 346938-8 | SHOE LOCK PLATE | 1 | €0.28 | 1-4 weeks to ship | |
| 065 | 326599-0 | LOCK PIN | 1 | €3.48 | 1-4 weeks to ship | |
| 066 | 346937-0 | SHOE GUIDE PLATE | 1 | €1.81 | 1-4 weeks to ship | |
| 069 | 424902-0 | FELT 16X16 | 1 | €0.14 | 1-4 weeks to ship | |
| 071 | 123456-1 | HOOK ASSEMBLY | 1 | €7.51 | 1-4 weeks to ship | |
| 072 | 281223-1 | HOOK | 1 | €2.37 | 1-4 weeks to ship | |
| 073 | 262561-0 | SLEEVE 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 074 | 233455-6 | COMPRESSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 075 | 319345-8 | JOINT | 1 | €4.17 | 1-4 weeks to ship | |
| 076 | 951057-3 | SPRING PIN 3-12 | 1 | €0.28 | 1-4 weeks to ship | |
| 951057-3 | SPRING PIN 3-12 | 1 | €0.28 | 1-4 weeks to ship | ||
| 077 | 310661-1 | LOCK SLEEVE | 1 | €0.14 | 1-4 weeks to ship | |
| 078 | 911206-4 | PAN HEAD SCREW M5X10 | 2 | €0.56 | 1-4 weeks to ship | |
| 079 | 264002-2 | SQUARE NUT M5 | 2 | €0.56 | 1-4 weeks to ship | |
| 081 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 082 | CONTROLLER B S | 1 | Not available in store | |||
| 083 | LEAD UNIT S | 1 | Not available in store | |||
| 084 | PAN HEAD SCREW M2X6 S | 6 | Not available in store | |||
