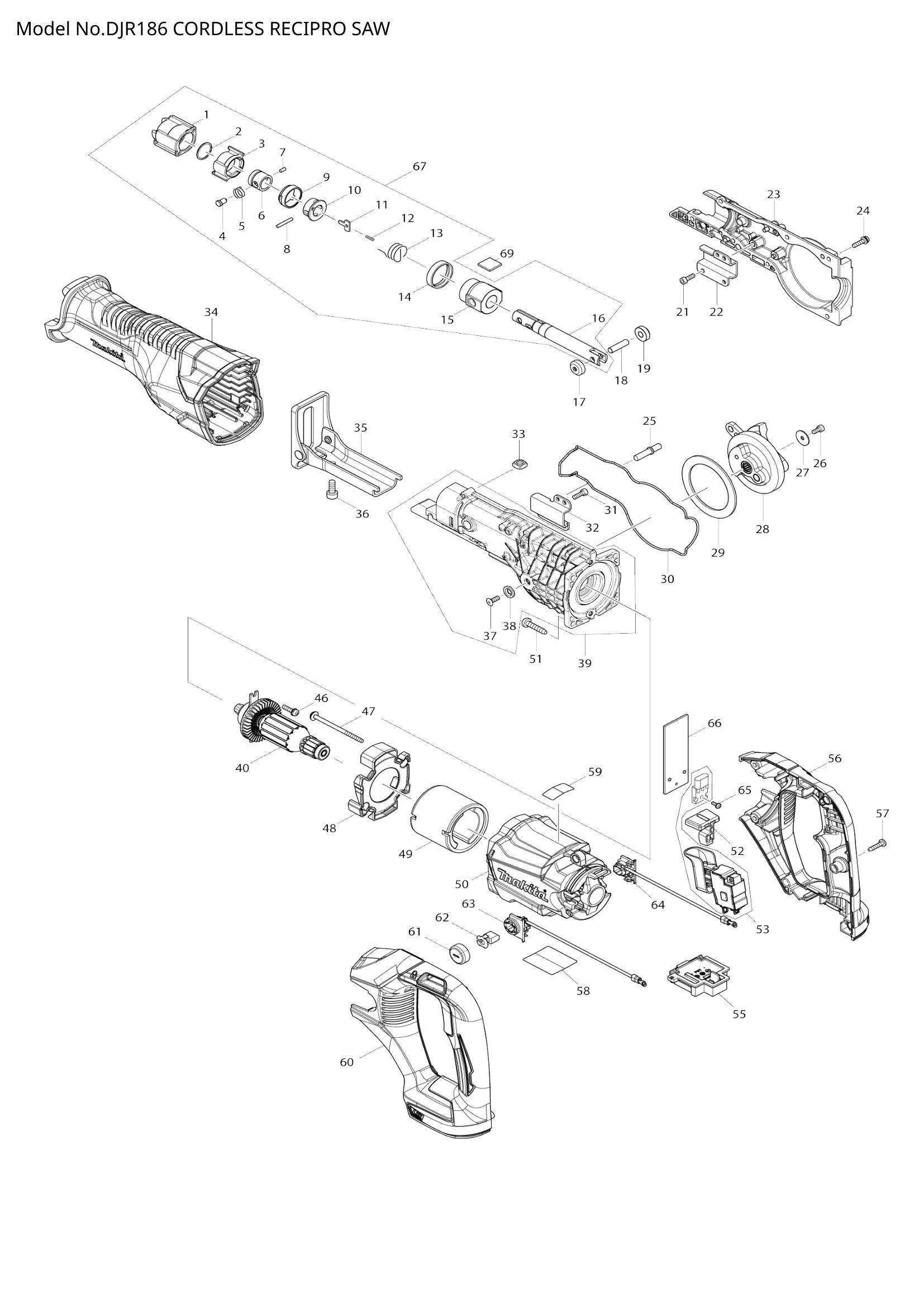

DJR186
DJR186
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 424763-8 | PROTECTOR | 1 | €0.56 | 1-4 weeks to ship | |
| 003 | 310662-9 | DRIVING SLEEVE | 1 | €8.35 | 1-4 weeks to ship | |
| 004 | 256569-4 | SHOULDER PIN 5 | 1 | €0.70 | 1-4 weeks to ship | |
| 005 | 234381-2 | COMPRESSION SPRING 6 | 1 | €0.14 | 1-4 weeks to ship | |
| 007 | 268094-3 | PIN 3 | 1 | €2.78 | 1-4 weeks to ship | |
| 008 | 256158-5 | PIN 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 417791-0 | DRIVING SLEEVE GUIDE | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | 418311-3 | SLEEVE | 1 | €0.56 | 1-4 weeks to ship | |
| 011 | 345214-7 | PUSH PLATE | 1 | €1.11 | 1-4 weeks to ship | |
| 012 | 233025-1 | COMPRESSION SPRING 2 | 1 | €0.56 | 1-4 weeks to ship | |
| 013 | 231687-9 | TORSION SPRING 17 | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | 424762-0 | RUBBER RING | 1 | €0.28 | 1-4 weeks to ship | |
| 015 | 143365-8 | SLIDER GUIDE COMPLETE | 1 | €12.11 | 1-4 weeks to ship | |
| 016 | 161376-1 | SLIDER | 1 | €15.17 | 1-4 weeks to ship | |
| 017 | 310663-7 | ROLLER | 1 | €0.28 | 1-4 weeks to ship | |
| 018 | 268341-2 | PIN 6 | 1 | €0.28 | 1-4 weeks to ship | |
| 019 | 310663-7 | ROLLER | 1 | €0.28 | 1-4 weeks to ship | |
| 022 | 346936-2 | ROD GUIDE R | 1 | €0.83 | 1-4 weeks to ship | |
| 023 | 143381-0 | GEAR HOUSING R COMPLETE | 1 | €15.03 | 1-4 weeks to ship | |
| 024 | 911128-8 | P.H.SCREW M4X16 WITH WR | 7 | €0.56 | 1-4 weeks to ship | |
| 911128-8 | P.H.SCREW M4X16 WITH WR | 7 | €0.56 | 1-4 weeks to ship | ||
| 025 | 256567-8 | SHOULDER PIN 6-8 | 1 | €0.70 | 1-4 weeks to ship | |
| 027 | 267491-0 | FLAT WASHER 4 | 1 | €0.14 | 1-4 weeks to ship | |
| 029 | 267490-2 | FLAT WASHER 54 | 1 | €1.81 | 1-4 weeks to ship | |
| 030 | 424764-6 | SEAL RING | 1 | €0.70 | 1-4 weeks to ship | |
| 032 | 346935-4 | ROD GUIDE L | 1 | €0.83 | 1-4 weeks to ship | |
| 033 | 252157-5 | SQUARE NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 034 | 424768-8 | INSULATION COVER | 1 | €17.67 | 1-4 weeks to ship | |
| 036 | 265531-8 | HEX.SOCKET HEAD BOLT M6X14 | 1 | €0.56 | 1-4 weeks to ship | |
| 038 | 253825-3 | FLAT WASHER 6 | 1 | €0.28 | 1-4 weeks to ship | |
| 046 | 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | €0.56 | 1-4 weeks to ship | |
| 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | €0.56 | 1-4 weeks to ship | ||
| 047 | 266292-3 | TAPPING SCREW 4X65 | 2 | €1.11 | 1-4 weeks to ship | |
| 048 | 456207-0 | BAFFLE PLATE | 1 | €0.70 | 1-4 weeks to ship | |
| 456207-0 | BAFFLE PLATE | 1 | €0.70 | 1-4 weeks to ship | ||
| 049 | 638571-3 | YOKE UNIT | 1 | €13.92 | 1-4 weeks to ship | |
| 050 | 456206-2 | MOTOR HOUSING | 1 | €7.65 | 1-4 weeks to ship | |
| 456206-2 | MOTOR HOUSING | 1 | €7.65 | 1-4 weeks to ship | ||
| 051 | 266041-8 | TAPPING SCREW 5X25 | 4 | €0.56 | 1-4 weeks to ship | |
| 052 | 456208-8 | LOCK OFF BUTTON | 1 | €0.70 | 1-4 weeks to ship | |
| 456208-8 | LOCK OFF BUTTON | 1 | €0.70 | 1-4 weeks to ship | ||
| 057 | 266326-2 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | |
| 058 | DJR186 NAME PLATE | 1 | Not available in store | |||
| 061 | 643829-7 | HOLDER CAP | 2 | €0.56 | 1-4 weeks to ship | |
| 063 | 643507-9 | BRUSH HOLDER | 1 | €1.95 | 1-4 weeks to ship | |
| 643507-9 | BRUSH HOLDER | 1 | €1.95 | 1-4 weeks to ship | ||
| 064 | 643508-7 | BRUSH HOLDER | 1 | €1.95 | 1-4 weeks to ship | |
| 643508-7 | BRUSH HOLDER | 1 | €1.95 | 1-4 weeks to ship | ||
| 065 | 911011-9 | PAN HEAD SCREW M3X10 | 1 | €0.56 | 1-4 weeks to ship | |
| 066 | 689204-3 | HEAT SINK | 1 | €0.70 | 1-4 weeks to ship | |
| 689204-3 | HEAT SINK | 1 | €0.70 | 1-4 weeks to ship | ||
| 069 | 424858-7 | FELT 16X16 | 1 | €0.14 | 1-4 weeks to ship | |
