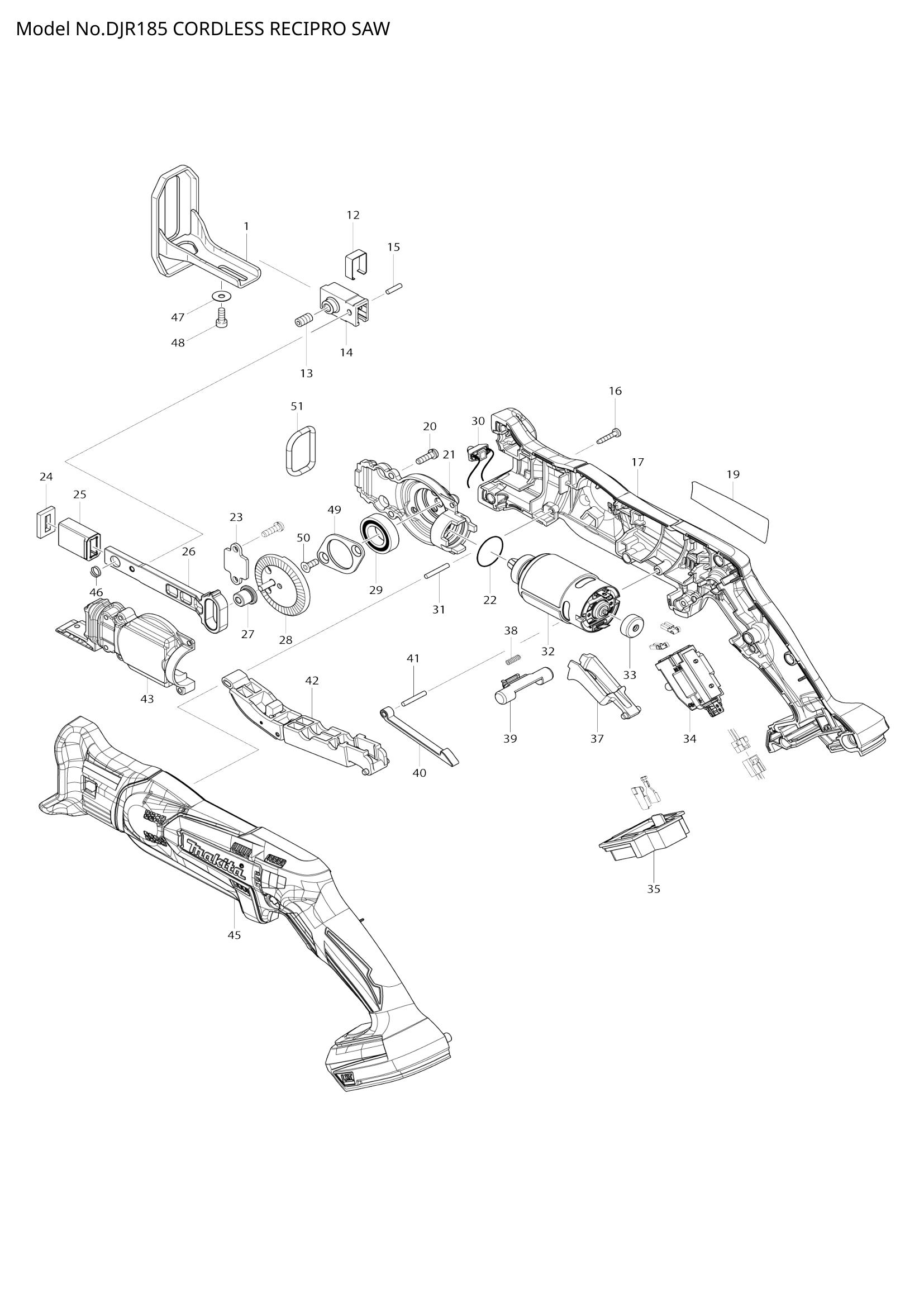

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 165740-8 | SHOE | 1 | €4.04 | 1-4 weeks to ship | |
| 012 | 346526-1 | CLAMPER | 1 | €0.83 | 1-4 weeks to ship | |
| 013 | 251961-9 | H.S.SET SCREW(FLAT POINT)M6X | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | PIN 3 | 1 | Not available in store | |||
| 016 | 266429-2 | TAPPING SCREW 3X16 | 10 | €0.56 | 1-4 weeks to ship | |
| 017 | 187760-2 | HOUSING SET | 1 | €16.70 | 1-4 weeks to ship | |
| 019 | DJR185 NAME PLATE | 1 | Not available in store | |||
| 020 | 266747-8 | PAN HEAD SCREW M4X14 WITH | 5 | €0.14 | 1-4 weeks to ship | |
| 021 | 319060-4 | GEAR HOUSING | 1 | €6.54 | 1-4 weeks to ship | |
| 022 | 213961-7 | O RING 22 | 1 | €0.56 | 1-4 weeks to ship | |
| 023 | 346525-3 | PLATE | 1 | €0.28 | 1-4 weeks to ship | |
| 024 | 443185-3 | FELT SEAL | 1 | €0.28 | 1-4 weeks to ship | |
| 025 | 313220-0 | SLIDER GUIDE | 1 | €1.95 | 1-4 weeks to ship | |
| 026 | 313269-0 | SLIDER N | 1 | €4.87 | 1-4 weeks to ship | |
| 027 | 313270-5 | COLLARED SLEEVE 4 | 1 | €1.25 | 1-4 weeks to ship | |
| 029 | 211242-3 | BALL BEARING 6902ZZ | 1 | €1.67 | 1-4 weeks to ship | |
| 030 | 620237-9 | LED CIRCUIT | 1 | €4.59 | 1-4 weeks to ship | |
| 620237-9 | LED CIRCUIT | 1 | €4.59 | 1-4 weeks to ship | ||
| 031 | 256158-5 | PIN 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 033 | 424467-2 | CAP | 1 | €0.42 | 1-4 weeks to ship | |
| 034 | 650712-1 | SWITCH C3HY-1A-PRLMS | 1 | €28.66 | 1-4 weeks to ship | |
| 650712-1 | SWITCH C3HY-1A-PRLMS | 1 | €28.66 | 1-4 weeks to ship | ||
| 035 | 643852-2 | TERMINAL | 1 | €4.17 | 1-4 weeks to ship | |
| 643852-2 | TERMINAL | 1 | €4.17 | 1-4 weeks to ship | ||
| 037 | 453072-8 | SWITCH LEVER R | 1 | €0.70 | 1-4 weeks to ship | |
| 038 | 233438-6 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 039 | 454661-2 | LOCK OFF LEVER R | 1 | €1.39 | 1-4 weeks to ship | |
| 454661-2 | LOCK OFF LEVER R | 1 | €1.39 | 1-4 weeks to ship | ||
| 040 | 313219-5 | LINK | 1 | €1.25 | 1-4 weeks to ship | |
| 041 | 256158-5 | PIN 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 042 | 141128-6 | SWITCH LEVER F COMPLETE | 1 | €3.06 | 1-4 weeks to ship | |
| 043 | 319061-2 | GEAR HOUSING COVER | 1 | €5.29 | 1-4 weeks to ship | |
| 045 | 187760-2 | HOUSING SET | 1 | €16.70 | 1-4 weeks to ship | |
| 046 | 234258-1 | COMPRESSION SPRING 7 | 1 | €0.14 | 1-4 weeks to ship | |
| 047 | 253874-0 | FLAT WASHER 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 048 | 922112-8 | HEX. SOCKET HEAD BOLT M4X10 | 1 | €0.56 | 1-4 weeks to ship | |
| 049 | 285738-0 | BEARING RETAINER 36 | 1 | €0.56 | 1-4 weeks to ship | |
| 050 | 265035-0 | COUNTERSUNK HEAD SCREW M4 | 2 | €0.56 | 1-4 weeks to ship | |
| 051 | 424597-9 | RUBBER RING 23 | 1 | €0.42 | 1-4 weeks to ship | |
