DHS900
DHS900

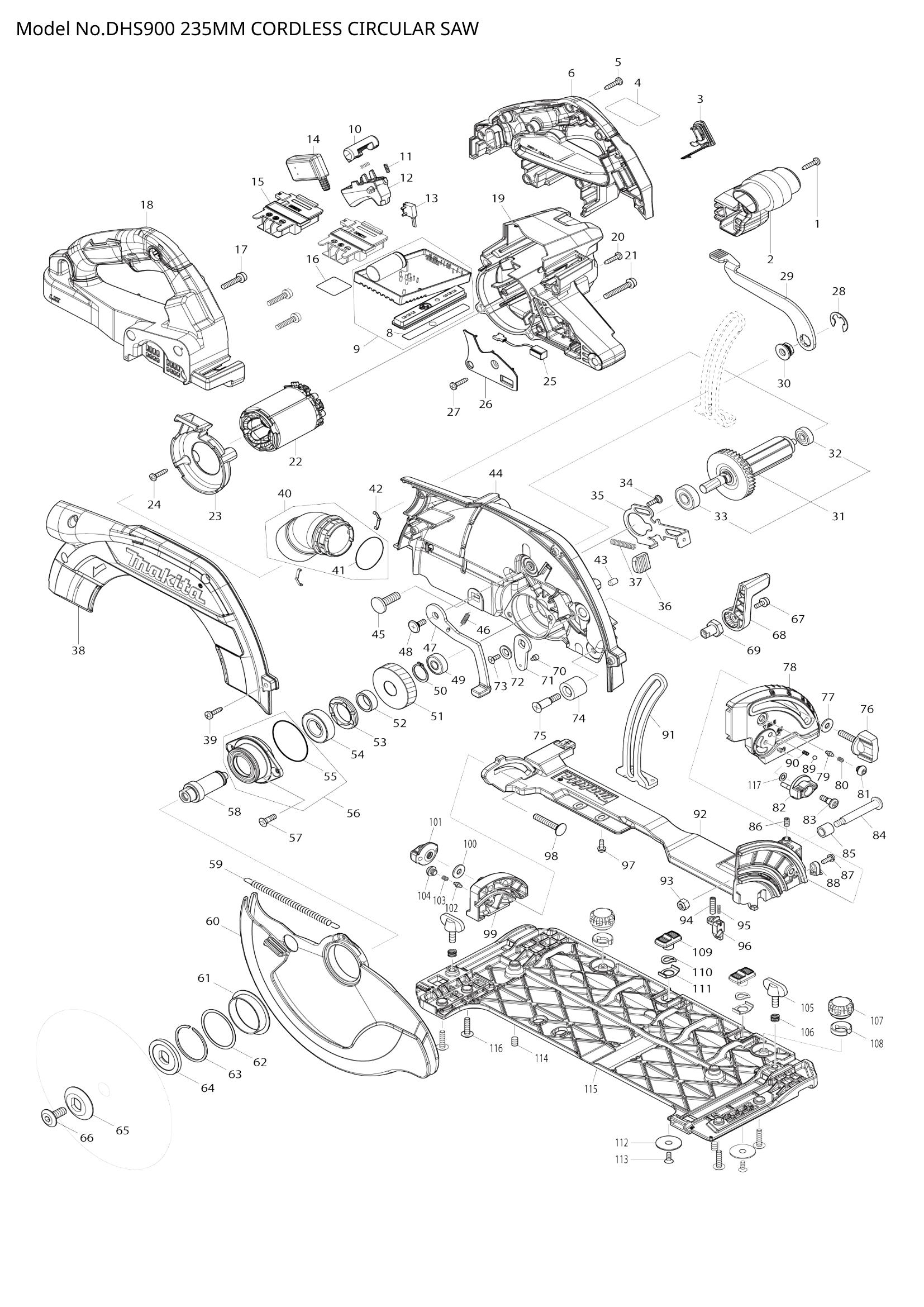

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 002 | FRONT GRIP | 1 | Not available in store | |||
| 003 | CAP COMPLETE | 1 | Not available in store | |||
| 004 | DHS900 NAME PLATE | 1 | Not available in store | |||
| 005 | 266326-2 | TAPPING SCREW 4X18 | 8 | €0.56 | 1-4 weeks to ship | |
| 006 | HANDLE SET | 1 | Not available in store | |||
| 008 | INDICATION LABEL | 1 | Not available in store | |||
| 010 | 419704-7 | LOCK OFF BUTTON | 1 | €1.11 | 1-4 weeks to ship | |
| 011 | 231433-0 | COMPRESSION SPRING 4 | 2 | €0.56 | 1-4 weeks to ship | |
| 012 | SWITCH LEVER | 1 | Not available in store | |||
| 013 | SWITCH UNIT | 1 | Not available in store | |||
| 014 | 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | |
| 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | ||
| 015 | 643874-2 | TERMINAL | 2 | €3.90 | 1-4 weeks to ship | |
| 643874-2 | TERMINAL | 2 | €3.90 | 1-4 weeks to ship | ||
| 016 | DHS900 SERIAL NO. LABEL | 1 | Not available in store | |||
| 017 | 911243-8 | PAN HEAD SCREW M5X25 | 3 | €0.56 | 1-4 weeks to ship | |
| 018 | HANDLE SET | 1 | Not available in store | |||
| 019 | MOTOR HOUSING | 1 | Not available in store | |||
| 020 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | 911258-5 | PAN HEAD SCREW M5X35 | 4 | €0.56 | 1-4 weeks to ship | |
| 911258-5 | PAN HEAD SCREW M5X35 | 4 | €0.56 | 1-4 weeks to ship | ||
| 023 | BAFFLE PLATE | 1 | Not available in store | |||
| 024 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 025 | LED CIRCUIT | 1 | Not available in store | |||
| 026 | LIGHT COVER | 1 | Not available in store | |||
| 027 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | 257953-6 | BOW STOP RING E-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 029 | LEVER 132 | 1 | Not available in store | |||
| 030 | COLLERED HEX. NUT M8 | 1 | Not available in store | |||
| 031 | ROTOR ASS'Y | 1 | Not available in store | |||
| 032 | 210022-4 | BALL BEARING 626DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 033 | 210059-1 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 034 | + PAN HEAD SCREW M4X14 | 1 | Not available in store | |||
| 035 | SHAFT LOCK | 1 | Not available in store | |||
| 036 | CAP | 1 | Not available in store | |||
| 037 | 233084-5 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 038 | BLADE CASE COVER | 1 | Not available in store | |||
| 039 | 266034-5 | TAPPING SCREW CT 4X16 | 4 | €0.56 | 1-4 weeks to ship | |
| 040 | DUST NOZZLE ASS'Y | 1 | Not available in store | |||
| 041 | O RING 30 | 1 | Not available in store | |||
| 045 | 266396-1 | FLATHEAD SQUARENECKBOLT M | 1 | €0.56 | 1-4 weeks to ship | |
| 046 | TENSION SPRING 4 | 1 | Not available in store | |||
| 047 | OPEN LEVER | 1 | Not available in store | |||
| 048 | + PAN HEAD SCREW M5X14 | 1 | Not available in store | |||
| 049 | 210029-0 | BALL BEARING 608ZZ | 1 | €1.11 | 1-4 weeks to ship | |
| 050 | 961057-5 | RETAINING RING S-17 | 1 | €0.56 | 1-4 weeks to ship | |
| 051 | HELICAL GEAR 46 | 1 | Not available in store | |||
| 052 | RING 17 | 1 | Not available in store | |||
| 053 | 285809-3 | BEARING RETAINER 23-36 | 1 | €0.83 | 1-4 weeks to ship | |
| 054 | 210301-0 | BALL BEARING 6003DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 055 | 213623-7 | O RING 46 | 1 | €0.56 | 1-4 weeks to ship | |
| 056 | BEARING BOX ASS'Y | 1 | Not available in store | |||
| 058 | SPINDLE | 1 | Not available in store | |||
| 059 | TENSION SPRING 6 | 1 | Not available in store | |||
| 060 | SAFETY COVER | 1 | Not available in store | |||
| 061 | SPACER | 1 | Not available in store | |||
| 062 | 267337-0 | FLAT WASHER 40 | 1 | €0.83 | 1-4 weeks to ship | |
| 063 | RETAINING RING (EXT) WR-40 | 1 | Not available in store | |||
| 064 | 224360-8 | INNER FLANGE 40 | 1 | €11.13 | 1-4 weeks to ship | |
| 065 | OUTER FLANGE 38 | 1 | Not available in store | |||
| 066 | HEX.SOCKET HEAD BOLT M8 | 1 | Not available in store | |||
| 067 | 911113-1 | PAN HEAD SCREW M4X10 WITH | 1 | €0.56 | 1-4 weeks to ship | |
| 068 | LEVER 55 | 1 | Not available in store | |||
| 069 | HEX. NUT M4-16 | 1 | Not available in store | |||
| 070 | HEX. SOCKET HEAD SCREW M3X4 | 1 | Not available in store | |||
| 071 | OPEN PLATE | 1 | Not available in store | |||
| 072 | WASHER 6 | 1 | Not available in store | |||
| 073 | 265135-6 | + COUNTERSUNK HEAD SCREW | 1 | €0.14 | 1-4 weeks to ship | |
| 074 | RUBBER SLEEVE8 | 1 | Not available in store | |||
| 075 | + COUNTERSUNK HEAD SCREW | 1 | Not available in store | |||
| 076 | 265776-8 | THUMB SCREW M6X26 | 1 | €0.83 | 1-4 weeks to ship | |
| 077 | 253111-2 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 078 | FRONT ANGULAR PLATE | 1 | Not available in store | |||
| 079 | SHOULDER PIN 3-5 | 1 | Not available in store | |||
| 080 | 231234-6 | COMPRESSION SPRING 3.5 | 1 | €2.09 | 1-4 weeks to ship | |
| 081 | H.S.BUTTON HEAD BOLT M6X4 | 1 | Not available in store | |||
| 082 | 450704-8 | DIAL 27 | 1 | €0.60 | 1-4 weeks to ship | |
| 083 | 251370-2 | + PAN HEAD SCREW M5 | 1 | €0.56 | 1-4 weeks to ship | |
| 084 | 251528-3 | + PAN HEAD SCREW M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 085 | 257580-9 | SLEEVE 8 | 1 | €0.83 | 1-4 weeks to ship | |
| 086 | 266229-0 | H.S.SET SCREW(CUP POINT)M5X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 087 | 911118-1 | PAN HEAD SCREW M4X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 088 | 419632-6 | POSITION PLATE | 1 | €0.83 | 1-4 weeks to ship | |
| 089 | 216008-6 | STEEL BALL 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 090 | 233314-4 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 091 | DEPTH GUIDE | 1 | Not available in store | |||
| 092 | FRAME COMPLETE | 1 | Not available in store | |||
| 093 | 252014-7 | HEX. LOCK NUT M6-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 094 | H.S.SET SCREW(FLAT POINT)M5X | 1 | Not available in store | |||
| 095 | 233025-1 | COMPRESSION SPRING 2 | 1 | €0.56 | 1-4 weeks to ship | |
| 096 | SLIDER | 1 | Not available in store | |||
| 097 | PAN HEAD SCREW M4X12 WITH | 2 | Not available in store | |||
| 098 | R.H SQUARE NECK BOLT M6X35 | 1 | Not available in store | |||
| 099 | REAR ANGULAR PLATE | 1 | Not available in store | |||
| 100 | 253111-2 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 101 | THUMB NUT M6 | 1 | Not available in store | |||
| 102 | SHOULDER PIN 3-5 | 1 | Not available in store | |||
| 103 | 231234-6 | COMPRESSION SPRING 3.5 | 1 | €2.09 | 1-4 weeks to ship | |
| 104 | H.S.BUTTON HEAD BOLT M6X4 | 1 | Not available in store | |||
| 105 | 265701-9 | THUMB SCREW M6X14 | 2 | €1.67 | 1-4 weeks to ship | |
| 106 | 233376-2 | COMPRESSION SPRING 8 | 2 | €0.56 | 1-4 weeks to ship | |
| 108 | 419627-9 | HOLDER | 2 | €0.83 | 1-4 weeks to ship | |
| 109 | 458092-7 | SLIDE LEVER | 2 | €1.35 | 1-4 weeks to ship | |
| 110 | 253932-2 | WAVE WASHER 10 | 2 | €0.56 | 1-4 weeks to ship | |
| 111 | 345977-5 | PLATE | 2 | €0.56 | 1-4 weeks to ship | |
| 112 | 345748-0 | LOCK WASHER | 2 | €1.11 | 1-4 weeks to ship | |
| 113 | 912112-6 | COUNTERSUNK HEAD SCREW M4 | 2 | €0.56 | 1-4 weeks to ship | |
| 114 | 266225-8 | H.S.SET SCREW(FLAT POINT)M6X | 2 | €0.56 | 1-4 weeks to ship | |
| 115 | BASE | 1 | Not available in store | |||
| 116 | 265181-9 | +TRUSS HEAD SCREW M5X20 | 4 | €1.68 | 1-4 weeks to ship | |
| 117 | 253811-4 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 118 | CONTROLLER B S | 1 | Not available in store | |||
| 119 | PAN HEAD SCREW M2X6 S | 6 | Not available in store | |||
