DHS783
DHS783

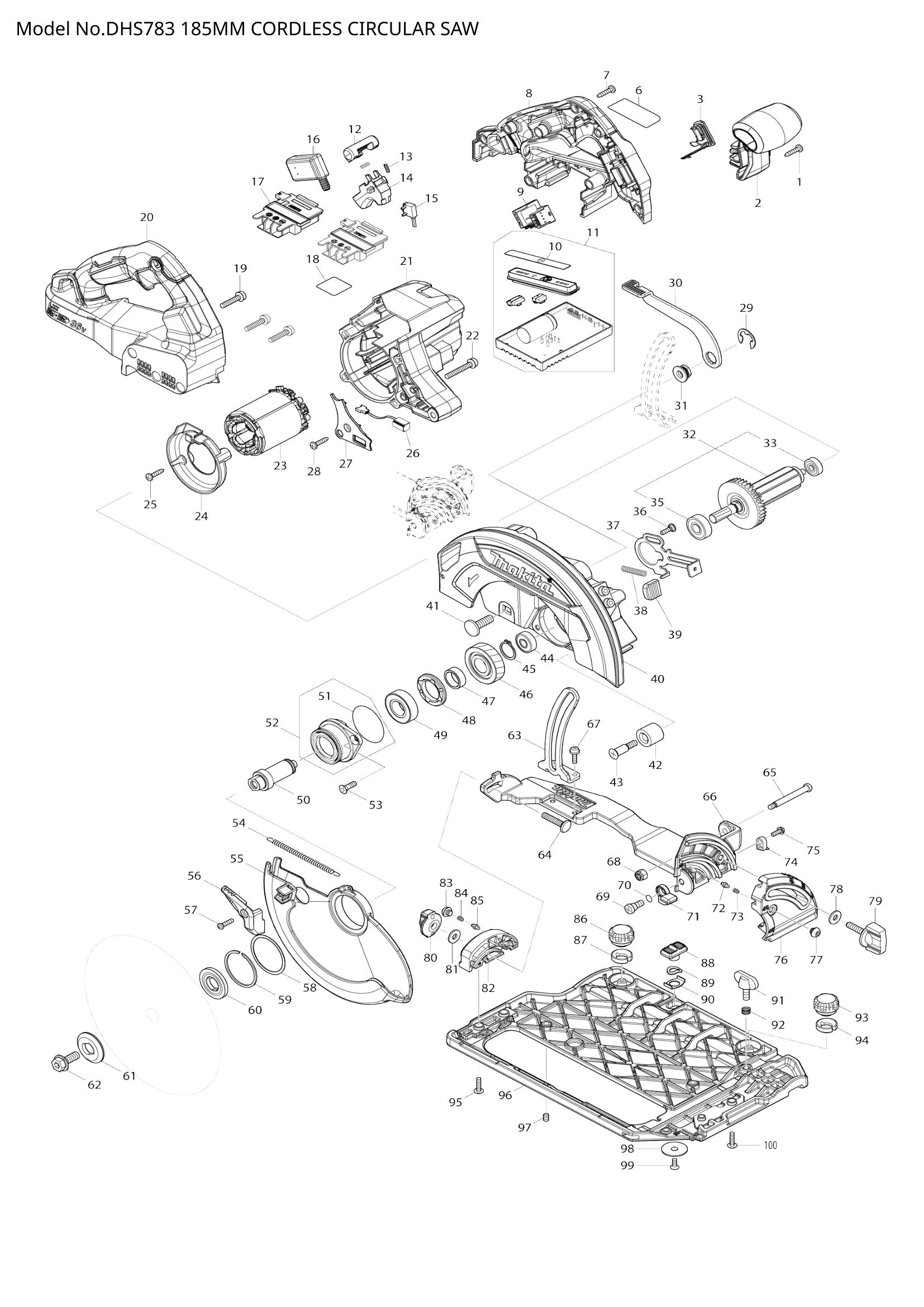

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 002 | FRONT GRIP | 1 | Not available in store | |||
| 003 | CAP COMPLETE | 1 | Not available in store | |||
| 006 | DHS783 NAME PLATE | 1 | Not available in store | |||
| 007 | 266326-2 | TAPPING SCREW 4X18 | 8 | €0.56 | 1-4 weeks to ship | |
| 008 | HANDLE SET | 1 | Not available in store | |||
| 009 | 620750-7 | SUB CONTROLLER | 1 | €36.87 | 1-4 weeks to ship | |
| 620750-7 | SUB CONTROLLER | 1 | €36.87 | 1-4 weeks to ship | ||
| 010 | INDICATION LABEL | 1 | Not available in store | |||
| 012 | 419704-7 | LOCK OFF BUTTON | 1 | €1.11 | 1-4 weeks to ship | |
| 013 | 231433-0 | COMPRESSION SPRING 4 | 2 | €0.56 | 1-4 weeks to ship | |
| 014 | SWITCH LEVER | 1 | Not available in store | |||
| 015 | SWITCH UNIT | 1 | Not available in store | |||
| 016 | 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | |
| 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | ||
| 017 | 643874-2 | TERMINAL | 2 | €3.90 | 1-4 weeks to ship | |
| 643874-2 | TERMINAL | 2 | €3.90 | 1-4 weeks to ship | ||
| 018 | DHS783 SERIAL NO. LABEL | 1 | Not available in store | |||
| 019 | 911243-8 | PAN HEAD SCREW M5X25 | 3 | €0.56 | 1-4 weeks to ship | |
| 020 | HANDLE SET | 1 | Not available in store | |||
| 021 | MOTOR HOUSING | 1 | Not available in store | |||
| 022 | 911258-5 | PAN HEAD SCREW M5X35 | 4 | €0.56 | 1-4 weeks to ship | |
| 911258-5 | PAN HEAD SCREW M5X35 | 4 | €0.56 | 1-4 weeks to ship | ||
| 024 | BAFFLE PLATE | 1 | Not available in store | |||
| 025 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 026 | LED CIRCUIT | 1 | Not available in store | |||
| 027 | LIGHT COVER | 1 | Not available in store | |||
| 028 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 029 | 257953-6 | BOW STOP RING E-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 030 | LEVER 110 | 1 | Not available in store | |||
| 031 | COLLERED HEX. NUT M8 | 1 | Not available in store | |||
| 032 | 519534-7 | ROTOR ASSY | 1 | €48.70 | 1-4 weeks to ship | |
| 519534-7 | ROTOR ASSY | 1 | €48.70 | 1-4 weeks to ship | ||
| 033 | 210022-4 | BALL BEARING 626DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 035 | 210059-1 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 036 | + PAN HEAD SCREW M4X14 | 1 | Not available in store | |||
| 037 | SHAFT LOCK | 1 | Not available in store | |||
| 038 | COMPRESSION SPRING 6 | 1 | Not available in store | |||
| 039 | CAP | 1 | Not available in store | |||
| 040 | BLADE CASE COMPLETE | 1 | Not available in store | |||
| 041 | 266396-1 | FLATHEAD SQUARENECKBOLT M | 1 | €0.56 | 1-4 weeks to ship | |
| 042 | RUBBER SLEEVE8 | 1 | Not available in store | |||
| 043 | + COUNTERSUNK HEAD SCREW | 1 | Not available in store | |||
| 044 | 210029-0 | BALL BEARING 608ZZ | 1 | €1.11 | 1-4 weeks to ship | |
| 045 | 961057-5 | RETAINING RING S-17 | 1 | €0.56 | 1-4 weeks to ship | |
| 046 | 226838-7 | HELICAL GEAR 37 | 1 | €5.57 | 1-4 weeks to ship | |
| 047 | RING 17 | 1 | Not available in store | |||
| 048 | 285809-3 | BEARING RETAINER 23-36 | 1 | €0.83 | 1-4 weeks to ship | |
| 049 | 210301-0 | BALL BEARING 6003DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 050 | SPINDLE | 1 | Not available in store | |||
| 051 | 213565-5 | O RING 42 | 1 | €0.56 | 1-4 weeks to ship | |
| 052 | BEARING BOX ASSY | 1 | Not available in store | |||
| 053 | 265034-2 | + COUNTERSUNK HEAD SCREW | 2 | €0.56 | 1-4 weeks to ship | |
| 054 | TENSION SPRING 4 | 1 | Not available in store | |||
| 055 | 319740-2 | SAFETY COVER | 1 | €21.22 | 1-4 weeks to ship | |
| 056 | LEVER 37 | 1 | Not available in store | |||
| 057 | 265178-8 | PAN HEAD SCREW M4X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 058 | 267337-0 | FLAT WASHER 40 | 1 | €0.83 | 1-4 weeks to ship | |
| 059 | RETAINING RING (EXT) WR-40 | 1 | Not available in store | |||
| 060 | 224593-5 | INNER FLANGE 35 | 1 | €1.81 | 1-4 weeks to ship | |
| 061 | 224409-4 | OUTER FLANGE 35 | 1 | €1.67 | 1-4 weeks to ship | |
| 062 | 266283-4 | HEX. SOCKET HEX. BOLT M8X20 | 1 | €0.56 | 1-4 weeks to ship | |
| 063 | DEPTH GUIDE | 1 | Not available in store | |||
| 064 | 251920-3 | CAP SQUARE NECK BOLT M6X30 | 1 | €2.09 | 1-4 weeks to ship | |
| 065 | 265118-6 | + PAN HEAD SCREW M5 | 1 | €0.56 | 1-4 weeks to ship | |
| 066 | FRAME | 1 | Not available in store | |||
| 067 | 911516-9 | PAN HEAD SCREW M4X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 068 | 252103-8 | HEX. LOCK NUT M5-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 069 | 251267-5 | + PAN HEAD SCREW M6 | 1 | €0.83 | 1-4 weeks to ship | |
| 070 | 213026-5 | O RING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 071 | STOPPER | 1 | Not available in store | |||
| 072 | SHOULDER PIN 3-5 | 1 | Not available in store | |||
| 073 | 231234-6 | COMPRESSION SPRING 3.5 | 1 | €2.09 | 1-4 weeks to ship | |
| 074 | 419632-6 | POSITION PLATE | 1 | €0.83 | 1-4 weeks to ship | |
| 075 | 911118-1 | PAN HEAD SCREW M4X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 076 | FRONT ANGULAR PLATE | 1 | Not available in store | |||
| 077 | H.S.BUTTON HEAD BOLT M6X4 | 1 | Not available in store | |||
| 078 | 253111-2 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 079 | 265776-8 | THUMB SCREW M6X26 | 1 | €0.83 | 1-4 weeks to ship | |
| 080 | THUMB NUT M6 | 1 | Not available in store | |||
| 081 | 253111-2 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 082 | REAR ANGULAR PLATE | 1 | Not available in store | |||
| 083 | H.S.BUTTON HEAD BOLT M6X4 | 1 | Not available in store | |||
| 084 | 231234-6 | COMPRESSION SPRING 3.5 | 1 | €2.09 | 1-4 weeks to ship | |
| 085 | SHOULDER PIN 3-5 | 1 | Not available in store | |||
| 086 | 265775-0 | THUMB SCREW M4X3 | 1 | €0.83 | 1-4 weeks to ship | |
| 087 | 419627-9 | HOLDER | 1 | €0.83 | 1-4 weeks to ship | |
| 088 | 458092-7 | SLIDE LEVER | 1 | €1.35 | 1-4 weeks to ship | |
| 089 | 253932-2 | WAVE WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 090 | 345977-5 | PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 091 | 265701-9 | THUMB SCREW M6X14 | 1 | €1.67 | 1-4 weeks to ship | |
| 092 | 233376-2 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 093 | 265775-0 | THUMB SCREW M4X3 | 1 | €0.83 | 1-4 weeks to ship | |
| 094 | 419627-9 | HOLDER | 1 | €0.83 | 1-4 weeks to ship | |
| 095 | + TRUSS HEAD SCREW M4X16 | 2 | Not available in store | |||
| 096 | BASE | 1 | Not available in store | |||
| 097 | 266225-8 | H.S.SET SCREW(FLAT POINT)M6X | 3 | €0.56 | 1-4 weeks to ship | |
| 098 | 345748-0 | LOCK WASHER | 1 | €1.11 | 1-4 weeks to ship | |
| 099 | 912112-6 | COUNTERSUNK HEAD SCREW M4 | 1 | €0.56 | 1-4 weeks to ship | |
| 100 | + TRUSS HEAD SCREW M4X16 | 2 | Not available in store | |||
| 101 | CONTROLLER B S | 1 | Not available in store | |||
| 102 | PAN HEAD SCREW M2X6 S | 6 | Not available in store | |||
