DHS710
DHS710

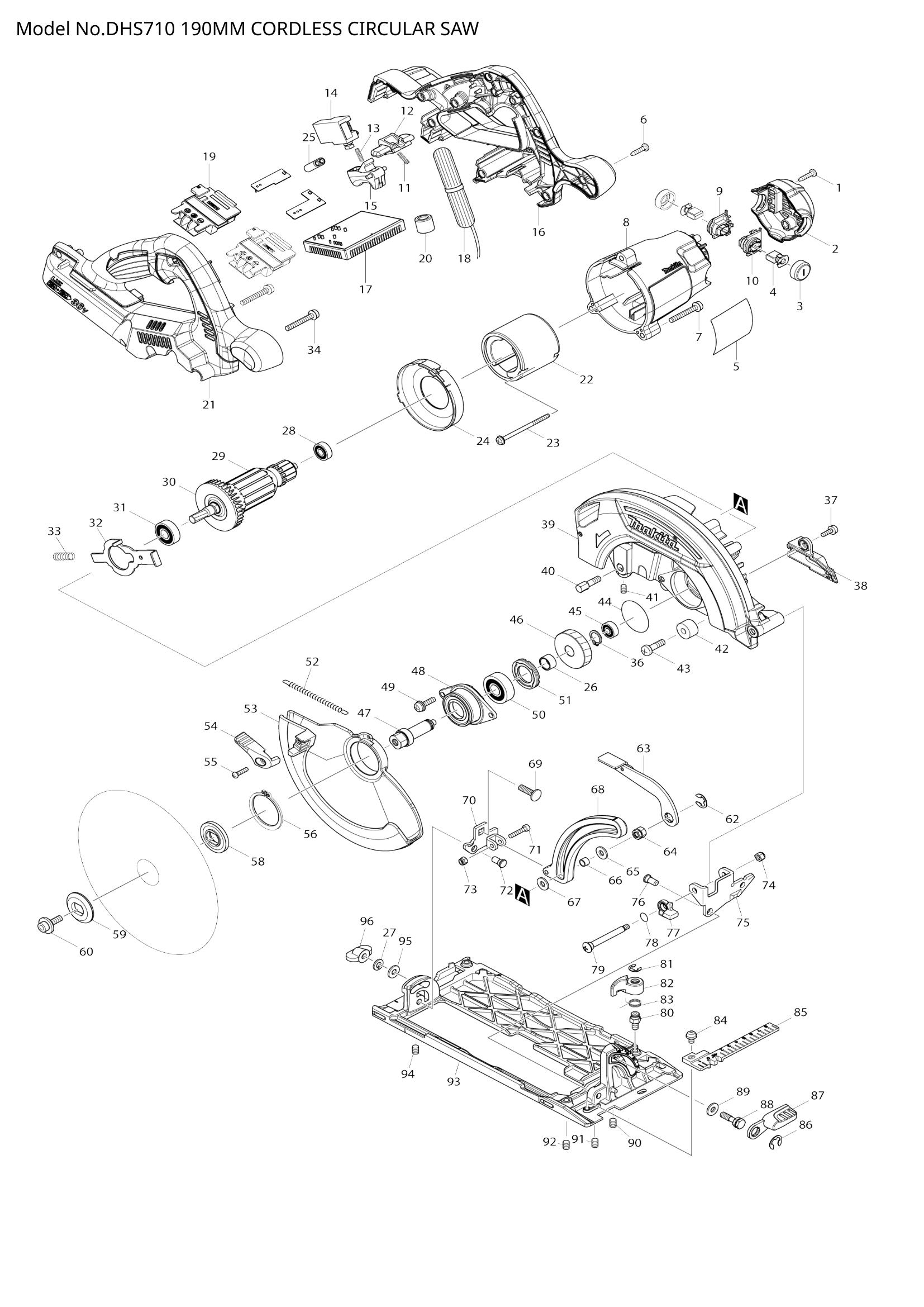

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 002 | 454697-1 | REAR COVER | 1 | €2.09 | 1-4 weeks to ship | |
| 003 | 643829-7 | HOLDER CAP | 2 | €0.56 | 1-4 weeks to ship | |
| 005 | DHS710 NAME PLATE | 1 | Not available in store | |||
| 006 | 266326-2 | TAPPING SCREW 4X18 | 9 | €0.56 | 1-4 weeks to ship | |
| 007 | 911258-5 | PAN HEAD SCREW M5X35 | 3 | €0.56 | 1-4 weeks to ship | |
| 911258-5 | PAN HEAD SCREW M5X35 | 3 | €0.56 | 1-4 weeks to ship | ||
| 008 | 454693-9 | MOTOR HOUSING | 1 | €7.10 | 1-4 weeks to ship | |
| 454693-9 | MOTOR HOUSING | 1 | €7.10 | 1-4 weeks to ship | ||
| 009 | 644503-0 | BRUSH HOLDER | 1 | €1.67 | 1-4 weeks to ship | |
| 644503-0 | BRUSH HOLDER | 1 | €1.67 | 1-4 weeks to ship | ||
| 010 | 644504-8 | BRUSH HOLDER | 1 | €1.67 | 1-4 weeks to ship | |
| 644504-8 | BRUSH HOLDER | 1 | €1.67 | 1-4 weeks to ship | ||
| 011 | 231469-9 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 012 | 419664-3 | LOCK OFF LEVER | 1 | €0.83 | 1-4 weeks to ship | |
| 013 | 231469-9 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | 650730-9 | SWITCH TG72BD-6 | 1 | €13.92 | 1-4 weeks to ship | |
| 650730-9 | SWITCH TG72BD-6 | 1 | €13.92 | 1-4 weeks to ship | ||
| 015 | 419665-1 | SWITCH LEVER | 1 | €0.83 | 1-4 weeks to ship | |
| 016 | 187768-6 | HANDLE SET | 1 | €24.77 | 1-4 weeks to ship | |
| 018 | 632B66-0 | LEAD UNIT | 1 | €1.95 | 1-4 weeks to ship | |
| 632B66-0 | LEAD UNIT | 1 | €1.95 | 1-4 weeks to ship | ||
| 019 | 643899-6 | TERMINAL | 2 | €3.34 | 1-4 weeks to ship | |
| 020 | 688163-8 | LINE FILTER | 1 | €0.83 | 1-4 weeks to ship | |
| 021 | 187768-6 | HANDLE SET | 1 | €24.77 | 1-4 weeks to ship | |
| 023 | 266292-3 | TAPPING SCREW 4X65 | 2 | €1.11 | 1-4 weeks to ship | |
| 024 | 454696-3 | BAFFLE PLATE | 1 | €1.81 | 1-4 weeks to ship | |
| 454696-3 | BAFFLE PLATE | 1 | €1.81 | 1-4 weeks to ship | ||
| 026 | 257349-1 | SLEEVE 12 | 1 | €1.67 | 1-4 weeks to ship | |
| 028 | 210017-7 | BALL BEARING 607DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 029 | 519332-9 | ARMATURE ASS'Y 36V | 1 | €26.58 | 1-4 weeks to ship | |
| 519332-9 | ARMATURE ASS'Y 36V | 1 | €26.58 | 1-4 weeks to ship | ||
| 030 | 240045-8 | FAN 55 | 1 | €1.67 | 1-4 weeks to ship | |
| 031 | 210059-1 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 032 | 344681-3 | SHAFT LOCK | 1 | €1.11 | 1-4 weeks to ship | |
| 033 | 233117-6 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 034 | 911258-5 | PAN HEAD SCREW M5X35 | 2 | €0.56 | 1-4 weeks to ship | |
| 911258-5 | PAN HEAD SCREW M5X35 | 2 | €0.56 | 1-4 weeks to ship | ||
| 036 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 037 | 911223-4 | PAN HEAD SCREW M5X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 911223-4 | PAN HEAD SCREW M5X16 | 1 | €0.56 | 1-4 weeks to ship | ||
| 038 | 453285-1 | DUCT | 1 | €0.83 | 1-4 weeks to ship | |
| 039 | 142365-5 | BLADE CASE COMPLETE | 1 | €43.83 | 1-4 weeks to ship | |
| 040 | 265594-4 | HEX.BOLT M6X18 | 1 | €5.57 | 1-4 weeks to ship | |
| 041 | 266229-0 | H.S.SET SCREW(CUP POINT)M5X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 043 | 251247-1 | + PAN HEAD SCREW M6X20 | 1 | €0.56 | 1-4 weeks to ship | |
| 044 | 213512-6 | O RING 39 | 1 | €1.39 | 1-4 weeks to ship | |
| 045 | 210028-2 | BALL BEARING 606ZZ | 1 | €0.83 | 1-4 weeks to ship | |
| 046 | 227786-3 | HELICAL GEAR 49 | 1 | €4.73 | 1-4 weeks to ship | |
| 047 | 326357-4 | SPINDLE | 1 | €3.62 | 1-4 weeks to ship | |
| 048 | 319088-2 | BEARING BOX | 1 | €2.78 | 1-4 weeks to ship | |
| 049 | 911233-1 | PAN HEAD SCREW M5X20 | 2 | €0.56 | 1-4 weeks to ship | |
| 051 | 285852-2 | BEARING RETAINER 19-33 | 1 | €0.97 | 1-4 weeks to ship | |
| 052 | 231877-4 | TENSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 053 | 319072-7 | SAFETY COVER | 1 | €25.74 | 1-4 weeks to ship | |
| 055 | 265178-8 | PAN HEAD SCREW M4X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 056 | 961155-5 | RETAINING RING S-38 | 1 | €0.83 | 1-4 weeks to ship | |
| 961155-5 | RETAINING RING S-38 | 1 | €0.83 | 1-4 weeks to ship | ||
| 059 | 224409-4 | OUTER FLANGE 35 | 1 | €1.67 | 1-4 weeks to ship | |
| 062 | 257982-9 | BOW STOP RING E-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 063 | 272279-5 | LEVER PLATE | 1 | €1.81 | 1-4 weeks to ship | |
| 064 | 264096-7 | HEX. NUT M6 | 1 | €0.42 | 1-4 weeks to ship | |
| 065 | 267100-1 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 066 | 257669-3 | SLEEVE 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 067 | 267100-1 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 068 | 141312-3 | DEPTH GUIDE COMPLETE | 1 | €8.35 | 1-4 weeks to ship | |
| 069 | 251919-8 | CAP SQUARE NECK BOLT M6X20 | 1 | €0.56 | 1-4 weeks to ship | |
| 070 | 165670-3 | REAR ANGULAR GUIDE | 1 | €1.67 | 1-4 weeks to ship | |
| 071 | 922137-2 | HEX. SOCKET HEAD BOLT M4X20 | 1 | €0.56 | 1-4 weeks to ship | |
| 922137-2 | HEX. SOCKET HEAD BOLT M4X20 | 1 | €0.56 | 1-4 weeks to ship | ||
| 072 | 256480-0 | SHOULDER PIN 6-7 | 1 | €0.56 | 1-4 weeks to ship | |
| 073 | 252126-6 | HEX. LOCK NUT M4-7 | 1 | €0.56 | 1-4 weeks to ship | |
| 074 | 252103-8 | HEX. LOCK NUT M5-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 075 | 345590-9 | ANGULAR GUIDE | 1 | €4.17 | 1-4 weeks to ship | |
| 076 | 256480-0 | SHOULDER PIN 6-7 | 1 | €0.56 | 1-4 weeks to ship | |
| 077 | 318823-5 | STOPPER | 1 | €1.67 | 1-4 weeks to ship | |
| 079 | 266734-7 | + TRUSS HEAD SCREW M5 | 1 | €1.39 | 1-4 weeks to ship | |
| 080 | 265571-6 | HEX. BOLT M6X10 | 2 | €2.78 | 1-4 weeks to ship | |
| 081 | 961012-7 | STOP RING E-6 | 2 | €0.56 | 1-4 weeks to ship | |
| 082 | 453165-1 | LOCK LEVER | 2 | €1.11 | 1-4 weeks to ship | |
| 083 | 233596-8 | TORSION SPRING 11 | 2 | €0.56 | 1-4 weeks to ship | |
| 084 | 911203-0 | PAN HEAD SCREW M5X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 085 | 453286-9 | TOP GUIDE | 1 | €1.39 | 1-4 weeks to ship | |
| 086 | 257982-9 | BOW STOP RING E-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 087 | 272272-9 | LEVER 45 | 1 | €2.78 | 1-4 weeks to ship | |
| 090 | 266208-8 | H.S.SET SCREW(CUP POINT)M6X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 091 | 266208-8 | H.S.SET SCREW(CUP POINT)M6X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 092 | 266208-8 | H.S.SET SCREW(CUP POINT)M6X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 093 | 318819-6 | BASE | 1 | €41.75 | 1-4 weeks to ship | |
| 094 | 266208-8 | H.S.SET SCREW(CUP POINT)M6X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 095 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 096 | 252631-3 | THUMB NUT M6 | 1 | €3.06 | 1-4 weeks to ship | |
