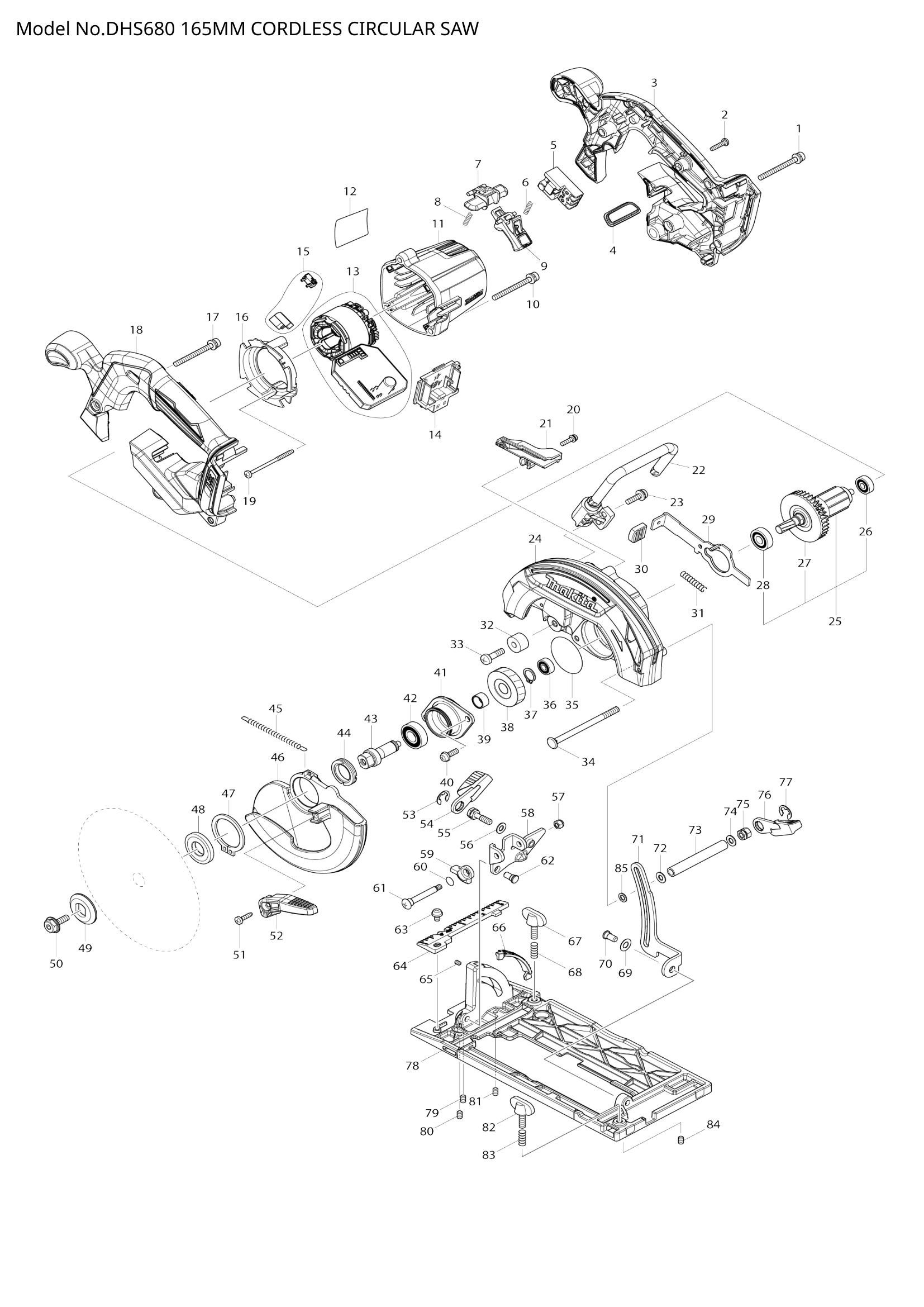

DHS680
DHS680
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 911263-2 | PAN HEAD SCREW M5X40 | 1 | €0.56 | 1-4 weeks to ship | |
| 911263-2 | PAN HEAD SCREW M5X40 | 1 | €0.56 | 1-4 weeks to ship | ||
| 002 | 265995-6 | TAPPING SCREW 4X18 | 7 | €0.56 | 1-4 weeks to ship | |
| 003 | 183A15-9 | HANDLE SET | 1 | €20.59 | 1-4 weeks to ship | |
| 004 | 142948-1 | INDICATION PLATE COMPLETE | 1 | €1.11 | 1-4 weeks to ship | |
| 005 | 650734-1 | SWITCH TG73BDS-2 | 1 | €14.61 | 1-4 weeks to ship | |
| 650734-1 | SWITCH TG73BDS-2 | 1 | €14.61 | 1-4 weeks to ship | ||
| 006 | 231469-9 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 007 | 419664-3 | LOCK OFF LEVER | 1 | €0.83 | 1-4 weeks to ship | |
| 008 | 231469-9 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 455480-9 | SWITCH LEVER | 1 | €0.42 | 1-4 weeks to ship | |
| 455480-9 | SWITCH LEVER | 1 | €0.42 | 1-4 weeks to ship | ||
| 010 | 911263-2 | PAN HEAD SCREW M5X40 | 3 | €0.56 | 1-4 weeks to ship | |
| 911263-2 | PAN HEAD SCREW M5X40 | 3 | €0.56 | 1-4 weeks to ship | ||
| 011 | 455437-0 | MOTOR HOUSING | 1 | €4.45 | 1-4 weeks to ship | |
| 455437-0 | MOTOR HOUSING | 1 | €4.45 | 1-4 weeks to ship | ||
| 012 | DHS680 NAME PLATE | 1 | Not available in store | |||
| 014 | 644808-8 | TERMINAL | 1 | €4.17 | 1-4 weeks to ship | |
| 015 | 632D81-6 | SWITCH UNIT | 1 | €17.67 | 1-4 weeks to ship | |
| 632D81-6 | SWITCH UNIT | 1 | €17.67 | 1-4 weeks to ship | ||
| 016 | 455440-1 | BAFFLE PLATE | 1 | €0.83 | 1-4 weeks to ship | |
| 455440-1 | BAFFLE PLATE | 1 | €0.83 | 1-4 weeks to ship | ||
| 017 | 911263-2 | PAN HEAD SCREW M5X40 | 1 | €0.56 | 1-4 weeks to ship | |
| 911263-2 | PAN HEAD SCREW M5X40 | 1 | €0.56 | 1-4 weeks to ship | ||
| 018 | 183A15-9 | HANDLE SET | 1 | €20.59 | 1-4 weeks to ship | |
| 019 | 266091-3 | TAPPING SCREW 4X50 | 2 | €0.56 | 1-4 weeks to ship | |
| 020 | 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 021 | 455483-3 | DUCT | 1 | €0.56 | 1-4 weeks to ship | |
| 455483-3 | DUCT | 1 | €0.56 | 1-4 weeks to ship | ||
| 022 | 123269-0 | HOOK ASSEMBLY | 1 | €8.21 | 1-4 weeks to ship | |
| 023 | 911233-1 | PAN HEAD SCREW M5X20 | 2 | €0.56 | 1-4 weeks to ship | |
| 026 | 210022-4 | BALL BEARING 626DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 027 | 240045-8 | FAN 55 | 1 | €1.67 | 1-4 weeks to ship | |
| 028 | 210051-7 | BALL BEARING 609LLB | 1 | €2.78 | 1-4 weeks to ship | |
| 029 | 346837-4 | SHAFT LOCK | 1 | €0.83 | 1-4 weeks to ship | |
| 030 | 286275-7 | CAP | 1 | €0.56 | 1-4 weeks to ship | |
| 031 | 233117-6 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 032 | 262552-1 | RUBBER SLEEVE 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 033 | 251247-1 | + PAN HEAD SCREW M6X20 | 1 | €0.56 | 1-4 weeks to ship | |
| 034 | 266194-3 | FLAT HEAD SCREW M6X90 | 1 | €1.67 | 1-4 weeks to ship | |
| 037 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 038 | 227794-4 | HELICAL GEAR 50 | 1 | €5.43 | 1-4 weeks to ship | |
| 039 | 257349-1 | SLEEVE 12 | 1 | €1.67 | 1-4 weeks to ship | |
| 040 | 911223-4 | PAN HEAD SCREW M5X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 911223-4 | PAN HEAD SCREW M5X16 | 2 | €0.56 | 1-4 weeks to ship | ||
| 041 | 319212-7 | BEARING BOX | 1 | €4.04 | 1-4 weeks to ship | |
| 043 | 326459-6 | SPINDLE | 1 | €2.78 | 1-4 weeks to ship | |
| 044 | 285845-9 | BEARING RETAINER 19-29 | 1 | €3.34 | 1-4 weeks to ship | |
| 045 | 231878-2 | TENSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 046 | 319211-9 | SAFETY COVER | 1 | €20.46 | 1-4 weeks to ship | |
| 047 | 961152-1 | RETAINING RING (EXT) S-34 | 1 | €0.83 | 1-4 weeks to ship | |
| 961152-1 | RETAINING RING (EXT) S-34 | 1 | €0.83 | 1-4 weeks to ship | ||
| 049 | 224409-4 | OUTER FLANGE 35 | 1 | €1.67 | 1-4 weeks to ship | |
| 050 | 266924-2 | HEX. SOCKET HEX. BOLT M6X18 | 1 | €0.70 | 1-4 weeks to ship | |
| 051 | 266034-5 | TAPPING SCREW CT 4X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 052 | 272281-8 | LEVER 39 | 1 | €0.70 | 1-4 weeks to ship | |
| 053 | 257982-9 | BOW STOP RING E-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 054 | 272272-9 | LEVER 45 | 1 | €2.78 | 1-4 weeks to ship | |
| 057 | 252103-8 | HEX. LOCK NUT M5-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 058 | 346836-6 | ANGULAR GUIDE | 1 | €1.11 | 1-4 weeks to ship | |
| 059 | 317986-4 | STOPPER | 1 | €4.17 | 1-4 weeks to ship | |
| 060 | 213062-1 | O RING 9 | 1 | €0.56 | 1-4 weeks to ship | |
| 061 | 265084-7 | + TRUSS HEAD SCREW M5 | 1 | €1.67 | 1-4 weeks to ship | |
| 062 | 256480-0 | SHOULDER PIN 6-7 | 1 | €0.56 | 1-4 weeks to ship | |
| 064 | 455516-4 | TOP GUIDE | 1 | €2.23 | 1-4 weeks to ship | |
| 455516-4 | TOP GUIDE | 1 | €2.23 | 1-4 weeks to ship | ||
| 065 | 266318-1 | H.S.SET SCREW(FLAT POINT)M4X | 2 | €0.56 | 1-4 weeks to ship | |
| 066 | 455517-2 | BEVEL GUIDE | 1 | €1.67 | 1-4 weeks to ship | |
| 455517-2 | BEVEL GUIDE | 1 | €1.67 | 1-4 weeks to ship | ||
| 067 | 251896-4 | SCREW M5X20 | 1 | €1.39 | 1-4 weeks to ship | |
| 068 | 231007-7 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 070 | 256511-5 | SHOULDER PIN 6-7 | 1 | €0.56 | 1-4 weeks to ship | |
| 071 | 346838-2 | DEPTH GUIDE | 1 | €1.81 | 1-4 weeks to ship | |
| 072 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 073 | 332126-3 | PIPE 6 | 1 | €1.11 | 1-4 weeks to ship | |
| 074 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 075 | 264103-6 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 076 | 272272-9 | LEVER 45 | 1 | €2.78 | 1-4 weeks to ship | |
| 077 | 257982-9 | BOW STOP RING E-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 079 | 266436-5 | H.S.SET SCREW(FLAT POINT)M5X | 1 | €0.28 | 1-4 weeks to ship | |
| 080 | 266436-5 | H.S.SET SCREW(FLAT POINT)M5X | 1 | €0.28 | 1-4 weeks to ship | |
| 081 | 266436-5 | H.S.SET SCREW(FLAT POINT)M5X | 1 | €0.28 | 1-4 weeks to ship | |
| 082 | 251896-4 | SCREW M5X20 | 1 | €1.39 | 1-4 weeks to ship | |
| 083 | 231007-7 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 084 | 266436-5 | H.S.SET SCREW(FLAT POINT)M5X | 1 | €0.28 | 1-4 weeks to ship | |
| 086 | CONTROLLER S | 1 | Not available in store | |||
| 087 | PAN HEAD SCREW M2X6 S | 6 | Not available in store | |||
