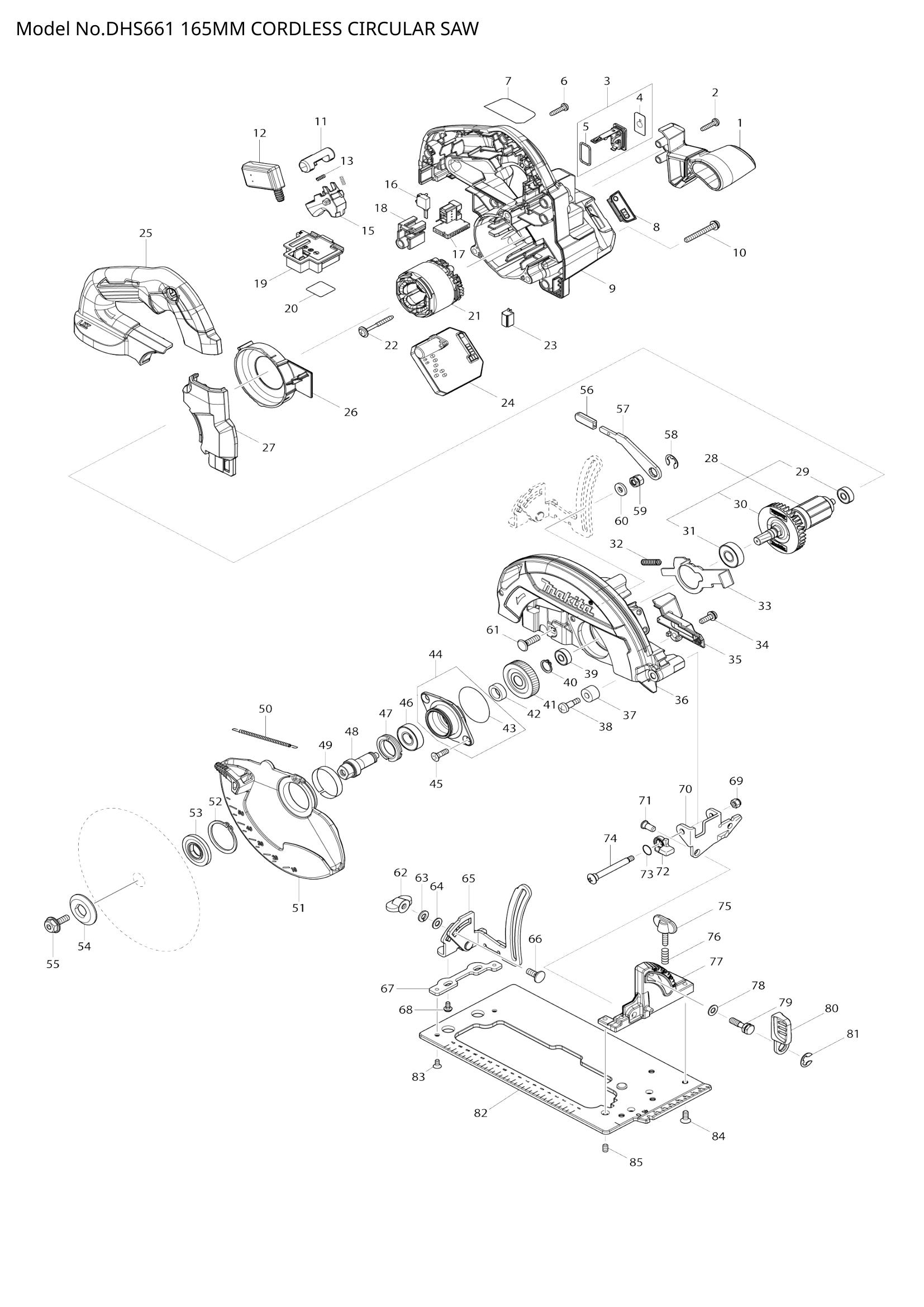

DHS661
DHS661
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | FRONT GRIP | 1 | Not available in store | |||
| 002 | 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | 265995-6 | TAPPING SCREW 4X18 | 7 | €0.56 | 1-4 weeks to ship | |
| 007 | DHS661 NAME PLATE | 1 | Not available in store | |||
| 008 | INDICATION PLATE COMPLETE | 1 | Not available in store | |||
| 009 | MOTOR HOUSING COMPLETE | 1 | Not available in store | |||
| 010 | 911263-2 | PAN HEAD SCREW M5X40 | 3 | €0.56 | 1-4 weeks to ship | |
| 911263-2 | PAN HEAD SCREW M5X40 | 3 | €0.56 | 1-4 weeks to ship | ||
| 011 | 419704-7 | LOCK OFF BUTTON | 1 | €1.11 | 1-4 weeks to ship | |
| 012 | 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | |
| 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | ||
| 013 | 231433-0 | COMPRESSION SPRING 4 | 2 | €0.56 | 1-4 weeks to ship | |
| 015 | SWITCH LEVER | 1 | Not available in store | |||
| 016 | SWITCH UNIT | 1 | Not available in store | |||
| 017 | SUB CONTROLLER | 1 | Not available in store | |||
| 018 | HOLDER | 1 | Not available in store | |||
| 019 | 644809-6 | TERMINAL | 1 | €3.76 | 1-4 weeks to ship | |
| 644809-6 | TERMINAL | 1 | €3.76 | 1-4 weeks to ship | ||
| 020 | DHS661 SERIAL NO. LABEL | 1 | Not available in store | |||
| 022 | TAPPING SCREW 4X40 | 2 | Not available in store | |||
| 023 | LED CIRCUIT | 1 | Not available in store | |||
| 025 | HANDLE COVER | 1 | Not available in store | |||
| 026 | BAFFLE PLATE | 1 | Not available in store | |||
| 027 | COVER | 1 | Not available in store | |||
| 028 | 519527-4 | ROTOR ASS'Y | 1 | €33.40 | 1-4 weeks to ship | |
| 029 | 211012-0 | BALL BEARING 606ZZ | 1 | €4.17 | 1-4 weeks to ship | |
| 030 | 240045-8 | FAN 55 | 1 | €1.67 | 1-4 weeks to ship | |
| 031 | 210059-1 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 033 | SHAFT LOCK | 1 | Not available in store | |||
| 034 | 911223-4 | PAN HEAD SCREW M5X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 911223-4 | PAN HEAD SCREW M5X16 | 1 | €0.56 | 1-4 weeks to ship | ||
| 035 | DUCT | 1 | Not available in store | |||
| 036 | BLADE CASE COMPLETE | 1 | Not available in store | |||
| 037 | 262511-5 | RUBBER SLEEVE 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 038 | 265115-2 | + PAN HEAD SCREW M5 | 1 | €0.83 | 1-4 weeks to ship | |
| 039 | 211012-0 | BALL BEARING 606ZZ | 1 | €4.17 | 1-4 weeks to ship | |
| 040 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 042 | 257173-2 | RING 12 | 1 | €0.83 | 1-4 weeks to ship | |
| 045 | 265034-2 | + COUNTERSUNK HEAD SCREW | 2 | €0.56 | 1-4 weeks to ship | |
| 046 | 211131-2 | BALL BEARING 6001DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 047 | BEARING RETAINER 19-29 | 1 | Not available in store | |||
| 049 | 345469-4 | THICKNESS RING | 1 | €1.67 | 1-4 weeks to ship | |
| 050 | TENSION SPRING 3 | 1 | Not available in store | |||
| 051 | 458680-0 | SAFETY COVER | 1 | €5.01 | 1-4 weeks to ship | |
| 052 | 961152-1 | RETAINING RING (EXT) S-34 | 1 | €0.83 | 1-4 weeks to ship | |
| 961152-1 | RETAINING RING (EXT) S-34 | 1 | €0.83 | 1-4 weeks to ship | ||
| 053 | 224593-5 | INNER FLANGE 35 | 1 | €1.81 | 1-4 weeks to ship | |
| 054 | 224409-4 | OUTER FLANGE 35 | 1 | €1.67 | 1-4 weeks to ship | |
| 055 | 266925-0 | HEX.SOCKET HEX.BOLT M6X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 056 | CAP | 1 | Not available in store | |||
| 057 | LEVER PLATE | 1 | Not available in store | |||
| 058 | 257982-9 | BOW STOP RING E-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 061 | 266737-1 | FLAT HEAD SQ. NECK BOLT M6X2 | 1 | €0.28 | 1-4 weeks to ship | |
| 062 | 252631-3 | THUMB NUT M6 | 1 | €3.06 | 1-4 weeks to ship | |
| 064 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 065 | DEPTH GUIDE COMPLETE | 1 | Not available in store | |||
| 066 | 265939-6 | FLAT HEAD SQ. NECK BOLT M6X1 | 1 | €0.42 | 1-4 weeks to ship | |
| 067 | REAR GUIDE PLATE | 1 | Not available in store | |||
| 068 | PAN HEAD SCREW M4X8 | 2 | Not available in store | |||
| 069 | 252103-8 | HEX. LOCK NUT M5-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 070 | 345590-9 | ANGULAR GUIDE | 1 | €4.17 | 1-4 weeks to ship | |
| 071 | 256480-0 | SHOULDER PIN 6-7 | 1 | €0.56 | 1-4 weeks to ship | |
| 072 | 318823-5 | STOPPER | 1 | €1.67 | 1-4 weeks to ship | |
| 073 | 213977-2 | O RING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 074 | 266734-7 | + TRUSS HEAD SCREW M5 | 1 | €1.39 | 1-4 weeks to ship | |
| 075 | 251896-4 | SCREW M5X20 | 1 | €1.39 | 1-4 weeks to ship | |
| 076 | 231007-7 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 077 | ANGULAR PLATE | 1 | Not available in store | |||
| 080 | LEVER 45 | 1 | Not available in store | |||
| 081 | 257982-9 | BOW STOP RING E-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 082 | BASE | 1 | Not available in store | |||
| 083 | 265085-5 | + COUNTERSUNK HEAD SCREW | 2 | €0.56 | 1-4 weeks to ship | |
| 084 | 912212-2 | COUNTERSUNK HEAD SCREW M5 | 4 | €0.56 | 1-4 weeks to ship | |
| 912212-2 | COUNTERSUNK HEAD SCREW M5 | 4 | €0.56 | 1-4 weeks to ship | ||
| 085 | 266436-5 | H.S.SET SCREW(FLAT POINT)M5X | 3 | €0.28 | 1-4 weeks to ship | |
| 086 | CONTROLLER B S | 1 | Not available in store | |||
| 087 | PAN HEAD SCREW M2X6 S | 6 | Not available in store | |||
