DHS630
DHS630

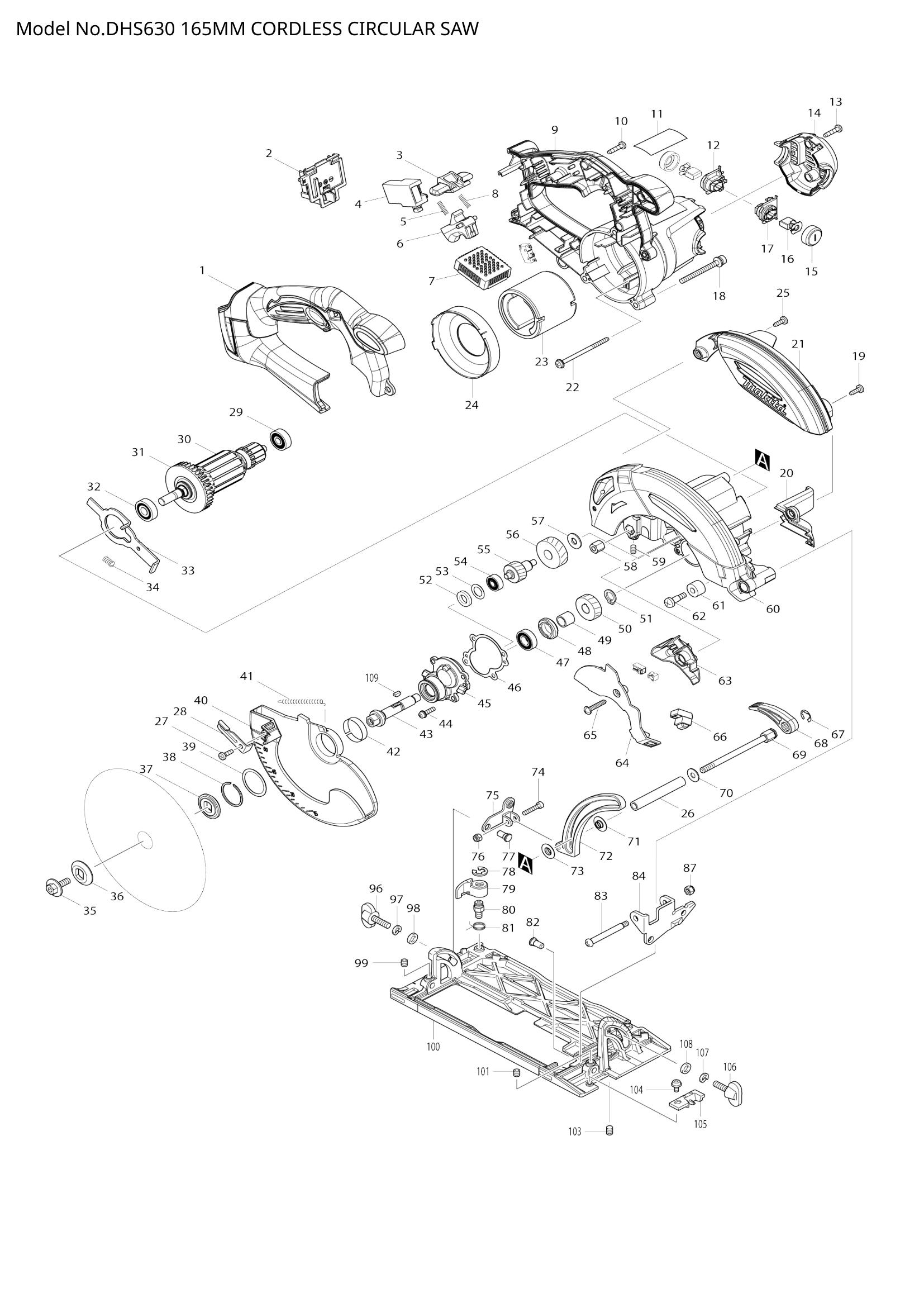

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 141237-1 | HANDLE COVER COMPLETE | 1 | €77.78 | 1-4 weeks to ship | |
| 002 | 644808-8 | TERMINAL | 1 | €4.17 | 1-4 weeks to ship | |
| 003 | 419664-3 | LOCK OFF LEVER | 1 | €0.83 | 1-4 weeks to ship | |
| 004 | 650631-1 | SWITCH | 1 | €19.48 | 1-4 weeks to ship | |
| 005 | 231469-9 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | 419665-1 | SWITCH LEVER | 1 | €0.83 | 1-4 weeks to ship | |
| 008 | 231469-9 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 140984-1 | MOTOR HOUSING COMPLETE | 1 | €77.92 | 1-4 weeks to ship | |
| 010 | 265995-6 | TAPPING SCREW 4X18 | 7 | €0.56 | 1-4 weeks to ship | |
| 011 | DHS630 NAME PLATE | 1 | Not available in store | |||
| 012 | 643889-9 | BRUSH HOLDER | 1 | €4.17 | 1-4 weeks to ship | |
| 013 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 014 | 452787-4 | REAR COVER | 1 | €11.13 | 1-4 weeks to ship | |
| 015 | 643941-3 | BRUSH HOLDER CAP | 2 | €0.56 | 1-4 weeks to ship | |
| 017 | 643882-3 | BRUSH HOLDER | 1 | €4.17 | 1-4 weeks to ship | |
| 018 | 911258-5 | PAN HEAD SCREW M5X35 | 3 | €0.56 | 1-4 weeks to ship | |
| 911258-5 | PAN HEAD SCREW M5X35 | 3 | €0.56 | 1-4 weeks to ship | ||
| 019 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 020 | 452790-5 | DUCT | 1 | €5.57 | 1-4 weeks to ship | |
| 021 | 452789-0 | BLADE COVER | 1 | €22.26 | 1-4 weeks to ship | |
| 022 | 266292-3 | TAPPING SCREW 4X65 | 2 | €1.11 | 1-4 weeks to ship | |
| 023 | 638571-3 | YOKE UNIT | 1 | €13.92 | 1-4 weeks to ship | |
| 024 | 452785-8 | BAFFLE PLATE | 1 | €4.17 | 1-4 weeks to ship | |
| 025 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 026 | 331947-0 | PIPE 6 | 1 | €4.17 | 1-4 weeks to ship | |
| 027 | 266020-6 | TAPPING SCREW 4X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | 272270-3 | LEVER 39 | 1 | €0.56 | 1-4 weeks to ship | |
| 029 | 210023-2 | BALL BEARING 627DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 030 | 519288-6 | ARMATURE ASSEMBLY 18V | 1 | €64.01 | 1-4 weeks to ship | |
| 031 | 241869-5 | FAN 55 | 1 | €2.78 | 1-4 weeks to ship | |
| 032 | 210051-7 | BALL BEARING 609LLB | 1 | €2.78 | 1-4 weeks to ship | |
| 033 | 344681-3 | SHAFT LOCK | 1 | €1.11 | 1-4 weeks to ship | |
| 034 | 233117-6 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | 266458-5 | HEX.SOCKET HEX.BOLT M6X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 036 | 224421-4 | OUTER FLANGE 28 | 1 | €13.92 | 1-4 weeks to ship | |
| 037 | 224417-5 | INNER FLANGE 28 | 1 | €16.70 | 1-4 weeks to ship | |
| 038 | 257938-2 | RETAINING RING(EXT) WR-26 | 1 | €0.56 | 1-4 weeks to ship | |
| 039 | 267127-1 | FLAT WASHER 26 | 1 | €0.56 | 1-4 weeks to ship | |
| 040 | 452791-3 | SAFETY COVER | 1 | €16.70 | 1-4 weeks to ship | |
| 041 | 231874-0 | TENSION SPRING 4 | 1 | €0.83 | 1-4 weeks to ship | |
| 042 | 345470-9 | THICKNESS RING | 1 | €0.56 | 1-4 weeks to ship | |
| 043 | 326410-6 | SPINDLE | 1 | €6.82 | 1-4 weeks to ship | |
| 044 | 911128-8 | P.H.SCREW M4X16 WITH WR | 4 | €0.56 | 1-4 weeks to ship | |
| 911128-8 | P.H.SCREW M4X16 WITH WR | 4 | €0.56 | 1-4 weeks to ship | ||
| 045 | 140983-3 | BEARING BOX COMPLETE | 1 | €8.35 | 1-4 weeks to ship | |
| 046 | 442141-0 | GASKET | 1 | €0.83 | 1-4 weeks to ship | |
| 047 | 210069-8 | BALL BEARING 6900DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 048 | 285847-5 | BEARING RETAINER 14-23 | 1 | €2.78 | 1-4 weeks to ship | |
| 049 | 257284-3 | RING 10 | 1 | €1.67 | 1-4 weeks to ship | |
| 050 | 227791-0 | HELICAL GEAR 24 | 1 | €4.31 | 1-4 weeks to ship | |
| 051 | 961006-2 | RETAINING RING S-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 052 | 262155-1 | RUBBER RING 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 053 | 267369-7 | FLAT WASHER 11 | 1 | €0.56 | 1-4 weeks to ship | |
| 054 | 211012-0 | BALL BEARING 606ZZ | 1 | €4.17 | 1-4 weeks to ship | |
| 055 | 227717-2 | HELICAL GEAR 17 | 1 | €19.48 | 1-4 weeks to ship | |
| 056 | 226676-7 | HELICAL GEAR 39 | 1 | €16.70 | 1-4 weeks to ship | |
| 057 | 253823-7 | FLAT WASHER 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 058 | 264064-0 | HEX.NUT M6 | 1 | €5.57 | 1-4 weeks to ship | |
| 059 | 266229-0 | H.S.SET SCREW(CUP POINT)M5X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 060 | 141002-8 | BLADE CASE COMPLETE | 1 | €69.58 | 1-4 weeks to ship | |
| 061 | 262511-5 | RUBBER SLEEVE 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 062 | 265115-2 | + PAN HEAD SCREW M5 | 1 | €0.83 | 1-4 weeks to ship | |
| 063 | 452786-6 | CONNECTOR BOX | 1 | €8.35 | 1-4 weeks to ship | |
| 064 | 452788-2 | COVER | 1 | €5.57 | 1-4 weeks to ship | |
| 065 | 266042-6 | TAPPING SCREW BIND CT 4X20 | 1 | €0.56 | 1-4 weeks to ship | |
| 066 | 631694-6 | LED CIRCUIT | 1 | €25.05 | 1-4 weeks to ship | |
| 067 | 961014-3 | STOP RING E-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 068 | 272260-6 | LEVER 55 | 1 | €4.17 | 1-4 weeks to ship | |
| 069 | 265595-2 | HEX.BOLT M6X85 | 1 | €11.13 | 1-4 weeks to ship | |
| 070 | 253804-1 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 071 | 346477-8 | COLLOR | 1 | €2.78 | 1-4 weeks to ship | |
| 072 | 318245-9 | DEPTH GUIDE | 1 | €11.13 | 1-4 weeks to ship | |
| 073 | 346477-8 | COLLOR | 1 | €2.78 | 1-4 weeks to ship | |
| 074 | 922137-2 | HEX. SOCKET HEAD BOLT M4X20 | 1 | €0.56 | 1-4 weeks to ship | |
| 922137-2 | HEX. SOCKET HEAD BOLT M4X20 | 1 | €0.56 | 1-4 weeks to ship | ||
| 075 | 345876-1 | REAR ANGULAR GUIDE | 1 | €0.83 | 1-4 weeks to ship | |
| 076 | 252126-6 | HEX. LOCK NUT M4-7 | 1 | €0.56 | 1-4 weeks to ship | |
| 077 | 256480-0 | SHOULDER PIN 6-7 | 1 | €0.56 | 1-4 weeks to ship | |
| 078 | 961012-7 | STOP RING E-6 | 2 | €0.56 | 1-4 weeks to ship | |
| 079 | 453165-1 | LOCK LEVER | 2 | €1.11 | 1-4 weeks to ship | |
| 080 | 265571-6 | HEX. BOLT M6X10 | 2 | €2.78 | 1-4 weeks to ship | |
| 081 | 233596-8 | TORSION SPRING 11 | 2 | €0.56 | 1-4 weeks to ship | |
| 082 | 256480-0 | SHOULDER PIN 6-7 | 1 | €0.56 | 1-4 weeks to ship | |
| 084 | 345590-9 | ANGULAR GUIDE | 1 | €4.17 | 1-4 weeks to ship | |
| 087 | 252103-8 | HEX. LOCK NUT M5-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 096 | 265708-5 | THUMB SCREW M6X20 | 1 | €1.67 | 1-4 weeks to ship | |
| 097 | 942151-2 | SPRING WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 942151-2 | SPRING WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 098 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 099 | 266039-5 | H.S.SET SCREW(FLAT POINT) M6X | 1 | €0.83 | 1-4 weeks to ship | |
| 101 | 266039-5 | H.S.SET SCREW(FLAT POINT) M6X | 1 | €0.83 | 1-4 weeks to ship | |
| 103 | 266208-8 | H.S.SET SCREW(CUP POINT)M6X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 104 | 911109-2 | PAN HEAD SCREW M4X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 911109-2 | PAN HEAD SCREW M4X8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 105 | 450333-7 | TOP GUIDE | 1 | €1.11 | 1-4 weeks to ship | |
| 106 | 265708-5 | THUMB SCREW M6X20 | 1 | €1.67 | 1-4 weeks to ship | |
| 107 | 942151-2 | SPRING WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 942151-2 | SPRING WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 108 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 109 | 254031-3 | WOODRUFF KEY 3 | 1 | €0.56 | 1-4 weeks to ship | |
