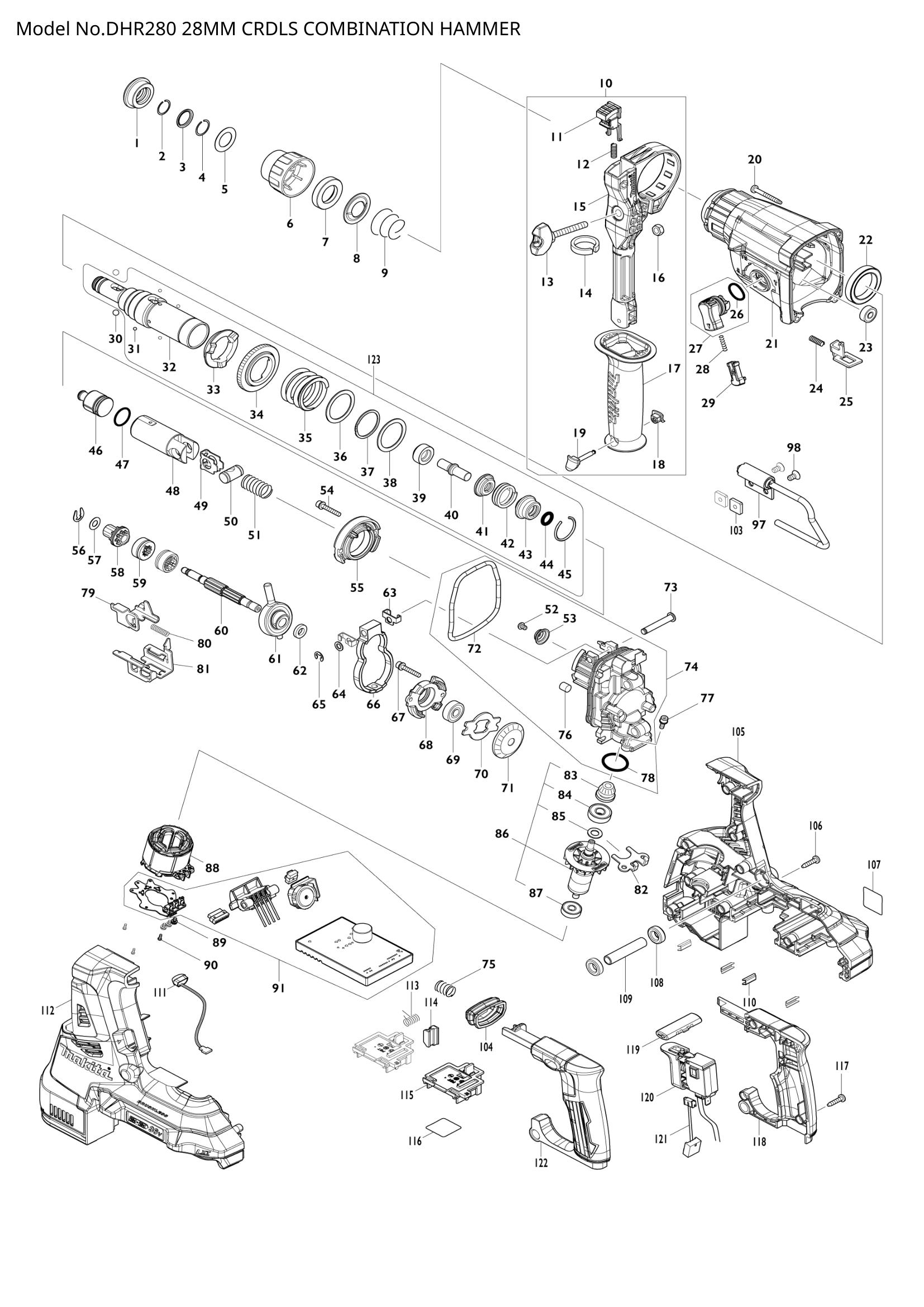

DHR280
DHR280
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 286288-8 | CAP 35 | 1 | €0.56 | 1-4 weeks to ship | |
| 002 | 233989-9 | RING SPRING 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 003 | 346834-0 | WASHER 16 | 1 | €0.42 | 1-4 weeks to ship | |
| 004 | 233992-0 | RING SPRING 15 | 1 | €0.56 | 1-4 weeks to ship | |
| 005 | 267114-0 | FLAT WASHER 17 | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | 455393-4 | CHUCK COVER | 1 | €0.56 | 1-4 weeks to ship | |
| 455393-4 | CHUCK COVER | 1 | €0.56 | 1-4 weeks to ship | ||
| 007 | 325813-1 | RING 21 | 1 | €1.11 | 1-4 weeks to ship | |
| 008 | 346177-0 | GUIDE WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 233916-6 | CONICAL COMP. SPRING 21-29 | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | 126882-3 | GRIP ASSEMBLY | 1 | €17.67 | 1-4 weeks to ship | |
| 011 | LOCK BUTTON COMPLETE | 1 | Not available in store | |||
| 012 | 233360-7 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 013 | THUMB SCREW M6X50 | 1 | Not available in store | |||
| 014 | SPONGE SHEET | 1 | Not available in store | |||
| 015 | SIDE HANDLE BASE | 1 | Not available in store | |||
| 016 | 931302-2 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | GRIP 36 | 1 | Not available in store | |||
| 018 | CAP | 1 | Not available in store | |||
| 019 | FIX PIN | 1 | Not available in store | |||
| 020 | 266351-3 | TAPPING SCREW 4X35 | 4 | €0.56 | 1-4 weeks to ship | |
| 021 | 144965-7 | GEAR HOUSING COMPLETE | 1 | €12.25 | 1-4 weeks to ship | |
| 022 | 211294-4 | BALL BEARING 6806LLU | 1 | €11.13 | 1-4 weeks to ship | |
| 023 | 211012-0 | BALL BEARING 606ZZ | 1 | €4.17 | 1-4 weeks to ship | |
| 024 | 233360-7 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 025 | 347228-2 | LOCK PLATE | 1 | €1.31 | 1-4 weeks to ship | |
| 026 | 213278-8 | O RING 17 | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | 135961-6 | CHANGE LEVER ASSY | 1 | €1.39 | 1-4 weeks to ship | |
| 028 | 234264-6 | COMPRESSION SPRING 3 | 1 | €0.14 | 1-4 weeks to ship | |
| 029 | 457709-9 | LOCK BUTTON | 1 | €0.67 | 1-4 weeks to ship | |
| 457709-9 | LOCK BUTTON | 1 | €0.67 | 1-4 weeks to ship | ||
| 030 | 216022-2 | STEEL BALL 7.0 | 2 | €0.56 | 1-4 weeks to ship | |
| 031 | 216019-1 | STEEL BALL 3 | 4 | €0.56 | 1-4 weeks to ship | |
| 032 | TOOL HOLDER COMPLETE | 1 | Not available in store | |||
| 033 | 332139-4 | DRIVING FLANGE | 1 | €5.57 | 1-4 weeks to ship | |
| 034 | 227360-7 | SPUR GEAR 51 | 1 | €6.40 | 1-4 weeks to ship | |
| 035 | 234148-8 | COMPRESSION SPRING 31 | 1 | €1.11 | 1-4 weeks to ship | |
| 036 | 267153-0 | FLAT WASHER 30 | 1 | €0.56 | 1-4 weeks to ship | |
| 037 | 257932-4 | SPIRO LOCK WASHER 30 | 1 | €2.78 | 1-4 weeks to ship | |
| 038 | 267153-0 | FLAT WASHER 30 | 1 | €0.56 | 1-4 weeks to ship | |
| 039 | 325783-4 | SLEEVE 9B | 1 | €1.11 | 1-4 weeks to ship | |
| 040 | 325789-2 | IMPACT BOLT A | 1 | €1.11 | 1-4 weeks to ship | |
| 041 | 325792-3 | WASHER 10 | 1 | €1.11 | 1-4 weeks to ship | |
| 042 | 234149-6 | COMPRESSION SPRING 20 | 1 | €0.83 | 1-4 weeks to ship | |
| 043 | 325793-1 | O-RING CASE B | 1 | €1.67 | 1-4 weeks to ship | |
| 044 | 213073-6 | O RING 9 | 1 | €0.83 | 1-4 weeks to ship | |
| 045 | 233979-2 | RING SPRING 28 | 1 | €0.56 | 1-4 weeks to ship | |
| 046 | 325784-2 | STRIKER | 1 | €2.78 | 1-4 weeks to ship | |
| 047 | 213258-4 | O RING 17.5 | 1 | €1.11 | 1-4 weeks to ship | |
| 048 | 327079-9 | PISTON CYLINDER | 1 | €6.68 | 1-4 weeks to ship | |
| 049 | 346036-8 | GUIDE PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 050 | 324215-8 | PISTON JOINT | 1 | €1.39 | 1-4 weeks to ship | |
| 051 | 232449-8 | COMPRESSION SPRING 14 | 1 | €0.14 | 1-4 weeks to ship | |
| 052 | H.S.BUTTON HEAD BOLT M4X6 | 1 | Not available in store | |||
| 053 | SPRING GUIDE | 1 | Not available in store | |||
| 054 | 922148-7 | HEX. SOCKET HEAD BOLT M4X25 | 2 | €0.56 | 1-4 weeks to ship | |
| 055 | 144960-7 | INNER SUPPORT COMPLETE | 1 | €3.90 | 1-4 weeks to ship | |
| 056 | 257336-0 | STOP RING EXT U-6 | 1 | €0.56 | 1-4 weeks to ship | |
| 057 | 253186-1 | FLAT WASHER 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 058 | 226170-9 | SPUR GEAR 10 | 1 | €7.37 | 1-4 weeks to ship | |
| 060 | 327078-1 | CAM SHAFT | 1 | €5.29 | 1-4 weeks to ship | |
| 061 | 219030-2 | SWASH BEARING 10 | 1 | €16.70 | 1-4 weeks to ship | |
| 062 | 257321-3 | RING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 063 | 346538-4 | WEIGHT HOLDER GUIDE | 2 | €0.28 | 1-4 weeks to ship | |
| 064 | 253077-6 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 065 | 961018-5 | STOP RING E-5 | 1 | €0.56 | 1-4 weeks to ship | |
| 066 | 310869-7 | COUNTER WEIGHT | 1 | €4.17 | 1-4 weeks to ship | |
| 067 | 922148-7 | HEX. SOCKET HEAD BOLT M4X25 | 2 | €0.56 | 1-4 weeks to ship | |
| 068 | 319674-9 | BEARING BOX | 1 | €2.37 | 1-4 weeks to ship | |
| 069 | 211032-4 | BALL BEARING 608ZZ | 1 | €1.67 | 1-4 weeks to ship | |
| 070 | 347343-2 | BEARING RETAINER B | 1 | €0.70 | 1-4 weeks to ship | |
| 071 | 221599-4 | SPIRAL BEVEL GEAR 32 | 1 | €6.26 | 1-4 weeks to ship | |
| 072 | 213850-6 | O-RING 74 | 1 | €0.83 | 1-4 weeks to ship | |
| 073 | 256536-9 | FLAT FILLISTER HD PIN 6 | 1 | €0.83 | 1-4 weeks to ship | |
| 074 | 135962-4 | INNER HOUSING ASSY | 1 | €33.26 | 1-4 weeks to ship | |
| 075 | 232436-7 | COMPRESSION SPRING 10 | 1 | €0.14 | 1-4 weeks to ship | |
| 076 | 443153-6 | FELT | 1 | €0.56 | 1-4 weeks to ship | |
| 077 | 922118-6 | HEX. SOCKET HEAD BOLT M4X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 078 | 213008-7 | O RING 22.4 | 1 | €0.56 | 1-4 weeks to ship | |
| 079 | 347230-5 | CHANGE PLATE B | 1 | €1.93 | 1-4 weeks to ship | |
| 080 | 234343-0 | COMPRESSION SPRING 5 | 1 | €0.14 | 1-4 weeks to ship | |
| 081 | 347229-0 | CHANGE PLATE A | 1 | €2.53 | 1-4 weeks to ship | |
| 082 | 346536-8 | BEARING RETAINER A | 1 | €1.11 | 1-4 weeks to ship | |
| 083 | SPIRAL BEVEL GEAR 11 COMPLET | 1 | Not available in store | |||
| 084 | 210024-0 | BALL BEARING 608LLU | 1 | €4.17 | 1-4 weeks to ship | |
| 085 | 253835-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 087 | 210022-4 | BALL BEARING 626DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 088 | 629340-3 | STATOR | 1 | €13.50 | 1-4 weeks to ship | |
| 629340-3 | STATOR | 1 | €13.50 | 1-4 weeks to ship | ||
| 089 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 090 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 091 | 620815-5 | CONTROLLER | 1 | €185.77 | 1-4 weeks to ship | |
| 620815-5 | CONTROLLER | 1 | €185.77 | 1-4 weeks to ship | ||
| 097 | 135963-2 | HOOK ASSY | 1 | €4.73 | 1-4 weeks to ship | |
| 098 | 912207-5 | COUNTERSUNK HEAD SCREW M5 | 2 | €0.56 | 1-4 weeks to ship | |
| 103 | 264002-2 | SQUARE NUT M5 | 2 | €0.56 | 1-4 weeks to ship | |
| 104 | 422257-7 | BELLOWS | 1 | €7.24 | 1-4 weeks to ship | |
| 105 | 183J31-5 | HOUSING SET | 1 | €28.39 | 1-4 weeks to ship | |
| 106 | 266326-2 | TAPPING SCREW 4X18 | 9 | €0.56 | 1-4 weeks to ship | |
| 107 | DHR280 NAME PLATE | 1 | Not available in store | |||
| 108 | 422256-9 | RUBBER RING 10 | 2 | €0.28 | 1-4 weeks to ship | |
| 109 | 257438-2 | SLEEVE 10 | 1 | €1.25 | 1-4 weeks to ship | |
| 110 | PLATE | 4 | Not available in store | |||
| 111 | 620549-0 | LED CIRCUIT | 1 | €4.04 | 1-4 weeks to ship | |
| 620549-0 | LED CIRCUIT | 1 | €4.04 | 1-4 weeks to ship | ||
| 112 | 183J31-5 | HOUSING SET | 1 | €28.39 | 1-4 weeks to ship | |
| 113 | 233598-4 | TORSION SPRING 6 | 1 | €0.14 | 1-4 weeks to ship | |
| 114 | 313226-8 | OPENER | 1 | €0.83 | 1-4 weeks to ship | |
| 115 | 644809-6 | TERMINAL | 2 | €3.76 | 1-4 weeks to ship | |
| 644809-6 | TERMINAL | 2 | €3.76 | 1-4 weeks to ship | ||
| 116 | DHR280 SERIAL NO. LABEL | 1 | Not available in store | |||
| 117 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 118 | 183J29-2 | HANDLE SET | 1 | €6.12 | 1-4 weeks to ship | |
| 119 | 453124-5 | F/R CHANGE LEVER | 1 | €0.42 | 1-4 weeks to ship | |
| 120 | 651366-7 | SWITCH C3JW-6B-24 | 1 | €21.99 | 1-4 weeks to ship | |
| 651366-7 | SWITCH C3JW-6B-24 | 1 | €21.99 | 1-4 weeks to ship | ||
| 121 | 632L95-3 | LEAD UNIT | 1 | €2.64 | 1-4 weeks to ship | |
| 632L95-3 | LEAD UNIT | 1 | €2.64 | 1-4 weeks to ship | ||
| 122 | 183J29-2 | HANDLE SET | 1 | €6.12 | 1-4 weeks to ship | |
| 123 | 135966-6 | TOOL HOLDER ASSY | 1 | €46.20 | 1-4 weeks to ship | |
