DHR264
DHR264

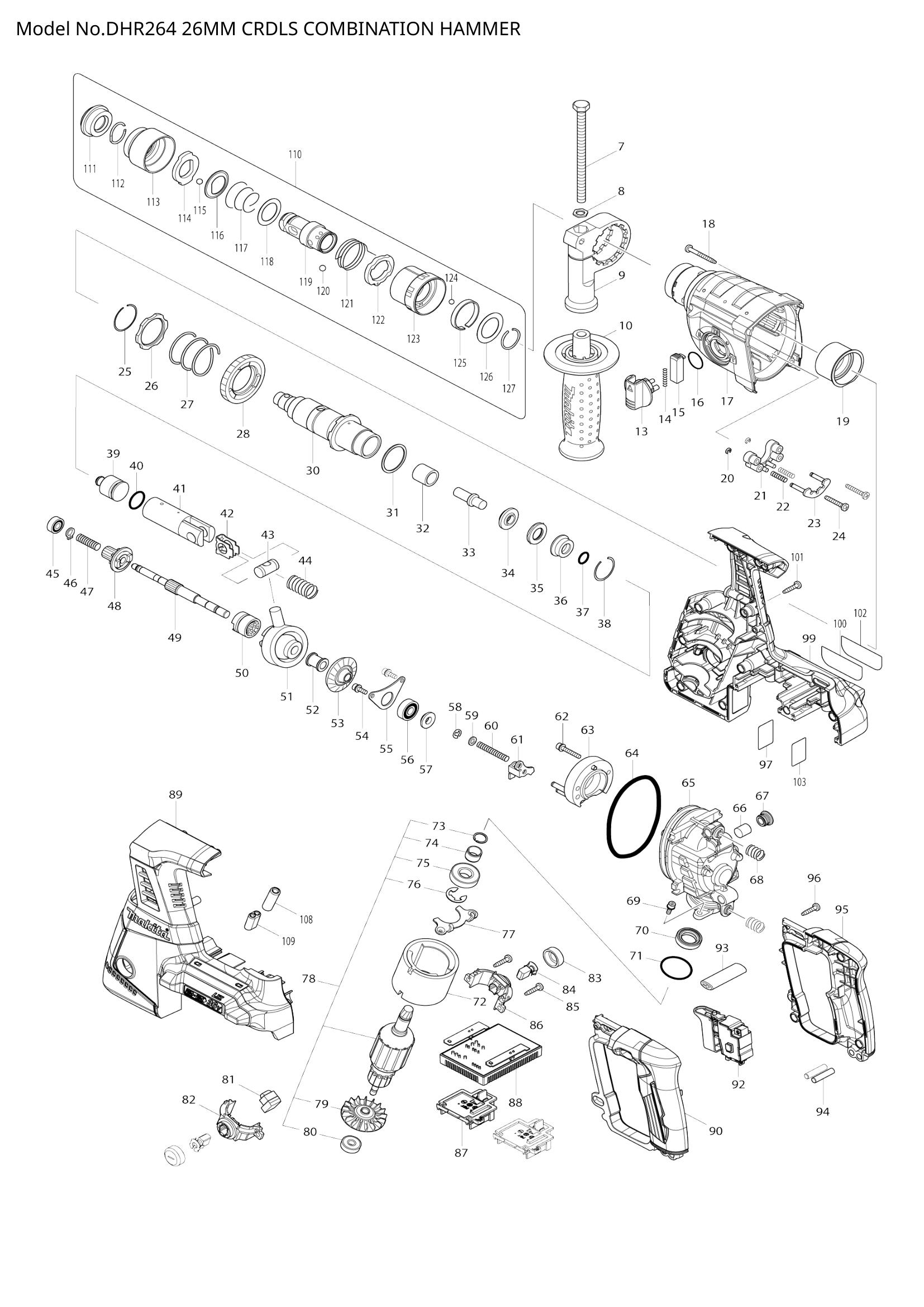

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 007 | 921923-8 | HEX. BOLT M8X120 | 1 | €0.83 | 1-4 weeks to ship | |
| 921923-8 | HEX. BOLT M8X120 | 1 | €0.83 | 1-4 weeks to ship | ||
| 008 | 345280-4 | HEX. WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 417630-4 | GRIP BASE | 1 | €1.39 | 1-4 weeks to ship | |
| 010 | 158057-6 | GRIP 36 COMPLETE | 1 | €4.17 | 1-4 weeks to ship | |
| 013 | 450980-4 | CHANGE LEVER | 1 | €1.67 | 1-4 weeks to ship | |
| 014 | 233279-0 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 453706-3 | LOCK BUTTON | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | 213278-8 | O RING 17 | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | 158945-7 | GEAR HOUSING COMPLETE | 1 | €11.13 | 1-4 weeks to ship | |
| 018 | 266560-4 | TAPPING SCREW 4X40 | 4 | €0.14 | 1-4 weeks to ship | |
| 019 | 153290-5 | NEEDLE BEARING COMPLETE | 1 | €4.17 | 1-4 weeks to ship | |
| 020 | 961017-7 | STOP RING E-3 | 2 | €0.56 | 1-4 weeks to ship | |
| 021 | 417796-0 | GUIDE BASE | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 233344-5 | COMPRESSION SPRING 4 | 2 | €0.56 | 1-4 weeks to ship | |
| 023 | 163430-7 | LOCK PLATE COMPLETE | 1 | €1.39 | 1-4 weeks to ship | |
| 024 | 266374-1 | TAPPING SCREW 4X25 | 2 | €0.56 | 1-4 weeks to ship | |
| 025 | 233929-7 | RING SPRING 29 | 1 | €0.56 | 1-4 weeks to ship | |
| 026 | 267460-1 | WASHER 31 | 1 | €1.11 | 1-4 weeks to ship | |
| 027 | 233401-9 | COMPRESSION SPRING 32 | 1 | €1.11 | 1-4 weeks to ship | |
| 028 | 227109-5 | SPUR GEAR 51 | 1 | €8.35 | 1-4 weeks to ship | |
| 030 | 158307-9 | TOOL HOLDER GUIDE COMPLET | 1 | €30.61 | 1-4 weeks to ship | |
| 031 | 267229-3 | FLAT WASHER 28 | 1 | €0.56 | 1-4 weeks to ship | |
| 032 | 331769-8 | SLEEVE 9 | 1 | €2.78 | 1-4 weeks to ship | |
| 033 | 324796-2 | IMPACT BOLT | 1 | €2.78 | 1-4 weeks to ship | |
| 034 | 324402-9 | RING 10 | 1 | €1.39 | 1-4 weeks to ship | |
| 035 | 421955-0 | CUSHION RING 13 | 1 | €0.83 | 1-4 weeks to ship | |
| 036 | 324216-6 | O RING CASE | 1 | €4.17 | 1-4 weeks to ship | |
| 037 | 213073-6 | O RING 9 | 1 | €0.83 | 1-4 weeks to ship | |
| 038 | 233917-4 | RING SPRING 28 | 1 | €0.56 | 1-4 weeks to ship | |
| 039 | 326404-1 | STRIKER | 1 | €2.50 | 1-4 weeks to ship | |
| 040 | 213227-5 | O RING 16 | 1 | €0.56 | 1-4 weeks to ship | |
| 041 | 318132-2 | PISTON CYLINDER | 1 | €19.48 | 1-4 weeks to ship | |
| 042 | 346036-8 | GUIDE PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 043 | 324215-8 | PISTON JOINT | 1 | €1.39 | 1-4 weeks to ship | |
| 044 | 234098-7 | COMPRESSION SPRING 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 045 | 211012-0 | BALL BEARING 606ZZ | 1 | €4.17 | 1-4 weeks to ship | |
| 046 | 961003-8 | RETAINING RING S-7 | 1 | €0.56 | 1-4 weeks to ship | |
| 047 | 233343-7 | COMPRESSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 048 | 227179-4 | SPUR GEAR 10 | 1 | €8.35 | 1-4 weeks to ship | |
| 049 | 325976-3 | CAM SHAFT | 1 | €8.35 | 1-4 weeks to ship | |
| 050 | 331992-5 | CLUTCH CAM | 1 | €5.57 | 1-4 weeks to ship | |
| 052 | 325640-6 | SLEEVE 9 | 1 | €0.83 | 1-4 weeks to ship | |
| 053 | 227549-7 | SPIRAL BEVEL GEAR 26 | 1 | €5.57 | 1-4 weeks to ship | |
| 054 | 266273-7 | HEX. SOCKET HEAD BOLT M4X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 055 | 346038-4 | BEARING RETAINER B | 1 | €0.56 | 1-4 weeks to ship | |
| 056 | 211032-4 | BALL BEARING 608ZZ | 1 | €1.67 | 1-4 weeks to ship | |
| 057 | 324212-4 | RING 8 | 1 | €2.78 | 1-4 weeks to ship | |
| 058 | 961011-9 | STOP RING E-4 | 1 | €0.56 | 1-4 weeks to ship | |
| 059 | 941102-2 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 941102-2 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 060 | 233342-9 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 061 | 345220-2 | CHANGE PLATE | 1 | €0.83 | 1-4 weeks to ship | |
| 062 | 922148-7 | HEX. SOCKET HEAD BOLT M4X25 | 2 | €0.56 | 1-4 weeks to ship | |
| 063 | 158944-9 | INNER SUPPORT COMPLETE | 1 | €5.57 | 1-4 weeks to ship | |
| 064 | 213728-3 | O-RING 68 | 1 | €0.83 | 1-4 weeks to ship | |
| 065 | 318392-6 | INNER HOUSING | 1 | €16.70 | 1-4 weeks to ship | |
| 066 | 443143-9 | FILTER | 1 | €0.56 | 1-4 weeks to ship | |
| 067 | 424185-2 | CAP | 1 | €0.56 | 1-4 weeks to ship | |
| 068 | 234097-9 | COMPRESSION SPRING 10 | 2 | €0.56 | 1-4 weeks to ship | |
| 069 | 266273-7 | HEX. SOCKET HEAD BOLT M4X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 070 | 213231-4 | OIL SEAL 15 | 1 | €8.35 | 1-4 weeks to ship | |
| 071 | 213437-4 | O RING 28 | 1 | €0.56 | 1-4 weeks to ship | |
| 072 | 632828-4 | YOKE UNIT | 1 | €22.26 | 1-4 weeks to ship | |
| 073 | 961082-6 | RETAINING RING WR12 | 1 | €0.56 | 1-4 weeks to ship | |
| 074 | 331596-3 | SLEEVE 12 | 1 | €4.17 | 1-4 weeks to ship | |
| 075 | 211131-2 | BALL BEARING 6001DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 076 | 961016-9 | STOP RING E-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 077 | 346037-6 | BEARING RETAINER A | 1 | €1.11 | 1-4 weeks to ship | |
| 078 | 519235-7 | ARMATURE ASS'Y 36V | 1 | €44.53 | 1-4 weeks to ship | |
| 079 | 240037-7 | FAN 44 | 1 | €4.17 | 1-4 weeks to ship | |
| 080 | 210022-4 | BALL BEARING 626DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 081 | 620281-6 | LIGHT CIRCUIT | 1 | €5.57 | 1-4 weeks to ship | |
| 620281-6 | LIGHT CIRCUIT | 1 | €5.57 | 1-4 weeks to ship | ||
| 082 | 644507-2 | BRUSH HOLDER | 1 | €4.17 | 1-4 weeks to ship | |
| 083 | 643829-7 | HOLDER CAP | 2 | €0.56 | 1-4 weeks to ship | |
| 085 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 086 | 644508-0 | BRUSH HOLDER | 1 | €4.31 | 1-4 weeks to ship | |
| 087 | 644808-8 | TERMINAL | 2 | €4.17 | 1-4 weeks to ship | |
| 088 | 620280-8 | CONTROLLER | 1 | €83.49 | 1-4 weeks to ship | |
| 620280-8 | CONTROLLER | 1 | €83.49 | 1-4 weeks to ship | ||
| 089 | 187833-1 | HOUSING SET | 1 | €27.27 | 1-4 weeks to ship | |
| 090 | 187771-7 | HANDLE SET | 1 | €9.04 | 1-4 weeks to ship | |
| 092 | 650721-0 | SWITCH | 1 | €24.35 | 1-4 weeks to ship | |
| 650721-0 | SWITCH | 1 | €24.35 | 1-4 weeks to ship | ||
| 093 | 454980-6 | F/R CHANGE LEVER | 1 | €0.70 | 1-4 weeks to ship | |
| 454980-6 | F/R CHANGE LEVER | 1 | €0.70 | 1-4 weeks to ship | ||
| 094 | 256261-2 | PIN 6 | 2 | €0.56 | 1-4 weeks to ship | |
| 095 | 187771-7 | HANDLE SET | 1 | €9.04 | 1-4 weeks to ship | |
| 096 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 097 | DHR264 SERIAL NO. LABEL | 1 | Not available in store | |||
| 099 | 187833-1 | HOUSING SET | 1 | €27.27 | 1-4 weeks to ship | |
| 100 | DHR264 NAME PLATE | 1 | Not available in store | |||
| 101 | 266326-2 | TAPPING SCREW 4X18 | 10 | €0.56 | 1-4 weeks to ship | |
| 108 | 688165-4 | LINE FILTER | 1 | €0.56 | 1-4 weeks to ship | |
| 110 | TOOL HOLDER SET | 1 | Not available in store | |||
| 111 | 286263-4 | CAP 35 | 1 | €1.11 | 1-4 weeks to ship | |
| 112 | 233940-9 | RING SPRING 19 | 1 | €0.56 | 1-4 weeks to ship | |
| 113 | 418217-5 | CHUCK COVER | 1 | €1.11 | 1-4 weeks to ship | |
| 114 | 345333-9 | STOPPER | 1 | €0.56 | 1-4 weeks to ship | |
| 115 | 216022-2 | STEEL BALL 7.0 | 1 | €0.56 | 1-4 weeks to ship | |
| 116 | 345187-4 | GUIDE WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 117 | 233916-6 | CONICAL COMP. SPRING 21-29 | 1 | €0.56 | 1-4 weeks to ship | |
| 118 | 267279-8 | FLAT WASHER 21 | 1 | €0.56 | 1-4 weeks to ship | |
| 119 | 324355-2 | TOOL HOLDER | 1 | €25.05 | 1-4 weeks to ship | |
| 120 | 216013-3 | STEEL BALL 6 | 2 | €0.56 | 1-4 weeks to ship | |
| 121 | 231669-1 | TORSION SPRING 31 | 1 | €0.56 | 1-4 weeks to ship | |
| 122 | 345334-7 | CHANGE RING | 1 | €1.39 | 1-4 weeks to ship | |
| 123 | 418218-3 | CHANGE COVER | 1 | €1.11 | 1-4 weeks to ship | |
| 124 | 216018-3 | STEEL BALL 5.0 | 1 | €0.56 | 1-4 weeks to ship | |
| 125 | 345335-5 | LEAF SPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 126 | 267270-6 | FLAT WASHER 24 | 1 | €0.56 | 1-4 weeks to ship | |
| 127 | 233924-7 | RING SPRING 21 | 1 | €0.56 | 1-4 weeks to ship | |
