DHR243
DHR243

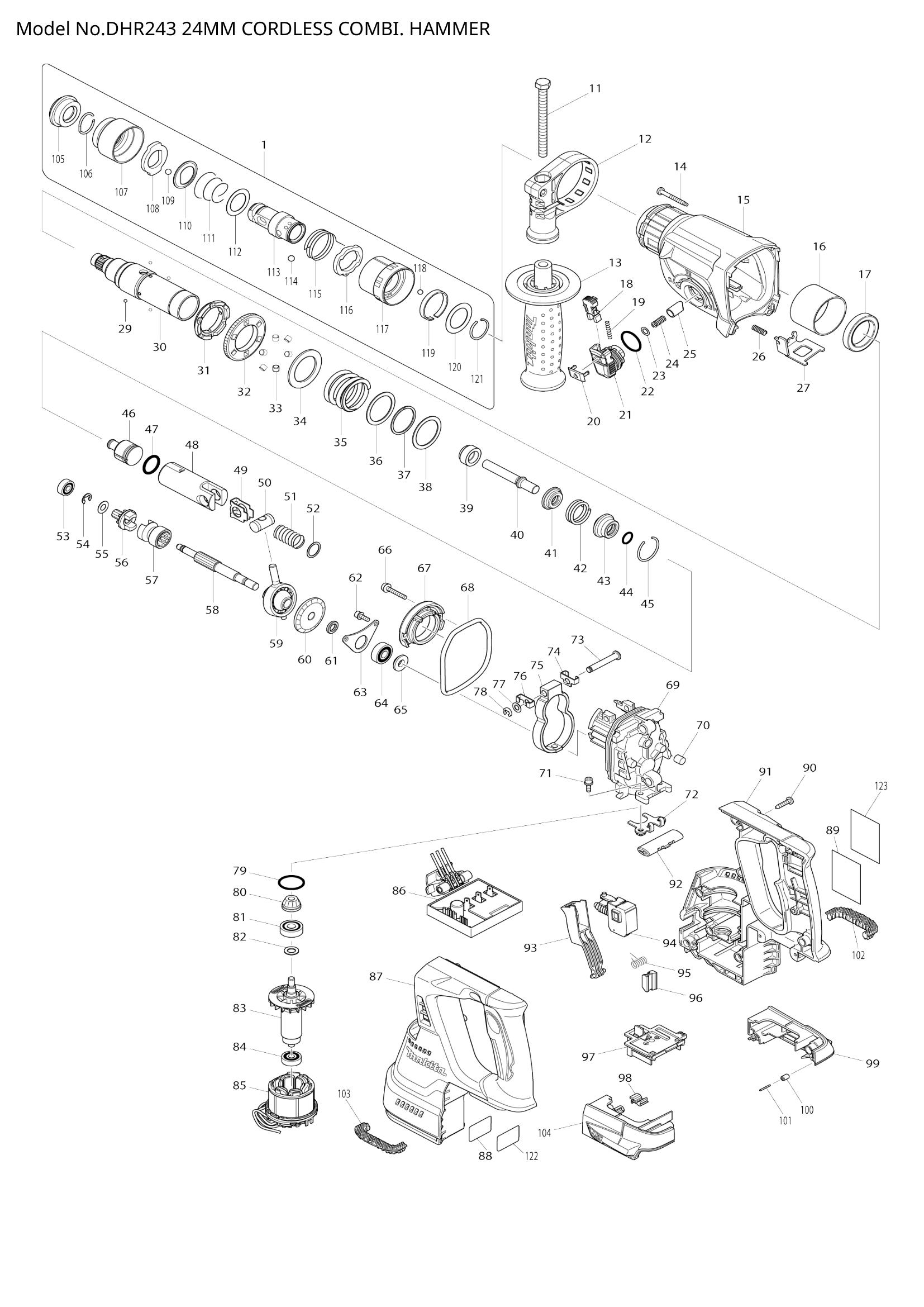

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | TOOL HOLDER SET | 1 | Not available in store | |||
| 011 | 266745-2 | HEX.BOLT M8X90 | 1 | €0.70 | 1-4 weeks to ship | |
| 012 | 453129-5 | GRIP BASE | 1 | €1.25 | 1-4 weeks to ship | |
| 013 | 158057-6 | GRIP 36 COMPLETE | 1 | €4.17 | 1-4 weeks to ship | |
| 014 | 266351-3 | TAPPING SCREW 4X35 | 4 | €0.56 | 1-4 weeks to ship | |
| 016 | 331890-3 | CUP SLEEVE | 1 | €2.78 | 1-4 weeks to ship | |
| 017 | 211294-4 | BALL BEARING 6806LLU | 1 | €11.13 | 1-4 weeks to ship | |
| 018 | 454112-5 | LOCK BUTTON | 1 | €0.56 | 1-4 weeks to ship | |
| 019 | 234264-6 | COMPRESSION SPRING 3 | 1 | €0.14 | 1-4 weeks to ship | |
| 020 | 453131-8 | CHANGE LEVER COVER | 1 | €0.56 | 1-4 weeks to ship | |
| 453131-8 | CHANGE LEVER COVER | 1 | €0.56 | 1-4 weeks to ship | ||
| 021 | 453125-3 | CHANGE LEVER | 1 | €1.11 | 1-4 weeks to ship | |
| 022 | 213381-5 | O RING 21 | 1 | €0.83 | 1-4 weeks to ship | |
| 023 | 253308-3 | THIN WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 024 | 234147-0 | COMPRESSION SPRING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 026 | 233360-7 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | 346537-6 | LOCK PLATE | 1 | €1.11 | 1-4 weeks to ship | |
| 029 | 216019-1 | STEEL BALL 3 | 4 | €0.56 | 1-4 weeks to ship | |
| 030 | 140266-1 | TOOL HOLDERGUIDE COMPLETE | 1 | €25.05 | 1-4 weeks to ship | |
| 035 | 234148-8 | COMPRESSION SPRING 31 | 1 | €1.11 | 1-4 weeks to ship | |
| 036 | 267153-0 | FLAT WASHER 30 | 1 | €0.56 | 1-4 weeks to ship | |
| 037 | 257932-4 | SPIRO LOCK WASHER 30 | 1 | €2.78 | 1-4 weeks to ship | |
| 038 | 267153-0 | FLAT WASHER 30 | 1 | €0.56 | 1-4 weeks to ship | |
| 039 | 325783-4 | SLEEVE 9B | 1 | €1.11 | 1-4 weeks to ship | |
| 040 | 325791-5 | IMPACT BOLT B | 1 | €1.67 | 1-4 weeks to ship | |
| 041 | 325792-3 | WASHER 10 | 1 | €1.11 | 1-4 weeks to ship | |
| 042 | 234149-6 | COMPRESSION SPRING 20 | 1 | €0.83 | 1-4 weeks to ship | |
| 043 | 325793-1 | O-RING CASE B | 1 | €1.67 | 1-4 weeks to ship | |
| 044 | 213073-6 | O RING 9 | 1 | €0.83 | 1-4 weeks to ship | |
| 045 | 233979-2 | RING SPRING 28 | 1 | €0.56 | 1-4 weeks to ship | |
| 046 | 326139-4 | STRIKER | 1 | €4.17 | 1-4 weeks to ship | |
| 047 | 213258-4 | O RING 17.5 | 1 | €1.11 | 1-4 weeks to ship | |
| 048 | 310345-1 | PISTON CYLINDER | 1 | €11.13 | 1-4 weeks to ship | |
| 049 | 346036-8 | GUIDE PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 050 | 324215-8 | PISTON JOINT | 1 | €1.39 | 1-4 weeks to ship | |
| 051 | 234098-7 | COMPRESSION SPRING 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 052 | 267447-3 | FLAT WASHER 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 053 | 211012-0 | BALL BEARING 606ZZ | 1 | €4.17 | 1-4 weeks to ship | |
| 054 | 257336-0 | STOP RING EXT U-6 | 1 | €0.56 | 1-4 weeks to ship | |
| 055 | 253186-1 | FLAT WASHER 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 056 | 227231-8 | SPUR GEAR 10 | 1 | €6.96 | 1-4 weeks to ship | |
| 058 | 326140-9 | CAM SHAFT | 1 | €5.01 | 1-4 weeks to ship | |
| 059 | 219020-5 | SWASH BEARING 10 | 1 | €27.83 | 1-4 weeks to ship | |
| 060 | 227588-7 | SPIRAL BEVEL GEAR 32 | 1 | €5.57 | 1-4 weeks to ship | |
| 061 | 257323-9 | RING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 062 | 922118-6 | HEX. SOCKET HEAD BOLT M4X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 063 | 346038-4 | BEARING RETAINER B | 1 | €0.56 | 1-4 weeks to ship | |
| 064 | 211032-4 | BALL BEARING 608ZZ | 1 | €1.67 | 1-4 weeks to ship | |
| 065 | 324212-4 | RING 8 | 1 | €2.78 | 1-4 weeks to ship | |
| 066 | 922147-9 | HEX. SOCKET HEAD BOLT M4X25 | 2 | €0.56 | 1-4 weeks to ship | |
| 067 | 141230-5 | INNER SUPPORT COMPLETE | 1 | €3.20 | 1-4 weeks to ship | |
| 068 | 213767-3 | O-RING 75 | 1 | €0.97 | 1-4 weeks to ship | |
| 069 | 318810-4 | INNER HOUSING | 1 | €16.42 | 1-4 weeks to ship | |
| 070 | 443153-6 | FELT | 1 | €0.56 | 1-4 weeks to ship | |
| 071 | 922118-6 | HEX. SOCKET HEAD BOLT M4X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 072 | 346536-8 | BEARING RETAINER A | 1 | €1.11 | 1-4 weeks to ship | |
| 073 | 256536-9 | FLAT FILLISTER HD PIN 6 | 1 | €0.83 | 1-4 weeks to ship | |
| 074 | 346538-4 | WEIGHT HOLDER GUIDE | 1 | €0.28 | 1-4 weeks to ship | |
| 075 | 313224-2 | COUNTER WEIGHT | 1 | €2.92 | 1-4 weeks to ship | |
| 076 | 346538-4 | WEIGHT HOLDER GUIDE | 1 | €0.28 | 1-4 weeks to ship | |
| 077 | 253726-5 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 078 | 961018-5 | STOP RING E-5 | 1 | €0.56 | 1-4 weeks to ship | |
| 079 | 213008-7 | O RING 22.4 | 1 | €0.56 | 1-4 weeks to ship | |
| 080 | 141458-5 | SPIRAL BEVEL GEAR 11 COMPLET | 1 | €4.59 | 1-4 weeks to ship | |
| 081 | 210024-0 | BALL BEARING 608LLU | 1 | €4.17 | 1-4 weeks to ship | |
| 082 | 253835-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 084 | 210022-4 | BALL BEARING 626DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 088 | DHR243 SERIAL NO. LABEL | 1 | Not available in store | |||
| 089 | DHR243 NAME PLATE | 1 | Not available in store | |||
| 092 | 453124-5 | F/R CHANGE LEVER | 1 | €0.42 | 1-4 weeks to ship | |
| 093 | 453123-7 | SWITCH LEVER | 1 | €0.56 | 1-4 weeks to ship | |
| 094 | 650709-0 | SWITCH C3JW-1A-P | 1 | €14.47 | 1-4 weeks to ship | |
| 650709-0 | SWITCH C3JW-1A-P | 1 | €14.47 | 1-4 weeks to ship | ||
| 095 | 233598-4 | TORSION SPRING 6 | 1 | €0.14 | 1-4 weeks to ship | |
| 096 | 313226-8 | OPENER | 1 | €0.83 | 1-4 weeks to ship | |
| 097 | 644808-8 | TERMINAL | 1 | €4.17 | 1-4 weeks to ship | |
| 098 | 424476-1 | CUSHION | 1 | €0.42 | 1-4 weeks to ship | |
| 099 | 187377-1 | BATTERY HOUSING SET | 1 | €5.84 | 1-4 weeks to ship | |
| 100 | 263036-2 | RUBBER PIN 5 | 1 | €1.67 | 1-4 weeks to ship | |
| 101 | 268184-2 | PIN 1.5 | 1 | €0.56 | 1-4 weeks to ship | |
| 102 | 424473-7 | CUSHION RUBBER | 1 | €1.53 | 1-4 weeks to ship | |
| 103 | 424473-7 | CUSHION RUBBER | 1 | €1.53 | 1-4 weeks to ship | |
| 104 | 187377-1 | BATTERY HOUSING SET | 1 | €5.84 | 1-4 weeks to ship | |
| 105 | 286263-4 | CAP 35 | 1 | €1.11 | 1-4 weeks to ship | |
| 106 | 233940-9 | RING SPRING 19 | 1 | €0.56 | 1-4 weeks to ship | |
| 107 | 418217-5 | CHUCK COVER | 1 | €1.11 | 1-4 weeks to ship | |
| 108 | 345333-9 | STOPPER | 1 | €0.56 | 1-4 weeks to ship | |
| 109 | 216022-2 | STEEL BALL 7.0 | 1 | €0.56 | 1-4 weeks to ship | |
| 110 | 345187-4 | GUIDE WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 111 | 233916-6 | CONICAL COMP. SPRING 21-29 | 1 | €0.56 | 1-4 weeks to ship | |
| 112 | 267279-8 | FLAT WASHER 21 | 1 | €0.56 | 1-4 weeks to ship | |
| 113 | 324355-2 | TOOL HOLDER | 1 | €25.05 | 1-4 weeks to ship | |
| 114 | 216013-3 | STEEL BALL 6 | 2 | €0.56 | 1-4 weeks to ship | |
| 115 | 231669-1 | TORSION SPRING 31 | 1 | €0.56 | 1-4 weeks to ship | |
| 116 | 345334-7 | CHANGE RING | 1 | €1.39 | 1-4 weeks to ship | |
| 117 | 418218-3 | CHANGE COVER | 1 | €1.11 | 1-4 weeks to ship | |
| 118 | 216018-3 | STEEL BALL 5.0 | 1 | €0.56 | 1-4 weeks to ship | |
| 119 | 345335-5 | LEAF SPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 120 | 267270-6 | FLAT WASHER 24 | 1 | €0.56 | 1-4 weeks to ship | |
| 121 | 233924-7 | RING SPRING 21 | 1 | €0.56 | 1-4 weeks to ship | |
| 124 | 424734-5 | SPONGE S | 2 | €0.28 | 1-4 weeks to ship | |
| 424734-5 | SPONGE | 2 | €0.28 | 1-4 weeks to ship | ||
