DHR241
DHR241

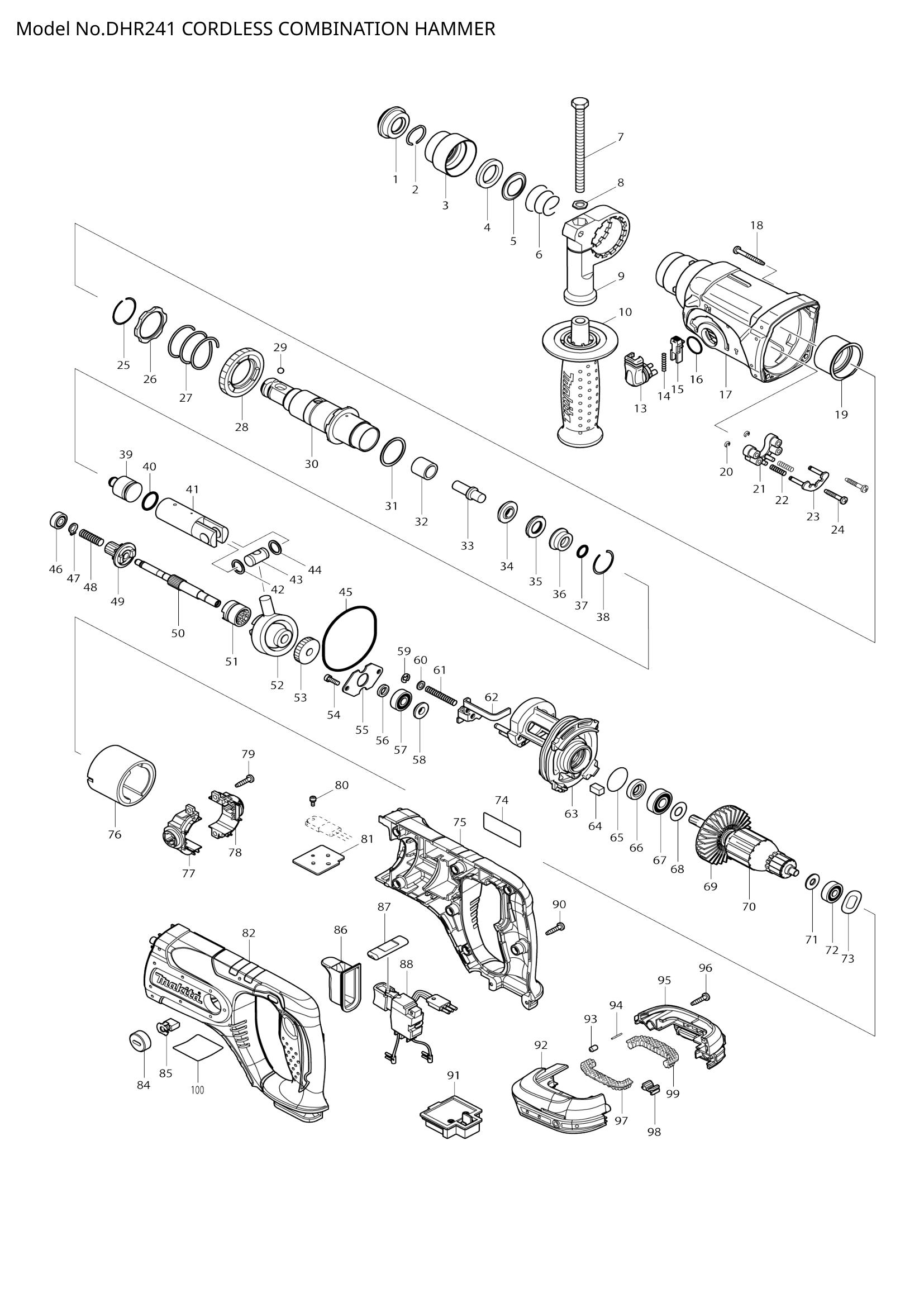

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 286263-4 | CAP 35 | 1 | €1.11 | 1-4 weeks to ship | |
| 002 | 233940-9 | RING SPRING 19 | 1 | €0.56 | 1-4 weeks to ship | |
| 003 | 417629-9 | CHUCK COVER | 1 | €0.56 | 1-4 weeks to ship | |
| 004 | 257241-1 | RING 21 | 1 | €0.83 | 1-4 weeks to ship | |
| 005 | 345187-4 | GUIDE WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | 233916-6 | CONICAL COMP. SPRING 21-29 | 1 | €0.56 | 1-4 weeks to ship | |
| 007 | 921923-8 | HEX. BOLT M8X120 | 1 | €0.83 | 1-4 weeks to ship | |
| 921923-8 | HEX. BOLT M8X120 | 1 | €0.83 | 1-4 weeks to ship | ||
| 008 | 345280-4 | HEX. WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 417630-4 | GRIP BASE | 1 | €1.39 | 1-4 weeks to ship | |
| 010 | 158057-6 | GRIP 36 COMPLETE | 1 | €4.17 | 1-4 weeks to ship | |
| 013 | 162245-9 | CHANGE LEVER | 1 | €1.39 | 1-4 weeks to ship | |
| 014 | 233459-8 | COMPRESSION SPRING 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 419192-8 | LOCK BUTTON | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | 213278-8 | O RING 17 | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | 158216-2 | GEAR HOUSING COMPLETE | 1 | €16.70 | 1-4 weeks to ship | |
| 018 | 266351-3 | TAPPING SCREW 4X35 | 4 | €0.56 | 1-4 weeks to ship | |
| 019 | 153290-5 | NEEDLE BEARING COMPLETE | 1 | €4.17 | 1-4 weeks to ship | |
| 020 | 961017-7 | STOP RING E-3 | 2 | €0.56 | 1-4 weeks to ship | |
| 021 | 417796-0 | GUIDE BASE | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 233344-5 | COMPRESSION SPRING 4 | 2 | €0.56 | 1-4 weeks to ship | |
| 023 | 163430-7 | LOCK PLATE COMPLETE | 1 | €1.39 | 1-4 weeks to ship | |
| 024 | 266374-1 | TAPPING SCREW 4X25 | 2 | €0.56 | 1-4 weeks to ship | |
| 025 | 233929-7 | RING SPRING 29 | 1 | €0.56 | 1-4 weeks to ship | |
| 026 | 267460-1 | WASHER 31 | 1 | €1.11 | 1-4 weeks to ship | |
| 027 | 233401-9 | COMPRESSION SPRING 32 | 1 | €1.11 | 1-4 weeks to ship | |
| 028 | 227109-5 | SPUR GEAR 51 | 1 | €8.35 | 1-4 weeks to ship | |
| 029 | 216022-2 | STEEL BALL 7.0 | 1 | €0.56 | 1-4 weeks to ship | |
| 030 | 158574-6 | TOOL HOLDER COMPLETE | 1 | €27.83 | 1-4 weeks to ship | |
| 031 | 267229-3 | FLAT WASHER 28 | 1 | €0.56 | 1-4 weeks to ship | |
| 032 | 331769-8 | SLEEVE 9 | 1 | €2.78 | 1-4 weeks to ship | |
| 033 | 324669-9 | IMPACT BOLT | 1 | €2.78 | 1-4 weeks to ship | |
| 034 | 324402-9 | RING 10 | 1 | €1.39 | 1-4 weeks to ship | |
| 035 | 421955-0 | CUSHION RING 13 | 1 | €0.83 | 1-4 weeks to ship | |
| 036 | 324216-6 | O RING CASE | 1 | €4.17 | 1-4 weeks to ship | |
| 037 | 213073-6 | O RING 9 | 1 | €0.83 | 1-4 weeks to ship | |
| 038 | 233917-4 | RING SPRING 28 | 1 | €0.56 | 1-4 weeks to ship | |
| 039 | 324214-0 | STRIKER | 1 | €2.78 | 1-4 weeks to ship | |
| 040 | 213227-5 | O RING 16 | 1 | €0.56 | 1-4 weeks to ship | |
| 041 | 318132-2 | PISTON CYLINDER | 1 | €19.48 | 1-4 weeks to ship | |
| 042 | 267104-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 043 | 324215-8 | PISTON JOINT | 1 | €1.39 | 1-4 weeks to ship | |
| 044 | 267104-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 045 | 213727-5 | O-RING 63 | 1 | €2.78 | 1-4 weeks to ship | |
| 047 | 961003-8 | RETAINING RING S-7 | 1 | €0.56 | 1-4 weeks to ship | |
| 048 | 233343-7 | COMPRESSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 049 | 227179-4 | SPUR GEAR 10 | 1 | €8.35 | 1-4 weeks to ship | |
| 050 | 324668-1 | CAM SHAFT | 1 | €11.13 | 1-4 weeks to ship | |
| 051 | 331992-5 | CLUTCH CAM | 1 | €5.57 | 1-4 weeks to ship | |
| 054 | 266273-7 | HEX. SOCKET HEAD BOLT M4X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 055 | 345179-3 | BEARING RETAINER | 1 | €0.56 | 1-4 weeks to ship | |
| 058 | 324212-4 | RING 8 | 1 | €2.78 | 1-4 weeks to ship | |
| 059 | 961011-9 | STOP RING E-4 | 1 | €0.56 | 1-4 weeks to ship | |
| 060 | 941102-2 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 941102-2 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 061 | 233342-9 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 062 | 345363-0 | CHANGE PLATE | 1 | €0.83 | 1-4 weeks to ship | |
| 063 | 141574-3 | INNER HOUSING COMPLETE | 1 | €13.92 | 1-4 weeks to ship | |
| 065 | 213407-3 | O RING 26 | 1 | €0.56 | 1-4 weeks to ship | |
| 066 | 213077-8 | OIL SEAL 10 | 1 | €4.17 | 1-4 weeks to ship | |
| 067 | 210059-1 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 068 | 267213-8 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 069 | 240092-9 | FAN 64 | 1 | €0.83 | 1-4 weeks to ship | |
| 070 | 519226-8 | ARMATURE ASS'Y 18V | 1 | €30.61 | 1-4 weeks to ship | |
| 071 | 253823-7 | FLAT WASHER 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 072 | 210023-2 | BALL BEARING 627DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 073 | 267816-8 | WAVE WASHER 15 | 1 | €0.56 | 1-4 weeks to ship | |
| 074 | DHR241 NAME PLATE 20MM | 1 | Not available in store | |||
| 075 | 188577-6 | HOUSING SET | 1 | €19.48 | 1-4 weeks to ship | |
| 076 | 638020-0 | YOKE UNIT | 1 | €16.70 | 1-4 weeks to ship | |
| 077 | 638926-2 | BRUSH HOLDER COMPLETE | 1 | €11.13 | 1-4 weeks to ship | |
| 079 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 080 | 911011-9 | PAN HEAD SCREW M3X10 | 1 | €0.56 | 1-4 weeks to ship | |
| 081 | 689070-8 | HEAT SINK | 1 | €2.78 | 1-4 weeks to ship | |
| 082 | 188577-6 | HOUSING SET | 1 | €19.48 | 1-4 weeks to ship | |
| 084 | 643829-7 | HOLDER CAP | 2 | €0.56 | 1-4 weeks to ship | |
| 086 | 424111-1 | SWITCH COVER | 1 | €1.39 | 1-4 weeks to ship | |
| 087 | 450615-7 | F/R CHANGE LEVER | 1 | €0.56 | 1-4 weeks to ship | |
| 088 | 650655-7 | SWITCH TG553FSB-7B | 1 | €36.18 | 1-4 weeks to ship | |
| 090 | 266326-2 | TAPPING SCREW 4X18 | 7 | €0.56 | 1-4 weeks to ship | |
| 091 | 644808-8 | TERMINAL | 1 | €4.17 | 1-4 weeks to ship | |
| 092 | 187212-3 | BATTERYHOUSING SET | 1 | €11.13 | 1-4 weeks to ship | |
| 093 | 263036-2 | RUBBER PIN 5 | 1 | €1.67 | 1-4 weeks to ship | |
| 094 | 268184-2 | PIN 1.5 | 1 | €0.56 | 1-4 weeks to ship | |
| 095 | 187212-3 | BATTERYHOUSING SET | 1 | €11.13 | 1-4 weeks to ship | |
| 096 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 097 | 424042-4 | CUSHION RUBBER | 1 | €2.78 | 1-4 weeks to ship | |
| 098 | 424476-1 | CUSHION | 1 | €0.42 | 1-4 weeks to ship | |
| 099 | 424042-4 | CUSHION RUBBER | 1 | €2.78 | 1-4 weeks to ship | |
| 100 | DHR241 SERIAL NO. LABEL | 1 | Not available in store | |||
| 101 | 123100-0 | TOOL HOLDER ASS'Y | 1 | €44.53 | 1-4 weeks to ship | |
