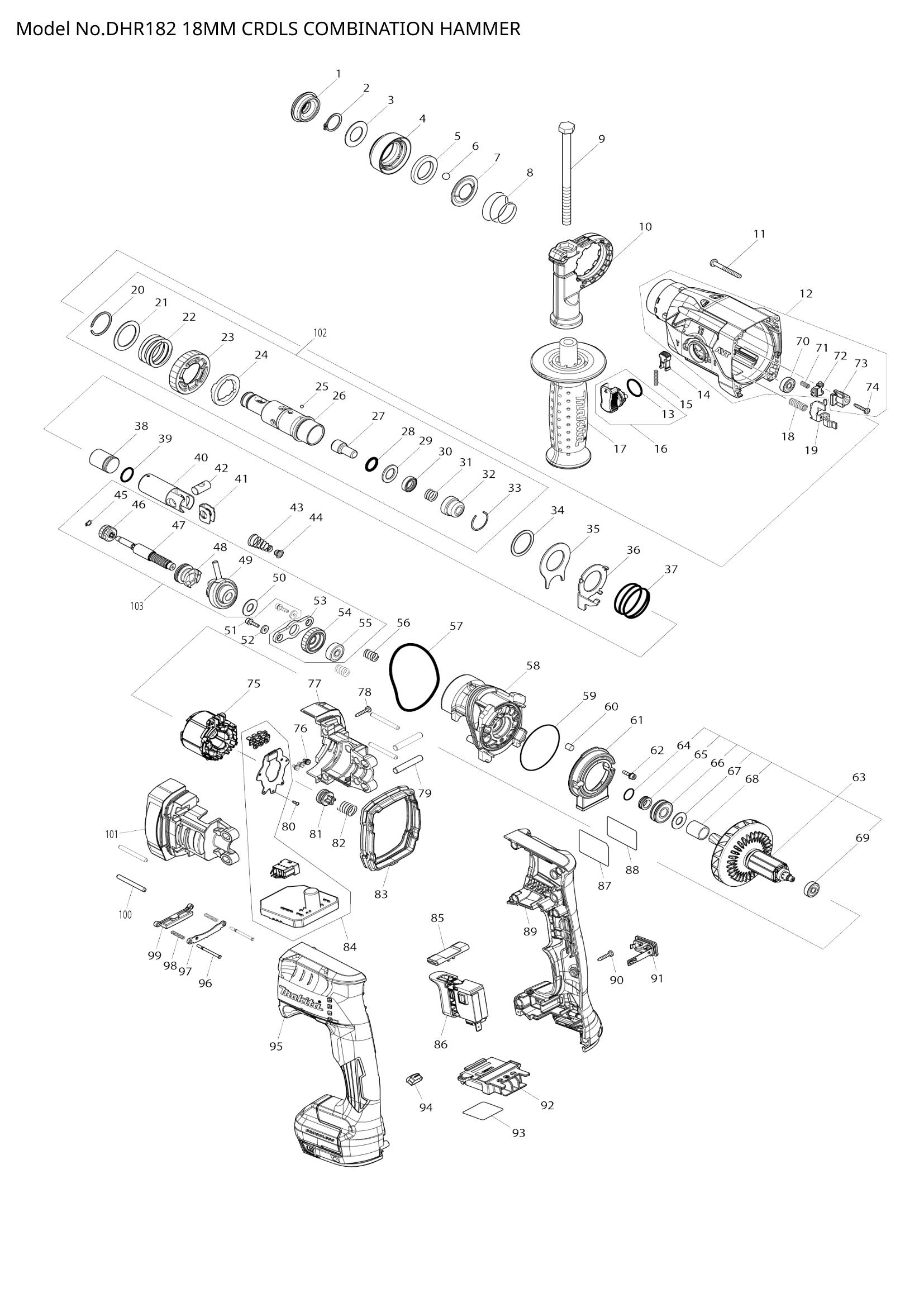

DHR182
DHR182
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 286037-3 | CAP 34 | 1 | €0.70 | 1-4 weeks to ship | |
| 002 | 961057-5 | RETAINING RING S-17 | 1 | €0.56 | 1-4 weeks to ship | |
| 003 | 253377-4 | FLAT WASHER 17 | 1 | €0.28 | 1-4 weeks to ship | |
| 004 | 458845-4 | CHUCK COVER | 1 | €0.70 | 1-4 weeks to ship | |
| 005 | 257416-2 | RING 21 | 1 | €0.97 | 1-4 weeks to ship | |
| 006 | 216022-2 | STEEL BALL 7.0 | 2 | €0.56 | 1-4 weeks to ship | |
| 007 | 346177-0 | GUIDE WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 008 | 232347-6 | CONICAL COMP. SPRING 21-29 | 1 | €0.14 | 1-4 weeks to ship | |
| 010 | 417911-6 | GRIP BASE | 1 | €2.78 | 1-4 weeks to ship | |
| 011 | 266053-1 | TAPPING SCREW 4X35 | 4 | €0.56 | 1-4 weeks to ship | |
| 012 | 136043-7 | GEAR HOUSING ASSY | 1 | €32.00 | 1-4 weeks to ship | |
| 013 | 213278-8 | O RING 17 | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | 458851-9 | LOCK BUTTON | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 234264-6 | COMPRESSION SPRING 3 | 1 | €0.14 | 1-4 weeks to ship | |
| 016 | 136040-3 | CHANGE LEVER ASSY | 1 | €2.09 | 1-4 weeks to ship | |
| 017 | 158057-6 | GRIP 36 COMPLETE | 1 | €4.17 | 1-4 weeks to ship | |
| 018 | COMPRESSION SPRING 8 | 1 | Not available in store | |||
| 019 | 347463-2 | CHANGE PLATE B | 1 | €1.04 | 1-4 weeks to ship | |
| 021 | 267304-5 | FLAT WASHER 25 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 232360-4 | COMPRESSION SPRING 25 | 1 | €0.67 | 1-4 weeks to ship | |
| 023 | 226854-9 | SPUR GEAR 44 | 1 | €5.57 | 1-4 weeks to ship | |
| 024 | 327039-1 | DRIVING FLANGE | 1 | €2.78 | 1-4 weeks to ship | |
| 026 | 326886-7 | TOOL HOLDER | 1 | €14.72 | 1-4 weeks to ship | |
| 027 | 326887-5 | IMPACT BOLT | 1 | €0.97 | 1-4 weeks to ship | |
| 028 | 213117-2 | O RING 11 | 1 | €1.39 | 1-4 weeks to ship | |
| 029 | 253380-5 | FLAT WASHER 13 | 1 | €0.21 | 1-4 weeks to ship | |
| 030 | 326888-3 | RING 10 | 1 | €0.93 | 1-4 weeks to ship | |
| 031 | 232357-3 | COMPRESSION SPRING 10A | 1 | €0.29 | 1-4 weeks to ship | |
| 032 | 327038-3 | CUP SLEEVE | 1 | €2.28 | 1-4 weeks to ship | |
| 033 | 233942-5 | RING SPRING 22 | 1 | €0.83 | 1-4 weeks to ship | |
| 034 | 267175-0 | FLAT WASHER 24 | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | 345681-6 | JOINT PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 036 | CHANGE PLATE A | 1 | Not available in store | |||
| 037 | 233458-0 | COMPRESSION SPRING 32 | 1 | €0.42 | 1-4 weeks to ship | |
| 038 | STRIKER | 1 | Not available in store | |||
| 039 | 213832-8 | O-RING 13 | 1 | €0.63 | 1-4 weeks to ship | |
| 040 | 326890-6 | PISTON CYLINDER | 1 | €5.52 | 1-4 weeks to ship | |
| 041 | 347127-8 | GUIDE PLATE | 1 | €0.25 | 1-4 weeks to ship | |
| 042 | 324612-8 | PISTON JOINT | 1 | €1.11 | 1-4 weeks to ship | |
| 043 | 232361-2 | CONICAL COMP. SPRING 6-13 | 1 | €0.08 | 1-4 weeks to ship | |
| 044 | 347130-9 | SPRING GUIDE | 1 | €0.21 | 1-4 weeks to ship | |
| 045 | 961008-8 | RETAINING RING S-5 | 1 | €0.56 | 1-4 weeks to ship | |
| 046 | 226853-1 | SPUR GEAR 12 | 1 | €4.17 | 1-4 weeks to ship | |
| 047 | 327216-5 | CAM SHAFT | 1 | €4.17 | 1-4 weeks to ship | |
| 048 | 327217-3 | CLUTCH CAM | 1 | €2.78 | 1-4 weeks to ship | |
| 049 | 219029-7 | SWASH BEARING 9 | 1 | €13.92 | 1-4 weeks to ship | |
| 050 | 253733-8 | FLAT WASHER 9 | 1 | €0.56 | 1-4 weeks to ship | |
| 051 | 251510-2 | H. S. HEAD BOLT M3X12 WITH W | 2 | €0.42 | 1-4 weeks to ship | |
| 052 | 253381-3 | FLAT WASHER 3 | 2 | €0.21 | 1-4 weeks to ship | |
| 053 | 347129-4 | SPRING PLATE | 1 | €0.85 | 1-4 weeks to ship | |
| 055 | 211016-2 | BALL BEARING 626LLB | 1 | €4.17 | 1-4 weeks to ship | |
| 056 | 232359-9 | COMPRESSION SPRING 7 | 2 | €0.17 | 1-4 weeks to ship | |
| 057 | 213833-6 | O-RING 60 | 1 | €0.58 | 1-4 weeks to ship | |
| 058 | 140F85-1 | INNER HOUSING COMPLETE | 1 | €19.48 | 1-4 weeks to ship | |
| 059 | 213641-5 | O RING 51 | 1 | €0.56 | 1-4 weeks to ship | |
| 060 | 443138-2 | FILTER | 1 | €0.56 | 1-4 weeks to ship | |
| 061 | 458848-8 | AIR DUCT | 1 | €1.39 | 1-4 weeks to ship | |
| 063 | 519549-4 | ROTOR ASSY | 1 | €37.57 | 1-4 weeks to ship | |
| 064 | 213118-0 | O RING 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 065 | RING 9 | 1 | Not available in store | |||
| 066 | 210162-8 | BALL BEARING 609LLU | 1 | €4.87 | 1-4 weeks to ship | |
| 067 | 267231-6 | FLAT WASHER 9 | 1 | €0.56 | 1-4 weeks to ship | |
| 069 | BALL BEARING 625DDW | 1 | Not available in store | |||
| 070 | BALL BEARING 625DDW | 1 | Not available in store | |||
| 071 | COMPRESSION SPRING 4 | 1 | Not available in store | |||
| 072 | LOCK PLATE | 1 | Not available in store | |||
| 073 | STOPPER PLATE | 1 | Not available in store | |||
| 074 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 075 | 629393-2 | STATOR | 1 | €11.13 | 1-4 weeks to ship | |
| 076 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 077 | 183L14-7 | MOTOR HOUSING SET | 1 | €4.87 | 1-4 weeks to ship | |
| 078 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 4 | €0.56 | 1-4 weeks to ship | |
| 079 | 268076-5 | PIN 6 | 2 | €0.42 | 1-4 weeks to ship | |
| 081 | SPRING SUPPORT | 1 | Not available in store | |||
| 082 | 232358-1 | COMPRESSION SPRING 10B | 1 | €0.21 | 1-4 weeks to ship | |
| 083 | 422354-9 | BELLOWS | 1 | €2.09 | 1-4 weeks to ship | |
| 084 | 620995-7 | CONTROLLER | 1 | €136.37 | 1-4 weeks to ship | |
| 085 | F/R CHANGE LEVER | 1 | Not available in store | |||
| 086 | 651380-3 | SWITCH C3JW-6B-25 | 1 | €25.74 | 1-4 weeks to ship | |
| 087 | DHR182 NAME PLATE | 1 | Not available in store | |||
| 088 | CLEAR LABEL | 1 | Not available in store | |||
| 089 | 183L12-1 | HANDLE SET | 1 | €14.61 | 1-4 weeks to ship | |
| 090 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 7 | €0.56 | 1-4 weeks to ship | |
| 091 | CAP COMPLETE | 1 | Not available in store | |||
| 092 | 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | |
| 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | ||
| 093 | DHR182 SERIAL NO. LABEL | 1 | Not available in store | |||
| 094 | 620549-0 | LED CIRCUIT | 1 | €4.04 | 1-4 weeks to ship | |
| 620549-0 | LED CIRCUIT | 1 | €4.04 | 1-4 weeks to ship | ||
| 095 | 183L12-1 | HANDLE SET | 1 | €14.61 | 1-4 weeks to ship | |
| 096 | 256586-4 | FLAT FILLISTER HEAD PIN 2.5 | 2 | €1.04 | 1-4 weeks to ship | |
| 097 | GUIDE PLATE | 1 | Not available in store | |||
| 098 | COMPRESSION SPRING 3 | 2 | Not available in store | |||
| 099 | 458849-6 | SHATTER | 1 | €0.70 | 1-4 weeks to ship | |
| 100 | ROD 4 | 4 | Not available in store | |||
| 101 | 183L14-7 | MOTOR HOUSING SET | 1 | €4.87 | 1-4 weeks to ship | |
| 103 | CAM SHAFT ASSY | 1 | Not available in store | |||
