DHR164
DHR164

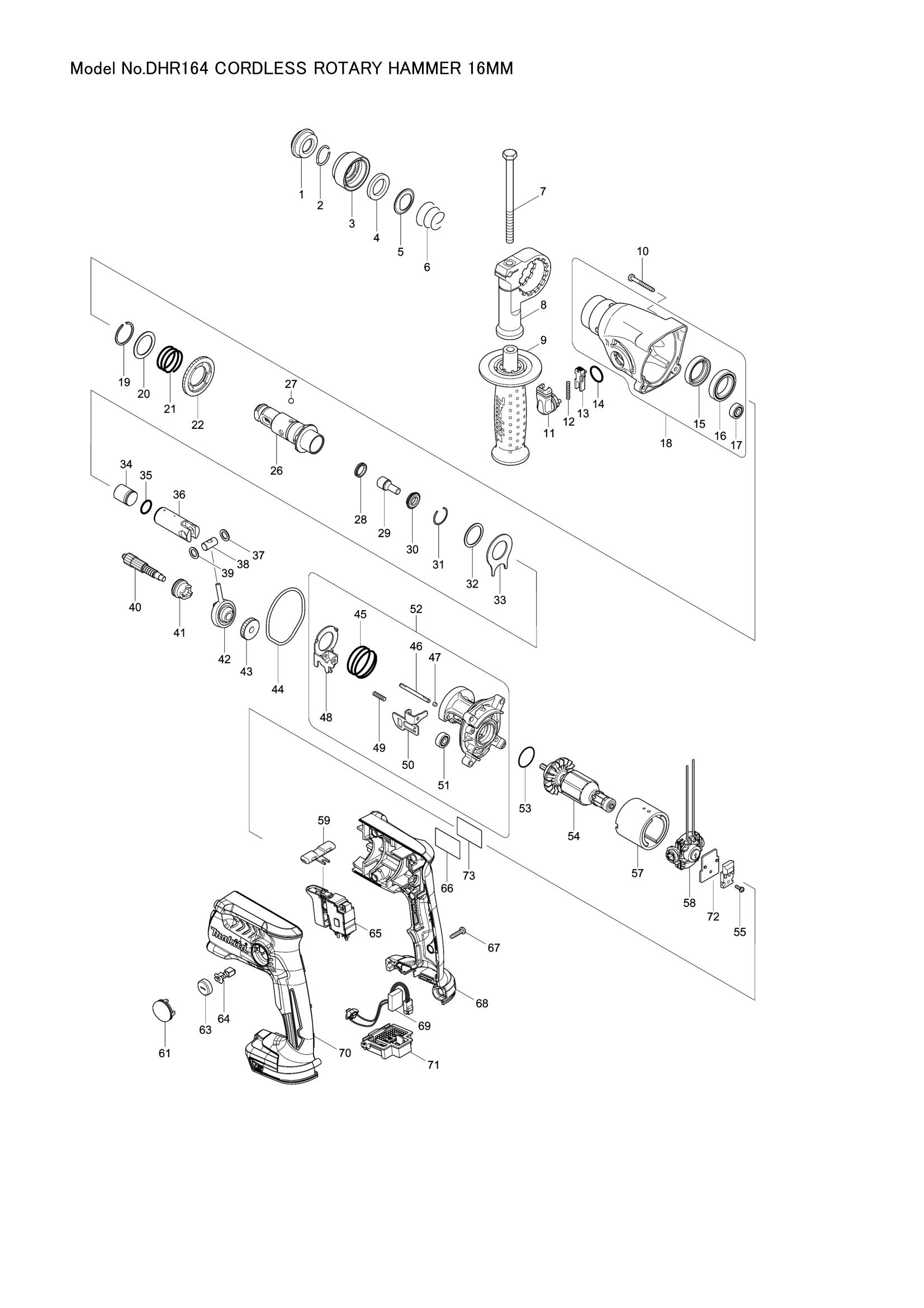

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 286263-4 | CAP 35 | 1 | €1.11 | 1-4 weeks to ship | |
| 002 | 233940-9 | RING SPRING 19 | 1 | €0.56 | 1-4 weeks to ship | |
| 003 | 419220-9 | CHUCK COVER | 1 | €1.39 | 1-4 weeks to ship | |
| 004 | 257241-1 | RING 21 | 1 | €0.83 | 1-4 weeks to ship | |
| 005 | 345187-4 | GUIDE WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 007 | 921923-8 | HEX. BOLT M8X120 | 1 | €0.83 | 1-4 weeks to ship | |
| 921923-8 | HEX. BOLT M8X120 | 1 | €0.83 | 1-4 weeks to ship | ||
| 008 | 417911-6 | GRIP BASE | 1 | €2.78 | 1-4 weeks to ship | |
| 009 | 158057-6 | GRIP 36 COMPLETE | 1 | €4.17 | 1-4 weeks to ship | |
| 010 | 266053-1 | TAPPING SCREW 4X35 | 4 | €0.56 | 1-4 weeks to ship | |
| 011 | 162242-5 | CHANGE LEVER COMPLETE | 1 | €0.83 | 1-4 weeks to ship | |
| 012 | 233459-8 | COMPRESSION SPRING 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 013 | 455413-4 | LOCK BUTTON | 1 | €0.42 | 1-4 weeks to ship | |
| 455413-4 | LOCK BUTTON | 1 | €0.42 | 1-4 weeks to ship | ||
| 014 | 213278-8 | O RING 17 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 213535-4 | OIL SEAL 25 | 1 | €0.97 | 1-4 weeks to ship | |
| 016 | 211375-4 | BALL BEARING 6805LLB | 1 | €13.92 | 1-4 weeks to ship | |
| 017 | 211012-0 | BALL BEARING 606ZZ | 1 | €4.17 | 1-4 weeks to ship | |
| 018 | 154840-9 | GEAR HOUSING COMPLETE | 1 | €19.48 | 1-4 weeks to ship | |
| 019 | 961135-1 | RETAINING(EXT) WR-25 | 1 | €0.56 | 1-4 weeks to ship | |
| 961135-1 | RETAINING(EXT) WR-25 | 1 | €0.56 | 1-4 weeks to ship | ||
| 020 | 267304-5 | FLAT WASHER 25 | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | 233457-2 | COMPRESSION SPRING 25 | 1 | €0.83 | 1-4 weeks to ship | |
| 022 | 331707-0 | SPUR GEAR 46 | 1 | €13.92 | 1-4 weeks to ship | |
| 026 | 154843-3 | TOOL HOLDER COMPLETE | 1 | €22.26 | 1-4 weeks to ship | |
| 027 | 216022-2 | STEEL BALL 7.0 | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | 213183-9 | X RING 13 | 1 | €0.70 | 1-4 weeks to ship | |
| 029 | 324611-0 | IMPACT BOLT | 1 | €1.67 | 1-4 weeks to ship | |
| 030 | 257275-4 | RING 11 | 1 | €2.78 | 1-4 weeks to ship | |
| 031 | 233942-5 | RING SPRING 22 | 1 | €0.83 | 1-4 weeks to ship | |
| 032 | 267175-0 | FLAT WASHER 24 | 1 | €0.56 | 1-4 weeks to ship | |
| 033 | 345681-6 | JOINT PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 034 | 324613-6 | STRIKER | 1 | €1.67 | 1-4 weeks to ship | |
| 035 | 213182-1 | O RING 14 | 1 | €0.83 | 1-4 weeks to ship | |
| 036 | 331708-8 | PISTON CYLINDER | 1 | €13.92 | 1-4 weeks to ship | |
| 037 | 267130-2 | FLAT WASHER 9 | 1 | €0.56 | 1-4 weeks to ship | |
| 038 | 324612-8 | PISTON JOINT | 1 | €1.11 | 1-4 weeks to ship | |
| 039 | 267130-2 | FLAT WASHER 9 | 1 | €0.56 | 1-4 weeks to ship | |
| 040 | 227152-4 | SPUR GEAR 10 | 1 | €8.07 | 1-4 weeks to ship | |
| 041 | 331706-2 | CLUTCH CAM | 1 | €5.57 | 1-4 weeks to ship | |
| 042 | 219019-0 | SWASH BEARING 9 | 1 | €44.53 | 1-4 weeks to ship | |
| 043 | 226623-8 | HELICAL GEAR 22 | 1 | €13.92 | 1-4 weeks to ship | |
| 044 | 423346-1 | SEAL RING | 1 | €0.56 | 1-4 weeks to ship | |
| 045 | 233458-0 | COMPRESSION SPRING 32 | 1 | €0.42 | 1-4 weeks to ship | |
| 046 | 268147-8 | PIN 4 | 1 | €0.83 | 1-4 weeks to ship | |
| 047 | 443123-5 | FELT 4X3 | 1 | €0.56 | 1-4 weeks to ship | |
| 048 | 345645-0 | CHANGE PLATE | 1 | €7.51 | 1-4 weeks to ship | |
| 049 | 233460-3 | COMPRESSION SPRING 3 | 1 | €0.14 | 1-4 weeks to ship | |
| 050 | 345654-9 | STOPPER PLATE | 1 | €4.17 | 1-4 weeks to ship | |
| 051 | 211012-0 | BALL BEARING 606ZZ | 1 | €4.17 | 1-4 weeks to ship | |
| 052 | 154841-7 | INNER HOUSING COMPLETE | 1 | €22.26 | 1-4 weeks to ship | |
| 053 | 213953-6 | O RING 24 | 1 | €0.83 | 1-4 weeks to ship | |
| 054 | 619182-3 | ARMATURE | 1 | €66.79 | 1-4 weeks to ship | |
| 055 | 911011-9 | PAN HEAD SCREW M3X10 | 1 | €0.56 | 1-4 weeks to ship | |
| 057 | 638446-6 | YOKE UNIT | 1 | €8.35 | 1-4 weeks to ship | |
| 058 | 632D97-1 | ENDBELL COMPLETE | 1 | €5.15 | 1-4 weeks to ship | |
| 632D97-1 | ENDBELL COMPLETE | 1 | €5.15 | 1-4 weeks to ship | ||
| 059 | 419457-8 | F/R CHANGE LEVER | 1 | €2.78 | 1-4 weeks to ship | |
| 061 | 424128-4 | HOLDER CAP COVER | 2 | €0.56 | 1-4 weeks to ship | |
| 063 | 643929-3 | BRUSH HOLDER CAP | 2 | €0.56 | 1-4 weeks to ship | |
| 064 | 191971-3 | CARBON BRUSH CB-430 | 1 | €2.78 | 1-4 weeks to ship | |
| 066 | DHR164 NAME PLATE | 1 | Not available in store | |||
| 067 | 265995-6 | TAPPING SCREW 4X18 | 7 | €0.56 | 1-4 weeks to ship | |
| 068 | HOUSING SET | 1 | Not available in store | |||
| 069 | LIGHT CIRCUIT | 1 | Not available in store | |||
| 070 | HOUSING SET | 1 | Not available in store | |||
| 071 | 643867-9 | TERMINAL | 1 | €4.31 | 1-4 weeks to ship | |
| 072 | 689098-6 | HEAT SINK | 1 | €1.67 | 1-4 weeks to ship | |
| 073 | CLEAR LABEL | 1 | Not available in store | |||
