DHP482
DHP482

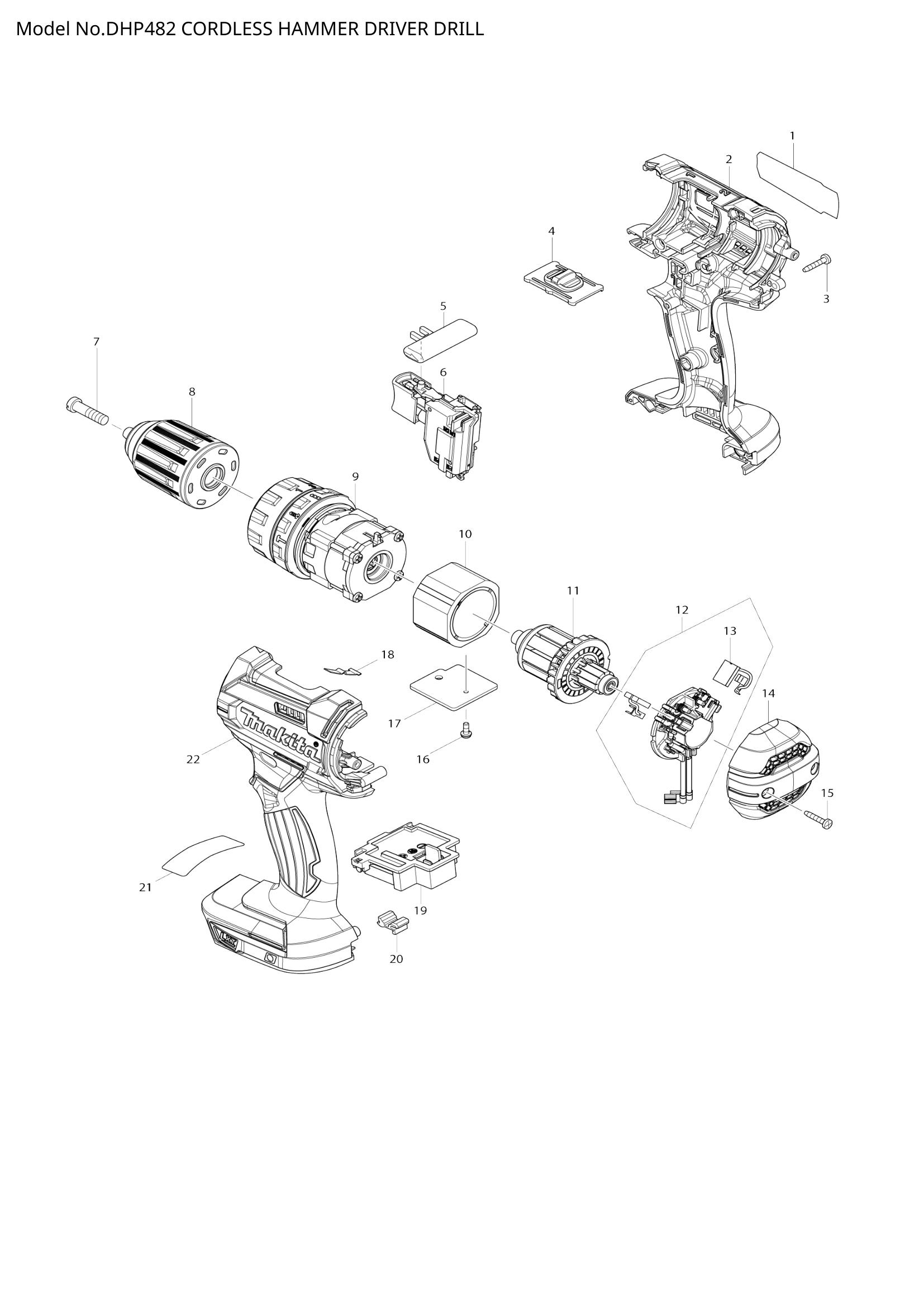

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | 183B65-0 | HOUSING SET | 1 | €12.52 | 1-4 weeks to ship | |
| HOUSING SET | 1 | Not available in store | ||||
| 183B65-0 | HOUSING SET | 1 | €12.52 | 1-4 weeks to ship | ||
| HOUSING SET | 1 | Not available in store | ||||
| 004 | 123442-2 | SPEED CHANGE LEVER ASSEMBL | 1 | €0.56 | 1-4 weeks to ship | |
| 123442-2 | SPEED CHANGE LEVER ASSEMBL | 1 | €0.56 | 1-4 weeks to ship | ||
| 005 | 419041-9 | F/R CHANGE LEVER | 1 | €1.11 | 1-4 weeks to ship | |
| 419041-9 | F/R CHANGE LEVER | 1 | €1.11 | 1-4 weeks to ship | ||
| 006 | 632F27-4 | SWITCH UNIT | 1 | €34.79 | 1-4 weeks to ship | |
| 632F27-4 | SWITCH UNIT | 1 | €34.79 | 1-4 weeks to ship | ||
| 632F27-4 | SWITCH UNIT | 1 | €34.79 | 1-4 weeks to ship | ||
| 632F27-4 | SWITCH UNIT | 1 | €34.79 | 1-4 weeks to ship | ||
| 007 | 251468-5 | - FLAT HEAD SCREW M6X22 | 1 | €0.56 | 1-4 weeks to ship | |
| 251468-5 | - FLAT HEAD SCREW M6X22 | 1 | €0.56 | 1-4 weeks to ship | ||
| 009 | 123443-0 | GEAR ASSEMBLY | 1 | €44.25 | 1-4 weeks to ship | |
| 123443-0 | GEAR ASSEMBLY | 1 | €44.25 | 1-4 weeks to ship | ||
| 012 | 632F21-6 | BRUSH HOLDER COMPLETE | 1 | €19.06 | 1-4 weeks to ship | |
| 632F21-6 | BRUSH HOLDER COMPLETE | 1 | €19.06 | 1-4 weeks to ship | ||
| 632F21-6 | BRUSH HOLDER COMPLETE | 1 | €19.06 | 1-4 weeks to ship | ||
| 632F21-6 | BRUSH HOLDER COMPLETE | 1 | €19.06 | 1-4 weeks to ship | ||
| 014 | REAR COVER | 1 | Not available in store | |||
| 456099-7 | REAR COVER | 1 | €2.37 | 1-4 weeks to ship | ||
| 456099-7 | REAR COVER | 1 | €2.37 | 1-4 weeks to ship | ||
| REAR COVER | 1 | Not available in store | ||||
| 456099-7 | REAR COVER | 1 | €2.37 | 1-4 weeks to ship | ||
| 456099-7 | REAR COVER | 1 | €2.37 | 1-4 weeks to ship | ||
| 018 | 232182-2 | LEAF SPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 232182-2 | LEAF SPRING | 1 | €0.56 | 1-4 weeks to ship | ||
| 019 | 644808-8 | TERMINAL | 1 | €4.17 | 1-4 weeks to ship | |
| 644808-8 | TERMINAL | 1 | €4.17 | 1-4 weeks to ship | ||
| 020 | 424476-1 | CUSHION | 1 | €0.42 | 1-4 weeks to ship | |
| 424476-1 | CUSHION | 1 | €0.42 | 1-4 weeks to ship | ||
| 022 | HOUSING SET | 1 | Not available in store | |||
| 183B65-0 | HOUSING SET | 1 | €12.52 | 1-4 weeks to ship | ||
| HOUSING SET | 1 | Not available in store | ||||
| 183B65-0 | HOUSING SET | 1 | €12.52 | 1-4 weeks to ship | ||
| 023 | DHP482 SERIAL NO. LABEL S | 1 | Not available in store | |||
| DHP482 SERIAL NO. LABEL S | 1 | Not available in store | ||||
