DHP451
DHP451

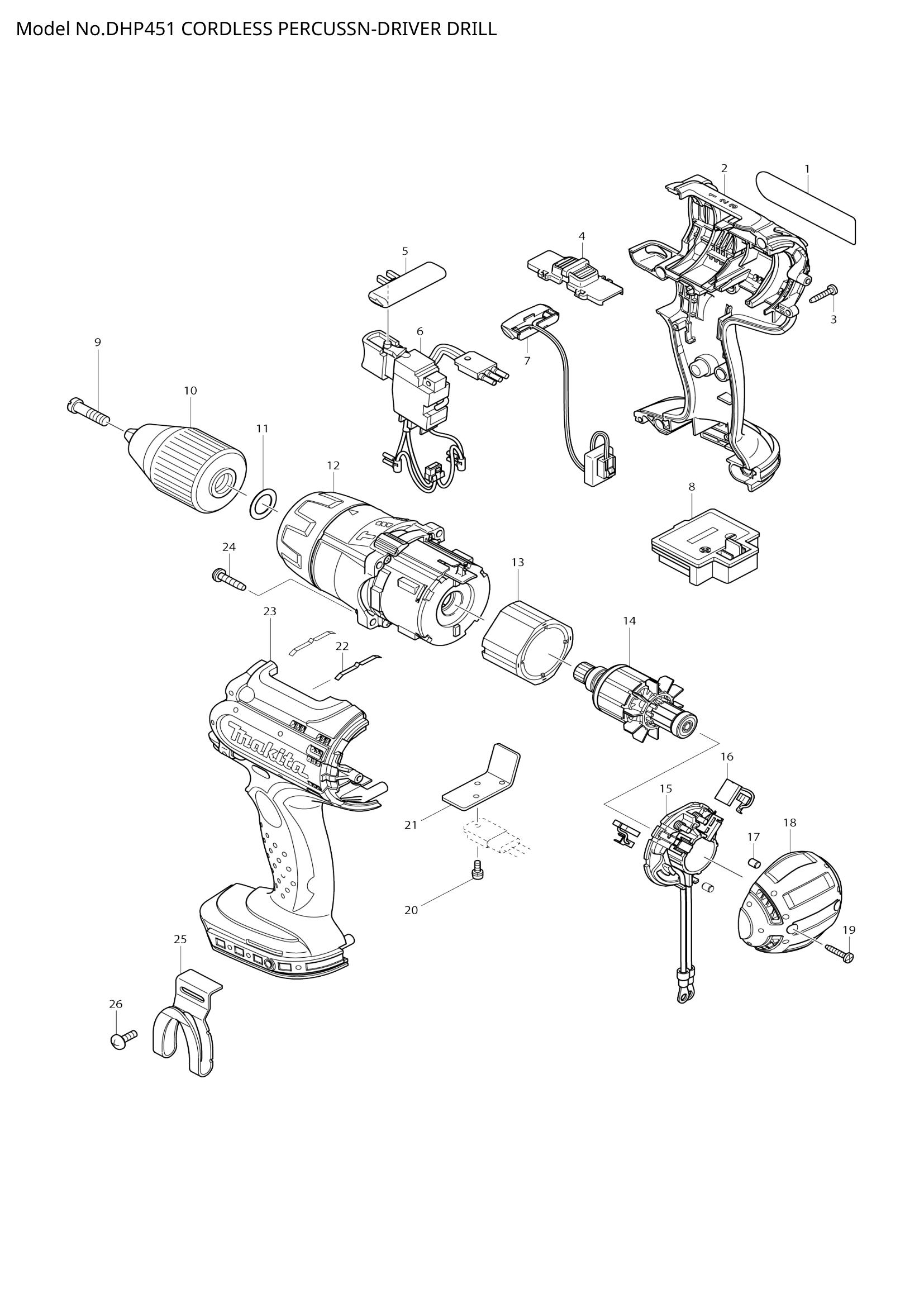

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | DHP451 NAME PLATE | 1 | Not available in store | |||
| DHP451 NAME PLATE | 1 | Not available in store | ||||
| 003 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 8 | €0.56 | 1-4 weeks to ship | |
| 266130-9 | TAPPING SCREW BIND PT 3X16 | 8 | €0.56 | 1-4 weeks to ship | ||
| 004 | 125435-5 | SPEED CHANGE LEVER ASS'Y | 1 | €1.11 | 1-4 weeks to ship | |
| 125435-5 | SPEED CHANGE LEVER ASS'Y | 1 | €1.11 | 1-4 weeks to ship | ||
| 005 | 419250-0 | F/R CHANGE LEVER | 1 | €0.56 | 1-4 weeks to ship | |
| 419250-0 | F/R CHANGE LEVER | 1 | €0.56 | 1-4 weeks to ship | ||
| 006 | 650653-1 | SWITCH TG553FSB-4B | 1 | €33.40 | 1-4 weeks to ship | |
| 650653-1 | SWITCH TG553FSB-4B | 1 | €33.40 | 1-4 weeks to ship | ||
| 007 | 631692-0 | LIGHT CIRCUIT | 1 | €22.26 | 1-4 weeks to ship | |
| 631692-0 | LIGHT CIRCUIT | 1 | €22.26 | 1-4 weeks to ship | ||
| 008 | 644808-8 | TERMINAL | 1 | €4.17 | 1-4 weeks to ship | |
| 644808-8 | TERMINAL | 1 | €4.17 | 1-4 weeks to ship | ||
| 009 | 251468-5 | - FLAT HEAD SCREW M6X22 | 1 | €0.56 | 1-4 weeks to ship | |
| 251468-5 | - FLAT HEAD SCREW M6X22 | 1 | €0.56 | 1-4 weeks to ship | ||
| 010 | KEYLESS DRILL CHUCK 13 | 1 | Not available in store | |||
| KEYLESS DRILL CHUCK 13 | 1 | Not available in store | ||||
| 011 | 253798-0 | FLAT WASHER 13 | 1 | €0.56 | 1-4 weeks to ship | |
| 253798-0 | FLAT WASHER 13 | 1 | €0.56 | 1-4 weeks to ship | ||
| 012 | 125430-5 | GEAR ASS'Y | 1 | €75.14 | 1-4 weeks to ship | |
| 125430-5 | GEAR ASS'Y | 1 | €75.14 | 1-4 weeks to ship | ||
| 014 | 619165-3 | ARMATURE | 1 | €22.26 | 1-4 weeks to ship | |
| 619165-3 | ARMATURE | 1 | €22.26 | 1-4 weeks to ship | ||
| 015 | 638849-4 | BRUSH HOLDER COMPLETE | 1 | €4.17 | 1-4 weeks to ship | |
| 638849-4 | BRUSH HOLDER COMPLETE | 1 | €4.17 | 1-4 weeks to ship | ||
| 017 | 263032-0 | RUBBER PIN 4 | 2 | €0.56 | 1-4 weeks to ship | |
| 263032-0 | RUBBER PIN 4 | 2 | €0.56 | 1-4 weeks to ship | ||
| 018 | 419642-3 | REAR COVER | 1 | €11.13 | 1-4 weeks to ship | |
| 419642-3 | REAR COVER | 1 | €11.13 | 1-4 weeks to ship | ||
| 019 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 266130-9 | TAPPING SCREW BIND PT 3X16 | 2 | €0.56 | 1-4 weeks to ship | ||
| 021 | 689145-3 | HEATSINK | 1 | €0.56 | 1-4 weeks to ship | |
| 689145-3 | HEATSINK | 1 | €0.56 | 1-4 weeks to ship | ||
| 689145-3 | HEATSINK | 1 | €0.56 | 1-4 weeks to ship | ||
| 689145-3 | HEATSINK | 1 | €0.56 | 1-4 weeks to ship | ||
| 022 | 232220-0 | LEAF SPRING | 2 | €0.56 | 1-4 weeks to ship | |
| 232220-0 | LEAF SPRING | 2 | €0.56 | 1-4 weeks to ship | ||
| 024 | 266045-0 | TAPPING SCREW 4X20 | 4 | €0.56 | 1-4 weeks to ship | |
| 266045-0 | TAPPING SCREW 4X20 | 4 | €0.56 | 1-4 weeks to ship | ||
| 025 | 346317-0 | HOOK | 1 | €1.67 | 1-4 weeks to ship | |
| 346317-0 | HOOK | 1 | €1.67 | 1-4 weeks to ship | ||
| 026 | 251314-2 | + SCREW M4X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 251314-2 | + SCREW M4X12 | 1 | €0.56 | 1-4 weeks to ship | ||
