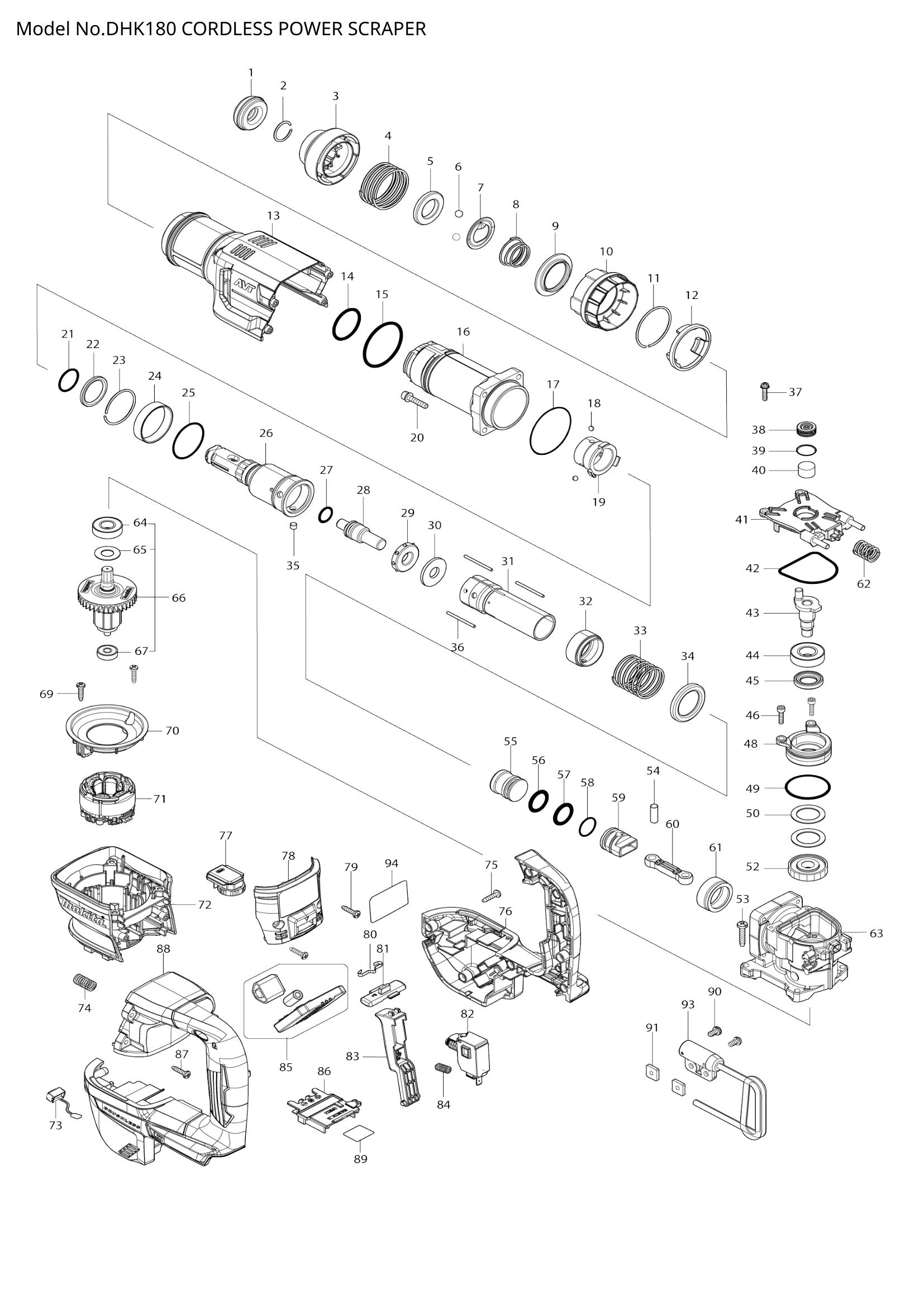

DHK180
DHK180
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 286283-8 | CAP 38 | 1 | €2.78 | 1-4 weeks to ship | |
| 002 | 233966-1 | RING SPRING 19 | 1 | €1.67 | 1-4 weeks to ship | |
| 003 | 450275-5 | CHUCK COVER | 1 | €5.57 | 1-4 weeks to ship | |
| 004 | 234039-3 | COMPRESSION SPRING 42 | 1 | €1.11 | 1-4 weeks to ship | |
| 005 | 257288-5 | RING 21 | 1 | €11.13 | 1-4 weeks to ship | |
| 006 | 216022-2 | STEEL BALL 7.0 | 2 | €0.56 | 1-4 weeks to ship | |
| 007 | 345873-7 | GUIDE WASHER | 1 | €1.39 | 1-4 weeks to ship | |
| 008 | 233916-6 | CONICAL COMP. SPRING 21-29 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 345874-5 | STEEL BALL GUIDE | 1 | €11.13 | 1-4 weeks to ship | |
| 010 | 450274-7 | CHANGE RING | 1 | €4.17 | 1-4 weeks to ship | |
| 011 | 231985-1 | RING SPRING 43 | 1 | €0.83 | 1-4 weeks to ship | |
| 012 | SUPPORT RING | 1 | Not available in store | |||
| 013 | HOUSING COVER | 1 | Not available in store | |||
| 014 | 213465-9 | O RING 31 | 1 | €2.09 | 1-4 weeks to ship | |
| 015 | 213617-2 | O RING 47 | 1 | €1.11 | 1-4 weeks to ship | |
| 016 | BARREL | 1 | Not available in store | |||
| 017 | 213606-7 | O RING 48 | 1 | €0.83 | 1-4 weeks to ship | |
| 018 | 216002-8 | STEEL BALL 4.8 | 3 | €0.56 | 1-4 weeks to ship | |
| 019 | 331796-5 | RING 25 | 1 | €11.13 | 1-4 weeks to ship | |
| 020 | 922243-3 | HEX. SOCKET HEAD BOLT M5X25 | 4 | €0.56 | 1-4 weeks to ship | |
| 021 | 213008-7 | O RING 22.4 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 262142-0 | URETHAN RING 26 | 1 | €1.39 | 1-4 weeks to ship | |
| 023 | 233956-4 | RING SPRING 37 | 1 | €0.56 | 1-4 weeks to ship | |
| 024 | RING 39 | 1 | Not available in store | |||
| 025 | 213142-3 | O-RING 35 | 1 | €0.42 | 1-4 weeks to ship | |
| 026 | 324837-4 | TOOL HOLDER | 1 | €89.06 | 1-4 weeks to ship | |
| 027 | 213128-7 | O RING 12 | 1 | €0.83 | 1-4 weeks to ship | |
| 028 | 324844-7 | IMPACT BOLT | 1 | €5.57 | 1-4 weeks to ship | |
| 029 | 424065-2 | RUBBER RING 13 | 1 | €8.35 | 1-4 weeks to ship | |
| 030 | 267363-9 | FLAT WASHER 12 | 1 | €2.78 | 1-4 weeks to ship | |
| 031 | CYLINDER | 1 | Not available in store | |||
| 032 | RING 29 | 1 | Not available in store | |||
| 033 | 234041-6 | COMPRESSION SPRING 32 | 1 | €1.11 | 1-4 weeks to ship | |
| 034 | 345872-9 | CUP WASHER 29 | 1 | €2.78 | 1-4 weeks to ship | |
| 035 | 268226-2 | PIN 6 | 3 | €0.56 | 1-4 weeks to ship | |
| 036 | ROD 2.5 | 3 | Not available in store | |||
| 037 | 911133-5 | PAN HEAD SCREW M4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 038 | 419988-7 | FILTER CAP | 1 | €0.56 | 1-4 weeks to ship | |
| 039 | 213218-6 | O RING 16 | 1 | €0.56 | 1-4 weeks to ship | |
| 040 | 443129-3 | FILTER | 1 | €0.56 | 1-4 weeks to ship | |
| 041 | CRANK CAP | 1 | Not available in store | |||
| 042 | 424067-8 | SEAL RING | 1 | €0.56 | 1-4 weeks to ship | |
| 043 | 324845-5 | CRANK SHAFT | 1 | €11.13 | 1-4 weeks to ship | |
| 044 | 211232-6 | BALL BEARING 6002LLU | 1 | €11.13 | 1-4 weeks to ship | |
| 045 | 213219-4 | OIL SEAL 15 | 1 | €4.17 | 1-4 weeks to ship | |
| 046 | 265490-6 | HEX. SOCKET HEAD BOLT M4X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 048 | 318202-7 | BEARING BOX | 1 | €2.78 | 1-4 weeks to ship | |
| 049 | 213513-4 | O RING 39 | 1 | €0.56 | 1-4 weeks to ship | |
| 050 | 267126-3 | FLAT WASHER 22 | 2 | €0.56 | 1-4 weeks to ship | |
| 052 | 226675-9 | HELICAL GEAR 36 | 1 | €16.70 | 1-4 weeks to ship | |
| 053 | 266041-8 | TAPPING SCREW 5X25 | 4 | €0.56 | 1-4 weeks to ship | |
| 054 | 256087-2 | PIN 7 | 1 | €0.83 | 1-4 weeks to ship | |
| 055 | 324847-1 | STRIKER | 1 | €8.35 | 1-4 weeks to ship | |
| 056 | 213283-5 | O-RING 18 | 1 | €2.78 | 1-4 weeks to ship | |
| 057 | 213283-5 | O-RING 18 | 1 | €2.78 | 1-4 weeks to ship | |
| 058 | 213262-3 | O RING 18 | 1 | €0.56 | 1-4 weeks to ship | |
| 059 | 450298-3 | PISTON | 1 | €4.17 | 1-4 weeks to ship | |
| 060 | 450278-9 | CONNECTING ROD | 1 | €1.39 | 1-4 weeks to ship | |
| 061 | 331797-3 | SLEEVE 29 | 1 | €4.17 | 1-4 weeks to ship | |
| 062 | COMPRESSION SPRING 12 | 1 | Not available in store | |||
| 063 | 158523-3 | CRANK HOUSING COMPLETE | 1 | €52.88 | 1-4 weeks to ship | |
| 064 | 211131-2 | BALL BEARING 6001DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 065 | 253748-5 | FLAT WASHER 12 | 1 | €2.09 | 1-4 weeks to ship | |
| 066 | ROTOR ASSY | 1 | Not available in store | |||
| 067 | 210022-4 | BALL BEARING 626DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 069 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 070 | BAFFLE PLATE | 1 | Not available in store | |||
| 072 | MOTOR HOUSING | 1 | Not available in store | |||
| 073 | LED CIRCUIT | 1 | Not available in store | |||
| 074 | COMPRESSION SPRING 8 | 1 | Not available in store | |||
| 075 | 265995-6 | TAPPING SCREW 4X18 | 7 | €0.56 | 1-4 weeks to ship | |
| 076 | HOUSING SET | 1 | Not available in store | |||
| 077 | 620796-3 | DIAL CIRCUIT | 1 | €22.54 | 1-4 weeks to ship | |
| 620796-3 | DIAL CIRCUIT | 1 | €22.54 | 1-4 weeks to ship | ||
| 078 | MOTOR HOUSING COVER COMP | 1 | Not available in store | |||
| 079 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 080 | 232152-1 | LEAF SPRING | 1 | €1.11 | 1-4 weeks to ship | |
| 081 | TRIGGER LOCK | 1 | Not available in store | |||
| 082 | SWITCH C3JW-6B-PA | 1 | Not available in store | |||
| 083 | SWITCH LEVER | 1 | Not available in store | |||
| 084 | COMPRESSION SPRING 5 | 1 | Not available in store | |||
| 085 | CONTROLLER | 1 | Not available in store | |||
| 086 | 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | |
| 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | ||
| 087 | 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 088 | HOUSING SET | 1 | Not available in store | |||
| 089 | DHK180 SERIAL NO. LABEL | 1 | Not available in store | |||
| 090 | 911211-1 | PAN HEAD SCREW M5X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 091 | 264002-2 | SQUARE NUT M5 | 2 | €0.56 | 1-4 weeks to ship | |
| 094 | DHK180 NAME PLATE | 1 | Not available in store | |||
| 095 | CONTROLLER B S | 1 | Not available in store | |||
| 096 | LEAD UNIT S | 1 | Not available in store | |||
| 097 | PAN HEAD SCREW M2X6 S | 6 | Not available in store | |||
