DGP180
DGP180

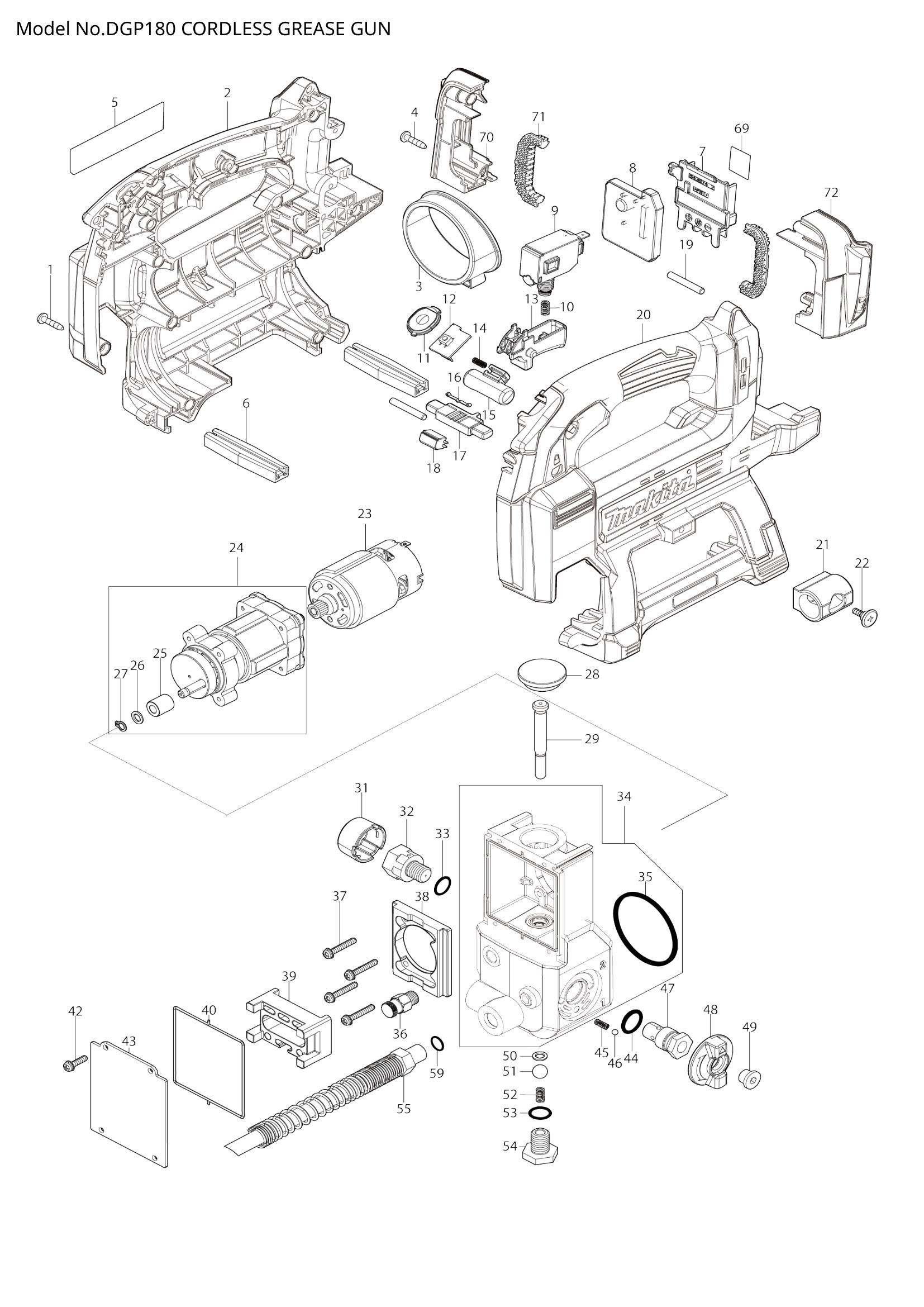

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 265995-6 | TAPPING SCREW 4X18 | 13 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 13 | €0.56 | 1-4 weeks to ship | ||
| 002 | HOUSING SET | 1 | Not available in store | |||
| HOUSING SET | 1 | Not available in store | ||||
| 003 | BARREL HOLDER | 1 | Not available in store | |||
| BARREL HOLDER | 1 | Not available in store | ||||
| 004 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 005 | DGP180 NAME PLATE | 1 | Not available in store | |||
| DGP180 NAME PLATE | 1 | Not available in store | ||||
| 006 | FOOT | 2 | Not available in store | |||
| FOOT | 2 | Not available in store | ||||
| 007 | 644809-6 | TERMINAL | 1 | €3.76 | 1-4 weeks to ship | |
| 644809-6 | TERMINAL | 1 | €3.76 | 1-4 weeks to ship | ||
| 644809-6 | TERMINAL | 1 | €3.76 | 1-4 weeks to ship | ||
| 644809-6 | TERMINAL | 1 | €3.76 | 1-4 weeks to ship | ||
| 008 | CONTROLLER | 1 | Not available in store | |||
| CONTROLLER | 1 | Not available in store | ||||
| 009 | 651391-8 | SWITCH C3JW-6BM-PN | 1 | €27.55 | 1-4 weeks to ship | |
| 651391-8 | SWITCH C3JW-6BM-PN | 1 | €27.55 | 1-4 weeks to ship | ||
| 010 | COMPRESSION SPRING 4 | 1 | Not available in store | |||
| COMPRESSION SPRING 4 | 1 | Not available in store | ||||
| 011 | SWITCH PLATE COMPLETE | 1 | Not available in store | |||
| SWITCH PLATE COMPLETE | 1 | Not available in store | ||||
| 012 | SWITCH CIRCUIT | 1 | Not available in store | |||
| SWITCH CIRCUIT | 1 | Not available in store | ||||
| 013 | SWITCH LEVER | 1 | Not available in store | |||
| SWITCH LEVER | 1 | Not available in store | ||||
| 014 | 231433-0 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 231433-0 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 015 | LOCK ON BUTTON | 1 | Not available in store | |||
| LOCK ON BUTTON | 1 | Not available in store | ||||
| 016 | 232201-4 | LEAF SPRING | 1 | €1.67 | 1-4 weeks to ship | |
| 232201-4 | LEAF SPRING | 1 | €1.67 | 1-4 weeks to ship | ||
| 017 | LOCK OFF BUTTON | 1 | Not available in store | |||
| LOCK OFF BUTTON | 1 | Not available in store | ||||
| 018 | LED CIRCUIT | 1 | Not available in store | |||
| LED CIRCUIT | 1 | Not available in store | ||||
| 019 | 268306-4 | PIN 5 | 2 | €0.42 | 1-4 weeks to ship | |
| 268306-4 | PIN 5 | 2 | €0.42 | 1-4 weeks to ship | ||
| 020 | HOUSING SET | 1 | Not available in store | |||
| HOUSING SET | 1 | Not available in store | ||||
| 021 | HOSE HOLDER | 1 | Not available in store | |||
| HOSE HOLDER | 1 | Not available in store | ||||
| 022 | +FLAT HEAD SCREW M4X14 | 1 | Not available in store | |||
| +FLAT HEAD SCREW M4X14 | 1 | Not available in store | ||||
| 023 | DC MOTOR | 1 | Not available in store | |||
| DC MOTOR | 1 | Not available in store | ||||
| 024 | GEAR ASSEMBLY | 1 | Not available in store | |||
| GEAR ASSEMBLY | 1 | Not available in store | ||||
| 025 | PLANE BEARING 6 | 1 | Not available in store | |||
| PLANE BEARING 6 | 1 | Not available in store | ||||
| 026 | FLAT WASHER 6 | 1 | Not available in store | |||
| FLAT WASHER 6 | 1 | Not available in store | ||||
| 028 | CAP 32 | 1 | Not available in store | |||
| CAP 32 | 1 | Not available in store | ||||
| 029 | SHOULDER PIN 7-8 | 1 | Not available in store | |||
| SHOULDER PIN 7-8 | 1 | Not available in store | ||||
| 031 | VALVE COVER | 1 | Not available in store | |||
| VALVE COVER | 1 | Not available in store | ||||
| 032 | RELIEF VALVE COMPLETE | 1 | Not available in store | |||
| RELIEF VALVE COMPLETE | 1 | Not available in store | ||||
| 033 | O-RING 12.5 | 1 | Not available in store | |||
| O-RING 12.5 | 1 | Not available in store | ||||
| 035 | RUBBER PACKING A | 1 | Not available in store | |||
| RUBBER PACKING A | 1 | Not available in store | ||||
| 037 | 911148-2 | PAN HEAD SCREW M4X25 | 4 | €0.56 | 1-4 weeks to ship | |
| 911148-2 | PAN HEAD SCREW M4X25 | 4 | €0.56 | 1-4 weeks to ship | ||
| 038 | SLIDER GUIDE | 1 | Not available in store | |||
| SLIDER GUIDE | 1 | Not available in store | ||||
| 039 | SLIDER | 1 | Not available in store | |||
| SLIDER | 1 | Not available in store | ||||
| 040 | SEAL RING | 1 | Not available in store | |||
| SEAL RING | 1 | Not available in store | ||||
| 042 | 911128-8 | P.H.SCREW M4X16 WITH WR | 4 | €0.56 | 1-4 weeks to ship | |
| 911128-8 | P.H.SCREW M4X16 WITH WR | 4 | €0.56 | 1-4 weeks to ship | ||
| 911128-8 | P.H.SCREW M4X16 WITH WR | 4 | €0.56 | 1-4 weeks to ship | ||
| 911128-8 | P.H.SCREW M4X16 WITH WR | 4 | €0.56 | 1-4 weeks to ship | ||
| 043 | PUMP COVER | 1 | Not available in store | |||
| PUMP COVER | 1 | Not available in store | ||||
| 044 | 213182-1 | O RING 14 | 1 | €0.83 | 1-4 weeks to ship | |
| 213182-1 | O RING 14 | 1 | €0.83 | 1-4 weeks to ship | ||
| 045 | 233151-6 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 233151-6 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 046 | 216008-6 | STEEL BALL 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 216008-6 | STEEL BALL 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 047 | CHANGE VALVE COMPLETE | 1 | Not available in store | |||
| CHANGE VALVE COMPLETE | 1 | Not available in store | ||||
| 048 | THUMB | 1 | Not available in store | |||
| THUMB | 1 | Not available in store | ||||
| 049 | HEX. SOCKET HEAD BOLT M10X7 | 1 | Not available in store | |||
| HEX. SOCKET HEAD BOLT M10X7 | 1 | Not available in store | ||||
| 050 | RING 8 | 1 | Not available in store | |||
| RING 8 | 1 | Not available in store | ||||
| 051 | 216003-6 | STEEL BALL 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 216003-6 | STEEL BALL 10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 052 | COMPRESSION SPRING 4 | 1 | Not available in store | |||
| COMPRESSION SPRING 4 | 1 | Not available in store | ||||
| 053 | O-RING 12.5 | 1 | Not available in store | |||
| O-RING 12.5 | 1 | Not available in store | ||||
| 054 | HEX BOLT M12X16 | 1 | Not available in store | |||
| HEX BOLT M12X16 | 1 | Not available in store | ||||
| 059 | 213054-0 | O RING 9 | 1 | €0.56 | 1-4 weeks to ship | |
| 213054-0 | O RING 9 | 1 | €0.56 | 1-4 weeks to ship | ||

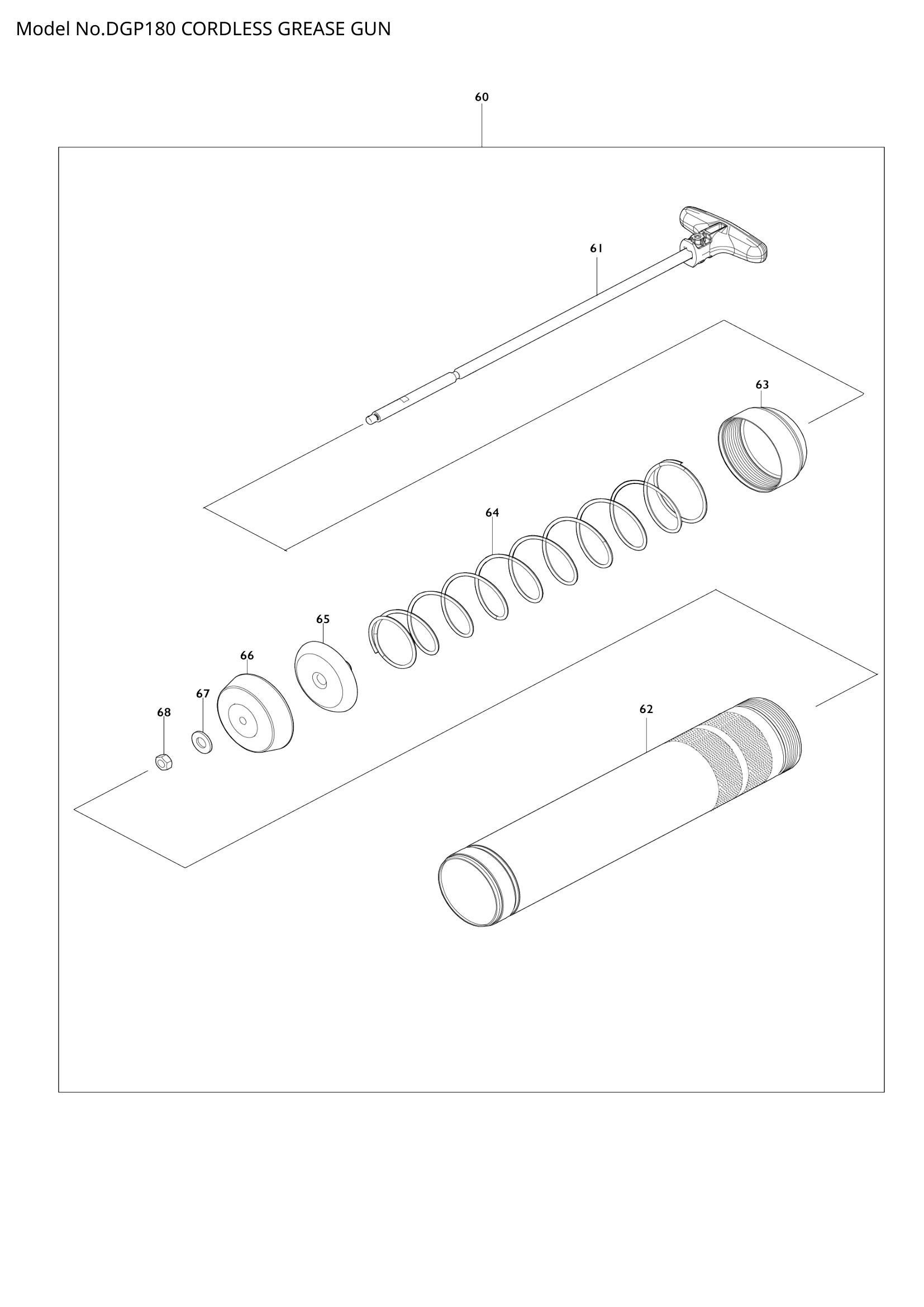

| 061 | SHAFT COMPLETE | 1 | Not available in store | |||
| SHAFT COMPLETE | 1 | Not available in store | ||||
| 062 | BARREL A | 1 | Not available in store | |||
| BARREL A | 1 | Not available in store | ||||
| 063 | CAP A | 1 | Not available in store | |||
| CAP A | 1 | Not available in store | ||||
| 065 | PLATE A | 1 | Not available in store | |||
| PLATE A | 1 | Not available in store | ||||
| 066 | RUBBER SEAL A | 1 | Not available in store | |||
| RUBBER SEAL A | 1 | Not available in store | ||||
| 068 | 931302-2 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 931302-2 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 069 | DGP180 SERIAL NO. LABEL | 1 | Not available in store | |||
| DGP180 SERIAL NO. LABEL | 1 | Not available in store | ||||
| 070 | BATTERY HOUSING SET | 1 | Not available in store | |||
| BATTERY HOUSING SET | 1 | Not available in store | ||||
| 071 | 424473-7 | CUSHION RUBBER | 2 | €1.53 | 1-4 weeks to ship | |
| 424473-7 | CUSHION RUBBER | 2 | €1.53 | 1-4 weeks to ship | ||
| 072 | BATTERY HOUSING SET | 1 | Not available in store | |||
| BATTERY HOUSING SET | 1 | Not available in store | ||||
