DGA700
DGA700

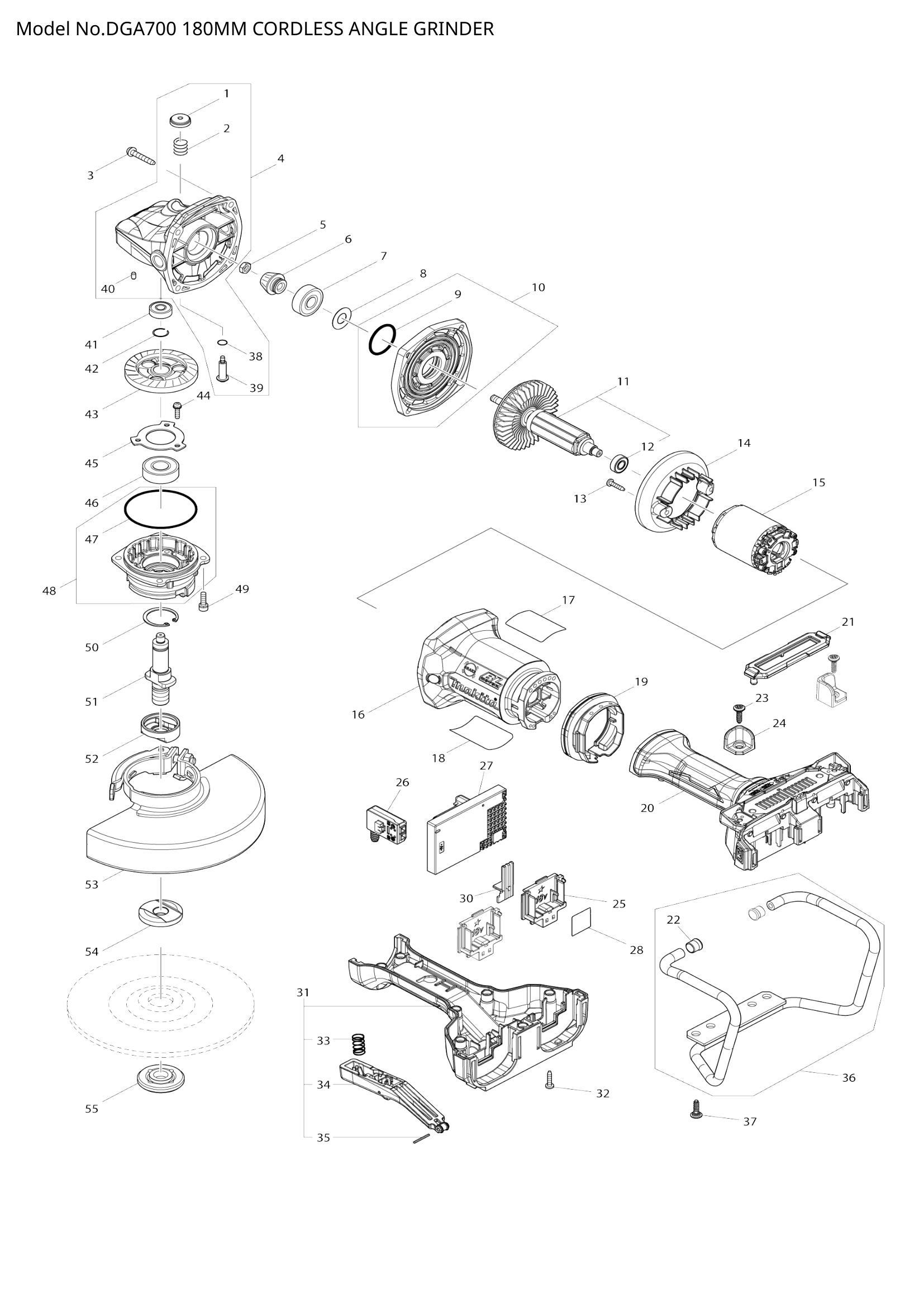

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 451485-7 | PIN CAP | 1 | €0.56 | 1-4 weeks to ship | |
| 002 | 233089-5 | COMPRESSION SPRING 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 003 | 266173-1 | TAPPING SCREW 5X30 | 4 | €0.56 | 1-4 weeks to ship | |
| 004 | 135918-7 | GEAR HOUSING ASS'Y | 1 | €17.42 | 1-4 weeks to ship | |
| 005 | 264010-3 | HEX.NUT M7 | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | SPIRAL BEVEL GEAR 10A | 1 | Not available in store | |||
| 007 | 211137-0 | BALL BEARING 6201LLU | 1 | €8.35 | 1-4 weeks to ship | |
| 008 | 253759-0 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 213459-4 | O RING 32 | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | 135916-1 | GEAR HOUSING COVER ASS'Y | 1 | €6.83 | 1-4 weeks to ship | |
| 012 | 211166-3 | BALL BEARING 698DDW | 1 | €1.39 | 1-4 weeks to ship | |
| 013 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 014 | 457618-2 | BAFFLE PLATE | 1 | €1.06 | 1-4 weeks to ship | |
| 457618-2 | BAFFLE PLATE | 1 | €1.06 | 1-4 weeks to ship | ||
| 016 | 457615-8 | MOTOR HOUSING | 1 | €9.74 | 1-4 weeks to ship | |
| 457615-8 | MOTOR HOUSING | 1 | €9.74 | 1-4 weeks to ship | ||
| 018 | DGA700 NAME PLATE | 1 | Not available in store | |||
| 019 | 457619-0 | VIBRATION PROOF RUBBER | 1 | €2.53 | 1-4 weeks to ship | |
| 457619-0 | VIBRATION PROOF RUBBER | 1 | €2.53 | 1-4 weeks to ship | ||
| 021 | 457620-5 | DUST COVER | 1 | €3.51 | 1-4 weeks to ship | |
| 457620-5 | DUST COVER | 1 | €3.51 | 1-4 weeks to ship | ||
| 022 | CAP | 2 | Not available in store | |||
| 023 | 251587-7 | H.L.TAPPING SCREW 5X18 | 2 | €0.17 | 1-4 weeks to ship | |
| 025 | 644809-6 | TERMINAL | 2 | €3.76 | 1-4 weeks to ship | |
| 644809-6 | TERMINAL | 2 | €3.76 | 1-4 weeks to ship | ||
| 026 | 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | |
| 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | ||
| 028 | DGA700 SERIAL NO. LABEL | 1 | Not available in store | |||
| 030 | 457621-3 | LENS | 1 | €0.50 | 1-4 weeks to ship | |
| 457621-3 | LENS | 1 | €0.50 | 1-4 weeks to ship | ||
| 032 | 265999-8 | TAPPING SCREW 4X25 | 7 | €0.56 | 1-4 weeks to ship | |
| 033 | 234357-9 | COMPRESSION SPRING 11 | 1 | €0.14 | 1-4 weeks to ship | |
| 034 | 144584-9 | SWITCH LEVER COMPLETE | 1 | €2.78 | 1-4 weeks to ship | |
| 035 | 951019-1 | SPRING PIN 2-20 | 1 | €0.83 | 1-4 weeks to ship | |
| 036 | 135919-5 | GUARD PIPE ASS'Y | 1 | €20.15 | 1-4 weeks to ship | |
| 037 | 251587-7 | H.L.TAPPING SCREW 5X18 | 4 | €0.17 | 1-4 weeks to ship | |
| 038 | 213026-5 | O RING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 039 | 256516-5 | SHOULDER PIN 11 | 1 | €0.56 | 1-4 weeks to ship | |
| 040 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 041 | 210029-0 | BALL BEARING 608ZZ | 1 | €1.11 | 1-4 weeks to ship | |
| 042 | 233925-5 | RING SPRING 13 | 1 | €0.56 | 1-4 weeks to ship | |
| 043 | SPIRAL BEVEL GEAR 38 | 1 | Not available in store | |||
| 044 | 911128-8 | P.H.SCREW M4X16 WITH WR | 3 | €0.56 | 1-4 weeks to ship | |
| 911128-8 | P.H.SCREW M4X16 WITH WR | 3 | €0.56 | 1-4 weeks to ship | ||
| 045 | 285851-4 | BEARING RETAINER | 1 | €0.56 | 1-4 weeks to ship | |
| 046 | 211241-5 | BALL BEARING 6202DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 047 | 213720-9 | O RING 67 | 1 | €0.83 | 1-4 weeks to ship | |
| 048 | 135917-9 | BEARING BOX ASS'Y | 1 | €7.54 | 1-4 weeks to ship | |
| 049 | 922221-3 | HEX. SOCKET HEAD BOLT M5X16 | 4 | €0.56 | 1-4 weeks to ship | |
| 922221-3 | HEX. SOCKET HEAD BOLT M5X16 | 4 | €0.56 | 1-4 weeks to ship | ||
| 050 | 962151-6 | RETAINING RING R-32 | 1 | €0.56 | 1-4 weeks to ship | |
| 051 | 326963-5 | SPINDLE | 1 | €6.41 | 1-4 weeks to ship | |
| 052 | 310800-3 | LEAD FLANGE | 1 | €12.11 | 1-4 weeks to ship | |
| 054 | 224447-6 | INNER FLANGE 42B | 1 | €4.45 | 1-4 weeks to ship | |
| 055 | 224485-8 | LOCK NUT 14-45 | 1 | €2.92 | 1-4 weeks to ship | |
| 056 | CONTROLLER B S | 1 | Not available in store | |||
| 057 | LEAD UNIT S | 1 | Not available in store | |||
| 058 | PAN HEAD SCREW M2X6 S | 6 | Not available in store | |||
