DGA521
DGA521

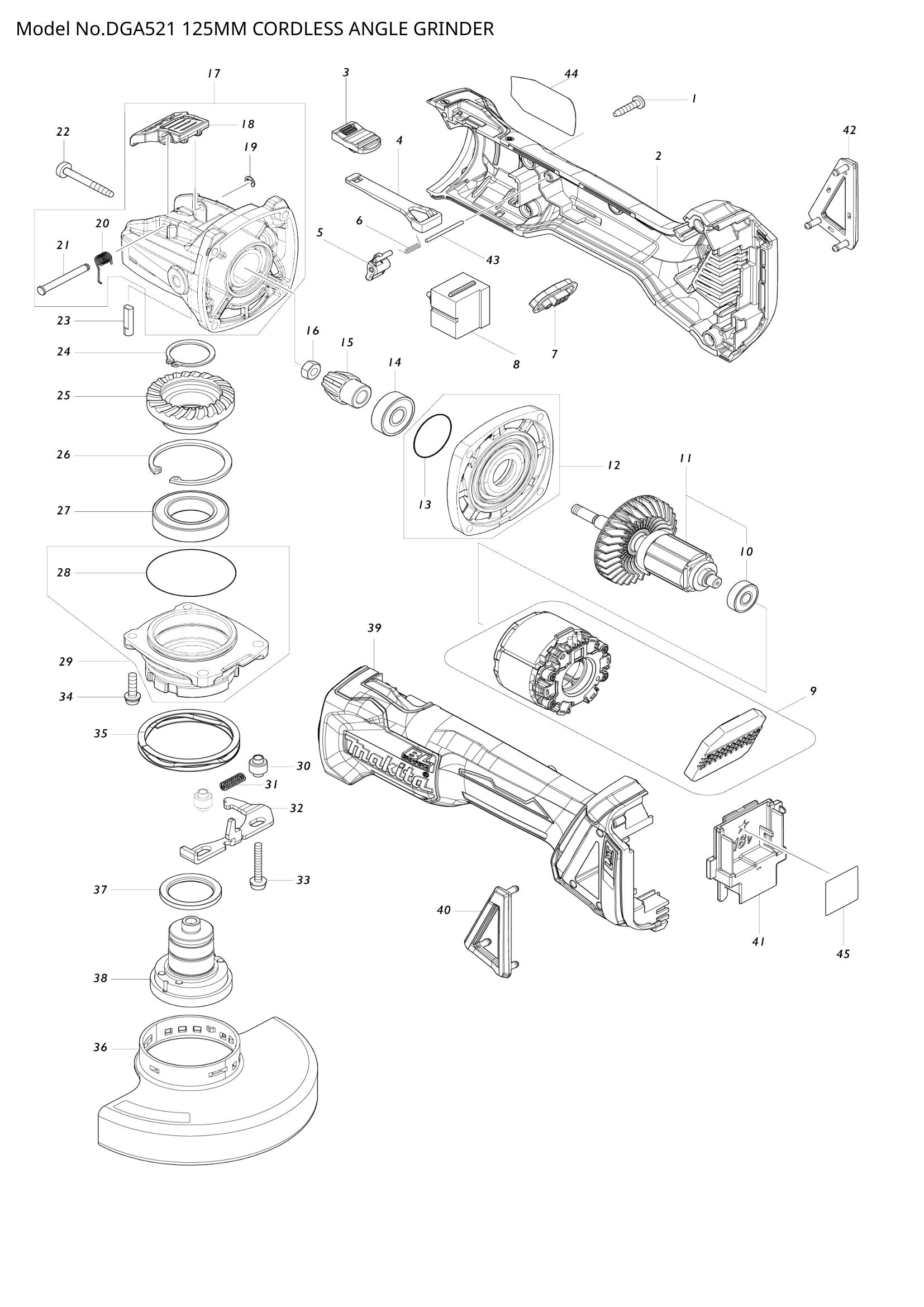

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | TAPPING SCREW 4X18 | 5 | Not available in store | |||
| 002 | 187997-1 | MOTOR HOUSING SET | 1 | €13.29 | 1-4 weeks to ship | |
| 003 | 455447-7 | SWITCH KNOB | 1 | €0.28 | 1-4 weeks to ship | |
| 455447-7 | SWITCH KNOB | 1 | €0.28 | 1-4 weeks to ship | ||
| 004 | 455446-9 | SWITCH LEVER | 1 | €0.28 | 1-4 weeks to ship | |
| 455446-9 | SWITCH LEVER | 1 | €0.28 | 1-4 weeks to ship | ||
| 005 | 455448-5 | LEVER | 1 | €0.28 | 1-4 weeks to ship | |
| 455448-5 | LEVER | 1 | €0.28 | 1-4 weeks to ship | ||
| 006 | 231679-8 | TORSION SPRING 2 | 1 | €0.14 | 1-4 weeks to ship | |
| 007 | 142901-7 | INDICATOR PANEL COMPLETE | 1 | €0.83 | 1-4 weeks to ship | |
| 010 | 210169-4 | BALL BEARING 607LLB | 1 | €0.70 | 1-4 weeks to ship | |
| 012 | GEAR HOUSING COVER ASS'Y | 1 | Not available in store | |||
| 013 | 213407-3 | O RING 26 | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | 210042-8 | BALL BEARING 629LLB | 1 | €4.17 | 1-4 weeks to ship | |
| 015 | SPIRAL BEVEL GEAR 10 | 1 | Not available in store | |||
| 016 | 252186-8 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | GEAR HOUSING ASS'Y | 1 | Not available in store | |||
| 018 | LEVER | 1 | Not available in store | |||
| 019 | 961017-7 | STOP RING E-3 | 1 | €0.56 | 1-4 weeks to ship | |
| 020 | TORSION SPRING 5 | 1 | Not available in store | |||
| 021 | HEADED PIN 4 | 1 | Not available in store | |||
| 022 | TAPPING SCREW 4X30 | 4 | Not available in store | |||
| 023 | SHAFT | 1 | Not available in store | |||
| 024 | RETAINING RING S-24 | 1 | Not available in store | |||
| 025 | SPIRAL BEVEL GEAR 37 | 1 | Not available in store | |||
| 026 | 962201-7 | RETAINING RING (INT) R-42 | 1 | €0.83 | 1-4 weeks to ship | |
| 027 | BALL BEARING 6905DDW | 1 | Not available in store | |||
| 028 | 213622-9 | O RING 45 | 1 | €0.56 | 1-4 weeks to ship | |
| 029 | BEARING BOX ASS'Y | 1 | Not available in store | |||
| 030 | 327322-6 | SLEEVE 4 | 2 | €0.74 | 1-4 weeks to ship | |
| 031 | COMPRESSION SPRING 4 | 1 | Not available in store | |||
| 032 | LEVER | 1 | Not available in store | |||
| 033 | 911159-7 | PAN HEAD SCREW M4X30 | 2 | €0.83 | 1-4 weeks to ship | |
| 034 | 911138-5 | P.H.SCREW M4X20 WITH WR | 2 | €0.56 | 1-4 weeks to ship | |
| 037 | RING 25 | 1 | Not available in store | |||
| 038 | SPINDLE ASSEMBLY | 1 | Not available in store | |||
| 039 | 187997-1 | MOTOR HOUSING SET | 1 | €13.29 | 1-4 weeks to ship | |
| 040 | 455449-3 | DUST COVER L | 1 | €3.90 | 1-4 weeks to ship | |
| 455449-3 | DUST COVER L | 1 | €3.90 | 1-4 weeks to ship | ||
| 041 | 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | |
| 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | ||
| 042 | 455450-8 | DUST COVER R | 1 | €3.90 | 1-4 weeks to ship | |
| 455450-8 | DUST COVER R | 1 | €3.90 | 1-4 weeks to ship | ||
| 043 | 268330-7 | PIN 2 | 1 | €0.28 | 1-4 weeks to ship | |
| 044 | DGA521 NAME PLATE | 1 | Not available in store | |||
| 045 | DGA521 SERIAL NO. LABEL | 1 | Not available in store | |||
| 047 | CONTROLLER S | 1 | Not available in store | |||
| 048 | PAN HEAD SCREW M2X6 S | 6 | Not available in store | |||
