DGA519
DGA519

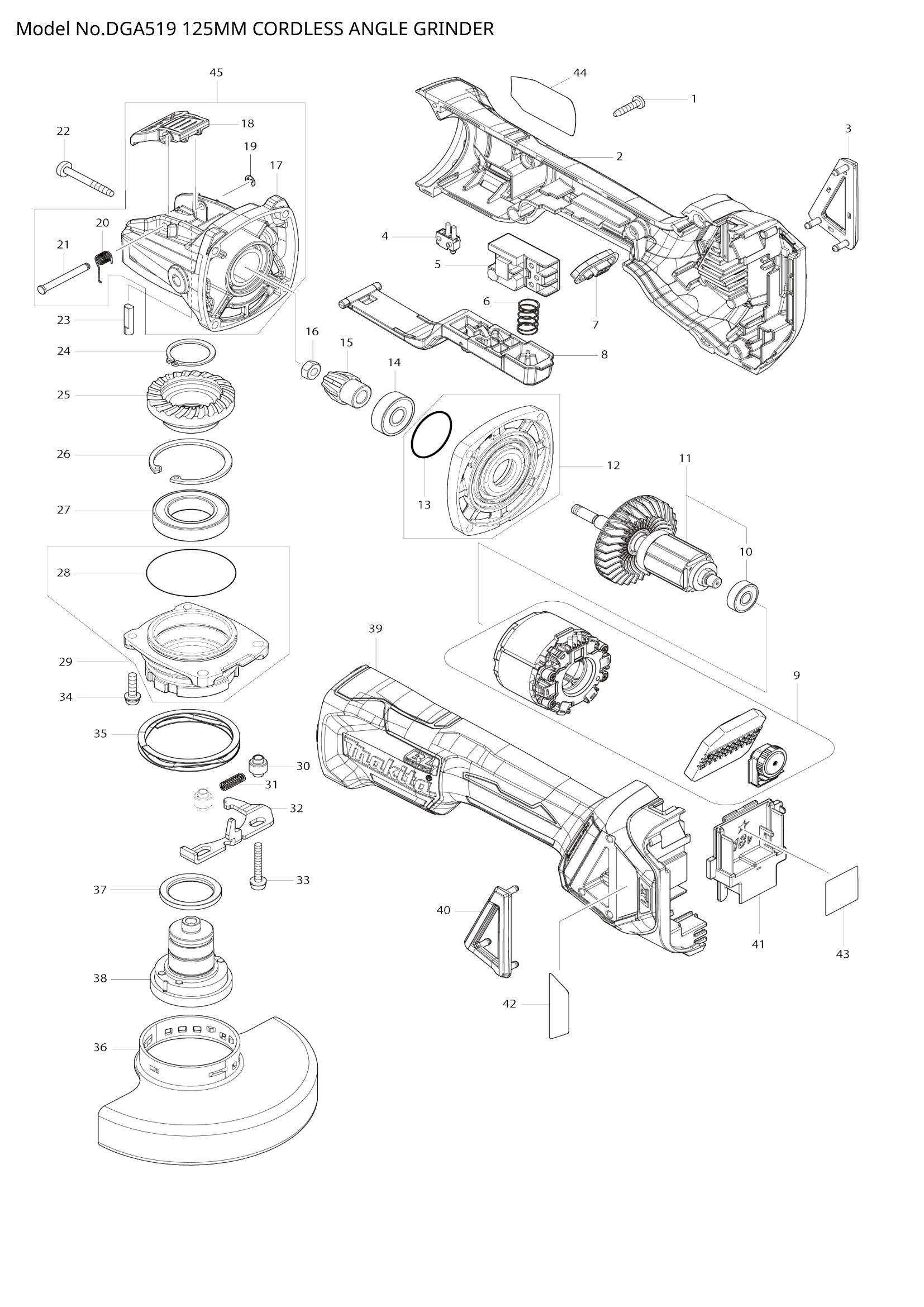

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | MOTOR HOUSING SET | 1 | Not available in store | |||
| 003 | 455450-8 | DUST COVER R | 1 | €3.90 | 1-4 weeks to ship | |
| 455450-8 | DUST COVER R | 1 | €3.90 | 1-4 weeks to ship | ||
| 004 | 632E12-1 | SWITCH UNIT | 1 | €11.69 | 1-4 weeks to ship | |
| 005 | 650734-1 | SWITCH TG73BDS-2 | 1 | €14.61 | 1-4 weeks to ship | |
| 650734-1 | SWITCH TG73BDS-2 | 1 | €14.61 | 1-4 weeks to ship | ||
| 006 | 234357-9 | COMPRESSION SPRING 11 | 1 | €0.14 | 1-4 weeks to ship | |
| 007 | 142901-7 | INDICATOR PANEL COMPLETE | 1 | €0.83 | 1-4 weeks to ship | |
| 008 | 142976-6 | SWITCH LEVER COMPLETE | 1 | €5.71 | 1-4 weeks to ship | |
| 010 | 210169-4 | BALL BEARING 607LLB | 1 | €0.70 | 1-4 weeks to ship | |
| 012 | 135930-7 | GEAR HOUSING COVER ASSEMBL | 1 | €6.12 | 1-4 weeks to ship | |
| 014 | 210042-8 | BALL BEARING 629LLB | 1 | €4.17 | 1-4 weeks to ship | |
| 015 | SPIRAL BEVEL GEAR 10 | 1 | Not available in store | |||
| 016 | 252186-8 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | GEAR HOUSING COMPLETE | 1 | Not available in store | |||
| 018 | LEVER | 1 | Not available in store | |||
| 019 | 961017-7 | STOP RING E-3 | 1 | €0.56 | 1-4 weeks to ship | |
| 020 | TORSION SPRING 5 | 1 | Not available in store | |||
| 021 | HEADED PIN 4 | 1 | Not available in store | |||
| 023 | SHAFT | 1 | Not available in store | |||
| 024 | RETAINING RING S-24 | 1 | Not available in store | |||
| 025 | SPIRAL BEVEL GEAR 37 | 1 | Not available in store | |||
| 026 | 962201-7 | RETAINING RING (INT) R-42 | 1 | €0.83 | 1-4 weeks to ship | |
| 027 | BALL BEARING 6905DDW | 1 | Not available in store | |||
| 028 | 213622-9 | O RING 45 | 1 | €0.56 | 1-4 weeks to ship | |
| 029 | BEARING BOX ASS'Y | 1 | Not available in store | |||
| 030 | 327322-6 | SLEEVE 4 | 2 | €0.74 | 1-4 weeks to ship | |
| 031 | COMPRESSION SPRING 4 | 1 | Not available in store | |||
| 032 | LEVER | 1 | Not available in store | |||
| 033 | 911159-7 | PAN HEAD SCREW M4X30 | 2 | €0.83 | 1-4 weeks to ship | |
| 034 | 911138-5 | P.H.SCREW M4X20 WITH WR | 2 | €0.56 | 1-4 weeks to ship | |
| 037 | RING 25 | 1 | Not available in store | |||
| 038 | SPINDLE ASSEMBLY | 1 | Not available in store | |||
| 039 | MOTOR HOUSING SET | 1 | Not available in store | |||
| 040 | 455449-3 | DUST COVER L | 1 | €3.90 | 1-4 weeks to ship | |
| 455449-3 | DUST COVER L | 1 | €3.90 | 1-4 weeks to ship | ||
| 041 | 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | |
| 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | ||
| 042 | INDICATION LABEL | 1 | Not available in store | |||
| 043 | DGA519 SERIAL NO. LABEL | 1 | Not available in store | |||
| 044 | DGA519 NAME PLATE | 1 | Not available in store | |||
| 045 | GEAR HOUSING ASS'Y | 1 | Not available in store | |||
| 046 | CONTROLLER S | 1 | Not available in store | |||
| 047 | PAN HEAD SCREW M2X6 S | 6 | Not available in store | |||
