DGA467
DGA467

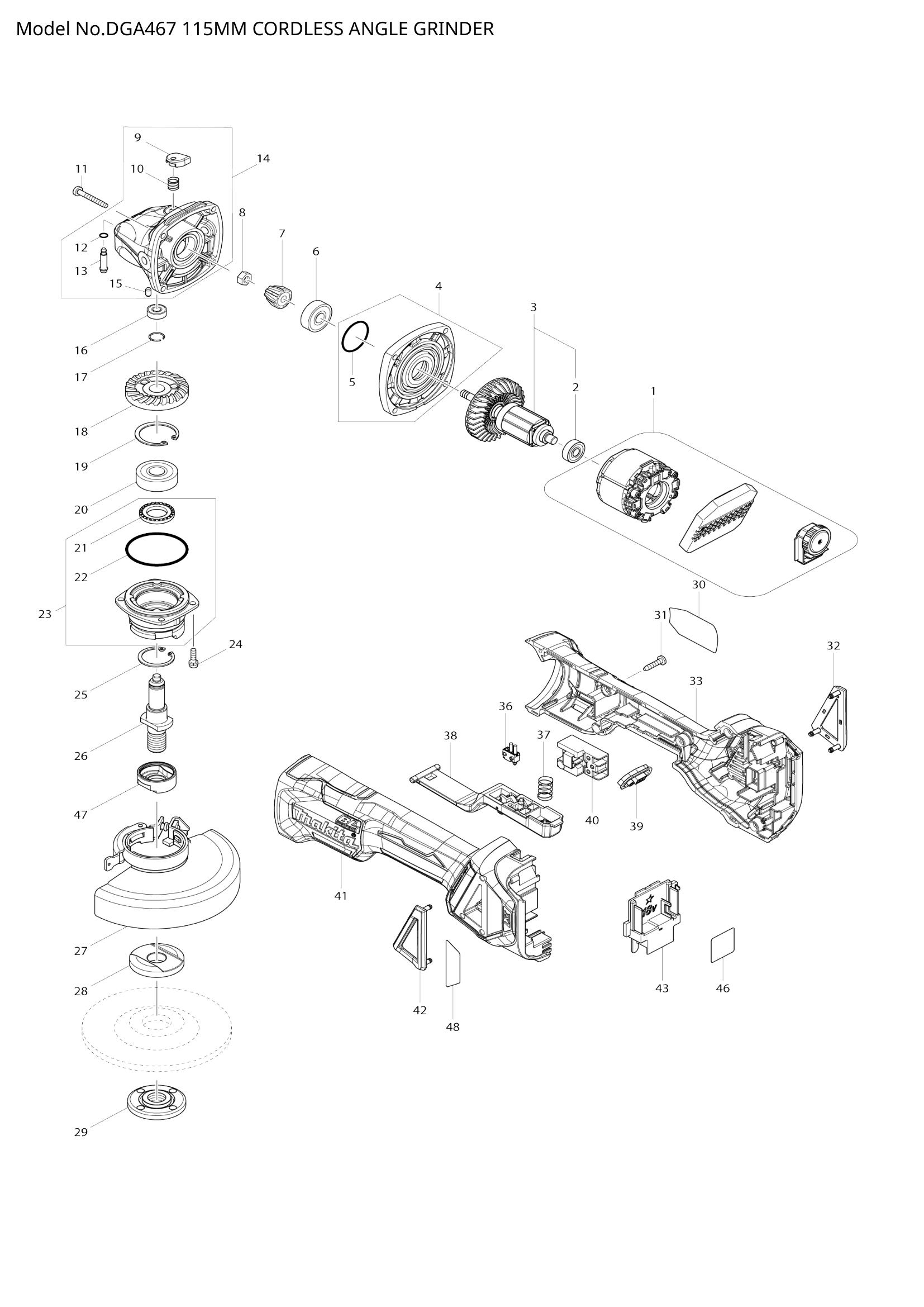

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | 210169-4 | BALL BEARING 607LLB | 1 | €0.70 | 1-4 weeks to ship | |
| 006 | 210042-8 | BALL BEARING 629LLB | 1 | €4.17 | 1-4 weeks to ship | |
| 008 | 252186-8 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 417771-6 | PIN CAP | 1 | €0.56 | 1-4 weeks to ship | |
| 012 | 213960-9 | O RING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 013 | 256546-6 | SHOULDER PIN 4 | 1 | €0.42 | 1-4 weeks to ship | |
| 014 | 135929-2 | GEAR HOUSING ASSEMBLY | 1 | €11.97 | 1-4 weeks to ship | |
| 015 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | 210033-9 | BALL BEARING 696ZZ | 1 | €1.11 | 1-4 weeks to ship | |
| 017 | 233950-6 | RING SPRING 11 | 1 | €0.56 | 1-4 weeks to ship | |
| 019 | 962151-6 | RETAINING RING R-32 | 1 | €0.56 | 1-4 weeks to ship | |
| 020 | 211129-9 | BALL BEARING 6201DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 021 | 262153-5 | FELT RING 16 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 213622-9 | O RING 45 | 1 | €0.56 | 1-4 weeks to ship | |
| 023 | BEARING BOX ASSEMBLY | 1 | Not available in store | |||
| 024 | 911121-2 | PAN HEAD SCREW M4X14 | 4 | €0.83 | 1-4 weeks to ship | |
| 025 | 962105-3 | RETAINING RING R-26 | 1 | €0.56 | 1-4 weeks to ship | |
| 026 | 326672-6 | SPINDLE | 1 | €7.65 | 1-4 weeks to ship | |
| 028 | 224447-6 | INNER FLANGE 42B | 1 | €4.45 | 1-4 weeks to ship | |
| 029 | 224554-5 | LOCK NUT 14-45 | 1 | €2.78 | 1-4 weeks to ship | |
| 030 | DGA467 NAME PLATE | 1 | Not available in store | |||
| 032 | 455450-8 | DUST COVER R | 1 | €3.90 | 1-4 weeks to ship | |
| 455450-8 | DUST COVER R | 1 | €3.90 | 1-4 weeks to ship | ||
| 033 | MOTOR HOUSING SET | 1 | Not available in store | |||
| 036 | 632E12-1 | SWITCH UNIT | 1 | €11.69 | 1-4 weeks to ship | |
| 037 | 234357-9 | COMPRESSION SPRING 11 | 1 | €0.14 | 1-4 weeks to ship | |
| 038 | 142976-6 | SWITCH LEVER COMPLETE | 1 | €5.71 | 1-4 weeks to ship | |
| 039 | 142901-7 | INDICATOR PANEL COMPLETE | 1 | €0.83 | 1-4 weeks to ship | |
| 040 | 650734-1 | SWITCH TG73BDS-2 | 1 | €14.61 | 1-4 weeks to ship | |
| 650734-1 | SWITCH TG73BDS-2 | 1 | €14.61 | 1-4 weeks to ship | ||
| 041 | MOTOR HOUSING SET | 1 | Not available in store | |||
| 042 | 455449-3 | DUST COVER L | 1 | €3.90 | 1-4 weeks to ship | |
| 455449-3 | DUST COVER L | 1 | €3.90 | 1-4 weeks to ship | ||
| 043 | 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | |
| 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | ||
| 046 | DGA467 SERIAL NO. LABEL | 1 | Not available in store | |||
| 047 | 310514-4 | LEAD FLANGE | 1 | €10.16 | 1-4 weeks to ship | |
| 048 | INDICATION LABEL | 1 | Not available in store | |||
| 049 | CONTROLLER S | 1 | Not available in store | |||
| 050 | PAN HEAD SCREW M2X6 S | 6 | Not available in store | |||
