4341CT
4341CT

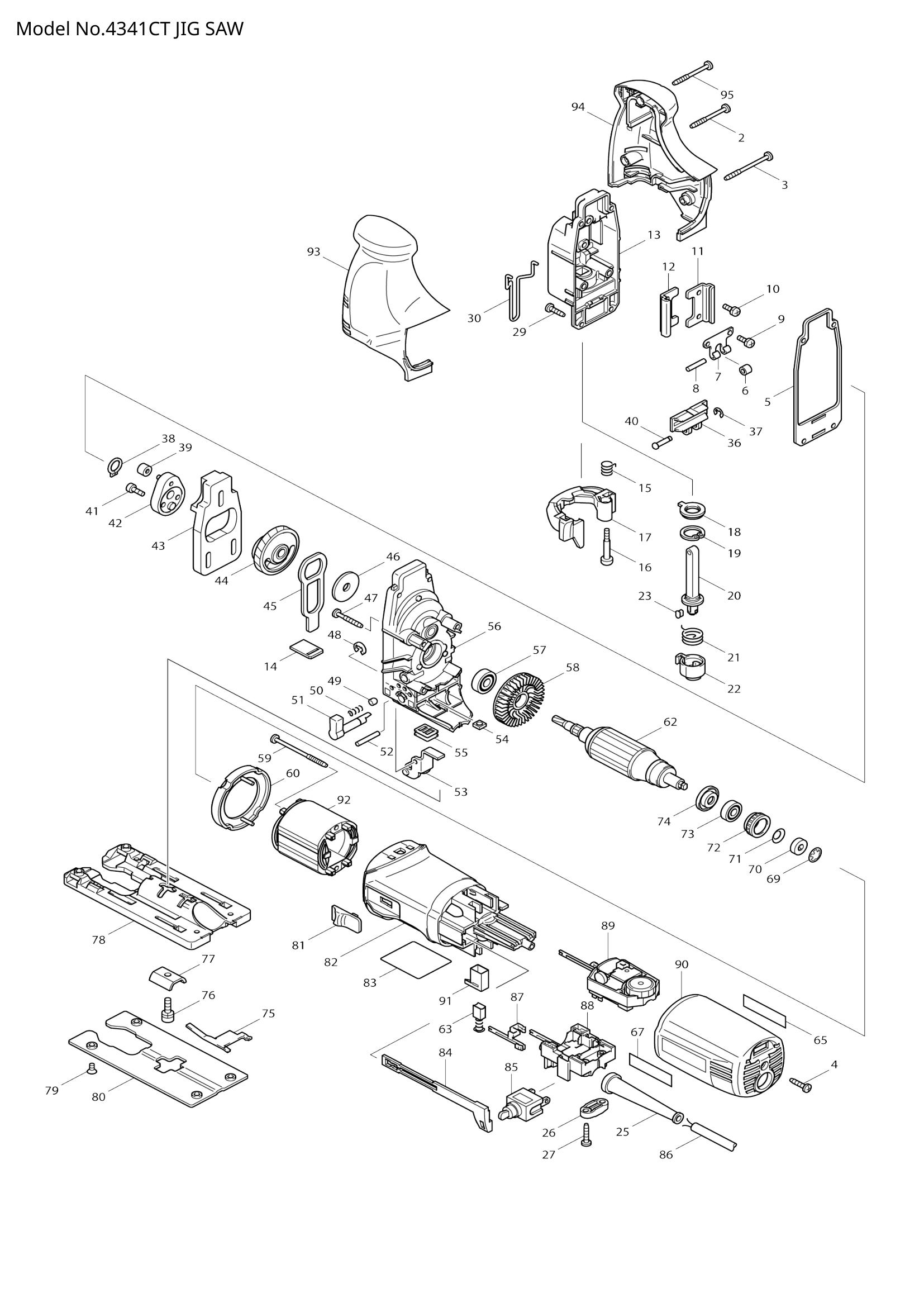

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | 266048-4 | TAPPING SCREW 4X40 | 1 | €0.56 | 1-4 weeks to ship | |
| 003 | 266091-3 | TAPPING SCREW 4X50 | 1 | €0.56 | 1-4 weeks to ship | |
| 004 | 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 005 | 442138-9 | PACKING | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | 214031-5 | PLANE BEARING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 007 | 232207-2 | LEAF SPRING | 1 | €1.81 | 1-4 weeks to ship | |
| 008 | 256117-9 | PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 911111-5 | PAN HEAD SCREW M4X10 WITH | 2 | €0.56 | 1-4 weeks to ship | |
| 010 | 911111-5 | PAN HEAD SCREW M4X10 WITH | 2 | €0.56 | 1-4 weeks to ship | |
| 011 | 345240-6 | LINEAR GUIDE | 1 | €2.78 | 1-4 weeks to ship | |
| 012 | 345240-6 | LINEAR GUIDE | 1 | €2.78 | 1-4 weeks to ship | |
| 013 | 153338-3 | GEAR HOUSING COVER COMPLE | 1 | €22.26 | 1-4 weeks to ship | |
| 014 | 417839-8 | SEAL PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 231659-4 | TORSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | 265026-1 | + PAN HEAD SCREW M4 | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | 417842-9 | TOOL OPENER | 1 | €1.67 | 1-4 weeks to ship | |
| 018 | 421817-2 | DUST COVER | 1 | €0.56 | 1-4 weeks to ship | |
| 019 | 962068-3 | RETAINING RING R-18 | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | 231660-9 | TORSION SPRING 15 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 310136-0 | BLADE HOLDER | 1 | €13.92 | 1-4 weeks to ship | |
| 023 | 310135-2 | PUSH PIN | 1 | €1.39 | 1-4 weeks to ship | |
| 025 | 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | |
| 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 026 | 687052-4 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 029 | 266034-5 | TAPPING SCREW CT 4X16 | 4 | €0.56 | 1-4 weeks to ship | |
| 030 | 324233-6 | SAFETY WIRE | 1 | €0.56 | 1-4 weeks to ship | |
| 036 | 310134-4 | SLIDER | 1 | €13.92 | 1-4 weeks to ship | |
| 037 | 961017-7 | STOP RING E-3 | 1 | €0.56 | 1-4 weeks to ship | |
| 038 | 961004-6 | RETAINING RING (EXT) S-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 040 | 268090-1 | PIN 4 | 1 | €1.11 | 1-4 weeks to ship | |
| 042 | 153336-7 | CRANK COMPLETE | 1 | €4.17 | 1-4 weeks to ship | |
| 043 | 313108-4 | BALANCE PLATE | 1 | €8.35 | 1-4 weeks to ship | |
| 044 | 153335-9 | GEAR COMPLETE | 1 | €27.83 | 1-4 weeks to ship | |
| 045 | 345235-9 | PUSH PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 046 | 253877-4 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 047 | 266050-7 | TAPPING SCREW 4X30 | 4 | €0.56 | 1-4 weeks to ship | |
| 048 | 961018-5 | STOP RING E-5 | 1 | €0.56 | 1-4 weeks to ship | |
| 049 | 286032-3 | CAP 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 050 | 233139-6 | COMPRESSION SPRING 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 052 | 268063-4 | PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 053 | 153334-1 | RETAINER COMPLETE | 1 | €5.57 | 1-4 weeks to ship | |
| 054 | 252171-1 | SQUARE NUT M5-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 055 | 421816-4 | DUST SEAL | 1 | €0.56 | 1-4 weeks to ship | |
| 056 | 153337-5 | GEAR HOUSING COMPLETE | 1 | €25.05 | 1-4 weeks to ship | |
| 057 | 210005-4 | BALL BEARING 608DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 058 | 241881-5 | FAN 52 | 1 | €1.11 | 1-4 weeks to ship | |
| 059 | 266052-3 | TAPPING SCREW 4X60 | 2 | €1.11 | 1-4 weeks to ship | |
| 060 | 417838-0 | BAFFLE PLATE | 1 | €0.83 | 1-4 weeks to ship | |
| 062 | 517398-3 | ARMATURE ASS'Y 220-240V | 1 | €36.18 | 1-4 weeks to ship | |
| 065 | 819063-3 | MAKITA LABEL | 1 | €0.56 | 1-4 weeks to ship | |
| 067 | 819063-3 | MAKITA LABEL | 1 | €0.56 | 1-4 weeks to ship | |
| 069 | 259039-2 | SELF LOCK 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 070 | 688117-5 | MAGNET SLEEVE | 1 | €2.78 | 1-4 weeks to ship | |
| 071 | 267756-0 | WAVE WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 072 | 421494-0 | RUBBER RING 19 | 1 | €4.17 | 1-4 weeks to ship | |
| 073 | 211021-9 | BALL BEARING 607LLB | 1 | €5.57 | 1-4 weeks to ship | |
| 074 | 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 075 | 232208-0 | LEAF SPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 076 | 922226-3 | HEX. SOCKET HEAD BOLT M5X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 077 | 345237-5 | CRANK PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 078 | 317565-8 | BASE | 1 | €11.13 | 1-4 weeks to ship | |
| 079 | 912107-9 | COUNTERSUNK HEAD SCREW M4 | 4 | €0.56 | 1-4 weeks to ship | |
| 912107-9 | COUNTERSUNK HEAD SCREW M4 | 4 | €0.56 | 1-4 weeks to ship | ||
| 080 | 345238-3 | BASE PLATE | 1 | €4.17 | 1-4 weeks to ship | |
| 082 | 417758-8 | MOTOR HOUSING | 1 | €11.13 | 1-4 weeks to ship | |
| 083 | 853854-2 | NAME PLATE 4341CT | 1 | €1.11 | 1-4 weeks to ship | |
| 084 | 417841-1 | SWITCH ROD | 1 | €1.11 | 1-4 weeks to ship | |
| 086 | 665394-6 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | €9.04 | 1-4 weeks to ship | |
| 087 | 654223-8 | TERMINAL F | 2 | €1.11 | 1-4 weeks to ship | |
| 654223-8 | TERMINAL F | 2 | €1.11 | 1-4 weeks to ship | ||
| 088 | 638108-6 | SWITCH BLOCK UNIT | 1 | €11.13 | 1-4 weeks to ship | |
| 090 | 183436-9 | REAR COVER | 1 | €8.35 | 1-4 weeks to ship | |
| 091 | 643975-6 | BRUSH HOLDER | 2 | €0.70 | 1-4 weeks to ship | |
| 092 | 633518-2 | FIELD 220-240V | 1 | €19.48 | 1-4 weeks to ship | |
| 093 | 183425-4 | HEAD COVER SET | 1 | €9.32 | 1-4 weeks to ship | |
| 094 | 183425-4 | HEAD COVER SET | 1 | €9.32 | 1-4 weeks to ship | |
| 095 | 266048-4 | TAPPING SCREW 4X40 | 1 | €0.56 | 1-4 weeks to ship |
