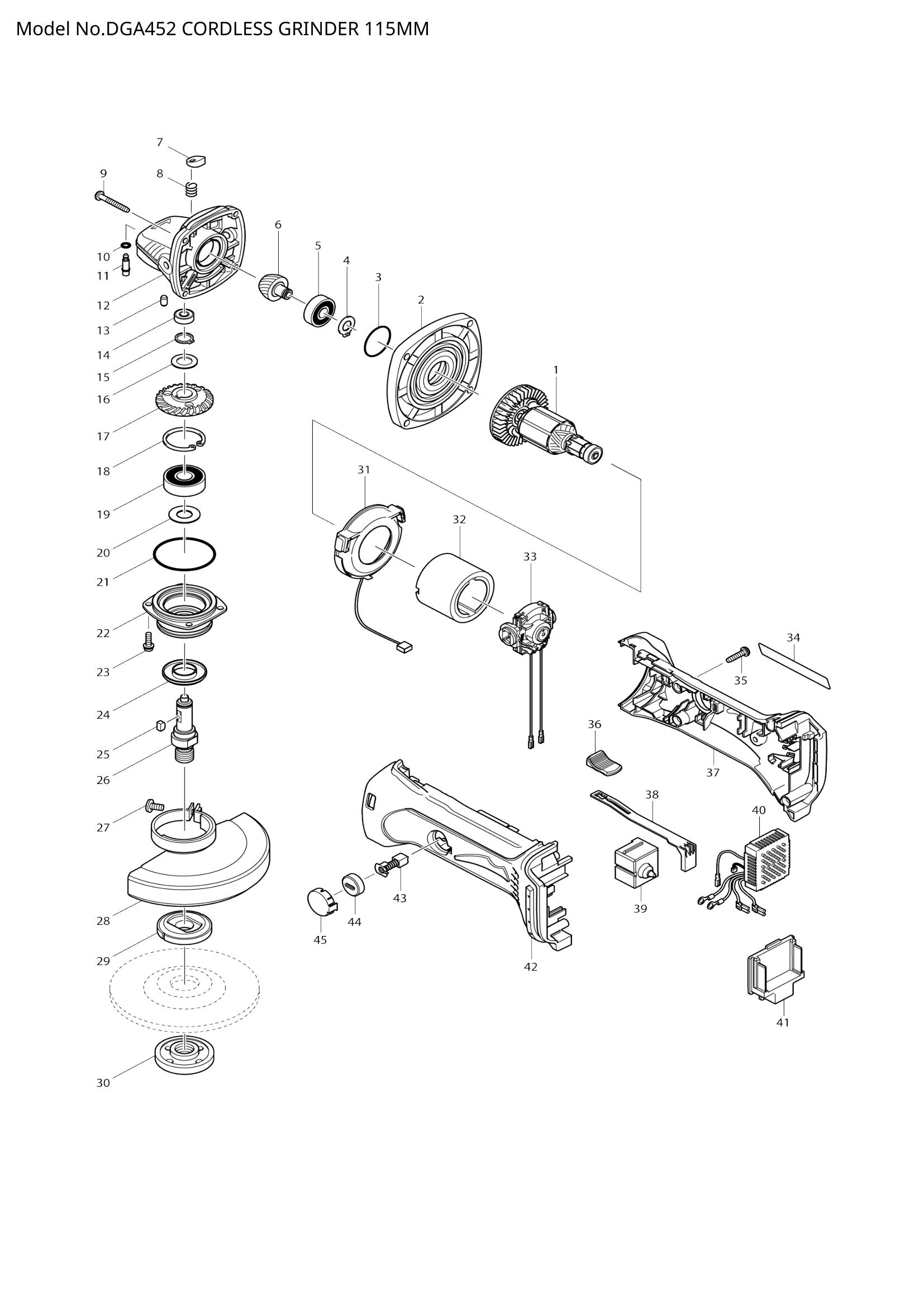

DGA452
DGA452
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 619218-8 | ARMATURE | 1 | €22.26 | 1-4 weeks to ship | |
| 619218-8 | ARMATURE | 1 | €22.26 | 1-4 weeks to ship | ||
| 002 | 317821-6 | GEAR HOUSING COVER | 1 | €2.78 | 1-4 weeks to ship | |
| 003 | 213445-5 | O-RING 26 | 1 | €0.56 | 1-4 weeks to ship | |
| 004 | 961005-4 | RETAINING RING S-9 | 1 | €0.56 | 1-4 weeks to ship | |
| 005 | 210042-8 | BALL BEARING 629LLB | 1 | €4.17 | 1-4 weeks to ship | |
| 007 | 417771-6 | PIN CAP | 1 | €0.56 | 1-4 weeks to ship | |
| 008 | 233072-2 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 266361-0 | TAPPING SCREW 4X30 | 4 | €0.56 | 1-4 weeks to ship | |
| 010 | 213960-9 | O RING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 011 | 256496-5 | SHOULDER PIN 4 | 1 | €2.78 | 1-4 weeks to ship | |
| 012 | 318051-2 | GEAR HOUSING | 1 | €5.57 | 1-4 weeks to ship | |
| 013 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | 210033-9 | BALL BEARING 696ZZ | 1 | €1.11 | 1-4 weeks to ship | |
| 015 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | 253744-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 018 | 962151-6 | RETAINING RING R-32 | 1 | €0.56 | 1-4 weeks to ship | |
| 019 | 211129-9 | BALL BEARING 6201DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 020 | 267238-2 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | 213622-9 | O RING 45 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 318331-6 | BEARING BOX | 1 | €2.78 | 1-4 weeks to ship | |
| 023 | 911121-2 | PAN HEAD SCREW M4X14 | 4 | €0.83 | 1-4 weeks to ship | |
| 024 | 345464-4 | LABYRINTH RING | 1 | €0.56 | 1-4 weeks to ship | |
| 025 | 254011-9 | WOODRUFF KEY 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 026 | 324489-1 | SPINDLE | 1 | €4.17 | 1-4 weeks to ship | |
| 027 | 265180-1 | PAN HEAD SCREW M5X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 030 | 224554-5 | LOCK NUT 14-45 | 1 | €2.78 | 1-4 weeks to ship | |
| 031 | 631714-6 | LED CIRCUIT | 1 | €11.13 | 1-4 weeks to ship | |
| 032 | 638627-2 | YOKE UNIT | 1 | €19.48 | 1-4 weeks to ship | |
| 033 | 638921-2 | ENDBELL COMPLETE | 1 | €4.17 | 1-4 weeks to ship | |
| 034 | DGA452 NAME PLATE | 1 | Not available in store | |||
| 035 | 266326-2 | TAPPING SCREW 4X18 | 5 | €0.56 | 1-4 weeks to ship | |
| 036 | 419566-3 | SWITCH KNOB | 1 | €0.56 | 1-4 weeks to ship | |
| 037 | 187843-8 | HOUSING SET | 1 | €15.86 | 1-4 weeks to ship | |
| 038 | 419519-2 | SWITCH LEVER | 1 | €0.56 | 1-4 weeks to ship | |
| 041 | 644808-8 | TERMINAL | 1 | €4.17 | 1-4 weeks to ship | |
| 042 | 187843-8 | HOUSING SET | 1 | €15.86 | 1-4 weeks to ship | |
| 043 | 191971-3 | CARBON BRUSH CB-430 | 1 | €2.78 | 1-4 weeks to ship | |
| 044 | 643954-4 | BRUSH HOLDER CAP | 2 | €0.83 | 1-4 weeks to ship | |
| 045 | 419518-4 | HOLDER CAP COVER | 2 | €0.56 | 1-4 weeks to ship | |
