DG002G
DG002G

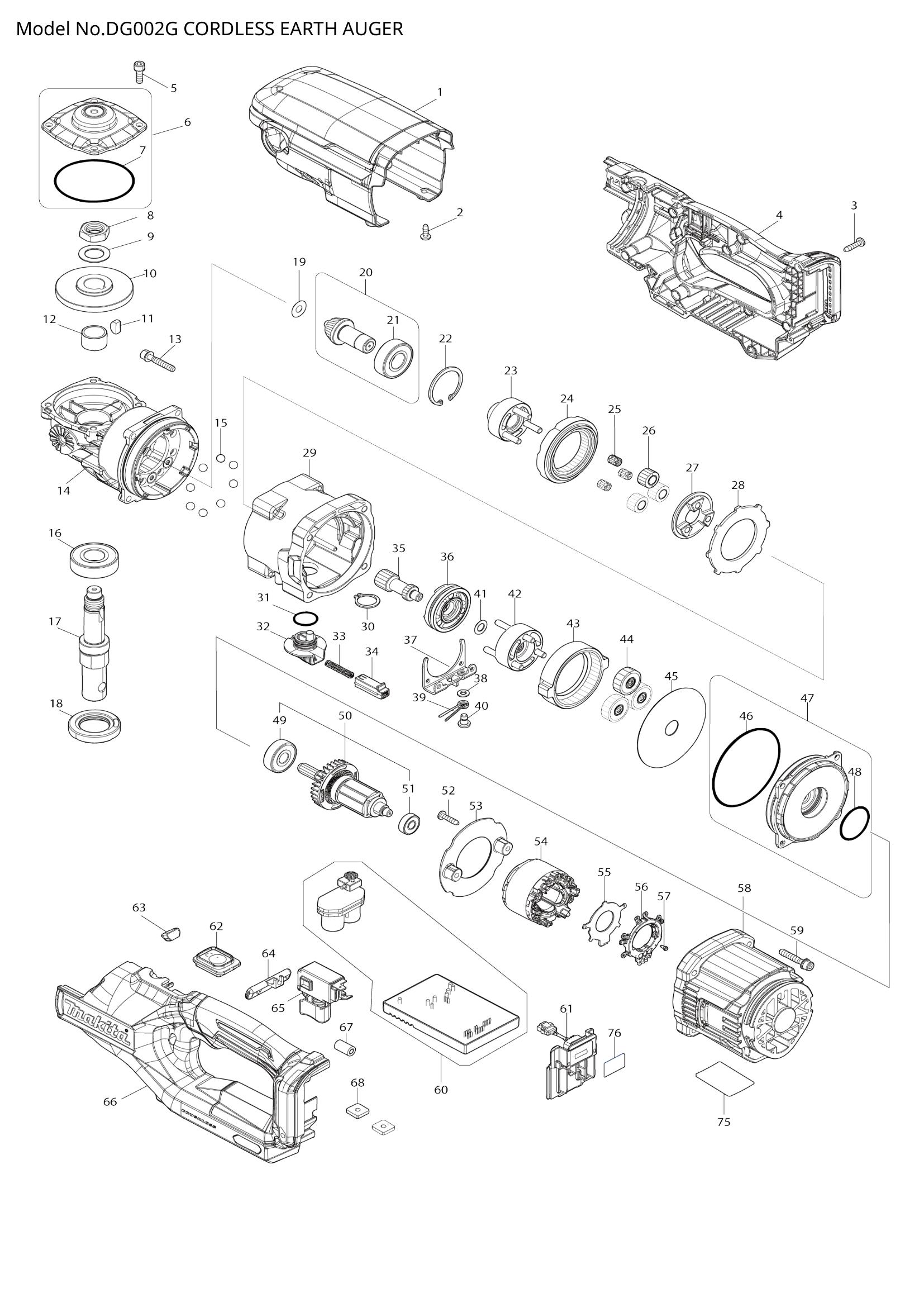

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 458430-3 | TOP COVER | 1 | €10.71 | 1-4 weeks to ship | |
| 458430-3 | TOP COVER | 1 | €10.71 | 1-4 weeks to ship | ||
| 002 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 266026-4 | TAPPING SCREW BIND CT 4X12 | 2 | €0.56 | 1-4 weeks to ship | ||
| 003 | 266326-2 | TAPPING SCREW 4X18 | 10 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 10 | €0.56 | 1-4 weeks to ship | ||
| 004 | HANDLE SET | 1 | Not available in store | |||
| HANDLE SET | 1 | Not available in store | ||||
| 005 | 266086-6 | HEX. SOCKET HEAD BOLT M5X16 | 4 | €0.56 | 1-4 weeks to ship | |
| 266086-6 | HEX. SOCKET HEAD BOLT M5X16 | 4 | €0.56 | 1-4 weeks to ship | ||
| 006 | 140A21-7 | GEAR HOUSING COVER COMPLE | 1 | €15.17 | 1-4 weeks to ship | |
| 140A21-7 | GEAR HOUSING COVER COMPLE | 1 | €15.17 | 1-4 weeks to ship | ||
| 007 | 213709-7 | O RING 63 | 1 | €1.11 | 1-4 weeks to ship | |
| 213709-7 | O RING 63 | 1 | €1.11 | 1-4 weeks to ship | ||
| 008 | HEX. NUT M16-22 | 1 | Not available in store | |||
| HEX. NUT M16-22 | 1 | Not available in store | ||||
| 009 | 253771-0 | FLAT WASHER 16 | 1 | €0.70 | 1-4 weeks to ship | |
| 253771-0 | FLAT WASHER 16 | 1 | €0.70 | 1-4 weeks to ship | ||
| 010 | SPIRAL BEVEL GEAR 40 | 1 | Not available in store | |||
| SPIRAL BEVEL GEAR 40 | 1 | Not available in store | ||||
| 011 | 254032-1 | WOODRUFF KEY 5 | 1 | €0.83 | 1-4 weeks to ship | |
| 254032-1 | WOODRUFF KEY 5 | 1 | €0.83 | 1-4 weeks to ship | ||
| 012 | 257440-5 | SLEEVE 17 | 1 | €1.25 | 1-4 weeks to ship | |
| 257440-5 | SLEEVE 17 | 1 | €1.25 | 1-4 weeks to ship | ||
| 014 | GEAR HOUSING COMPLETE | 1 | Not available in store | |||
| GEAR HOUSING COMPLETE | 1 | Not available in store | ||||
| 015 | 216022-2 | STEEL BALL 7.0 | 8 | €0.56 | 1-4 weeks to ship | |
| 216022-2 | STEEL BALL 7.0 | 8 | €0.56 | 1-4 weeks to ship | ||
| 016 | 211278-2 | BALL BEARING 6203DDW | 1 | €11.13 | 1-4 weeks to ship | |
| 211278-2 | BALL BEARING 6203DDW | 1 | €11.13 | 1-4 weeks to ship | ||
| 017 | SPINDLE | 1 | Not available in store | |||
| SPINDLE | 1 | Not available in store | ||||
| 018 | BEARING RETAINER32-43 COMPL | 1 | Not available in store | |||
| BEARING RETAINER32-43 COMPL | 1 | Not available in store | ||||
| 019 | 253411-0 | FLAT WASHER 6 | 1 | €0.28 | 1-4 weeks to ship | |
| 253411-0 | FLAT WASHER 6 | 1 | €0.28 | 1-4 weeks to ship | ||
| 020 | SPIRAL BEVEL GEAR 13 ASS'Y | 1 | Not available in store | |||
| SPIRAL BEVEL GEAR 13 ASS'Y | 1 | Not available in store | ||||
| 021 | 211206-7 | BALL BEARING 6202LLB | 1 | €8.35 | 1-4 weeks to ship | |
| 211206-7 | BALL BEARING 6202LLB | 1 | €8.35 | 1-4 weeks to ship | ||
| 022 | 962153-2 | RETAINING RING R-35 | 1 | €0.83 | 1-4 weeks to ship | |
| 962153-2 | RETAINING RING R-35 | 1 | €0.83 | 1-4 weeks to ship | ||
| 023 | 140A13-6 | CARRIER A COMPLETE | 1 | €25.60 | 1-4 weeks to ship | |
| 140A13-6 | CARRIER A COMPLETE | 1 | €25.60 | 1-4 weeks to ship | ||
| 024 | 226177-5 | INTERNAL GEAR 40 | 1 | €6.82 | 1-4 weeks to ship | |
| 226177-5 | INTERNAL GEAR 40 | 1 | €6.82 | 1-4 weeks to ship | ||
| 025 | NEEDLE CAGE 5810 | 3 | Not available in store | |||
| NEEDLE CAGE 5810 | 3 | Not available in store | ||||
| 026 | 226176-7 | SPUR GEAR 13 | 3 | €0.28 | 1-4 weeks to ship | |
| 226176-7 | SPUR GEAR 13 | 3 | €0.28 | 1-4 weeks to ship | ||
| 027 | 223188-1 | CAM | 1 | €7.79 | 1-4 weeks to ship | |
| 223188-1 | CAM | 1 | €7.79 | 1-4 weeks to ship | ||
| 028 | 347365-2 | WASHER 65 | 1 | €1.39 | 1-4 weeks to ship | |
| 347365-2 | WASHER 65 | 1 | €1.39 | 1-4 weeks to ship | ||
| 029 | GEAR CASE COMPLETE | 1 | Not available in store | |||
| GEAR CASE COMPLETE | 1 | Not available in store | ||||
| 030 | 961058-3 | RETAINING RING (EXT) S-18 | 1 | €0.28 | 1-4 weeks to ship | |
| 961058-3 | RETAINING RING (EXT) S-18 | 1 | €0.28 | 1-4 weeks to ship | ||
| 031 | 213265-7 | O RING 17 | 1 | €0.56 | 1-4 weeks to ship | |
| 213265-7 | O RING 17 | 1 | €0.56 | 1-4 weeks to ship | ||
| 032 | 458433-7 | CHANGE LEVER | 1 | €2.50 | 1-4 weeks to ship | |
| 458433-7 | CHANGE LEVER | 1 | €2.50 | 1-4 weeks to ship | ||
| 033 | 233279-0 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 233279-0 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 034 | 458434-5 | LOCK BUTTON | 1 | €0.97 | 1-4 weeks to ship | |
| 458434-5 | LOCK BUTTON | 1 | €0.97 | 1-4 weeks to ship | ||
| 035 | 226175-9 | SPUR GEAR 14 | 1 | €6.40 | 1-4 weeks to ship | |
| 226175-9 | SPUR GEAR 14 | 1 | €6.40 | 1-4 weeks to ship | ||
| 036 | 310876-0 | CHANGE RING | 1 | €9.88 | 1-4 weeks to ship | |
| 310876-0 | CHANGE RING | 1 | €9.88 | 1-4 weeks to ship | ||
| 037 | 347366-0 | CHANGE GUIDE | 1 | €1.25 | 1-4 weeks to ship | |
| 347366-0 | CHANGE GUIDE | 1 | €1.25 | 1-4 weeks to ship | ||
| 038 | 267010-2 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 267010-2 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 039 | TORSION SPRING 6 | 1 | Not available in store | |||
| TORSION SPRING 6 | 1 | Not available in store | ||||
| 040 | 265628-3 | + BINDING HEAD SCREW M5 | 1 | €0.28 | 1-4 weeks to ship | |
| 265628-3 | + BINDING HEAD SCREW M5 | 1 | €0.28 | 1-4 weeks to ship | ||
| 041 | 253215-0 | FLAT WASHER 8 | 1 | €2.09 | 1-4 weeks to ship | |
| 253215-0 | FLAT WASHER 8 | 1 | €2.09 | 1-4 weeks to ship | ||
| 042 | 140A14-4 | CARRIER B COMPLETE | 1 | €22.68 | 1-4 weeks to ship | |
| 140A14-4 | CARRIER B COMPLETE | 1 | €22.68 | 1-4 weeks to ship | ||
| 043 | 226174-1 | INTERNAL GEAR 71 | 1 | €5.84 | 1-4 weeks to ship | |
| 226174-1 | INTERNAL GEAR 71 | 1 | €5.84 | 1-4 weeks to ship | ||
| 044 | 140A12-8 | SPUR GEAR 29 COMPLETE | 3 | €7.37 | 1-4 weeks to ship | |
| 140A12-8 | SPUR GEAR 29 COMPLETE | 3 | €7.37 | 1-4 weeks to ship | ||
| 045 | 253412-8 | FLAT WASHER 15 | 1 | €0.70 | 1-4 weeks to ship | |
| 253412-8 | FLAT WASHER 15 | 1 | €0.70 | 1-4 weeks to ship | ||
| 046 | 213755-0 | O RING 75 | 1 | €1.11 | 1-4 weeks to ship | |
| 213755-0 | O RING 75 | 1 | €1.11 | 1-4 weeks to ship | ||
| 047 | 140A20-9 | MOTOR BRACKET COMPLETE | 1 | €12.94 | 1-4 weeks to ship | |
| 140A20-9 | MOTOR BRACKET COMPLETE | 1 | €12.94 | 1-4 weeks to ship | ||
| 048 | 213406-5 | O RING 30 | 1 | €0.56 | 1-4 weeks to ship | |
| 213406-5 | O RING 30 | 1 | €0.56 | 1-4 weeks to ship | ||
| 049 | 211087-9 | BALL BEARING 6200DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 211087-9 | BALL BEARING 6200DDW | 1 | €4.17 | 1-4 weeks to ship | ||
| 051 | 211022-7 | BALL BEARING 607ZZ | 1 | €5.57 | 1-4 weeks to ship | |
| 211022-7 | BALL BEARING 607ZZ | 1 | €5.57 | 1-4 weeks to ship | ||
| 052 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 053 | 458427-2 | BAFFLE PLATE | 1 | €1.39 | 1-4 weeks to ship | |
| 458427-2 | BAFFLE PLATE | 1 | €1.39 | 1-4 weeks to ship | ||
| 054 | STATOR | 1 | Not available in store | |||
| STATOR | 1 | Not available in store | ||||
| 056 | LEAD UNIT | 1 | Not available in store | |||
| LEAD UNIT | 1 | Not available in store | ||||
| 057 | PAN HEAD SCREW M2X6 | 6 | Not available in store | |||
| PAN HEAD SCREW M2X6 | 6 | Not available in store | ||||
| 058 | 458426-4 | MOTOR HOUSING | 1 | €9.32 | 1-4 weeks to ship | |
| 458426-4 | MOTOR HOUSING | 1 | €9.32 | 1-4 weeks to ship | ||
| 061 | 632P65-6 | TERMINAL UNIT | 1 | €9.41 | 1-4 weeks to ship | |
| 632P65-6 | TERMINAL UNIT | 1 | €9.41 | 1-4 weeks to ship | ||
| 062 | 140A19-4 | SWITCH CIRCUIT COMPLETE | 1 | €16.28 | 1-4 weeks to ship | |
| 140A19-4 | SWITCH CIRCUIT COMPLETE | 1 | €16.28 | 1-4 weeks to ship | ||
| 063 | 620839-1 | LED CIRCUIT | 1 | €4.59 | 1-4 weeks to ship | |
| 620839-1 | LED CIRCUIT | 1 | €4.59 | 1-4 weeks to ship | ||
| 064 | 458432-9 | F/R CHANGE LEVER | 1 | €0.97 | 1-4 weeks to ship | |
| 458432-9 | F/R CHANGE LEVER | 1 | €0.97 | 1-4 weeks to ship | ||
| 065 | 651443-5 | SWITCH C3JR-4B | 1 | €21.37 | 1-4 weeks to ship | |
| 651443-5 | SWITCH C3JR-4B | 1 | €21.37 | 1-4 weeks to ship | ||
| 066 | HANDLE SET | 1 | Not available in store | |||
| HANDLE SET | 1 | Not available in store | ||||
| 067 | 688162-0 | LINE FILTER | 1 | €1.39 | 1-4 weeks to ship | |
| 688162-0 | LINE FILTER | 1 | €1.39 | 1-4 weeks to ship | ||
| 688162-0 | LINE FILTER | 1 | €1.39 | 1-4 weeks to ship | ||
| 688162-0 | LINE FILTER | 1 | €1.39 | 1-4 weeks to ship | ||
| 068 | 264002-2 | SQUARE NUT M5 | 2 | €0.56 | 1-4 weeks to ship | |
| 264002-2 | SQUARE NUT M5 | 2 | €0.56 | 1-4 weeks to ship | ||
| 069 | PIPE GRIP ASSEMBLY | 1 | Not available in store | |||
| PIPE GRIP ASSEMBLY | 1 | Not available in store | ||||
| 070 | H.S.H.BOLT M8X55 WITH WR | 2 | Not available in store | |||
| H.S.H.BOLT M8X55 WITH WR | 2 | Not available in store | ||||
| 071 | H.S.H.BOLT M12X50 WITH WR | 2 | Not available in store | |||
| H.S.H.BOLT M12X50 WITH WR | 2 | Not available in store | ||||
| 072 | 458431-1 | FRONT GRIP | 1 | €7.79 | 1-4 weeks to ship | |
| 458431-1 | FRONT GRIP | 1 | €7.79 | 1-4 weeks to ship | ||
| 073 | PIPE COMPLETE | 1 | Not available in store | |||
| PIPE COMPLETE | 1 | Not available in store | ||||
| 074 | H.S.H.BOLT M6X40 WITH WR | 2 | Not available in store | |||
| H.S.H.BOLT M6X40 WITH WR | 2 | Not available in store | ||||
| 075 | DG002G NAME PLATE | 1 | Not available in store | |||
| DG002G NAME PLATE | 1 | Not available in store | ||||
| 076 | DG002G SERIAL NO.LABEL | 1 | Not available in store | |||
| DG002G SERIAL NO.LABEL | 1 | Not available in store | ||||
