DFT129F
DFT129F

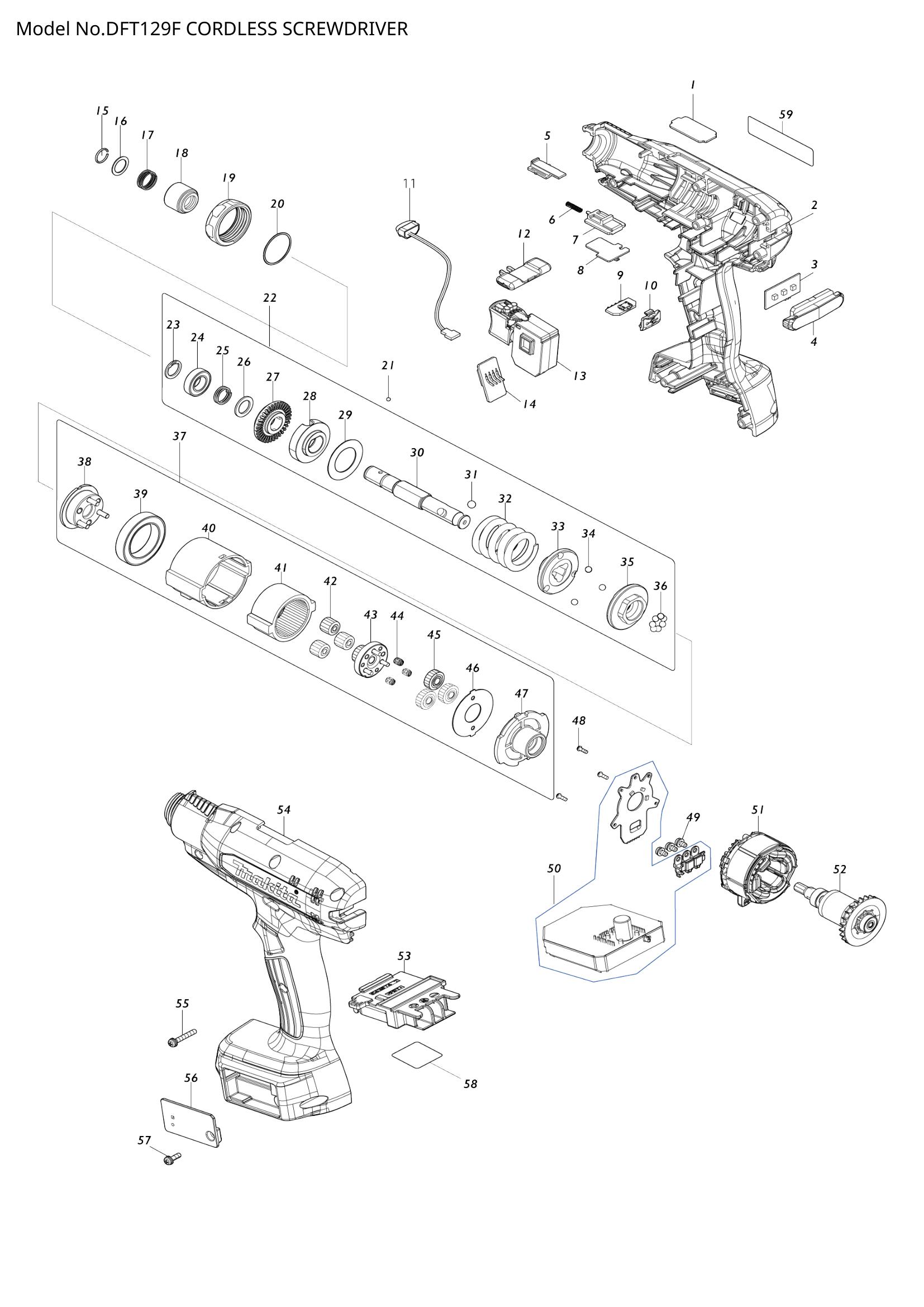

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 345345-2 | PLATE I | 1 | €2.92 | 1-4 weeks to ship | |
| 003 | 620622-6 | LED CIRCUIT | 1 | €11.27 | 1-4 weeks to ship | |
| 004 | 457484-7 | LENS | 1 | €2.23 | 1-4 weeks to ship | |
| 005 | CHANGE PLATE | 1 | Not available in store | |||
| 006 | 233025-1 | COMPRESSION SPRING 2 | 1 | €0.56 | 1-4 weeks to ship | |
| 008 | SENSOR CIRCUIT | 1 | Not available in store | |||
| 009 | USB CIRCUIT | 1 | Not available in store | |||
| 010 | USB COVER COMPLETE | 1 | Not available in store | |||
| 011 | LED CIRCUIT | 1 | Not available in store | |||
| 012 | 457469-3 | F/R CHANGE LEVER | 1 | €2.09 | 1-4 weeks to ship | |
| 013 | 651082-1 | SWITCH C3JW-1B-S | 1 | €27.97 | 1-4 weeks to ship | |
| 014 | 620621-8 | BUZZER CIRCUIT | 1 | €10.99 | 1-4 weeks to ship | |
| 015 | RING SPRING 9 | 1 | Not available in store | |||
| 016 | 267070-4 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | 232374-3 | COMPRESSION SPRING 10A | 1 | €0.97 | 1-4 weeks to ship | |
| 018 | 161607-8 | BIT SLEEVE | 1 | €8.21 | 1-4 weeks to ship | |
| 019 | 457530-6 | LOCK NUT M28 BLACK | 1 | €4.59 | 1-4 weeks to ship | |
| 020 | 213836-0 | O-RING 22 | 1 | €0.42 | 1-4 weeks to ship | |
| 021 | 216015-9 | STEEL BALL 2.4 | 2 | €0.83 | 1-4 weeks to ship | |
| 023 | 961026-6 | RETAINING RING S-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 024 | BALL BEARING 6800LLB | 1 | Not available in store | |||
| 026 | 267047-9 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | 324834-0 | LOCK NUT M12 | 1 | €16.70 | 1-4 weeks to ship | |
| 028 | 158408-3 | ADJUST RING COMPLETE | 1 | €5.57 | 1-4 weeks to ship | |
| 029 | 267276-4 | FLAT WASHER 18 | 1 | €0.83 | 1-4 weeks to ship | |
| 030 | SPINDLE MR | 1 | Not available in store | |||
| 031 | 216018-3 | STEEL BALL 5.0 | 3 | €0.56 | 1-4 weeks to ship | |
| 032 | 233358-4 | COMPRESSION SPRING 19C | 1 | €4.17 | 1-4 weeks to ship | |
| 034 | 216024-8 | STEEL BALL 4 | 3 | €0.56 | 1-4 weeks to ship | |
| 036 | 216024-8 | STEEL BALL 4 | 7 | €0.56 | 1-4 weeks to ship | |
| 039 | 211375-4 | BALL BEARING 6805LLB | 1 | €13.92 | 1-4 weeks to ship | |
| 041 | 227048-9 | INTERNAL GEAR 47 | 1 | €5.57 | 1-4 weeks to ship | |
| 042 | 221539-2 | SPUR GEAR 14 | 3 | €0.28 | 1-4 weeks to ship | |
| 043 | SPUR GEAR 17 COMPLETE B | 1 | Not available in store | |||
| 044 | NEEDLE CAGE 205 | 3 | Not available in store | |||
| 045 | 221540-7 | SPUR GEAR 19 | 3 | €0.42 | 1-4 weeks to ship | |
| 046 | 267774-8 | LOCK WASHER | 1 | €1.67 | 1-4 weeks to ship | |
| 047 | 418003-4 | MOTOR BRACKET | 1 | €4.17 | 1-4 weeks to ship | |
| 048 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 049 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 050 | CONTROLLER | 1 | Not available in store | |||
| CONTROLLER | 1 | Not available in store | ||||
| 051 | STATOR | 1 | Not available in store | |||
| 052 | 619443-1 | ROTOR | 1 | €73.65 | 1-4 weeks to ship | |
| 053 | 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | |
| 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | ||
| 055 | PAN HEAD SCREW M3X20 | 8 | Not available in store | |||
| 056 | COVER | 1 | Not available in store | |||
| 057 | 911013-5 | PAN HEAD SCREW M3X10 | 1 | €0.56 | 1-4 weeks to ship | |
| 058 | DFT129F SERIAL NO. LABEL | 1 | Not available in store | |||
| 059 | DFT129F NAME PLATE | 1 | Not available in store | |||
