DFT128F
DFT128F

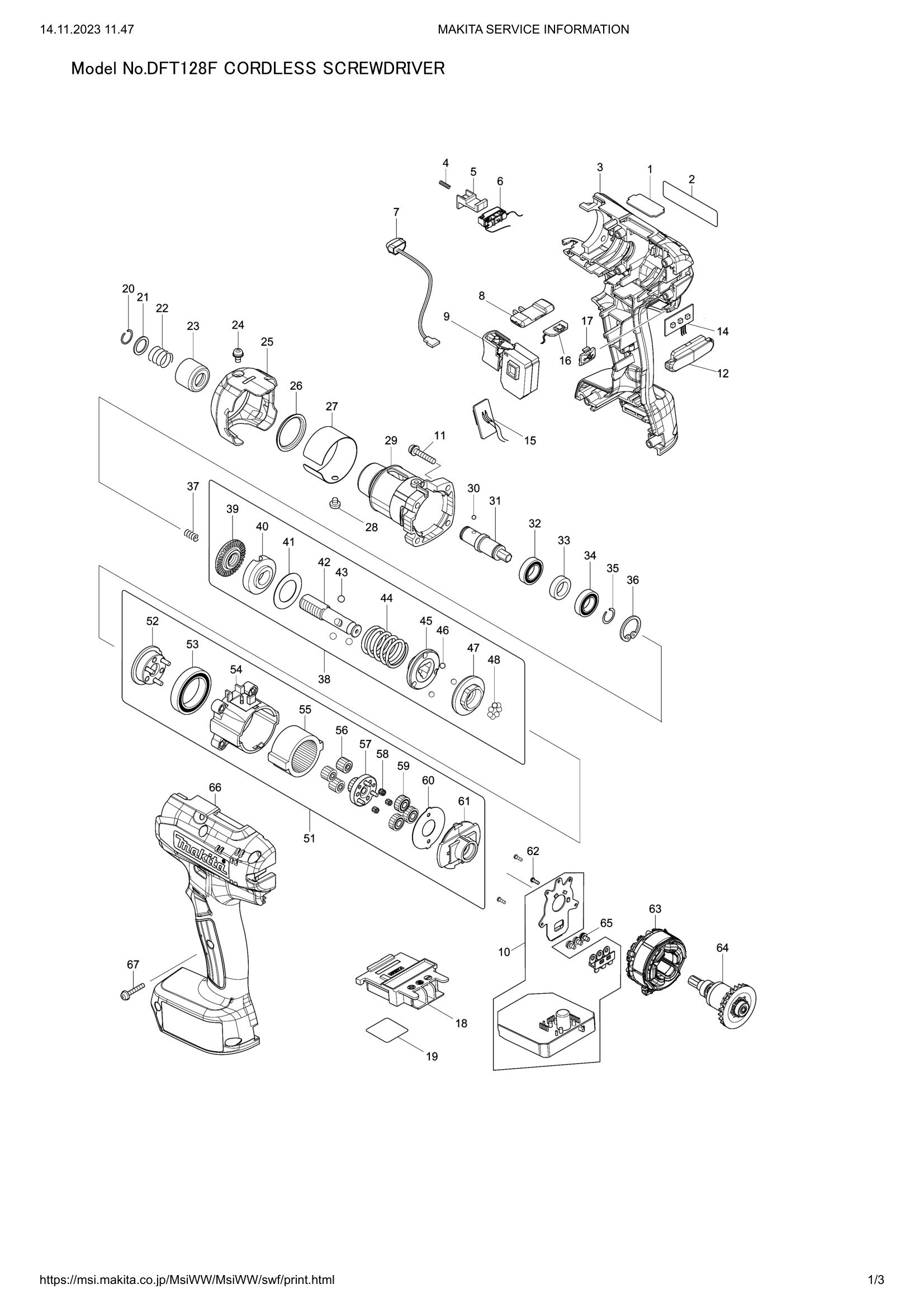

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 345345-2 | PLATE I | 1 | €2.92 | 1-4 weeks to ship | |
| 002 | DFT128F NAME PLATE | 1 | Not available in store | |||
| 003 | 183G11-3 | HOUSING SET | 1 | €26.72 | 1-4 weeks to ship | |
| 004 | 233025-1 | COMPRESSION SPRING 2 | 1 | €0.56 | 1-4 weeks to ship | |
| 005 | 418002-6 | SWITCH LEVER | 1 | €1.11 | 1-4 weeks to ship | |
| 006 | 632K18-5 | SWITCH UNIT | 1 | €11.83 | 1-4 weeks to ship | |
| 007 | 620521-2 | LED CIRCUIT | 1 | €6.68 | 1-4 weeks to ship | |
| 008 | 457469-3 | F/R CHANGE LEVER | 1 | €2.09 | 1-4 weeks to ship | |
| 009 | 651082-1 | SWITCH C3JW-1B-S | 1 | €27.97 | 1-4 weeks to ship | |
| 010 | CONTROLLER | 1 | Not available in store | |||
| 011 | 265145-3 | + PAN HEAD SCREW M4X22 | 4 | €0.56 | 1-4 weeks to ship | |
| 012 | 457484-7 | LENS | 1 | €2.23 | 1-4 weeks to ship | |
| 014 | 620622-6 | LED CIRCUIT | 1 | €11.27 | 1-4 weeks to ship | |
| 015 | 620621-8 | BUZZER CIRCUIT | 1 | €10.99 | 1-4 weeks to ship | |
| 016 | 620623-4 | USB CIRCUIT | 1 | €12.52 | 1-4 weeks to ship | |
| 017 | USB COVER COMPLETE | 1 | Not available in store | |||
| 018 | 643850-6 | TERMINAL | 1 | €4.17 | 1-4 weeks to ship | |
| 019 | DFT128F SERIAL NO. LABEL | 1 | Not available in store | |||
| 020 | 231965-7 | RING SPRING 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | 267143-3 | FLAT WASHER 11 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 233005-7 | COMPRESSION SPRING 13 | 1 | €0.56 | 1-4 weeks to ship | |
| 023 | 162218-2 | SLEEVE | 1 | €11.13 | 1-4 weeks to ship | |
| 024 | 265171-2 | PAN HEAD SCREW M4X8 | 1 | €0.42 | 1-4 weeks to ship | |
| 025 | 457470-8 | CLUTCH CASE COVER | 1 | €4.04 | 1-4 weeks to ship | |
| 026 | 424977-9 | RING 25 BRACK | 1 | €1.67 | 1-4 weeks to ship | |
| 027 | RING 38I | 1 | Not available in store | |||
| 028 | 265127-5 | + PAN HEAD SCREW M4X4 | 1 | €0.56 | 1-4 weeks to ship | |
| 029 | 319568-8 | CLUTCH CASE | 1 | €39.98 | 1-4 weeks to ship | |
| 030 | 216019-1 | STEEL BALL 3 | 2 | €0.56 | 1-4 weeks to ship | |
| 031 | 324377-2 | SPINDLE M | 1 | €25.05 | 1-4 weeks to ship | |
| 032 | 211136-2 | BALL BEARING 6801LLB | 1 | €8.35 | 1-4 weeks to ship | |
| 033 | 257011-8 | RING 12 | 1 | €0.83 | 1-4 weeks to ship | |
| 034 | 211136-2 | BALL BEARING 6801LLB | 1 | €8.35 | 1-4 weeks to ship | |
| 035 | 231951-8 | RING SPRING 11 | 1 | €0.56 | 1-4 weeks to ship | |
| 036 | 962111-8 | RETAINING RING R-21 | 1 | €0.56 | 1-4 weeks to ship | |
| 039 | 324834-0 | LOCK NUT M12 | 1 | €16.70 | 1-4 weeks to ship | |
| 040 | 158408-3 | ADJUST RING COMPLETE | 1 | €5.57 | 1-4 weeks to ship | |
| 041 | 267276-4 | FLAT WASHER 18 | 1 | €0.83 | 1-4 weeks to ship | |
| 043 | 216018-3 | STEEL BALL 5.0 | 3 | €0.56 | 1-4 weeks to ship | |
| 044 | 233358-4 | COMPRESSION SPRING 19C | 1 | €4.17 | 1-4 weeks to ship | |
| 045 | 223146-7 | CAM D | 1 | €25.05 | 1-4 weeks to ship | |
| 046 | 216024-8 | STEEL BALL 4 | 3 | €0.56 | 1-4 weeks to ship | |
| 047 | CAM F | 1 | Not available in store | |||
| 048 | 216024-8 | STEEL BALL 4 | 7 | €0.56 | 1-4 weeks to ship | |
| 052 | 144382-1 | CARRIER COMPLETE C | 1 | €4.83 | 1-4 weeks to ship | |
| 053 | 211375-4 | BALL BEARING 6805LLB | 1 | €13.92 | 1-4 weeks to ship | |
| 055 | 227048-9 | INTERNAL GEAR 47 | 1 | €5.57 | 1-4 weeks to ship | |
| 056 | 221539-2 | SPUR GEAR 14 | 3 | €0.28 | 1-4 weeks to ship | |
| 057 | SPUR GEAR 17 COMPLETE B | 1 | Not available in store | |||
| 059 | 221540-7 | SPUR GEAR 19 | 3 | €0.42 | 1-4 weeks to ship | |
| 060 | 267774-8 | LOCK WASHER | 1 | €1.67 | 1-4 weeks to ship | |
| 061 | 457468-5 | MOTOR BRACKET | 1 | €4.45 | 1-4 weeks to ship | |
| 062 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 063 | 629262-7 | STATOR | 1 | €27.83 | 1-4 weeks to ship | |
| 064 | 619443-1 | ROTOR | 1 | €73.65 | 1-4 weeks to ship | |
| 065 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 066 | 183G11-3 | HOUSING SET | 1 | €26.72 | 1-4 weeks to ship | |
| 067 | 265095-2 | PAN HEAD SCREW M3X20 | 7 | €0.56 | 1-4 weeks to ship | |
