DFT060T
DFT060T

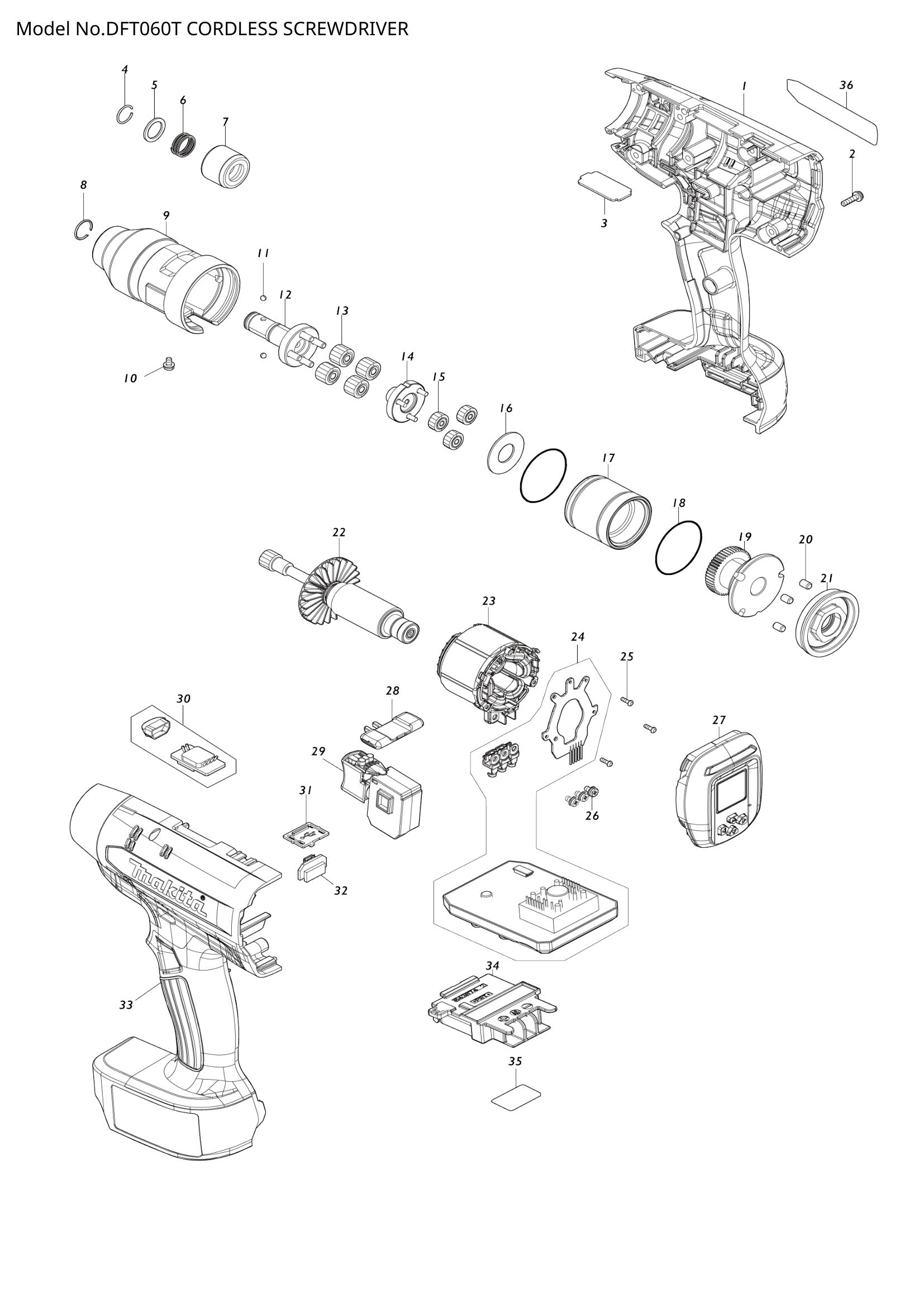

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | HOUSING SET | 1 | Not available in store | |||
| 003 | PLATE U | 1 | Not available in store | |||
| 004 | 231965-7 | RING SPRING 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 005 | 267143-3 | FLAT WASHER 11 | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | 233005-7 | COMPRESSION SPRING 13 | 1 | €0.56 | 1-4 weeks to ship | |
| 007 | 162218-2 | SLEEVE | 1 | €11.13 | 1-4 weeks to ship | |
| 008 | 231951-8 | RING SPRING 11 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | GEAR CASE COMPLETE | 1 | Not available in store | |||
| 010 | 652069-6 | FLAT HEAD SCREW M3X6 | 1 | €0.14 | 1-4 weeks to ship | |
| 011 | 216019-1 | STEEL BALL 3 | 2 | €0.56 | 1-4 weeks to ship | |
| 012 | SPINDLE M COMPLETE | 1 | Not available in store | |||
| 013 | 221537-6 | SPUR GEAR 16 | 4 | €0.28 | 1-4 weeks to ship | |
| 014 | SPUR GEAR 13 COMPLETE C | 1 | Not available in store | |||
| 015 | SPUR GEAR 15 | 3 | Not available in store | |||
| 016 | FLAT WASHER 12 | 1 | Not available in store | |||
| 017 | INTERNAL GEAR 47 | 1 | Not available in store | |||
| 018 | O-RING 30 | 2 | Not available in store | |||
| 019 | TORQUE SENSOR 6 COMPLETE | 1 | Not available in store | |||
| 020 | PIN 4 | 3 | Not available in store | |||
| 021 | BEARING BOX | 1 | Not available in store | |||
| 022 | ROTOR | 1 | Not available in store | |||
| 023 | STATOR | 1 | Not available in store | |||
| 025 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 026 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 027 | DISPLAY UNIT | 1 | Not available in store | |||
| 028 | 457469-3 | F/R CHANGE LEVER | 1 | €2.09 | 1-4 weeks to ship | |
| 029 | 651082-1 | SWITCH C3JW-1B-S | 1 | €27.97 | 1-4 weeks to ship | |
| 030 | BUZZER CIRCUIT | 1 | Not available in store | |||
| 031 | USB COVER | 1 | Not available in store | |||
| 032 | USB CIRCUIT | 1 | Not available in store | |||
| 033 | HOUSING SET | 1 | Not available in store | |||
| 034 | 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | |
| 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | ||
| 035 | DFT060T SERIAL NO. LABEL | 1 | Not available in store | |||
| 036 | DFT060T NAME PLATE | 1 | Not available in store | |||
