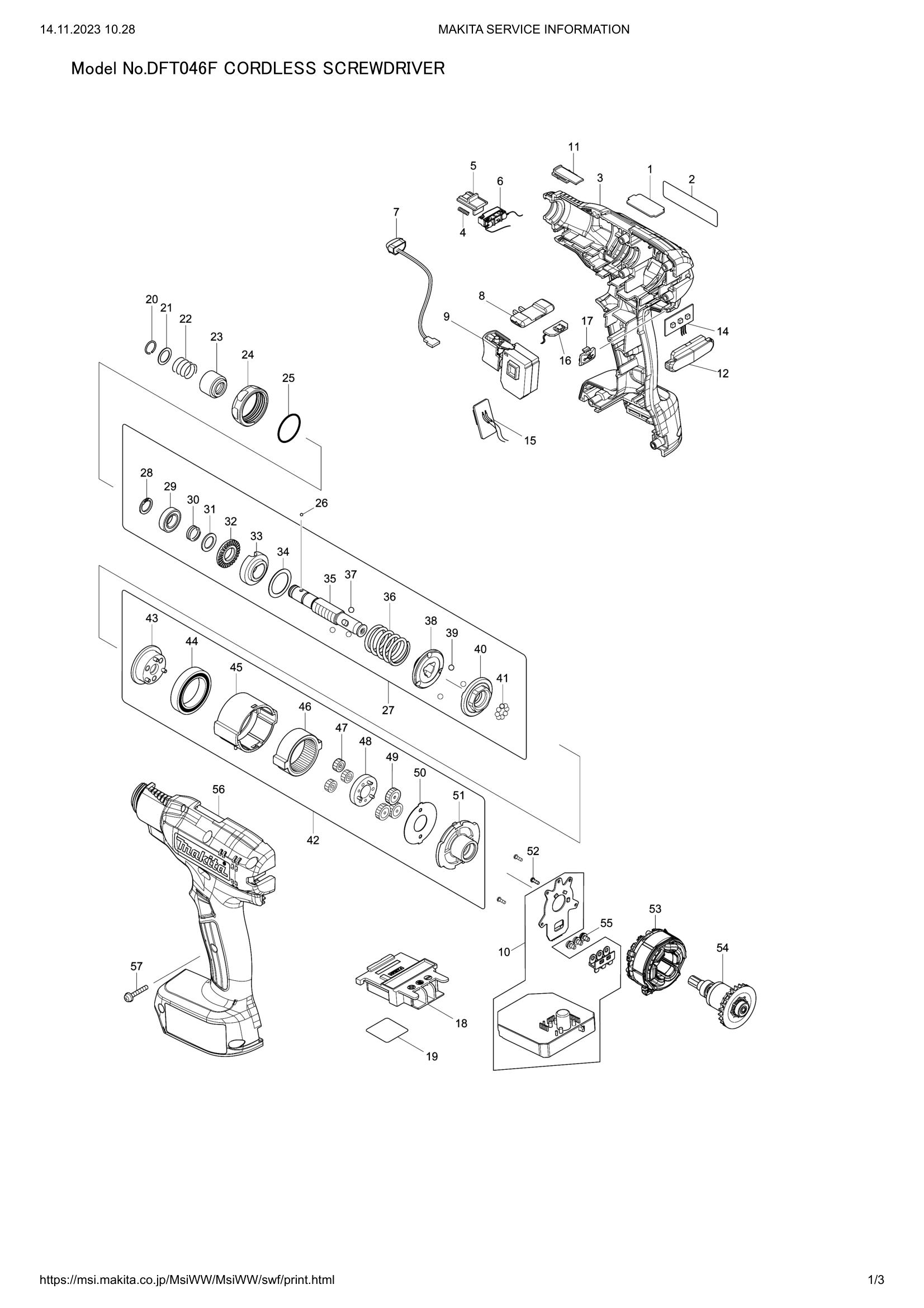

DFT046F
DFT046F
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 345343-6 | PLATE G | 1 | €3.06 | 1-4 weeks to ship | |
| 002 | DFT046F NAME PLATE | 1 | Not available in store | |||
| 003 | 183F88-2 | HOUSING SET | 1 | €28.66 | 1-4 weeks to ship | |
| 004 | 233025-1 | COMPRESSION SPRING 2 | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | 632K18-5 | SWITCH UNIT | 1 | €11.83 | 1-4 weeks to ship | |
| 007 | 620521-2 | LED CIRCUIT | 1 | €6.68 | 1-4 weeks to ship | |
| 008 | 457469-3 | F/R CHANGE LEVER | 1 | €2.09 | 1-4 weeks to ship | |
| 009 | 651082-1 | SWITCH C3JW-1B-S | 1 | €27.97 | 1-4 weeks to ship | |
| 010 | CONTROLLER | 1 | Not available in store | |||
| 011 | 457526-7 | CHANGE PLATE | 1 | €2.50 | 1-4 weeks to ship | |
| 012 | 457484-7 | LENS | 1 | €2.23 | 1-4 weeks to ship | |
| 014 | 620622-6 | LED CIRCUIT | 1 | €11.27 | 1-4 weeks to ship | |
| 015 | 620621-8 | BUZZER CIRCUIT | 1 | €10.99 | 1-4 weeks to ship | |
| 016 | 620623-4 | USB CIRCUIT | 1 | €12.52 | 1-4 weeks to ship | |
| 017 | USB COVER COMPLETE | 1 | Not available in store | |||
| 018 | 643850-6 | TERMINAL | 1 | €4.17 | 1-4 weeks to ship | |
| 019 | DFT046F SERIAL NO. LABEL | 1 | Not available in store | |||
| 020 | RING SPRING 9 | 1 | Not available in store | |||
| 021 | 267070-4 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 232374-3 | COMPRESSION SPRING 10A | 1 | €0.97 | 1-4 weeks to ship | |
| 023 | 161607-8 | BIT SLEEVE | 1 | €8.21 | 1-4 weeks to ship | |
| 024 | 457530-6 | LOCK NUT M28 BLACK | 1 | €4.59 | 1-4 weeks to ship | |
| 025 | 213836-0 | O-RING 22 | 1 | €0.42 | 1-4 weeks to ship | |
| 026 | 216015-9 | STEEL BALL 2.4 | 2 | €0.83 | 1-4 weeks to ship | |
| 027 | 123939-1 | CLUTCH ASSEMBLY 4M | 1 | €109.93 | 1-4 weeks to ship | |
| 028 | 961026-6 | RETAINING RING S-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 029 | BALL BEARING 6800LLB | 1 | Not available in store | |||
| 031 | 267047-9 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 032 | LOCK NUT M12 | 1 | Not available in store | |||
| 033 | ADJUST RING COMPLETE | 1 | Not available in store | |||
| 034 | FLAT WASHER 18 | 1 | Not available in store | |||
| 035 | SPINDLE M | 1 | Not available in store | |||
| 036 | COMPRESSION SPRING 18B | 1 | Not available in store | |||
| 037 | 216024-8 | STEEL BALL 4 | 3 | €0.56 | 1-4 weeks to ship | |
| 038 | CAM A | 1 | Not available in store | |||
| 039 | 216024-8 | STEEL BALL 4 | 3 | €0.56 | 1-4 weeks to ship | |
| 040 | CAM B | 1 | Not available in store | |||
| 041 | 216001-0 | STEEL BALL 3.5 | 8 | €0.56 | 1-4 weeks to ship | |
| 042 | 123970-7 | GEAR ASSEMBLY B | 1 | €53.02 | 1-4 weeks to ship | |
| 043 | 144424-1 | CARRIER COMPLETE B | 1 | €8.21 | 1-4 weeks to ship | |
| 044 | 211375-4 | BALL BEARING 6805LLB | 1 | €13.92 | 1-4 weeks to ship | |
| 045 | 457529-1 | GEAR CASE | 1 | €4.73 | 1-4 weeks to ship | |
| 046 | 221546-5 | INTERNAL GEAR 47 | 1 | €1.67 | 1-4 weeks to ship | |
| 047 | 221543-1 | SPUR GEAR 13 | 3 | €0.42 | 1-4 weeks to ship | |
| 048 | 144422-5 | SPUR GEAR 20 COMPLETE | 1 | €5.71 | 1-4 weeks to ship | |
| 049 | 221544-9 | SPUR GEAR 18 | 3 | €0.56 | 1-4 weeks to ship | |
| 050 | 267774-8 | LOCK WASHER | 1 | €1.67 | 1-4 weeks to ship | |
| 051 | 418003-4 | MOTOR BRACKET | 1 | €4.17 | 1-4 weeks to ship | |
| 052 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 053 | 629261-9 | STATOR | 1 | €26.44 | 1-4 weeks to ship | |
| 054 | 619440-7 | ROTOR | 1 | €94.34 | 1-4 weeks to ship | |
| 055 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 056 | 183F88-2 | HOUSING SET | 1 | €28.66 | 1-4 weeks to ship | |
| 057 | 265095-2 | PAN HEAD SCREW M3X20 | 7 | €0.56 | 1-4 weeks to ship | |
