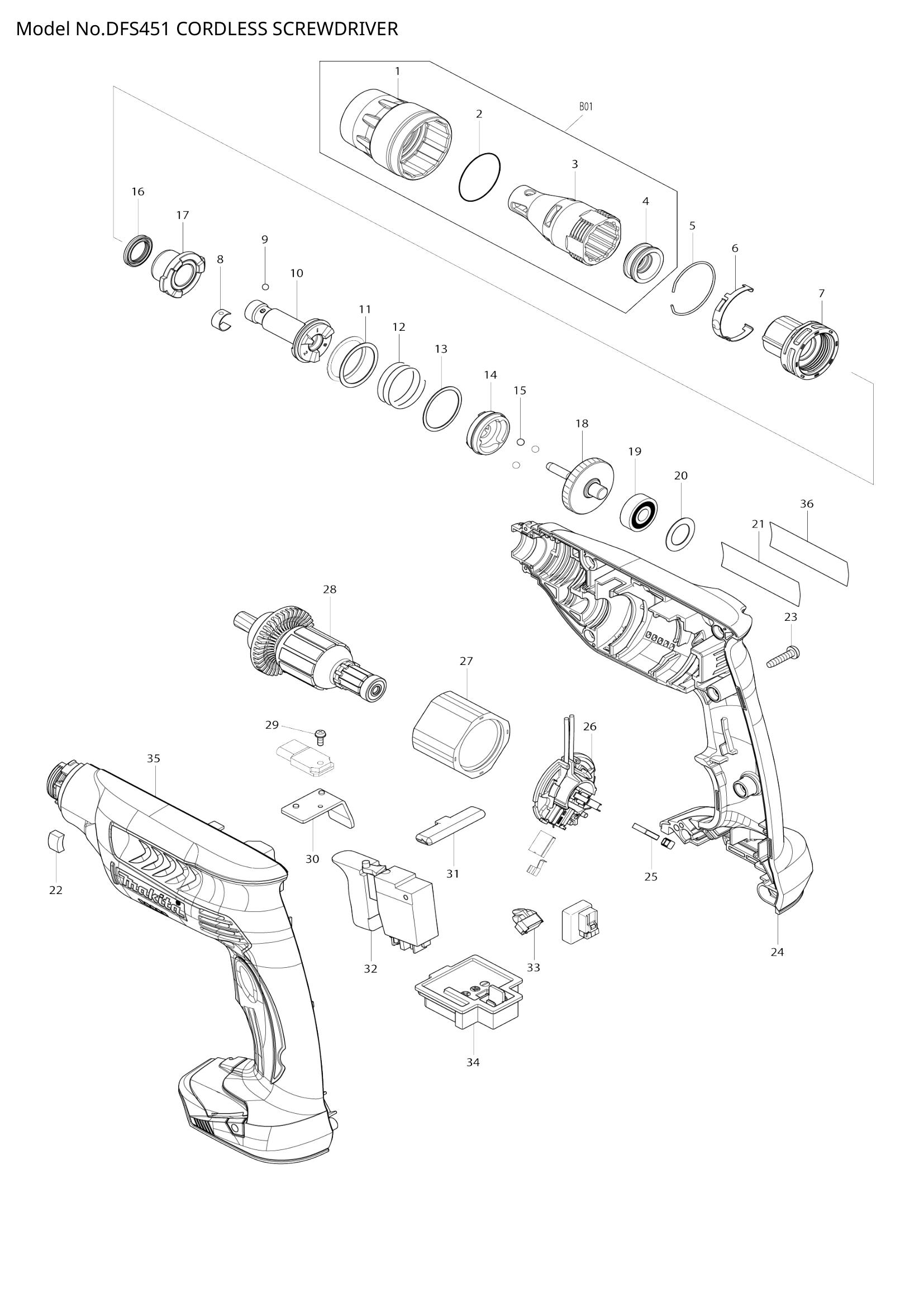

DFS451
DFS451
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | 424235-3 | SEAL RING 30 | 1 | €0.56 | 1-4 weeks to ship | |
| 003 | 158875-2 | LOCATOR S COMPLETE | 1 | €5.57 | 1-4 weeks to ship | |
| 004 | 424163-2 | DUST SEAL SLEEVE | 1 | €0.56 | 1-4 weeks to ship | |
| 005 | 234266-2 | RING SPRING 33 | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | 232245-4 | LEAF SPRING | 1 | €2.78 | 1-4 weeks to ship | |
| 007 | 141100-8 | LOCATOR BASE COMPLETE | 1 | €5.57 | 1-4 weeks to ship | |
| 008 | 232050-9 | LEAF SPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 216001-0 | STEEL BALL 3.5 | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | 140771-8 | SPINDLE 125S COMPLETE | 1 | €34.51 | 1-4 weeks to ship | |
| 011 | 267331-2 | FLAT WASHER 25 | 2 | €0.83 | 1-4 weeks to ship | |
| 012 | 234017-3 | COMPRESSION SPRING 25 | 1 | €2.78 | 1-4 weeks to ship | |
| 013 | 267332-0 | FLAT WASHER 26 | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | 223170-0 | CLUTCH CAM 125S | 1 | €13.92 | 1-4 weeks to ship | |
| 015 | 216008-6 | STEEL BALL 4 | 3 | €0.56 | 1-4 weeks to ship | |
| 016 | 213184-7 | X-RING 14 | 1 | €1.11 | 1-4 weeks to ship | |
| 017 | 142306-1 | BEARING COMPLETE | 1 | €3.48 | 1-4 weeks to ship | |
| 018 | 140772-6 | GEAR COMPLETE | 1 | €41.19 | 1-4 weeks to ship | |
| 019 | 211032-4 | BALL BEARING 608ZZ | 1 | €1.67 | 1-4 weeks to ship | |
| 020 | 253192-6 | FLAT WASHER 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | DFS451 NAME PLATE | 1 | Not available in store | |||
| 022 | 423413-2 | RUBBER PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 023 | 265995-6 | TAPPING SCREW 4X18 | 7 | €0.56 | 1-4 weeks to ship | |
| 024 | 187092-7 | HOUSING SET | 1 | €33.40 | 1-4 weeks to ship | |
| 026 | 638868-0 | BRUSH HOLDER COMPLETE | 1 | €6.68 | 1-4 weeks to ship | |
| 027 | 638426-2 | YOKE UNIT | 1 | €27.83 | 1-4 weeks to ship | |
| 029 | 911006-2 | PAN HEAD SCREW M3X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 030 | 689150-0 | HEAT SINK | 1 | €0.83 | 1-4 weeks to ship | |
| 689150-0 | HEAT SINK | 1 | €0.83 | 1-4 weeks to ship | ||
| 031 | 452516-5 | F/R CHANGE LEVER | 1 | €0.56 | 1-4 weeks to ship | |
| 032 | 638869-8 | SWITCH UNIT | 1 | €36.18 | 1-4 weeks to ship | |
| 033 | 620030-1 | LIGHT CIRCUIT | 1 | €16.70 | 1-4 weeks to ship | |
| 034 | 643852-2 | TERMINAL | 1 | €4.17 | 1-4 weeks to ship | |
| 643852-2 | TERMINAL | 1 | €4.17 | 1-4 weeks to ship | ||
| 035 | 187092-7 | HOUSING SET | 1 | €33.40 | 1-4 weeks to ship | |
| 036 | 892812-3 | CLEAR LABEL | 1 | €2.09 | 1-4 weeks to ship | |
| 037 | 267104-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
