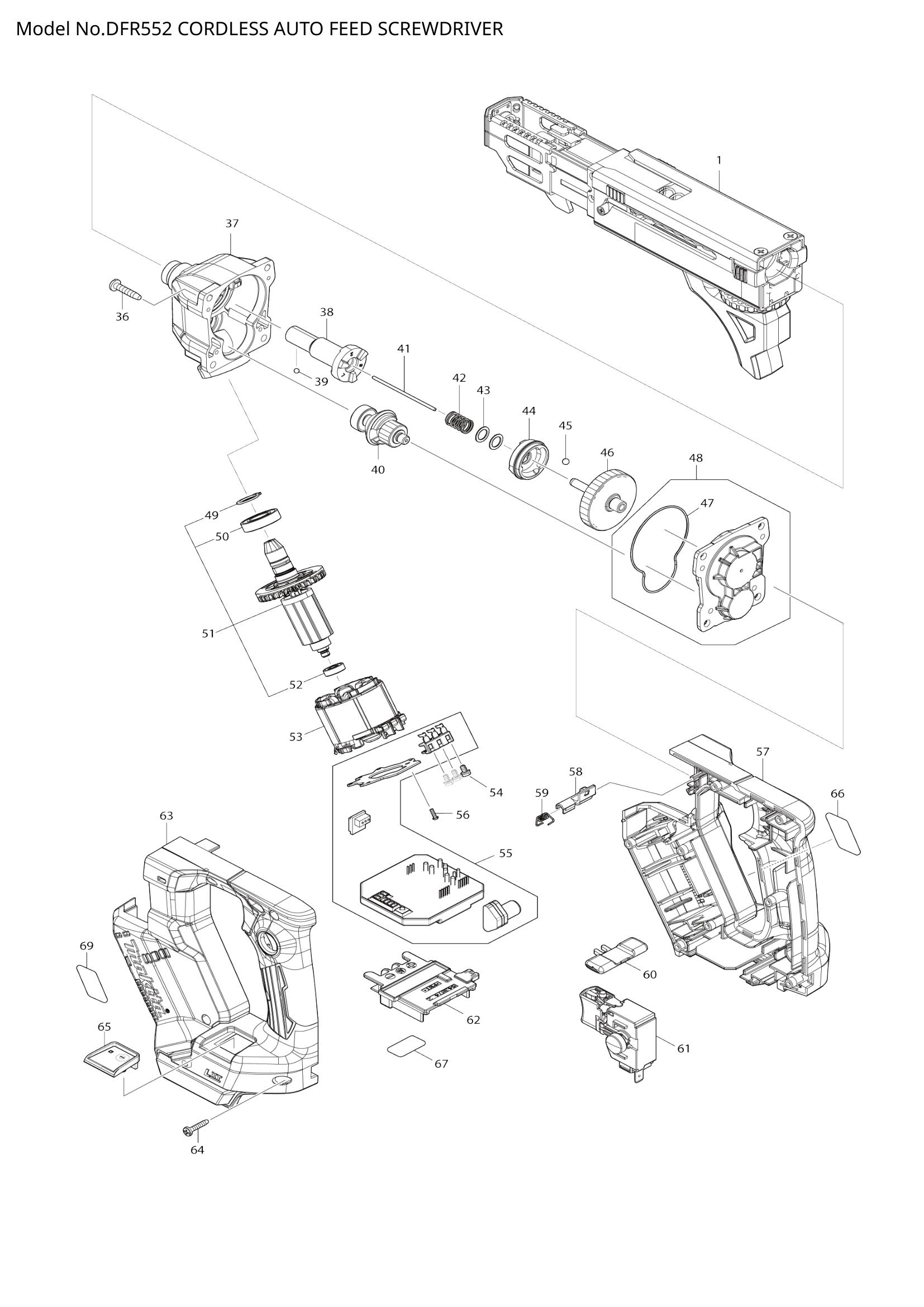

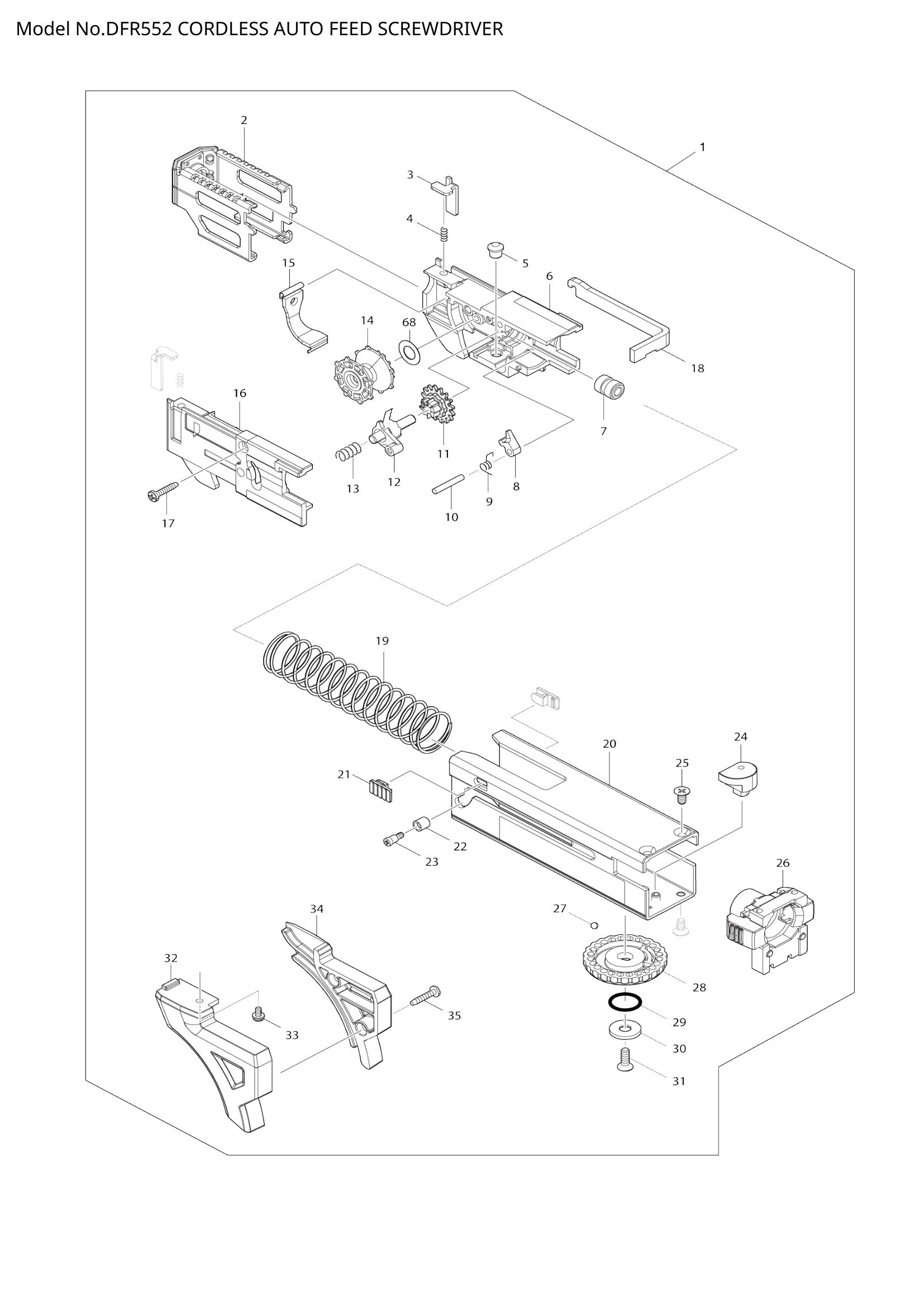

DFR552
DFR552
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 003 | 345837-1 | LEVER | 2 | €0.83 | 1-4 weeks to ship | |
| 345837-1 | LEVER | 2 | €0.83 | 1-4 weeks to ship | ||
| 004 | 233211-4 | COMPRESSION SPRING 2 | 2 | €0.56 | 1-4 weeks to ship | |
| 233211-4 | COMPRESSION SPRING 2 | 2 | €0.56 | 1-4 weeks to ship | ||
| 005 | 256451-7 | PIN 6 | 1 | €1.39 | 1-4 weeks to ship | |
| 256451-7 | PIN 6 | 1 | €1.39 | 1-4 weeks to ship | ||
| 006 | FEEDER BOX | 1 | Not available in store | |||
| FEEDER BOX | 1 | Not available in store | ||||
| 007 | SLEEVE 5 | 1 | Not available in store | |||
| SLEEVE 5 | 1 | Not available in store | ||||
| 008 | 310062-3 | STOPPER | 1 | €5.57 | 1-4 weeks to ship | |
| 310062-3 | STOPPER | 1 | €5.57 | 1-4 weeks to ship | ||
| 009 | 231636-6 | TORSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 231636-6 | TORSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 010 | 256158-5 | PIN 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 256158-5 | PIN 3 | 1 | €0.56 | 1-4 weeks to ship | ||
| 011 | 226344-2 | SPUR GEAR 16 | 1 | €1.67 | 1-4 weeks to ship | |
| 226344-2 | SPUR GEAR 16 | 1 | €1.67 | 1-4 weeks to ship | ||
| 012 | RATCHET ARM COMPLETE | 1 | Not available in store | |||
| RATCHET ARM COMPLETE | 1 | Not available in store | ||||
| 013 | COMPRESSION SPRING 5 | 1 | Not available in store | |||
| COMPRESSION SPRING 5 | 1 | Not available in store | ||||
| 014 | 416518-5 | WHEEL | 1 | €4.17 | 1-4 weeks to ship | |
| 416518-5 | WHEEL | 1 | €4.17 | 1-4 weeks to ship | ||
| 015 | DUST COVER | 1 | Not available in store | |||
| DUST COVER | 1 | Not available in store | ||||
| 016 | BOX COVER COMPLETE | 1 | Not available in store | |||
| BOX COVER COMPLETE | 1 | Not available in store | ||||
| 017 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 266130-9 | TAPPING SCREW BIND PT 3X16 | 1 | €0.56 | 1-4 weeks to ship | ||
| 018 | PLATE | 1 | Not available in store | |||
| PLATE | 1 | Not available in store | ||||
| 019 | COMPRESSION SPRING 22 | 1 | Not available in store | |||
| COMPRESSION SPRING 22 | 1 | Not available in store | ||||
| 020 | CASING 55 COMPLETE | 1 | Not available in store | |||
| CASING 55 COMPLETE | 1 | Not available in store | ||||
| 021 | 450111-5 | STOPPER | 2 | €1.39 | 1-4 weeks to ship | |
| 450111-5 | STOPPER | 2 | €1.39 | 1-4 weeks to ship | ||
| 022 | 257764-9 | SLEEVE 4 | 1 | €1.67 | 1-4 weeks to ship | |
| 257764-9 | SLEEVE 4 | 1 | €1.67 | 1-4 weeks to ship | ||
| 023 | 265177-0 | +SHOULDER FLAT HEAD SCREW | 1 | €2.78 | 1-4 weeks to ship | |
| 265177-0 | +SHOULDER FLAT HEAD SCREW | 1 | €2.78 | 1-4 weeks to ship | ||
| 024 | SHIFTER PIN | 1 | Not available in store | |||
| SHIFTER PIN | 1 | Not available in store | ||||
| 025 | 912107-9 | COUNTERSUNK HEAD SCREW M4 | 3 | €0.56 | 1-4 weeks to ship | |
| 912107-9 | COUNTERSUNK HEAD SCREW M4 | 3 | €0.56 | 1-4 weeks to ship | ||
| 912107-9 | COUNTERSUNK HEAD SCREW M4 | 3 | €0.56 | 1-4 weeks to ship | ||
| 912107-9 | COUNTERSUNK HEAD SCREW M4 | 3 | €0.56 | 1-4 weeks to ship | ||
| 026 | CLAMPER COMPLETE | 1 | Not available in store | |||
| CLAMPER COMPLETE | 1 | Not available in store | ||||
| 027 | 216001-0 | STEEL BALL 3.5 | 1 | €0.56 | 1-4 weeks to ship | |
| 216001-0 | STEEL BALL 3.5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 028 | 417056-0 | DIAL 42 | 1 | €1.39 | 1-4 weeks to ship | |
| 417056-0 | DIAL 42 | 1 | €1.39 | 1-4 weeks to ship | ||
| 029 | 213107-5 | O RING 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 213107-5 | O RING 12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 030 | 267201-5 | FLAT WASHER 6 | 1 | €1.11 | 1-4 weeks to ship | |
| 267201-5 | FLAT WASHER 6 | 1 | €1.11 | 1-4 weeks to ship | ||
| 031 | 912117-6 | COUNTERSUNK HEAD SCREW M4 | 1 | €0.56 | 1-4 weeks to ship | |
| 912117-6 | COUNTERSUNK HEAD SCREW M4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 033 | P.H.SCREW M3X6 WITH WR | 1 | Not available in store | |||
| P.H.SCREW M3X6 WITH WR | 1 | Not available in store | ||||
| 035 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 266130-9 | TAPPING SCREW BIND PT 3X16 | 2 | €0.56 | 1-4 weeks to ship | ||
| 036 | 266045-0 | TAPPING SCREW 4X20 | 4 | €0.56 | 1-4 weeks to ship | |
| 266045-0 | TAPPING SCREW 4X20 | 4 | €0.56 | 1-4 weeks to ship | ||
| 037 | GEAR HOUSING COMPLETE | 1 | Not available in store | |||
| GEAR HOUSING COMPLETE | 1 | Not available in store | ||||
| 039 | 216019-1 | STEEL BALL 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 216019-1 | STEEL BALL 3 | 1 | €0.56 | 1-4 weeks to ship | ||
| 040 | GEAR COMPLETE 17-25 | 1 | Not available in store | |||
| GEAR COMPLETE 17-25 | 1 | Not available in store | ||||
| 041 | ROD 2 | 1 | Not available in store | |||
| ROD 2 | 1 | Not available in store | ||||
| 042 | 234121-8 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 234121-8 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 043 | 267202-3 | FLAT WASHER 8 | 2 | €0.56 | 1-4 weeks to ship | |
| 267202-3 | FLAT WASHER 8 | 2 | €0.56 | 1-4 weeks to ship | ||
| 044 | CLUTCH CAM 270S | 1 | Not available in store | |||
| CLUTCH CAM 270S | 1 | Not available in store | ||||
| 045 | 216008-6 | STEEL BALL 4 | 3 | €0.56 | 1-4 weeks to ship | |
| 216008-6 | STEEL BALL 4 | 3 | €0.56 | 1-4 weeks to ship | ||
| 047 | SEAL RING | 1 | Not available in store | |||
| SEAL RING | 1 | Not available in store | ||||
| 048 | GEAR HOUSING COVER ASSY | 1 | Not available in store | |||
| GEAR HOUSING COVER ASSY | 1 | Not available in store | ||||
| 049 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 050 | 211288-9 | BALL BEARING 6901DDW | 1 | €6.54 | 1-4 weeks to ship | |
| 211288-9 | BALL BEARING 6901DDW | 1 | €6.54 | 1-4 weeks to ship | ||
| 051 | ROTOR ASSY | 1 | Not available in store | |||
| ROTOR ASSY | 1 | Not available in store | ||||
| 052 | BALL BEARING 695DDW | 1 | Not available in store | |||
| BALL BEARING 695DDW | 1 | Not available in store | ||||
| 053 | STATOR | 1 | Not available in store | |||
| STATOR | 1 | Not available in store | ||||
| 054 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 652069-6 | FLAT HEAD SCREW M3X6 | 3 | €0.14 | 1-4 weeks to ship | ||
| 055 | CONTROLLER | 1 | Not available in store | |||
| CONTROLLER | 1 | Not available in store | ||||
| 056 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 266490-9 | TAPPING SCREW PT 2X6 | 3 | €0.14 | 1-4 weeks to ship | ||
| 057 | HOUSING SET | 1 | Not available in store | |||
| HOUSING SET | 1 | Not available in store | ||||
| 058 | LEVER COMPLETE | 1 | Not available in store | |||
| LEVER COMPLETE | 1 | Not available in store | ||||
| 059 | TORSION SPRING 3 | 1 | Not available in store | |||
| TORSION SPRING 3 | 1 | Not available in store | ||||
| 060 | 455053-8 | F/R CHANGE LEVER | 1 | €0.56 | 1-4 weeks to ship | |
| 455053-8 | F/R CHANGE LEVER | 1 | €0.56 | 1-4 weeks to ship | ||
| 061 | SWITCH C3JW-4B-1L | 1 | Not available in store | |||
| SWITCH C3JW-4B-1L | 1 | Not available in store | ||||
| 062 | 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | |
| 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | ||
| 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | ||
| 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | ||
| 063 | HOUSING SET | 1 | Not available in store | |||
| HOUSING SET | 1 | Not available in store | ||||
| 064 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 8 | €0.56 | 1-4 weeks to ship | |
| 266130-9 | TAPPING SCREW BIND PT 3X16 | 8 | €0.56 | 1-4 weeks to ship | ||
| 065 | SWITCH PLATE COMPLETE | 1 | Not available in store | |||
| SWITCH PLATE COMPLETE | 1 | Not available in store | ||||
| 066 | DFR552 NAME PLATE | 1 | Not available in store | |||
| DFR552 NAME PLATE | 1 | Not available in store | ||||
| 067 | DFR552 SERIAL NO. LABEL | 1 | Not available in store | |||
| DFR552 SERIAL NO. LABEL | 1 | Not available in store | ||||
| 068 | 253309-1 | THIN WASHER 8 | 1 | €2.09 | 1-4 weeks to ship | |
| 253309-1 | THIN WASHER 8 | 1 | €2.09 | 1-4 weeks to ship | ||
| 069 | 4500PRM INDICATION LABEL | 1 | Not available in store | |||
| 4500PRM INDICATION LABEL | 1 | Not available in store | ||||
