DFL651F
DFL651F

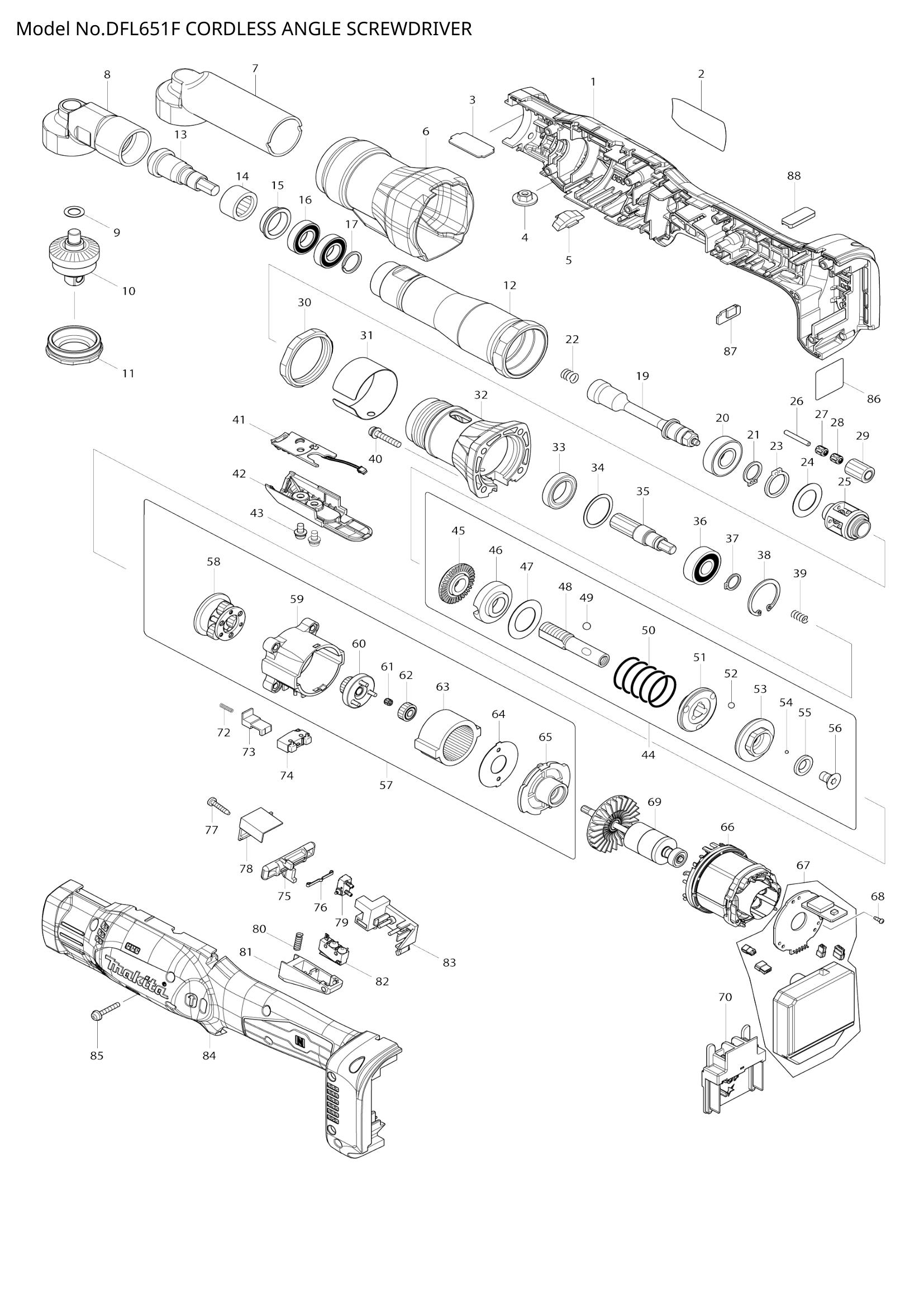

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 183C90-7 | HOUSING SET | 1 | €63.73 | 1-4 weeks to ship | |
| 002 | DFL651F NAME PLATE | 1 | Not available in store | |||
| 003 | PLATE L | 1 | Not available in store | |||
| 004 | 252142-8 | HEX.NUT FLANGE M5 | 1 | €2.78 | 1-4 weeks to ship | |
| 006 | 455773-4 | PROTECTOR G | 1 | €18.79 | 1-4 weeks to ship | |
| 007 | 455771-8 | PROTECTOR E | 1 | €15.58 | 1-4 weeks to ship | |
| 009 | 253777-8 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | 143714-9 | SPINDLE A COMPLETE | 1 | €85.86 | 1-4 weeks to ship | |
| 011 | 285739-8 | BEARING RETAINER 20-34 | 1 | €23.38 | 1-4 weeks to ship | |
| 012 | 143717-3 | INTERNAL GEAR HOUSING COM | 1 | €190.08 | 1-4 weeks to ship | |
| 013 | 221443-5 | SPIRAL BEVEL GEAR 9 | 1 | €45.08 | 1-4 weeks to ship | |
| 014 | 212222-2 | NEEDLE BEARING 1612 | 1 | €11.13 | 1-4 weeks to ship | |
| 015 | 326709-9 | SPACER | 1 | €6.40 | 1-4 weeks to ship | |
| 016 | 211288-9 | BALL BEARING 6901DDW | 2 | €6.54 | 1-4 weeks to ship | |
| 017 | 961082-6 | RETAINING RING WR12 | 1 | €0.56 | 1-4 weeks to ship | |
| 019 | 326708-1 | SHAFT | 1 | €38.13 | 1-4 weeks to ship | |
| 020 | 211131-2 | BALL BEARING 6001DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 021 | 961072-9 | RETAINING RING S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 234392-7 | COMPRESSION SPRING 6 | 1 | €8.21 | 1-4 weeks to ship | |
| 023 | 961056-7 | RETAINING RING S-16 | 1 | €0.56 | 1-4 weeks to ship | |
| 024 | 253749-3 | FLAT WASHER 16 | 1 | €0.56 | 1-4 weeks to ship | |
| 025 | 326491-0 | CARRIER | 1 | €66.65 | 1-4 weeks to ship | |
| 026 | 256221-4 | PIN 3 | 4 | €0.56 | 1-4 weeks to ship | |
| 027 | 212131-5 | NEEDLE CAGE 307 | 4 | €1.81 | 1-4 weeks to ship | |
| 028 | 212131-5 | NEEDLE CAGE 307 | 4 | €1.81 | 1-4 weeks to ship | |
| 029 | 227364-9 | SPUR GEAR 14 | 4 | €20.73 | 1-4 weeks to ship | |
| 030 | 252187-6 | HEX. NUT M36-41 | 1 | €11.55 | 1-4 weeks to ship | |
| 031 | 346863-3 | RING 38R | 1 | €7.65 | 1-4 weeks to ship | |
| 032 | 317808-8 | CLUTCH CASE | 1 | €45.92 | 1-4 weeks to ship | |
| 033 | 211283-9 | BALL BEARING 6803ZZ | 1 | €9.46 | 1-4 weeks to ship | |
| 034 | 267283-7 | FLAT WASHER 21 | 1 | €0.70 | 1-4 weeks to ship | |
| 035 | 227365-7 | SPUR GEAR 13 | 1 | €58.86 | 1-4 weeks to ship | |
| 036 | 211088-7 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 037 | 961026-6 | RETAINING RING S-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 038 | 962105-3 | RETAINING RING R-26 | 1 | €0.56 | 1-4 weeks to ship | |
| 040 | 265145-3 | + PAN HEAD SCREW M4X22 | 4 | €0.56 | 1-4 weeks to ship | |
| 041 | 620396-9 | LED CIRCUIT | 1 | €8.35 | 1-4 weeks to ship | |
| 043 | 265171-2 | PAN HEAD SCREW M4X8 | 2 | €0.42 | 1-4 weeks to ship | |
| 045 | 324834-0 | LOCK NUT M12 | 1 | €16.70 | 1-4 weeks to ship | |
| 046 | 158408-3 | ADJUST RING COMPLETE | 1 | €5.57 | 1-4 weeks to ship | |
| 047 | 267276-4 | FLAT WASHER 18 | 1 | €0.83 | 1-4 weeks to ship | |
| 049 | 216018-3 | STEEL BALL 5.0 | 3 | €0.56 | 1-4 weeks to ship | |
| 050 | 233385-1 | COMPRESSION SPRING 19D | 1 | €5.57 | 1-4 weeks to ship | |
| 051 | 223146-7 | CAM D | 1 | €25.05 | 1-4 weeks to ship | |
| 052 | 216024-8 | STEEL BALL 4 | 3 | €0.56 | 1-4 weeks to ship | |
| 062 | 227366-5 | SPUR GEAR 18 | 3 | €2.23 | 1-4 weeks to ship | |
| 063 | 227048-9 | INTERNAL GEAR 47 | 1 | €5.57 | 1-4 weeks to ship | |
| 064 | 267774-8 | LOCK WASHER | 1 | €1.67 | 1-4 weeks to ship | |
| 065 | 418003-4 | MOTOR BRACKET | 1 | €4.17 | 1-4 weeks to ship | |
| 066 | 629151-6 | STATOR 18V | 1 | €31.17 | 1-4 weeks to ship | |
| 068 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 069 | 619364-7 | ROTOR | 1 | €116.33 | 1-4 weeks to ship | |
| 070 | 643860-3 | TERMINAL | 1 | €4.17 | 1-4 weeks to ship | |
| 072 | 234361-8 | COMPRESSION SPRING 2 | 1 | €1.39 | 1-4 weeks to ship | |
| 073 | 418002-6 | SWITCH LEVER | 1 | €1.11 | 1-4 weeks to ship | |
| 075 | 455766-1 | F/R CHANGE LEVER | 1 | €4.59 | 1-4 weeks to ship | |
| 076 | 232201-4 | LEAF SPRING | 1 | €1.67 | 1-4 weeks to ship | |
| 077 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 078 | 418204-4 | COVER | 1 | €7.93 | 1-4 weeks to ship | |
| 080 | 231397-8 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 081 | 418203-6 | SWITCH LEVER A | 1 | €10.85 | 1-4 weeks to ship | |
| 083 | 418202-8 | SWITCH BASE | 1 | €10.71 | 1-4 weeks to ship | |
| 084 | 183C90-7 | HOUSING SET | 1 | €63.73 | 1-4 weeks to ship | |
| 085 | 265095-2 | PAN HEAD SCREW M3X20 | 8 | €0.56 | 1-4 weeks to ship | |
| 086 | DFL651F SERIAL NO. LABEL | 1 | Not available in store | |||
| 087 | 620494-9 | USB CIRCUIT | 1 | €10.71 | 1-4 weeks to ship | |
| 088 | 424827-8 | USB COVER | 1 | €6.12 | 1-4 weeks to ship | |
