DFL204F
DFL204F

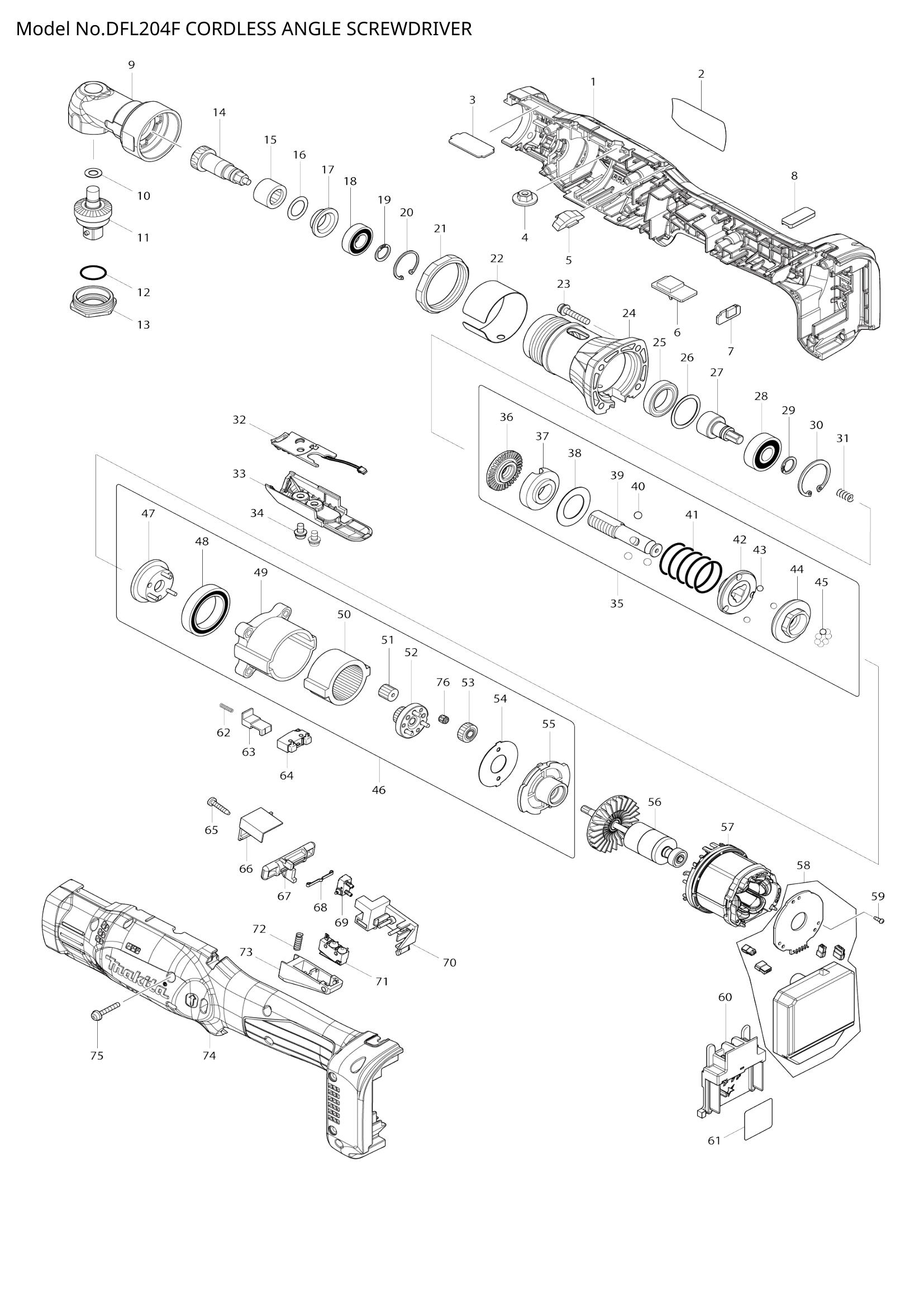

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | HOUSING SET | 1 | Not available in store | |||
| 002 | DFL204F NAME PLATE | 1 | Not available in store | |||
| 003 | 345284-6 | PLATE C | 1 | €2.92 | 1-4 weeks to ship | |
| 004 | 252142-8 | HEX.NUT FLANGE M5 | 1 | €2.78 | 1-4 weeks to ship | |
| 005 | 458391-7 | LENS | 1 | €5.57 | 1-4 weeks to ship | |
| 006 | BUZZER CIRCUIT | 1 | Not available in store | |||
| 007 | USB CIRCUIT | 1 | Not available in store | |||
| 008 | 424827-8 | USB COVER | 1 | €6.12 | 1-4 weeks to ship | |
| 009 | ANGLE HEAD COMPLETE | 1 | Not available in store | |||
| 010 | 253777-8 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 011 | 154447-1 | SPINDLE A COMPLETE | 1 | €106.45 | 1-4 weeks to ship | |
| 013 | BEARING RETAINER 15-26 | 1 | Not available in store | |||
| 014 | SPIRAL BEVEL GEAR 9 | 1 | Not available in store | |||
| 015 | NEEDLE BEARING 1212 | 1 | Not available in store | |||
| 016 | 253312-2 | THIN WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | 345281-2 | SPACER | 1 | €4.17 | 1-4 weeks to ship | |
| 018 | 210057-5 | BALL BEARING 6900LLB | 1 | €8.35 | 1-4 weeks to ship | |
| 019 | 961026-6 | RETAINING RING S-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 020 | 962102-9 | RETAINING RING R-22 | 1 | €0.28 | 1-4 weeks to ship | |
| 021 | 252187-6 | HEX. NUT M36-41 | 1 | €11.55 | 1-4 weeks to ship | |
| 022 | RING 38U | 1 | Not available in store | |||
| 023 | 265145-3 | + PAN HEAD SCREW M4X22 | 4 | €0.56 | 1-4 weeks to ship | |
| 024 | 317808-8 | CLUTCH CASE | 1 | €45.92 | 1-4 weeks to ship | |
| 025 | 211283-9 | BALL BEARING 6803ZZ | 1 | €9.46 | 1-4 weeks to ship | |
| 026 | 267283-7 | FLAT WASHER 21 | 1 | €0.70 | 1-4 weeks to ship | |
| 027 | SPINDLE B | 1 | Not available in store | |||
| 028 | 211088-7 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 029 | 961026-6 | RETAINING RING S-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 030 | 962105-3 | RETAINING RING R-26 | 1 | €0.56 | 1-4 weeks to ship | |
| 032 | 620396-9 | LED CIRCUIT | 1 | €8.35 | 1-4 weeks to ship | |
| 033 | 457976-6 | SWITCH COVER | 1 | €5.29 | 1-4 weeks to ship | |
| 034 | 265171-2 | PAN HEAD SCREW M4X8 | 2 | €0.42 | 1-4 weeks to ship | |
| 036 | 324834-0 | LOCK NUT M12 | 1 | €16.70 | 1-4 weeks to ship | |
| 037 | 158408-3 | ADJUST RING COMPLETE | 1 | €5.57 | 1-4 weeks to ship | |
| 038 | 267276-4 | FLAT WASHER 18 | 1 | €0.83 | 1-4 weeks to ship | |
| 040 | 216018-3 | STEEL BALL 5.0 | 3 | €0.56 | 1-4 weeks to ship | |
| 041 | 234029-6 | COMPRESSION SPRING 19H | 1 | €12.80 | 1-4 weeks to ship | |
| 042 | 223146-7 | CAM D | 1 | €25.05 | 1-4 weeks to ship | |
| 043 | 216024-8 | STEEL BALL 4 | 3 | €0.56 | 1-4 weeks to ship | |
| 044 | CAM F | 1 | Not available in store | |||
| 045 | 216024-8 | STEEL BALL 4 | 7 | €0.56 | 1-4 weeks to ship | |
| 047 | 144382-1 | CARRIER COMPLETE C | 1 | €4.83 | 1-4 weeks to ship | |
| 048 | 211375-4 | BALL BEARING 6805LLB | 1 | €13.92 | 1-4 weeks to ship | |
| 050 | 227048-9 | INTERNAL GEAR 47 | 1 | €5.57 | 1-4 weeks to ship | |
| 051 | 221539-2 | SPUR GEAR 14 | 3 | €0.28 | 1-4 weeks to ship | |
| 052 | SPUR GEAR 17 COMPLETE B | 1 | Not available in store | |||
| 053 | 221540-7 | SPUR GEAR 19 | 3 | €0.42 | 1-4 weeks to ship | |
| 054 | 267774-8 | LOCK WASHER | 1 | €1.67 | 1-4 weeks to ship | |
| 055 | 418003-4 | MOTOR BRACKET | 1 | €4.17 | 1-4 weeks to ship | |
| 056 | ROTOR | 1 | Not available in store | |||
| 057 | STATOR | 1 | Not available in store | |||
| 059 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 060 | 643850-6 | TERMINAL | 1 | €4.17 | 1-4 weeks to ship | |
| 061 | DFL204F SERIAL NO. LABEL | 1 | Not available in store | |||
| 062 | 234361-8 | COMPRESSION SPRING 2 | 1 | €1.39 | 1-4 weeks to ship | |
| 063 | 418002-6 | SWITCH LEVER | 1 | €1.11 | 1-4 weeks to ship | |
| 065 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 066 | 418204-4 | COVER | 1 | €7.93 | 1-4 weeks to ship | |
| 067 | 455766-1 | F/R CHANGE LEVER | 1 | €4.59 | 1-4 weeks to ship | |
| 068 | 232201-4 | LEAF SPRING | 1 | €1.67 | 1-4 weeks to ship | |
| 070 | 418202-8 | SWITCH BASE | 1 | €10.71 | 1-4 weeks to ship | |
| 072 | 231397-8 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 073 | 418203-6 | SWITCH LEVER A | 1 | €10.85 | 1-4 weeks to ship | |
| 074 | HOUSING SET | 1 | Not available in store | |||
| 075 | PAN HEAD SCREW M3X20 | 8 | Not available in store | |||
