4331D
4331D

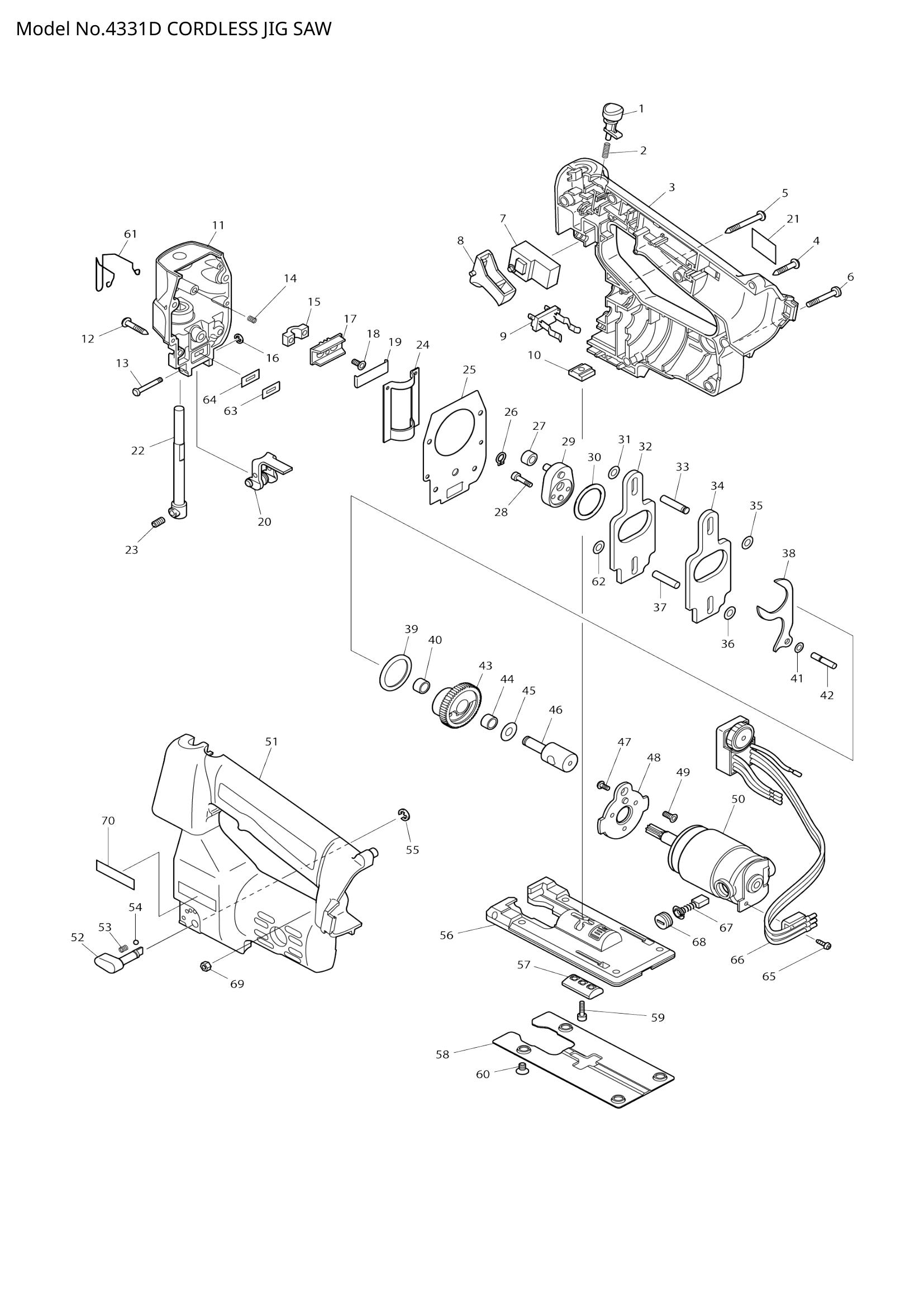

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 416644-0 | SWITCH BUTTON | 1 | €2.92 | 1-4 weeks to ship | |
| 002 | 233194-8 | COMPRESSION SPRING 4 | 1 | €2.09 | 1-4 weeks to ship | |
| 003 | 183267-6 | HOUSING SET | 1 | €31.73 | 1-4 weeks to ship | |
| 005 | 266050-7 | TAPPING SCREW 4X30 | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | 911148-2 | PAN HEAD SCREW M4X25 | 1 | €0.56 | 1-4 weeks to ship | |
| 007 | SWITCH TG73BD | 1 | Not available in store | |||
| 008 | 416642-4 | SWITCH LEVER | 1 | €2.92 | 1-4 weeks to ship | |
| 009 | 643918-8 | BATTERY HOLDER | 1 | €4.17 | 1-4 weeks to ship | |
| 643918-8 | BATTERY HOLDER | 1 | €4.17 | 1-4 weeks to ship | ||
| 010 | HOLDER | 1 | Not available in store | |||
| 013 | 256693-3 | PIN 4 | 1 | €2.78 | 1-4 weeks to ship | |
| 014 | 231314-8 | COMPRESSION SPRING 4 | 2 | €0.56 | 1-4 weeks to ship | |
| 015 | 316608-3 | HOLDER | 1 | €11.13 | 1-4 weeks to ship | |
| 016 | 961017-7 | STOP RING E-3 | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | 310028-3 | SLIDER | 1 | €19.48 | 1-4 weeks to ship | |
| 018 | 265035-0 | COUNTERSUNK HEAD SCREW M4 | 2 | €0.56 | 1-4 weeks to ship | |
| 019 | 344232-2 | THRUST PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | 852646-6 | NAME PLATE 4331D | 1 | €2.92 | 1-4 weeks to ship | |
| 022 | 165089-6 | ROD | 1 | €33.40 | 1-4 weeks to ship | |
| 023 | 265894-2 | H.S.SET SCREW(CUP POINT) M6X | 1 | €0.56 | 1-4 weeks to ship | |
| 024 | 344137-6 | SLIDE PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 025 | 421692-6 | GASKET | 1 | €2.09 | 1-4 weeks to ship | |
| 026 | 961004-6 | RETAINING RING (EXT) S-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | 212010-7 | NEEDLE BEARING 607 | 1 | €13.92 | 1-4 weeks to ship | |
| 028 | 922126-7 | HEX. SOCKET HEAD BOLT M4X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 029 | 152454-8 | CRANK COMPLETE | 1 | €8.35 | 1-4 weeks to ship | |
| 030 | 253792-2 | FLAT WASHER 26 | 1 | €0.56 | 1-4 weeks to ship | |
| 031 | 253715-0 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 032 | 344792-4 | BALANCE PLATE | 1 | €8.63 | 1-4 weeks to ship | |
| 033 | 256289-0 | PIN 6 | 1 | €2.92 | 1-4 weeks to ship | |
| 034 | 344792-4 | BALANCE PLATE | 1 | €8.63 | 1-4 weeks to ship | |
| 035 | 253715-0 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 036 | 253715-0 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 037 | 256143-8 | PIN 6 | 1 | €2.09 | 1-4 weeks to ship | |
| 038 | 344134-2 | PUSH PLATE | 1 | €4.17 | 1-4 weeks to ship | |
| 039 | 253792-2 | FLAT WASHER 26 | 1 | €0.56 | 1-4 weeks to ship | |
| 040 | 212043-2 | NEEDLE BEARING 810 | 1 | €1.67 | 1-4 weeks to ship | |
| 041 | 253811-4 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 042 | 256235-3 | PIN 5 | 1 | €2.78 | 1-4 weeks to ship | |
| 043 | 226428-6 | HELICAL GEAR 51 | 1 | €30.61 | 1-4 weeks to ship | |
| 044 | 212043-2 | NEEDLE BEARING 810 | 1 | €1.67 | 1-4 weeks to ship | |
| 045 | 253139-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 046 | 256288-2 | PIN 8 | 1 | €13.64 | 1-4 weeks to ship | |
| 047 | 266134-1 | TAPPING SCREW ST 4X8 | 3 | €0.14 | 1-4 weeks to ship | |
| 048 | 344791-6 | MOTOR BRACKET | 1 | €6.40 | 1-4 weeks to ship | |
| 049 | 265035-0 | COUNTERSUNK HEAD SCREW M4 | 1 | €0.56 | 1-4 weeks to ship | |
| 050 | 629735-0 | DC MOTOR 12V | 1 | €141.10 | 1-4 weeks to ship | |
| 051 | 183267-6 | HOUSING SET | 1 | €31.73 | 1-4 weeks to ship | |
| 052 | 272231-3 | LEVER 17 | 1 | €8.91 | 1-4 weeks to ship | |
| 053 | 231314-8 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 054 | 216008-6 | STEEL BALL 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 055 | 961018-5 | STOP RING E-5 | 1 | €0.56 | 1-4 weeks to ship | |
| 056 | 316883-1 | BASE | 1 | €16.70 | 1-4 weeks to ship | |
| 057 | 331435-7 | CLAMP PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 058 | 344443-9 | BASE PLATE | 1 | €4.17 | 1-4 weeks to ship | |
| 059 | 922126-7 | HEX. SOCKET HEAD BOLT M4X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 060 | 266055-7 | HEX. SOCKET HEAD BOLT M5X8 | 4 | €0.56 | 1-4 weeks to ship | |
| 061 | 322893-8 | SAFETY WIRE | 1 | €2.78 | 1-4 weeks to ship | |
| 062 | 253715-0 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 063 | 344784-3 | SEAL PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 064 | 443106-5 | FELT 10-20 | 1 | €0.56 | 1-4 weeks to ship | |
| 065 | 911006-2 | PAN HEAD SCREW M3X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 066 | 631372-8 | CONTROLLER | 1 | €97.13 | 1-4 weeks to ship | |
| 067 | 191971-3 | CARBON BRUSH CB-430 | 1 | €2.78 | 1-4 weeks to ship | |
| 068 | 643929-3 | BRUSH HOLDER CAP | 2 | €0.56 | 1-4 weeks to ship | |
| 069 | 931102-0 | HEX. NUT M4 | 1 | €0.56 | 1-4 weeks to ship | |
| 070 | MAKITA LABEL | 1 | Not available in store | |||
