DFL124F
DFL124F

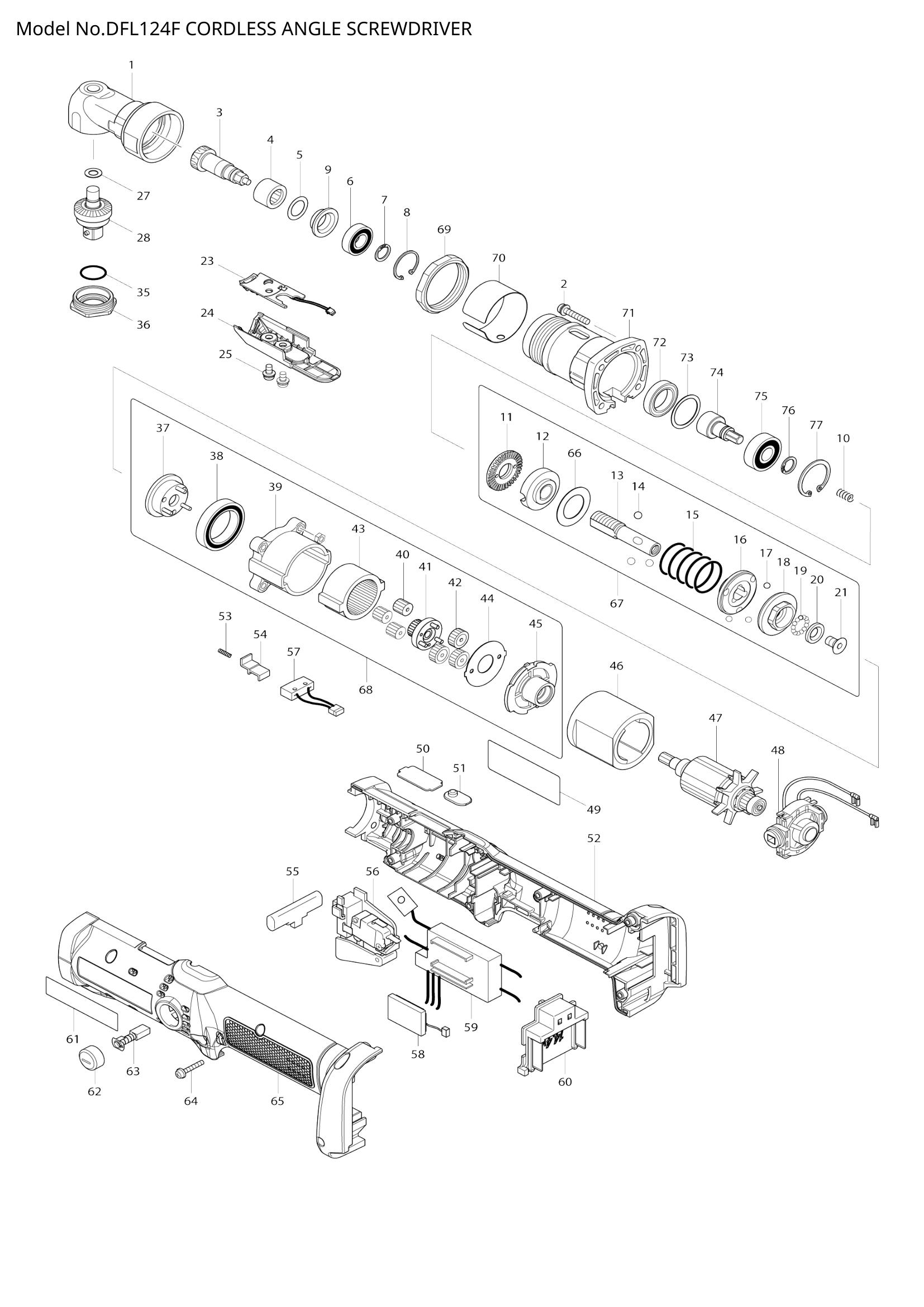

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | 265145-3 | + PAN HEAD SCREW M4X22 | 4 | €0.56 | 1-4 weeks to ship | |
| 265145-3 | + PAN HEAD SCREW M4X22 | 4 | €0.56 | 1-4 weeks to ship | ||
| 003 | SPIRAL BEVEL GEAR 9 | 1 | Not available in store | |||
| SPIRAL BEVEL GEAR 9 | 1 | Not available in store | ||||
| 004 | NEEDLE BEARING 1212 | 1 | Not available in store | |||
| NEEDLE BEARING 1212 | 1 | Not available in store | ||||
| 005 | 253312-2 | THIN WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 253312-2 | THIN WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 006 | 210057-5 | BALL BEARING 6900LLB | 1 | €8.35 | 1-4 weeks to ship | |
| 210057-5 | BALL BEARING 6900LLB | 1 | €8.35 | 1-4 weeks to ship | ||
| 007 | 961026-6 | RETAINING RING S-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 961026-6 | RETAINING RING S-10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 008 | 962102-9 | RETAINING RING R-22 | 1 | €0.28 | 1-4 weeks to ship | |
| 962102-9 | RETAINING RING R-22 | 1 | €0.28 | 1-4 weeks to ship | ||
| 009 | 345281-2 | SPACER | 1 | €4.17 | 1-4 weeks to ship | |
| 345281-2 | SPACER | 1 | €4.17 | 1-4 weeks to ship | ||
| 011 | 324834-0 | LOCK NUT M12 | 1 | €16.70 | 1-4 weeks to ship | |
| 324834-0 | LOCK NUT M12 | 1 | €16.70 | 1-4 weeks to ship | ||
| 012 | 158408-3 | ADJUST RING COMPLETE | 1 | €5.57 | 1-4 weeks to ship | |
| 158408-3 | ADJUST RING COMPLETE | 1 | €5.57 | 1-4 weeks to ship | ||
| 013 | 324296-2 | SPINDLE | 1 | €33.40 | 1-4 weeks to ship | |
| 324296-2 | SPINDLE | 1 | €33.40 | 1-4 weeks to ship | ||
| 014 | 216018-3 | STEEL BALL 5.0 | 3 | €0.56 | 1-4 weeks to ship | |
| 216018-3 | STEEL BALL 5.0 | 3 | €0.56 | 1-4 weeks to ship | ||
| 015 | 233357-6 | COMPRESSION SPRING 19B | 1 | €4.17 | 1-4 weeks to ship | |
| 233357-6 | COMPRESSION SPRING 19B | 1 | €4.17 | 1-4 weeks to ship | ||
| 016 | 223140-9 | CAM B | 1 | €13.92 | 1-4 weeks to ship | |
| 223140-9 | CAM B | 1 | €13.92 | 1-4 weeks to ship | ||
| 017 | 216024-8 | STEEL BALL 4 | 3 | €0.56 | 1-4 weeks to ship | |
| 216024-8 | STEEL BALL 4 | 3 | €0.56 | 1-4 weeks to ship | ||
| 018 | 223139-4 | CAM A | 1 | €25.05 | 1-4 weeks to ship | |
| 223139-4 | CAM A | 1 | €25.05 | 1-4 weeks to ship | ||
| 019 | 216019-1 | STEEL BALL 3 | 13 | €0.56 | 1-4 weeks to ship | |
| 216019-1 | STEEL BALL 3 | 13 | €0.56 | 1-4 weeks to ship | ||
| 020 | 267247-1 | FLAT WASHER 7 | 1 | €4.17 | 1-4 weeks to ship | |
| 267247-1 | FLAT WASHER 7 | 1 | €4.17 | 1-4 weeks to ship | ||
| 021 | 266305-0 | TORX C.S HEAD SCREW M5X10 | 1 | €0.83 | 1-4 weeks to ship | |
| 266305-0 | TORX C.S HEAD SCREW M5X10 | 1 | €0.83 | 1-4 weeks to ship | ||
| 023 | 620396-9 | LED CIRCUIT | 1 | €8.35 | 1-4 weeks to ship | |
| 620396-9 | LED CIRCUIT | 1 | €8.35 | 1-4 weeks to ship | ||
| 024 | 457976-6 | SWITCH COVER | 1 | €5.29 | 1-4 weeks to ship | |
| 457976-6 | SWITCH COVER | 1 | €5.29 | 1-4 weeks to ship | ||
| 025 | 265171-2 | PAN HEAD SCREW M4X8 | 2 | €0.42 | 1-4 weeks to ship | |
| 265171-2 | PAN HEAD SCREW M4X8 | 2 | €0.42 | 1-4 weeks to ship | ||
| 027 | 253777-8 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 253777-8 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 028 | 154447-1 | SPINDLE A COMPLETE | 1 | €106.45 | 1-4 weeks to ship | |
| 154447-1 | SPINDLE A COMPLETE | 1 | €106.45 | 1-4 weeks to ship | ||
| 036 | BEARING RETAINER 15-26 | 1 | Not available in store | |||
| BEARING RETAINER 15-26 | 1 | Not available in store | ||||
| 037 | 153443-6 | CARRIER COMPLETE A | 1 | €11.13 | 1-4 weeks to ship | |
| 153443-6 | CARRIER COMPLETE A | 1 | €11.13 | 1-4 weeks to ship | ||
| 038 | 211375-4 | BALL BEARING 6805LLB | 1 | €13.92 | 1-4 weeks to ship | |
| 211375-4 | BALL BEARING 6805LLB | 1 | €13.92 | 1-4 weeks to ship | ||
| 040 | 227050-2 | SPUR GEAR 13 | 3 | €0.83 | 1-4 weeks to ship | |
| 227050-2 | SPUR GEAR 13 | 3 | €0.83 | 1-4 weeks to ship | ||
| 041 | 153446-0 | SPUR GEAR 20 COMPLETE | 1 | €5.57 | 1-4 weeks to ship | |
| 153446-0 | SPUR GEAR 20 COMPLETE | 1 | €5.57 | 1-4 weeks to ship | ||
| 042 | 227051-0 | SPUR GEAR 19 | 3 | €0.83 | 1-4 weeks to ship | |
| 227051-0 | SPUR GEAR 19 | 3 | €0.83 | 1-4 weeks to ship | ||
| 043 | 227048-9 | INTERNAL GEAR 47 | 1 | €5.57 | 1-4 weeks to ship | |
| 227048-9 | INTERNAL GEAR 47 | 1 | €5.57 | 1-4 weeks to ship | ||
| 044 | 267774-8 | LOCK WASHER | 1 | €1.67 | 1-4 weeks to ship | |
| 267774-8 | LOCK WASHER | 1 | €1.67 | 1-4 weeks to ship | ||
| 045 | 418003-4 | MOTOR BRACKET | 1 | €4.17 | 1-4 weeks to ship | |
| 418003-4 | MOTOR BRACKET | 1 | €4.17 | 1-4 weeks to ship | ||
| 046 | 638183-2 | YOKE UNIT | 1 | €64.01 | 1-4 weeks to ship | |
| 638183-2 | YOKE UNIT | 1 | €64.01 | 1-4 weeks to ship | ||
| 047 | 619318-4 | ARMATURE | 1 | €44.53 | 1-4 weeks to ship | |
| 619318-4 | ARMATURE | 1 | €44.53 | 1-4 weeks to ship | ||
| 048 | 638928-8 | ENDBELL COMPLETE | 1 | €11.13 | 1-4 weeks to ship | |
| 638928-8 | ENDBELL COMPLETE | 1 | €11.13 | 1-4 weeks to ship | ||
| 049 | DFL124F NAME PLATE | 1 | Not available in store | |||
| DFL124F NAME PLATE | 1 | Not available in store | ||||
| 050 | PLATE B | 1 | Not available in store | |||
| PLATE B | 1 | Not available in store | ||||
| 051 | 457975-8 | LENS | 1 | €6.26 | 1-4 weeks to ship | |
| 457975-8 | LENS | 1 | €6.26 | 1-4 weeks to ship | ||
| 052 | 187487-4 | HOUSING SET | 1 | €41.75 | 1-4 weeks to ship | |
| 187487-4 | HOUSING SET | 1 | €41.75 | 1-4 weeks to ship | ||
| 053 | 233025-1 | COMPRESSION SPRING 2 | 1 | €0.56 | 1-4 weeks to ship | |
| 233025-1 | COMPRESSION SPRING 2 | 1 | €0.56 | 1-4 weeks to ship | ||
| 054 | 418002-6 | SWITCH LEVER | 1 | €1.11 | 1-4 weeks to ship | |
| 418002-6 | SWITCH LEVER | 1 | €1.11 | 1-4 weeks to ship | ||
| 055 | 417511-2 | F/R CHANGE LEVER | 1 | €2.78 | 1-4 weeks to ship | |
| 417511-2 | F/R CHANGE LEVER | 1 | €2.78 | 1-4 weeks to ship | ||
| 058 | 631514-4 | BUZZER CIRCUIT | 1 | €16.70 | 1-4 weeks to ship | |
| 631514-4 | BUZZER CIRCUIT | 1 | €16.70 | 1-4 weeks to ship | ||
| 060 | 643828-9 | TERMINAL | 1 | €5.57 | 1-4 weeks to ship | |
| 643828-9 | TERMINAL | 1 | €5.57 | 1-4 weeks to ship | ||
| 643828-9 | TERMINAL | 1 | €5.57 | 1-4 weeks to ship | ||
| 643828-9 | TERMINAL | 1 | €5.57 | 1-4 weeks to ship | ||
| 061 | MAKITA LOGO LABEL | 1 | Not available in store | |||
| MAKITA LOGO LABEL | 1 | Not available in store | ||||
| 062 | 643933-2 | BRUSH HOLDER CAP | 2 | €0.56 | 1-4 weeks to ship | |
| 643933-2 | BRUSH HOLDER CAP | 2 | €0.56 | 1-4 weeks to ship | ||
| 064 | PAN HEAD SCREW M3X20 | 6 | Not available in store | |||
| PAN HEAD SCREW M3X20 | 6 | Not available in store | ||||
| 065 | 187487-4 | HOUSING SET | 1 | €41.75 | 1-4 weeks to ship | |
| 187487-4 | HOUSING SET | 1 | €41.75 | 1-4 weeks to ship | ||
| 066 | 267276-4 | FLAT WASHER 18 | 1 | €0.83 | 1-4 weeks to ship | |
| 267276-4 | FLAT WASHER 18 | 1 | €0.83 | 1-4 weeks to ship | ||
| 069 | 252187-6 | HEX. NUT M36-41 | 1 | €11.55 | 1-4 weeks to ship | |
| 252187-6 | HEX. NUT M36-41 | 1 | €11.55 | 1-4 weeks to ship | ||
| 070 | RING 38T | 1 | Not available in store | |||
| RING 38T | 1 | Not available in store | ||||
| 071 | 317808-8 | CLUTCH CASE | 1 | €45.92 | 1-4 weeks to ship | |
| 317808-8 | CLUTCH CASE | 1 | €45.92 | 1-4 weeks to ship | ||
| 072 | 211283-9 | BALL BEARING 6803ZZ | 1 | €9.46 | 1-4 weeks to ship | |
| 211283-9 | BALL BEARING 6803ZZ | 1 | €9.46 | 1-4 weeks to ship | ||
| 073 | 267283-7 | FLAT WASHER 21 | 1 | €0.70 | 1-4 weeks to ship | |
| 267283-7 | FLAT WASHER 21 | 1 | €0.70 | 1-4 weeks to ship | ||
| 074 | SPINDLE B | 1 | Not available in store | |||
| SPINDLE B | 1 | Not available in store | ||||
| 075 | 211088-7 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 211088-7 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | ||
| 076 | 961026-6 | RETAINING RING S-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 961026-6 | RETAINING RING S-10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 077 | 962105-3 | RETAINING RING R-26 | 1 | €0.56 | 1-4 weeks to ship | |
| 962105-3 | RETAINING RING R-26 | 1 | €0.56 | 1-4 weeks to ship | ||
