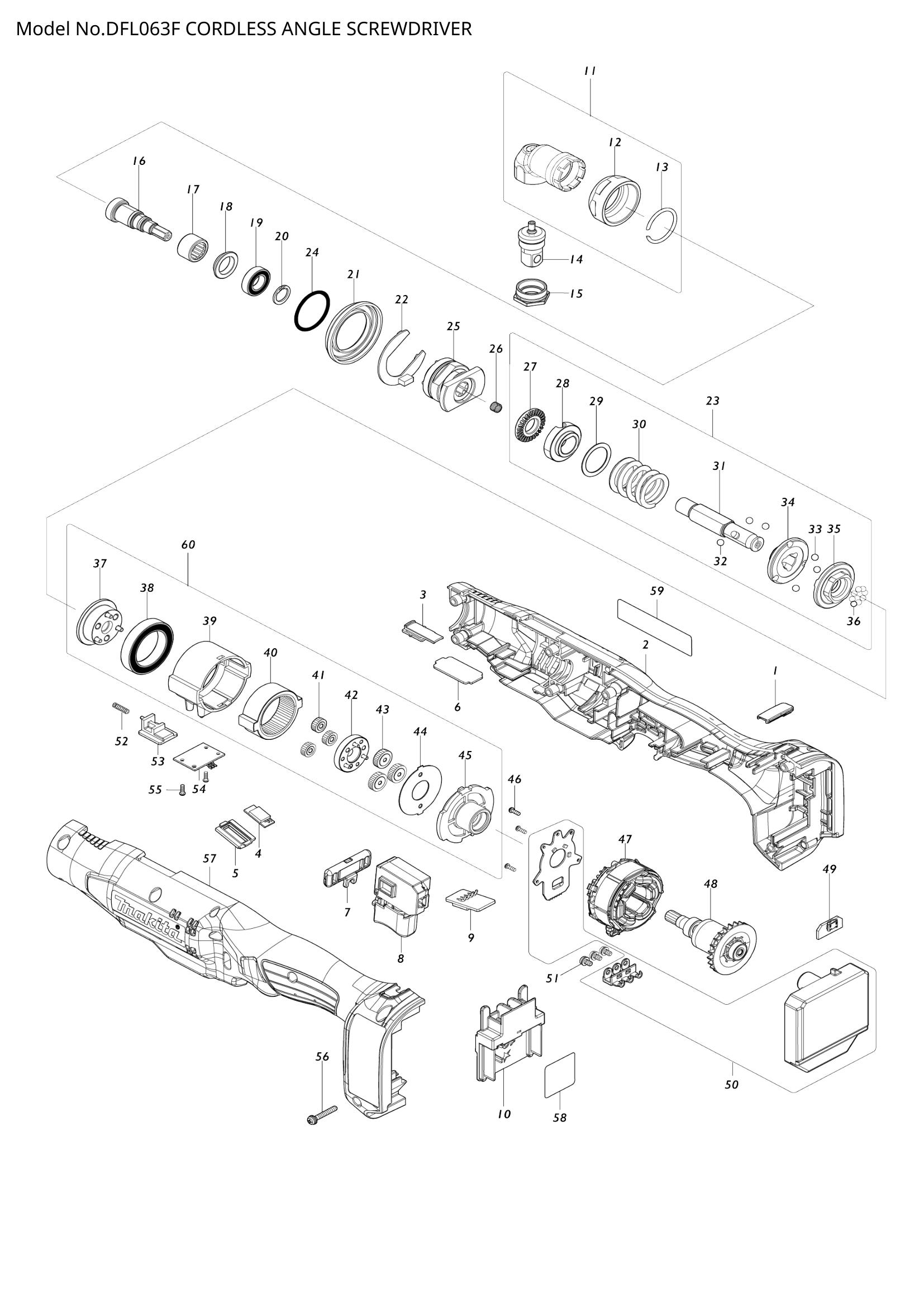

DFL063F
DFL063F
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 424827-8 | USB COVER | 1 | €6.12 | 1-4 weeks to ship | |
| 002 | HOUSING SET | 1 | Not available in store | |||
| 003 | 457526-7 | CHANGE PLATE | 1 | €2.50 | 1-4 weeks to ship | |
| 004 | LED CIRCUIT | 1 | Not available in store | |||
| 005 | LENS | 1 | Not available in store | |||
| 006 | PLATE R | 1 | Not available in store | |||
| 007 | F/R CHANGE LEVER | 1 | Not available in store | |||
| 008 | 651082-1 | SWITCH C3JW-1B-S | 1 | €27.97 | 1-4 weeks to ship | |
| 009 | 620621-8 | BUZZER CIRCUIT | 1 | €10.99 | 1-4 weeks to ship | |
| 010 | 643860-3 | TERMINAL | 1 | €4.17 | 1-4 weeks to ship | |
| 011 | ANGLE HEAD ASSEMBLY | 1 | Not available in store | |||
| 012 | LOCK NUT | 1 | Not available in store | |||
| 013 | 233924-7 | RING SPRING 21 | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | SPINDLE A COMPLETE | 1 | Not available in store | |||
| 015 | BEARING RETAINER 13-18 | 1 | Not available in store | |||
| 016 | SPIRAL BEVEL GEAR 15A | 1 | Not available in store | |||
| 017 | 212123-4 | NEEDLE BEARING 1210 | 1 | €5.57 | 1-4 weeks to ship | |
| 018 | SPACER | 1 | Not available in store | |||
| 019 | BALL BEARING 6800LLB | 1 | Not available in store | |||
| 020 | 961026-6 | RETAINING RING S-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | LED LENS | 1 | Not available in store | |||
| 022 | INDICATION CIRCUIT | 1 | Not available in store | |||
| 024 | 213987-9 | O-RING 25 | 1 | €0.56 | 1-4 weeks to ship | |
| 025 | BEARING BOX COMPLETE | 1 | Not available in store | |||
| 027 | LOCK NUT M12 | 1 | Not available in store | |||
| 028 | ADJUST RING COMPLETE | 1 | Not available in store | |||
| 029 | FLAT WASHER 18 | 1 | Not available in store | |||
| 030 | COMPRESSION SPRING 18C | 1 | Not available in store | |||
| 032 | 216024-8 | STEEL BALL 4 | 3 | €0.56 | 1-4 weeks to ship | |
| 033 | 216024-8 | STEEL BALL 4 | 3 | €0.56 | 1-4 weeks to ship | |
| 034 | CAM A | 1 | Not available in store | |||
| 035 | CAM B | 1 | Not available in store | |||
| 036 | 216001-0 | STEEL BALL 3.5 | 8 | €0.56 | 1-4 weeks to ship | |
| 037 | 144424-1 | CARRIER COMPLETE B | 1 | €8.21 | 1-4 weeks to ship | |
| 038 | 211375-4 | BALL BEARING 6805LLB | 1 | €13.92 | 1-4 weeks to ship | |
| 039 | GEAR CASE | 1 | Not available in store | |||
| 040 | 221546-5 | INTERNAL GEAR 47 | 1 | €1.67 | 1-4 weeks to ship | |
| 041 | 221543-1 | SPUR GEAR 13 | 3 | €0.42 | 1-4 weeks to ship | |
| 042 | 144422-5 | SPUR GEAR 20 COMPLETE | 1 | €5.71 | 1-4 weeks to ship | |
| 043 | 221544-9 | SPUR GEAR 18 | 3 | €0.56 | 1-4 weeks to ship | |
| 044 | 267774-8 | LOCK WASHER | 1 | €1.67 | 1-4 weeks to ship | |
| 045 | 418003-4 | MOTOR BRACKET | 1 | €4.17 | 1-4 weeks to ship | |
| 046 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 048 | 619440-7 | ROTOR | 1 | €94.34 | 1-4 weeks to ship | |
| 049 | USB CIRCUIT | 1 | Not available in store | |||
| 051 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 052 | 233025-1 | COMPRESSION SPRING 2 | 1 | €0.56 | 1-4 weeks to ship | |
| 054 | SENSOR CIRCUIT | 1 | Not available in store | |||
| 055 | 266490-9 | TAPPING SCREW PT 2X6 | 2 | €0.14 | 1-4 weeks to ship | |
| 056 | PAN HEAD SCREW M3X20 | 8 | Not available in store | |||
| 057 | HOUSING SET | 1 | Not available in store | |||
| 058 | DFL063F SERIAL NO. LABEL | 1 | Not available in store | |||
| 059 | DFL063F NAME PLATE | 1 | Not available in store | |||
| 060 | GEAR ASSEMBLY M | 1 | Not available in store | |||
