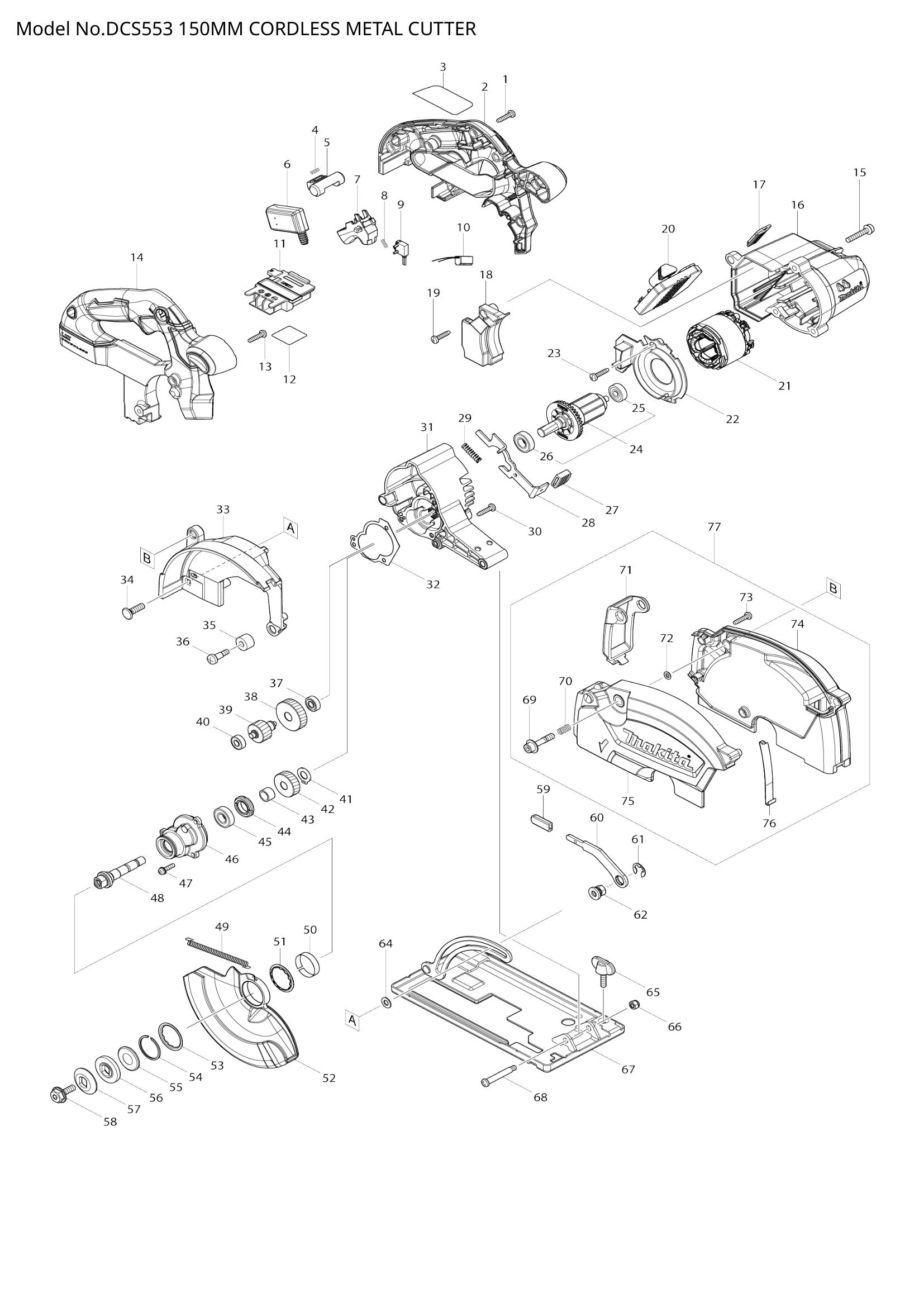

DCS553
DCS553
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 265995-6 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | |
| 002 | HANDLE SET | 1 | Not available in store | |||
| 003 | DCS553 NAME PLATE | 1 | Not available in store | |||
| 004 | 231433-0 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 005 | 419704-7 | LOCK OFF BUTTON | 1 | €1.11 | 1-4 weeks to ship | |
| 006 | 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | |
| 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | ||
| 007 | SWITCH LEVER | 1 | Not available in store | |||
| 008 | 231433-0 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | SWITCH UNIT | 1 | Not available in store | |||
| 010 | LED CIRCUIT | 1 | Not available in store | |||
| 011 | 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | |
| 643874-2 | TERMINAL | 1 | €3.90 | 1-4 weeks to ship | ||
| 012 | DCS553 SERIAL NO. LABEL | 1 | Not available in store | |||
| 013 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 014 | HANDLE SET | 1 | Not available in store | |||
| 015 | 911253-5 | PAN HEAD SCREW M5X30 | 3 | €0.56 | 1-4 weeks to ship | |
| 016 | MOTOR HOUSING | 1 | Not available in store | |||
| 017 | INDICATION PLATE COMPLETE | 1 | Not available in store | |||
| 018 | MOTOR HOUSING COVER | 1 | Not available in store | |||
| 019 | 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | BAFFLE PLATE | 1 | Not available in store | |||
| 023 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 025 | 210022-4 | BALL BEARING 626DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 027 | CAP | 1 | Not available in store | |||
| 028 | 346885-3 | SHAFT LOCK | 1 | €1.25 | 1-4 weeks to ship | |
| 029 | 233117-6 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 030 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 031 | GEAR HOUSING COMPLETE | 1 | Not available in store | |||
| 032 | 424715-9 | GASKET | 1 | €1.53 | 1-4 weeks to ship | |
| 033 | BLADE CASE | 1 | Not available in store | |||
| 034 | 266737-1 | FLAT HEAD SQ. NECK BOLT M6X2 | 1 | €0.28 | 1-4 weeks to ship | |
| 035 | 262511-5 | RUBBER SLEEVE 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 036 | 265115-2 | + PAN HEAD SCREW M5 | 1 | €0.83 | 1-4 weeks to ship | |
| 037 | 210065-6 | BALL BEARING 625ZZ | 1 | €2.23 | 1-4 weeks to ship | |
| 038 | 227809-7 | HELICAL GEAR 30 | 1 | €5.01 | 1-4 weeks to ship | |
| 039 | 227807-1 | HELICAL GEAR 17 | 1 | €5.29 | 1-4 weeks to ship | |
| 040 | 210033-9 | BALL BEARING 696ZZ | 1 | €1.11 | 1-4 weeks to ship | |
| 041 | 961005-4 | RETAINING RING S-9 | 1 | €0.56 | 1-4 weeks to ship | |
| 042 | 227808-9 | HELICAL GEAR 24 | 1 | €4.73 | 1-4 weeks to ship | |
| 043 | 257728-3 | SLEEVE 10 | 1 | €0.83 | 1-4 weeks to ship | |
| 044 | 285847-5 | BEARING RETAINER 14-23 | 1 | €2.78 | 1-4 weeks to ship | |
| 046 | 143228-8 | BEARING BOX COMPLETE | 1 | €13.64 | 1-4 weeks to ship | |
| 047 | 911128-8 | P.H.SCREW M4X16 WITH WR | 3 | €0.56 | 1-4 weeks to ship | |
| 911128-8 | P.H.SCREW M4X16 WITH WR | 3 | €0.56 | 1-4 weeks to ship | ||
| 048 | 326540-3 | SPINDLE | 1 | €4.04 | 1-4 weeks to ship | |
| 049 | 231792-2 | TENSION SPRING 3 | 1 | €2.78 | 1-4 weeks to ship | |
| 050 | 345470-9 | THICKNESS RING | 1 | €0.56 | 1-4 weeks to ship | |
| 051 | 345739-1 | SPACER | 1 | €0.56 | 1-4 weeks to ship | |
| 052 | SAFETY COVER COMPLETE | 1 | Not available in store | |||
| 053 | 345739-1 | SPACER | 1 | €0.56 | 1-4 weeks to ship | |
| 054 | 257938-2 | RETAINING RING(EXT) WR-26 | 1 | €0.56 | 1-4 weeks to ship | |
| 055 | 267802-9 | CUP WASHER 13 | 1 | €1.39 | 1-4 weeks to ship | |
| 056 | 224391-7 | INNER FLANGE 30 | 1 | €1.39 | 1-4 weeks to ship | |
| 057 | 224404-4 | OUTER FLANGE 30 | 1 | €2.78 | 1-4 weeks to ship | |
| 058 | 266925-0 | HEX.SOCKET HEX.BOLT M6X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 059 | CAP | 1 | Not available in store | |||
| 060 | LEVER PLATE | 1 | Not available in store | |||
| 061 | 257982-9 | BOW STOP RING E-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 062 | HEX. NUT M6 | 1 | Not available in store | |||
| 064 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 065 | 251896-4 | SCREW M5X20 | 1 | €1.39 | 1-4 weeks to ship | |
| 066 | 252103-8 | HEX. LOCK NUT M5-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 067 | BASE | 1 | Not available in store | |||
| 068 | 265056-2 | + PAN HEAD SCREW M5 | 1 | €1.67 | 1-4 weeks to ship | |
| 069 | H.S.H.B M6X29 | 1 | Not available in store | |||
| 070 | 233267-7 | COMPRESSION SPRING 7 | 1 | €0.83 | 1-4 weeks to ship | |
| 071 | 458652-5 | DUST CAP | 1 | €0.97 | 1-4 weeks to ship | |
| 072 | 213005-3 | O RING 5 | 1 | €0.83 | 1-4 weeks to ship | |
| 073 | 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 074 | 458659-1 | DUST BOX L | 1 | €5.57 | 1-4 weeks to ship | |
| 075 | 458660-6 | DUST BOX R | 1 | €9.74 | 1-4 weeks to ship | |
| 076 | PLATE | 1 | Not available in store | |||
| 078 | CONTROLLER B S | 1 | Not available in store | |||
| 079 | PAN HEAD SCREW M2X6 S | 6 | Not available in store | |||
