4305T
4305T

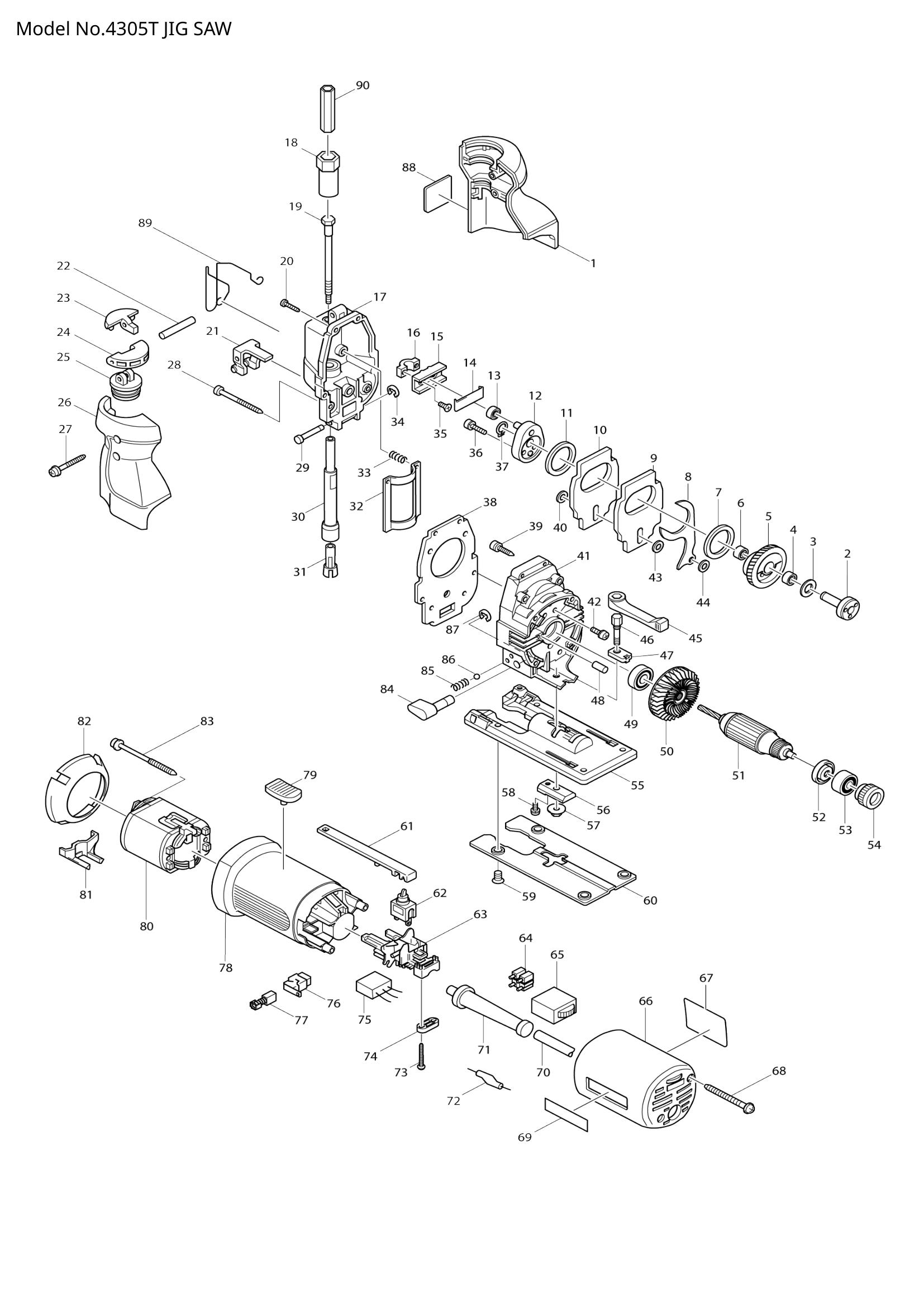

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 182789-3 | HEAD COVER SET | 1 | €11.13 | 1-4 weeks to ship | |
| 002 | 322691-0 | GEAR SHAFT | 1 | €25.05 | 1-4 weeks to ship | |
| 003 | 253139-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 004 | 212043-2 | NEEDLE BEARING 810 | 1 | €1.67 | 1-4 weeks to ship | |
| 005 | 226428-6 | HELICAL GEAR 51 | 1 | €30.61 | 1-4 weeks to ship | |
| 006 | 212043-2 | NEEDLE BEARING 810 | 1 | €1.67 | 1-4 weeks to ship | |
| 007 | 253792-2 | FLAT WASHER 26 | 1 | €0.56 | 1-4 weeks to ship | |
| 008 | 344134-2 | PUSH PLATE | 1 | €4.17 | 1-4 weeks to ship | |
| 011 | 253792-2 | FLAT WASHER 26 | 1 | €0.56 | 1-4 weeks to ship | |
| 012 | 152454-8 | CRANK COMPLETE | 1 | €8.35 | 1-4 weeks to ship | |
| 013 | 212010-7 | NEEDLE BEARING 607 | 1 | €13.92 | 1-4 weeks to ship | |
| 014 | 344232-2 | THRUST PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | 316608-3 | HOLDER | 1 | €11.13 | 1-4 weeks to ship | |
| 019 | 322826-3 | DRIVER ROD | 1 | €8.35 | 1-4 weeks to ship | |
| 020 | 266034-5 | TAPPING SCREW CT 4X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 023 | 415883-9 | LIFT BUTTON | 1 | €0.83 | 1-4 weeks to ship | |
| 024 | 415885-5 | KNOB | 1 | €1.39 | 1-4 weeks to ship | |
| 025 | 415884-7 | BOX WRENCH | 1 | €1.39 | 1-4 weeks to ship | |
| 026 | 182789-3 | HEAD COVER SET | 1 | €11.13 | 1-4 weeks to ship | |
| 027 | 266053-1 | TAPPING SCREW 4X35 | 2 | €0.56 | 1-4 weeks to ship | |
| 029 | 256693-3 | PIN 4 | 1 | €2.78 | 1-4 weeks to ship | |
| 030 | 168282-1 | ROD | 1 | €27.83 | 1-4 weeks to ship | |
| 031 | 310005-5 | BLADE FIX | 1 | €19.48 | 1-4 weeks to ship | |
| 032 | 344137-6 | SLIDE PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 033 | 233151-6 | COMPRESSION SPRING 4 | 2 | €0.56 | 1-4 weeks to ship | |
| 034 | 961017-7 | STOP RING E-3 | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | 265035-0 | COUNTERSUNK HEAD SCREW M4 | 2 | €0.56 | 1-4 weeks to ship | |
| 036 | 922126-7 | HEX. SOCKET HEAD BOLT M4X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 037 | 961004-6 | RETAINING RING (EXT) S-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 039 | 266045-0 | TAPPING SCREW 4X20 | 2 | €0.56 | 1-4 weeks to ship | |
| 040 | 253715-0 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 042 | 911111-5 | PAN HEAD SCREW M4X10 WITH | 3 | €0.56 | 1-4 weeks to ship | |
| 043 | 253715-0 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 045 | 272232-1 | LEVER 65 | 1 | €1.39 | 1-4 weeks to ship | |
| 046 | 265434-6 | HEX. BOLT M5X24 | 1 | €4.17 | 1-4 weeks to ship | |
| 047 | 344332-8 | NUT M6 | 1 | €2.78 | 1-4 weeks to ship | |
| 048 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 049 | 211031-6 | BALL BEARING 608LLB | 1 | €1.67 | 1-4 weeks to ship | |
| 051 | 517098-5 | ARMATURE ASS'Y 220V | 1 | €61.23 | 1-4 weeks to ship | |
| 052 | 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 053 | 211021-9 | BALL BEARING 607LLB | 1 | €5.57 | 1-4 weeks to ship | |
| 054 | 421494-0 | RUBBER RING 19 | 1 | €4.17 | 1-4 weeks to ship | |
| 055 | 316777-0 | BASE | 1 | €13.92 | 1-4 weeks to ship | |
| 056 | 344333-6 | CLAMP PLATE | 1 | €5.57 | 1-4 weeks to ship | |
| 057 | 252142-8 | HEX.NUT FLANGE M5 | 1 | €2.78 | 1-4 weeks to ship | |
| 058 | 911109-2 | PAN HEAD SCREW M4X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 911109-2 | PAN HEAD SCREW M4X8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 059 | 912202-5 | COUNTERSUNK HEAD SCREW M5 | 4 | €0.56 | 1-4 weeks to ship | |
| 061 | SWITCH ROD | 1 | Not available in store | |||
| 063 | 687070-2 | SUPPORT | 1 | €3.34 | 1-4 weeks to ship | |
| 687070-2 | SUPPORT | 1 | €3.34 | 1-4 weeks to ship | ||
| 064 | 654531-7 | TERMINAL BLOCK 2P | 1 | €2.78 | 1-4 weeks to ship | |
| 066 | 415531-0 | REAR COVER | 1 | €9.46 | 1-4 weeks to ship | |
| 068 | 266052-3 | TAPPING SCREW 4X60 | 2 | €1.11 | 1-4 weeks to ship | |
| 069 | 819063-3 | MAKITA LABEL | 1 | €0.56 | 1-4 weeks to ship | |
| 071 | 682502-4 | CORD GUARD 8-85 | 1 | €0.56 | 1-4 weeks to ship | |
| 073 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 076 | 643923-5 | BRUSH HOLDER | 2 | €1.11 | 1-4 weeks to ship | |
| 078 | 415748-5 | MOTOR HOUSING | 1 | €12.38 | 1-4 weeks to ship | |
| 079 | SWITCH LEVER | 1 | Not available in store | |||
| 080 | 633288-3 | FIELD 220V | 1 | €22.26 | 1-4 weeks to ship | |
| 081 | AIR CAP | 1 | Not available in store | |||
| 082 | BAFFLE PLATE | 1 | Not available in store | |||
| 083 | 266052-3 | TAPPING SCREW 4X60 | 2 | €1.11 | 1-4 weeks to ship | |
| 084 | 272231-3 | LEVER 17 | 1 | €8.91 | 1-4 weeks to ship | |
| 086 | 216008-6 | STEEL BALL 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 087 | 961018-5 | STOP RING E-5 | 1 | €0.56 | 1-4 weeks to ship | |
| 088 | 810835-9 | CAUTION LABEL | 1 | €4.45 | 1-4 weeks to ship | |
| 089 | 322893-8 | SAFETY WIRE | 1 | €2.78 | 1-4 weeks to ship | |
| 090 | 344537-0 | HEX. SLEEVE | 1 | €0.83 | 1-4 weeks to ship | |
| 091 | 344784-3 | SEAL PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 092 | 443106-5 | FELT 10-20 | 1 | €0.56 | 1-4 weeks to ship | |
