DCS230T
DCS230T

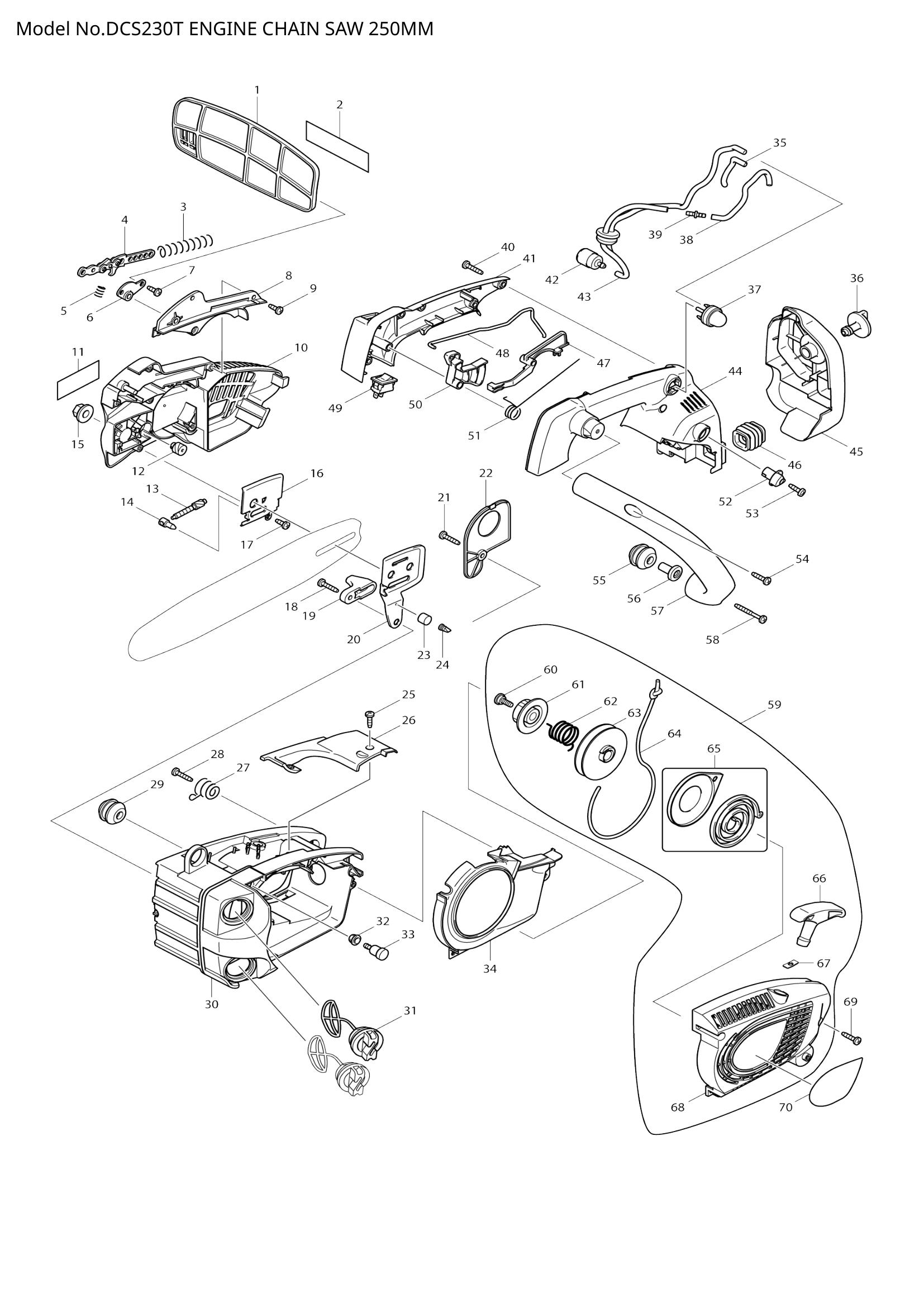

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 154650-4 | FRONT HAND GUARD COMPLETE | 1 | €10.58 | 1-4 weeks to ship | |
| 154650-4 | FRONT HAND GUARD COMPLETE | 1 | €10.58 | 1-4 weeks to ship | ||
| 154650-4 | FRONT HAND GUARD COMPLETE | 1 | €10.58 | 1-4 weeks to ship | ||
| 002 | 810075-9 | CAUTION LABEL | 1 | €2.92 | 1-4 weeks to ship | |
| 810075-9 | CAUTION LABEL | 1 | €2.92 | 1-4 weeks to ship | ||
| 810075-9 | CAUTION LABEL | 1 | €2.92 | 1-4 weeks to ship | ||
| 003 | 233175-2 | COMPRESSION SPRING 9 | 1 | €0.56 | 1-4 weeks to ship | |
| 233175-2 | COMPRESSION SPRING 9 | 1 | €0.56 | 1-4 weeks to ship | ||
| 233175-2 | COMPRESSION SPRING 9 | 1 | €0.56 | 1-4 weeks to ship | ||
| 004 | 163448-8 | LINKPLATE COMPLETE | 1 | €7.93 | 1-4 weeks to ship | |
| 163448-8 | LINKPLATE COMPLETE | 1 | €7.93 | 1-4 weeks to ship | ||
| 163448-8 | LINKPLATE COMPLETE | 1 | €7.93 | 1-4 weeks to ship | ||
| 005 | 231298-0 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 231298-0 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 231298-0 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 006 | 418715-9 | HAND GUARD COVER | 1 | €2.92 | 1-4 weeks to ship | |
| 418715-9 | HAND GUARD COVER | 1 | €2.92 | 1-4 weeks to ship | ||
| 418715-9 | HAND GUARD COVER | 1 | €2.92 | 1-4 weeks to ship | ||
| 007 | 266020-6 | TAPPING SCREW 4X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 266020-6 | TAPPING SCREW 4X12 | 2 | €0.56 | 1-4 weeks to ship | ||
| 266020-6 | TAPPING SCREW 4X12 | 2 | €0.56 | 1-4 weeks to ship | ||
| 008 | 418736-1 | SPRING COVER | 1 | €4.45 | 1-4 weeks to ship | |
| 418736-1 | SPRING COVER | 1 | €4.45 | 1-4 weeks to ship | ||
| 418736-1 | SPRING COVER | 1 | €4.45 | 1-4 weeks to ship | ||
| 009 | 266020-6 | TAPPING SCREW 4X12 | 4 | €0.56 | 1-4 weeks to ship | |
| 266020-6 | TAPPING SCREW 4X12 | 4 | €0.56 | 1-4 weeks to ship | ||
| 266020-6 | TAPPING SCREW 4X12 | 4 | €0.56 | 1-4 weeks to ship | ||
| 011 | 819170-2 | MAKITA LOGO LABEL | 1 | €2.78 | 1-4 weeks to ship | |
| 819170-2 | MAKITA LOGO LABEL | 1 | €2.78 | 1-4 weeks to ship | ||
| 819170-2 | MAKITA LOGO LABEL | 1 | €2.78 | 1-4 weeks to ship | ||
| 012 | 226590-7 | HELICAL GEAR 17 | 1 | €20.73 | 1-4 weeks to ship | |
| 226590-7 | HELICAL GEAR 17 | 1 | €20.73 | 1-4 weeks to ship | ||
| 226590-7 | HELICAL GEAR 17 | 1 | €20.73 | 1-4 weeks to ship | ||
| 013 | 226534-7 | HELICAL GEAR 8 | 1 | €16.70 | 1-4 weeks to ship | |
| 226534-7 | HELICAL GEAR 8 | 1 | €16.70 | 1-4 weeks to ship | ||
| 226534-7 | HELICAL GEAR 8 | 1 | €16.70 | 1-4 weeks to ship | ||
| 014 | 324464-7 | ADJUST PIN | 1 | €2.09 | 1-4 weeks to ship | |
| 324464-7 | ADJUST PIN | 1 | €2.09 | 1-4 weeks to ship | ||
| 324464-7 | ADJUST PIN | 1 | €2.09 | 1-4 weeks to ship | ||
| 015 | 252145-2 | COLLARED HEX NUT M8 | 1 | €0.70 | 1-4 weeks to ship | |
| 252145-2 | COLLARED HEX NUT M8 | 1 | €0.70 | 1-4 weeks to ship | ||
| 252145-2 | COLLARED HEX NUT M8 | 1 | €0.70 | 1-4 weeks to ship | ||
| 017 | 266020-6 | TAPPING SCREW 4X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 266020-6 | TAPPING SCREW 4X12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 266020-6 | TAPPING SCREW 4X12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 018 | 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 019 | 418710-9 | CHAIN CATCHER | 1 | €2.92 | 1-4 weeks to ship | |
| 418710-9 | CHAIN CATCHER | 1 | €2.92 | 1-4 weeks to ship | ||
| 418710-9 | CHAIN CATCHER | 1 | €2.92 | 1-4 weeks to ship | ||
| 021 | 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 022 | 418707-8 | OIL PUMP COVER | 1 | €2.78 | 1-4 weeks to ship | |
| 418707-8 | OIL PUMP COVER | 1 | €2.78 | 1-4 weeks to ship | ||
| 418707-8 | OIL PUMP COVER | 1 | €2.78 | 1-4 weeks to ship | ||
| 023 | 421877-4 | SPONGE 10 | 1 | €0.83 | 1-4 weeks to ship | |
| 421877-4 | SPONGE 10 | 1 | €0.83 | 1-4 weeks to ship | ||
| 421877-4 | SPONGE 10 | 1 | €0.83 | 1-4 weeks to ship | ||
| 024 | 421298-0 | CHECK VALVE | 1 | €4.17 | 1-4 weeks to ship | |
| 421298-0 | CHECK VALVE | 1 | €4.17 | 1-4 weeks to ship | ||
| 421298-0 | CHECK VALVE | 1 | €4.17 | 1-4 weeks to ship | ||
| 025 | 266007-8 | TAPPING SCREW BIND PT 3X10 | 2 | €0.56 | 1-4 weeks to ship | |
| 266007-8 | TAPPING SCREW BIND PT 3X10 | 2 | €0.56 | 1-4 weeks to ship | ||
| 266007-8 | TAPPING SCREW BIND PT 3X10 | 2 | €0.56 | 1-4 weeks to ship | ||
| 026 | 418734-5 | TOP COVER | 1 | €4.45 | 1-4 weeks to ship | |
| 418734-5 | TOP COVER | 1 | €4.45 | 1-4 weeks to ship | ||
| 418734-5 | TOP COVER | 1 | €4.45 | 1-4 weeks to ship | ||
| 027 | 324477-8 | DAMPER SPRING | 1 | €2.92 | 1-4 weeks to ship | |
| 324477-8 | DAMPER SPRING | 1 | €2.92 | 1-4 weeks to ship | ||
| 324477-8 | DAMPER SPRING | 1 | €2.92 | 1-4 weeks to ship | ||
| 028 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 029 | 421874-0 | BUFFER RUBBER | 1 | €2.92 | 1-4 weeks to ship | |
| 421874-0 | BUFFER RUBBER | 1 | €2.92 | 1-4 weeks to ship | ||
| 421874-0 | BUFFER RUBBER | 1 | €2.92 | 1-4 weeks to ship | ||
| 030 | 153918-5 | HOUSING COMPLETE | 1 | €62.34 | 1-4 weeks to ship | |
| 153918-5 | HOUSING COMPLETE | 1 | €62.34 | 1-4 weeks to ship | ||
| 153918-5 | HOUSING COMPLETE | 1 | €62.34 | 1-4 weeks to ship | ||
| 032 | 421875-8 | GROMMET | 1 | €0.56 | 1-4 weeks to ship | |
| 421875-8 | GROMMET | 1 | €0.56 | 1-4 weeks to ship | ||
| 421875-8 | GROMMET | 1 | €0.56 | 1-4 weeks to ship | ||
| 033 | 168396-6 | BREATHER | 1 | €5.57 | 1-4 weeks to ship | |
| 168396-6 | BREATHER | 1 | €5.57 | 1-4 weeks to ship | ||
| 168396-6 | BREATHER | 1 | €5.57 | 1-4 weeks to ship | ||
| 034 | 418700-2 | BUFFLE PLATE | 1 | €4.45 | 1-4 weeks to ship | |
| 418700-2 | BUFFLE PLATE | 1 | €4.45 | 1-4 weeks to ship | ||
| 418700-2 | BUFFLE PLATE | 1 | €4.45 | 1-4 weeks to ship | ||
| 035 | 422036-3 | TUBE 3-70 | 1 | €2.09 | 1-4 weeks to ship | |
| 422036-3 | TUBE 3-70 | 1 | €2.09 | 1-4 weeks to ship | ||
| 422036-3 | TUBE 3-70 | 1 | €2.09 | 1-4 weeks to ship | ||
| 036 | 271422-3 | KNOB 28 | 1 | €2.92 | 1-4 weeks to ship | |
| 271422-3 | KNOB 28 | 1 | €2.92 | 1-4 weeks to ship | ||
| 271422-3 | KNOB 28 | 1 | €2.92 | 1-4 weeks to ship | ||
| 037 | 168398-2 | PRIMER PUMP | 1 | €5.57 | 1-4 weeks to ship | |
| 168398-2 | PRIMER PUMP | 1 | €5.57 | 1-4 weeks to ship | ||
| 168398-2 | PRIMER PUMP | 1 | €5.57 | 1-4 weeks to ship | ||
| 040 | 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 041 | 418696-7 | TOP HANDLE COVER | 1 | €8.21 | 1-4 weeks to ship | |
| 418696-7 | TOP HANDLE COVER | 1 | €8.21 | 1-4 weeks to ship | ||
| 418696-7 | TOP HANDLE COVER | 1 | €8.21 | 1-4 weeks to ship | ||
| 044 | 418695-9 | TOP HANDLE | 1 | €16.70 | 1-4 weeks to ship | |
| 418695-9 | TOP HANDLE | 1 | €16.70 | 1-4 weeks to ship | ||
| 418695-9 | TOP HANDLE | 1 | €16.70 | 1-4 weeks to ship | ||
| 045 | 418703-6 | CLEANER CASE COVER | 1 | €4.45 | 1-4 weeks to ship | |
| 418703-6 | CLEANER CASE COVER | 1 | €4.45 | 1-4 weeks to ship | ||
| 418703-6 | CLEANER CASE COVER | 1 | €4.45 | 1-4 weeks to ship | ||
| 046 | 421872-4 | AIR DUCT | 1 | €0.83 | 1-4 weeks to ship | |
| 421872-4 | AIR DUCT | 1 | €0.83 | 1-4 weeks to ship | ||
| 421872-4 | AIR DUCT | 1 | €0.83 | 1-4 weeks to ship | ||
| 047 | 418706-0 | LOCKOFF LEVER | 1 | €4.45 | 1-4 weeks to ship | |
| 418706-0 | LOCKOFF LEVER | 1 | €4.45 | 1-4 weeks to ship | ||
| 418706-0 | LOCKOFF LEVER | 1 | €4.45 | 1-4 weeks to ship | ||
| 048 | 324468-9 | ROD | 1 | €2.09 | 1-4 weeks to ship | |
| 324468-9 | ROD | 1 | €2.09 | 1-4 weeks to ship | ||
| 324468-9 | ROD | 1 | €2.09 | 1-4 weeks to ship | ||
| 049 | 651525-3 | SWITCH SLE6A2-GG-31 | 1 | €10.58 | 1-4 weeks to ship | |
| 651525-3 | SWITCH SLE6A2-GG-31 | 1 | €10.58 | 1-4 weeks to ship | ||
| 651525-3 | SWITCH SLE6A2-GG-31 | 1 | €10.58 | 1-4 weeks to ship | ||
| 051 | 231672-2 | TORSION SPRING 11 | 1 | €2.09 | 1-4 weeks to ship | |
| 231672-2 | TORSION SPRING 11 | 1 | €2.09 | 1-4 weeks to ship | ||
| 231672-2 | TORSION SPRING 11 | 1 | €2.09 | 1-4 weeks to ship | ||
| 052 | 418708-6 | CHOKE LEVER | 1 | €2.78 | 1-4 weeks to ship | |
| 418708-6 | CHOKE LEVER | 1 | €2.78 | 1-4 weeks to ship | ||
| 418708-6 | CHOKE LEVER | 1 | €2.78 | 1-4 weeks to ship | ||
| 053 | 266007-8 | TAPPING SCREW BIND PT 3X10 | 1 | €0.56 | 1-4 weeks to ship | |
| 266007-8 | TAPPING SCREW BIND PT 3X10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 266007-8 | TAPPING SCREW BIND PT 3X10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 054 | 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 055 | 421874-0 | BUFFER RUBBER | 1 | €2.92 | 1-4 weeks to ship | |
| 421874-0 | BUFFER RUBBER | 1 | €2.92 | 1-4 weeks to ship | ||
| 421874-0 | BUFFER RUBBER | 1 | €2.92 | 1-4 weeks to ship | ||
| 056 | 418709-4 | BUFFER CAP | 1 | €2.78 | 1-4 weeks to ship | |
| 418709-4 | BUFFER CAP | 1 | €2.78 | 1-4 weeks to ship | ||
| 418709-4 | BUFFER CAP | 1 | €2.78 | 1-4 weeks to ship | ||
| 057 | 418704-4 | SIDE HANDLE | 1 | €16.70 | 1-4 weeks to ship | |
| 418704-4 | SIDE HANDLE | 1 | €16.70 | 1-4 weeks to ship | ||
| 418704-4 | SIDE HANDLE | 1 | €16.70 | 1-4 weeks to ship | ||
| 058 | 266053-1 | TAPPING SCREW 4X35 | 1 | €0.56 | 1-4 weeks to ship | |
| 266053-1 | TAPPING SCREW 4X35 | 1 | €0.56 | 1-4 weeks to ship | ||
| 266053-1 | TAPPING SCREW 4X35 | 1 | €0.56 | 1-4 weeks to ship | ||
| 059 | 125260-4 | RECOILSTARTER ASS'Y | 1 | €51.21 | 1-4 weeks to ship | |
| 125260-4 | RECOILSTARTER ASS'Y | 1 | €51.21 | 1-4 weeks to ship | ||
| 125260-4 | RECOILSTARTER ASS'Y | 1 | €51.21 | 1-4 weeks to ship | ||
| 060 | SG00000005 | SET SCREW A60701200080 | 1 | €2.78 | 1-4 weeks to ship | |
| SG00000005 | SET SCREW A60701200080 | 1 | €2.78 | 1-4 weeks to ship | ||
| SG00000005 | SET SCREW A60701200080 | 1 | €2.78 | 1-4 weeks to ship | ||
| 061 | SG00000004 | CAM PLATE A54308180700 | 1 | €4.45 | 1-4 weeks to ship | |
| SG00000004 | CAM PLATE A54308180700 | 1 | €4.45 | 1-4 weeks to ship | ||
| SG00000004 | CAM PLATE A54308180700 | 1 | €4.45 | 1-4 weeks to ship | ||
| 062 | SG00000003 | DAMPER SPRING A52408180700 | 1 | €8.35 | 1-4 weeks to ship | |
| SG00000003 | DAMPER SPRING A52408180700 | 1 | €8.35 | 1-4 weeks to ship | ||
| SG00000003 | DAMPER SPRING A52408180700 | 1 | €8.35 | 1-4 weeks to ship | ||
| 063 | SG00000001 | REEL A54108100300 | 1 | €6.26 | 1-4 weeks to ship | |
| SG00000001 | REEL A54108100300 | 1 | €6.26 | 1-4 weeks to ship | ||
| SG00000001 | REEL A54108100300 | 1 | €6.26 | 1-4 weeks to ship | ||
| 064 | SG00000007 | STARTER ROPE A57110860000 | 1 | €4.45 | 1-4 weeks to ship | |
| SG00000007 | STARTER ROPE A57110860000 | 1 | €4.45 | 1-4 weeks to ship | ||
| SG00000007 | STARTER ROPE A57110860000 | 1 | €4.45 | 1-4 weeks to ship | ||
| 065 | SG00000002 | SPRING ASS'Y A20403720201 | 1 | €13.64 | 1-4 weeks to ship | |
| SG00000002 | SPRING ASS'Y A20403720201 | 1 | €13.64 | 1-4 weeks to ship | ||
| SG00000002 | SPRING ASS'Y A20403720201 | 1 | €13.64 | 1-4 weeks to ship | ||
| 066 | SG00000008 | STARTER KNOB A5720A20000 | 1 | €4.73 | 1-4 weeks to ship | |
| SG00000008 | STARTER KNOB A5720A20000 | 1 | €4.73 | 1-4 weeks to ship | ||
| SG00000008 | STARTER KNOB A5720A20000 | 1 | €4.73 | 1-4 weeks to ship | ||
| 067 | SG00000009 | ROPE STOPPER A57302611810 | 1 | €2.09 | 1-4 weeks to ship | |
| SG00000009 | ROPE STOPPER A57302611810 | 1 | €2.09 | 1-4 weeks to ship | ||
| SG00000009 | ROPE STOPPER A57302611810 | 1 | €2.09 | 1-4 weeks to ship | ||

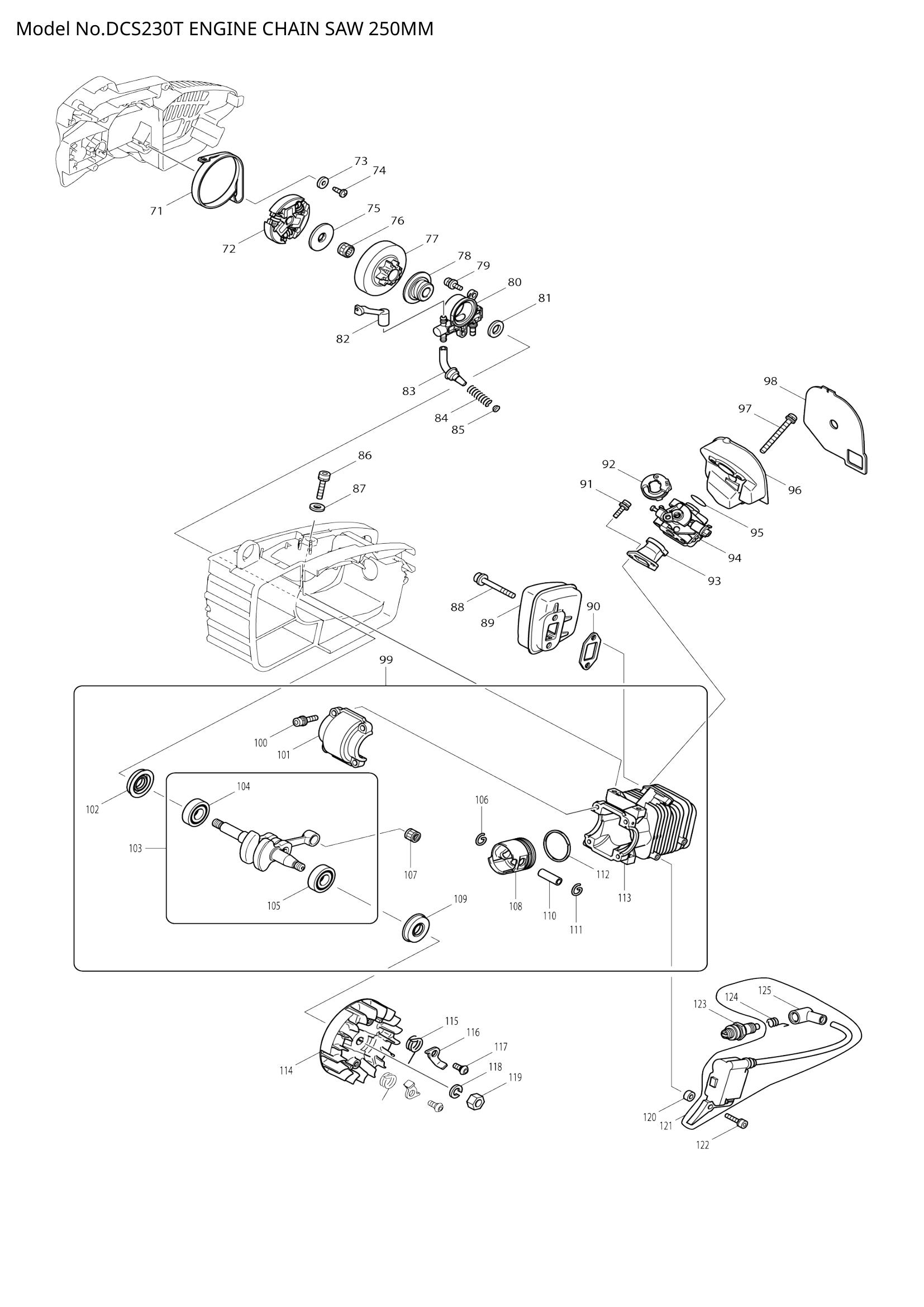

| 068 | 163450-1 | STARTER CASE COMPLETE | 1 | €12.52 | 1-4 weeks to ship | |
| 163450-1 | STARTER CASE COMPLETE | 1 | €12.52 | 1-4 weeks to ship | ||
| 163450-1 | STARTER CASE COMPLETE | 1 | €12.52 | 1-4 weeks to ship | ||
| 069 | 265995-6 | TAPPING SCREW 4X18 | 3 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 3 | €0.56 | 1-4 weeks to ship | ||
| 265995-6 | TAPPING SCREW 4X18 | 3 | €0.56 | 1-4 weeks to ship | ||
| 070 | 861167-7 | NAME PLATE DCS230T | 1 | €2.09 | 1-4 weeks to ship | |
| 861167-7 | NAME PLATE DCS230T | 1 | €2.09 | 1-4 weeks to ship | ||
| 861167-7 | NAME PLATE DCS230T | 1 | €2.09 | 1-4 weeks to ship | ||
| 071 | 345454-7 | BRAKE BAND | 1 | €11.13 | 1-4 weeks to ship | |
| 345454-7 | BRAKE BAND | 1 | €11.13 | 1-4 weeks to ship | ||
| 345454-7 | BRAKE BAND | 1 | €11.13 | 1-4 weeks to ship | ||
| 072 | 168391-6 | CLUTCH COMPLETE | 1 | €22.54 | 1-4 weeks to ship | |
| 168391-6 | CLUTCH COMPLETE | 1 | €22.54 | 1-4 weeks to ship | ||
| 168391-6 | CLUTCH COMPLETE | 1 | €22.54 | 1-4 weeks to ship | ||
| 073 | 267195-4 | FLAT WASHER 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 267195-4 | FLAT WASHER 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 267195-4 | FLAT WASHER 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 074 | 266020-6 | TAPPING SCREW 4X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 266020-6 | TAPPING SCREW 4X12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 266020-6 | TAPPING SCREW 4X12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 075 | 267284-5 | FLAT WASHER 8 | 1 | €2.09 | 1-4 weeks to ship | |
| 267284-5 | FLAT WASHER 8 | 1 | €2.09 | 1-4 weeks to ship | ||
| 267284-5 | FLAT WASHER 8 | 1 | €2.09 | 1-4 weeks to ship | ||
| 076 | 212077-5 | NEEDLE CAGE | 1 | €5.57 | 1-4 weeks to ship | |
| 212077-5 | NEEDLE CAGE | 1 | €5.57 | 1-4 weeks to ship | ||
| 212077-5 | NEEDLE CAGE | 1 | €5.57 | 1-4 weeks to ship | ||
| 077 | CLUTCHDRUM COMPLETE | 1 | Not available in store | |||
| CLUTCHDRUM COMPLETE | 1 | Not available in store | ||||
| CLUTCHDRUM COMPLETE | 1 | Not available in store | ||||
| CLUTCHDRUM COMPLETE | 1 | Not available in store | ||||
| CLUTCHDRUM COMPLETE | 1 | Not available in store | ||||
| CLUTCHDRUM COMPLETE | 1 | Not available in store | ||||
| 078 | 221422-3 | WORM GEAR | 1 | €8.35 | 1-4 weeks to ship | |
| 221422-3 | WORM GEAR | 1 | €8.35 | 1-4 weeks to ship | ||
| 221422-3 | WORM GEAR | 1 | €8.35 | 1-4 weeks to ship | ||
| 079 | 911118-1 | PAN HEAD SCREW M4X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 911118-1 | PAN HEAD SCREW M4X12 | 2 | €0.56 | 1-4 weeks to ship | ||
| 911118-1 | PAN HEAD SCREW M4X12 | 2 | €0.56 | 1-4 weeks to ship | ||
| 080 | 168393-2 | OIL PUMP | 1 | €47.31 | 1-4 weeks to ship | |
| 168393-2 | OIL PUMP | 1 | €47.31 | 1-4 weeks to ship | ||
| 168393-2 | OIL PUMP | 1 | €47.31 | 1-4 weeks to ship | ||
| 081 | 253758-2 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 253758-2 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 253758-2 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 082 | 421873-2 | CONNECTOR | 1 | €2.78 | 1-4 weeks to ship | |
| 421873-2 | CONNECTOR | 1 | €2.78 | 1-4 weeks to ship | ||
| 421873-2 | CONNECTOR | 1 | €2.78 | 1-4 weeks to ship | ||
| 083 | 421876-6 | OIL TUBE | 1 | €0.83 | 1-4 weeks to ship | |
| 421876-6 | OIL TUBE | 1 | €0.83 | 1-4 weeks to ship | ||
| 421876-6 | OIL TUBE | 1 | €0.83 | 1-4 weeks to ship | ||
| 084 | 231975-4 | SPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 231975-4 | SPRING | 1 | €0.56 | 1-4 weeks to ship | ||
| 231975-4 | SPRING | 1 | €0.56 | 1-4 weeks to ship | ||
| 085 | 416274-7 | CAP | 1 | €0.56 | 1-4 weeks to ship | |
| 416274-7 | CAP | 1 | €0.56 | 1-4 weeks to ship | ||
| 416274-7 | CAP | 1 | €0.56 | 1-4 weeks to ship | ||
| 086 | 922231-0 | HEX. SOCKET HEAD BOLT M5X20 | 4 | €0.56 | 1-4 weeks to ship | |
| 922231-0 | HEX. SOCKET HEAD BOLT M5X20 | 4 | €0.56 | 1-4 weeks to ship | ||
| 922231-0 | HEX. SOCKET HEAD BOLT M5X20 | 4 | €0.56 | 1-4 weeks to ship | ||
| 087 | 941101-4 | FLAT WASHER 5 | 4 | €0.56 | 1-4 weeks to ship | |
| 941101-4 | FLAT WASHER 5 | 4 | €0.56 | 1-4 weeks to ship | ||
| 941101-4 | FLAT WASHER 5 | 4 | €0.56 | 1-4 weeks to ship | ||
| 088 | 266354-7 | FLANGE SOCKET M5X40 | 2 | €2.78 | 1-4 weeks to ship | |
| 266354-7 | FLANGE SOCKET M5X40 | 2 | €2.78 | 1-4 weeks to ship | ||
| 266354-7 | FLANGE SOCKET M5X40 | 2 | €2.78 | 1-4 weeks to ship | ||
| 089 | 168392-4 | EXHAUSTMUFFLER COMPLETE | 1 | €23.93 | 1-4 weeks to ship | |
| 168392-4 | EXHAUSTMUFFLER COMPLETE | 1 | €23.93 | 1-4 weeks to ship | ||
| 168392-4 | EXHAUSTMUFFLER COMPLETE | 1 | €23.93 | 1-4 weeks to ship | ||
| 090 | 418718-3 | MUFFLER GASKET | 1 | €4.45 | 1-4 weeks to ship | |
| 418718-3 | MUFFLER GASKET | 1 | €4.45 | 1-4 weeks to ship | ||
| 418718-3 | MUFFLER GASKET | 1 | €4.45 | 1-4 weeks to ship | ||
| 091 | 922123-3 | HEX. SOCKET HEAD BOLT M4X14 | 2 | €0.56 | 1-4 weeks to ship | |
| 922123-3 | HEX. SOCKET HEAD BOLT M4X14 | 2 | €0.56 | 1-4 weeks to ship | ||
| 922123-3 | HEX. SOCKET HEAD BOLT M4X14 | 2 | €0.56 | 1-4 weeks to ship | ||
| 092 | 418717-5 | THROTTLE HOLDER | 1 | €2.92 | 1-4 weeks to ship | |
| 418717-5 | THROTTLE HOLDER | 1 | €2.92 | 1-4 weeks to ship | ||
| 418717-5 | THROTTLE HOLDER | 1 | €2.92 | 1-4 weeks to ship | ||
| 094 | 168394-0 | CARBURETOR | 1 | €79.87 | 1-4 weeks to ship | |
| 168394-0 | CARBURETOR | 1 | €79.87 | 1-4 weeks to ship | ||
| 168394-0 | CARBURETOR | 1 | €79.87 | 1-4 weeks to ship | ||
| 095 | 213221-7 | O RING 15 | 1 | €2.78 | 1-4 weeks to ship | |
| 213221-7 | O RING 15 | 1 | €2.78 | 1-4 weeks to ship | ||
| 213221-7 | O RING 15 | 1 | €2.78 | 1-4 weeks to ship | ||
| 096 | 418702-8 | CLEANER CASE | 1 | €4.45 | 1-4 weeks to ship | |
| 418702-8 | CLEANER CASE | 1 | €4.45 | 1-4 weeks to ship | ||
| 418702-8 | CLEANER CASE | 1 | €4.45 | 1-4 weeks to ship | ||
| 097 | 911268-2 | PAN HEAD SCREW M5X45 | 2 | €0.56 | 1-4 weeks to ship | |
| 911268-2 | PAN HEAD SCREW M5X45 | 2 | €0.56 | 1-4 weeks to ship | ||
| 911268-2 | PAN HEAD SCREW M5X45 | 2 | €0.56 | 1-4 weeks to ship | ||
| 911268-2 | PAN HEAD SCREW M5X45 | 2 | €0.56 | 1-4 weeks to ship | ||
| 911268-2 | PAN HEAD SCREW M5X45 | 2 | €0.56 | 1-4 weeks to ship | ||
| 911268-2 | PAN HEAD SCREW M5X45 | 2 | €0.56 | 1-4 weeks to ship | ||
| 098 | 443118-8 | AIR FILTER | 1 | €2.92 | 1-4 weeks to ship | |
| 443118-8 | AIR FILTER | 1 | €2.92 | 1-4 weeks to ship | ||
| 443118-8 | AIR FILTER | 1 | €2.92 | 1-4 weeks to ship | ||
| 099 | 125255-7 | ENGINE SHORT BLOCK | 1 | €323.25 | 1-4 weeks to ship | |
| 125255-7 | ENGINE SHORT BLOCK | 1 | €323.25 | 1-4 weeks to ship | ||
| 125255-7 | ENGINE SHORT BLOCK | 1 | €323.25 | 1-4 weeks to ship | ||
| 100 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | 4 | €0.56 | 1-4 weeks to ship | |
| 922233-6 | H.S.H.BOLT M5X20 WITH WR | 4 | €0.56 | 1-4 weeks to ship | ||
| 922233-6 | H.S.H.BOLT M5X20 WITH WR | 4 | €0.56 | 1-4 weeks to ship | ||
| 101 | 183944-0 | CYLINDER SET | 1 | €235.16 | 1-4 weeks to ship | |
| 183944-0 | CYLINDER SET | 1 | €235.16 | 1-4 weeks to ship | ||
| 183944-0 | CYLINDER SET | 1 | €235.16 | 1-4 weeks to ship | ||
| 102 | 213131-8 | OIL SEAL 12 | 1 | €12.52 | 1-4 weeks to ship | |
| 213131-8 | OIL SEAL 12 | 1 | €12.52 | 1-4 weeks to ship | ||
| 213131-8 | OIL SEAL 12 | 1 | €12.52 | 1-4 weeks to ship | ||
| 103 | 153910-1 | CRANKSHAFT COMPLETE | 1 | €115.08 | 1-4 weeks to ship | |
| 153910-1 | CRANKSHAFT COMPLETE | 1 | €115.08 | 1-4 weeks to ship | ||
| 153910-1 | CRANKSHAFT COMPLETE | 1 | €115.08 | 1-4 weeks to ship | ||
| 107 | 212955-9 | NEEDLE CAGE 8X11X10 | 1 | €8.77 | 1-4 weeks to ship | |
| 212955-9 | NEEDLE CAGE 8X11X10 | 1 | €8.77 | 1-4 weeks to ship | ||
| 212955-9 | NEEDLE CAGE 8X11X10 | 1 | €8.77 | 1-4 weeks to ship | ||
| 108 | 317811-9 | PISTON | 1 | €29.08 | 1-4 weeks to ship | |
| 317811-9 | PISTON | 1 | €29.08 | 1-4 weeks to ship | ||
| 317811-9 | PISTON | 1 | €29.08 | 1-4 weeks to ship | ||
| 109 | 213131-8 | OIL SEAL 12 | 1 | €12.52 | 1-4 weeks to ship | |
| 213131-8 | OIL SEAL 12 | 1 | €12.52 | 1-4 weeks to ship | ||
| 213131-8 | OIL SEAL 12 | 1 | €12.52 | 1-4 weeks to ship | ||
| 110 | 324467-1 | PISTON PIN 8 | 1 | €2.78 | 1-4 weeks to ship | |
| 324467-1 | PISTON PIN 8 | 1 | €2.78 | 1-4 weeks to ship | ||
| 324467-1 | PISTON PIN 8 | 1 | €2.78 | 1-4 weeks to ship | ||
| 112 | 324463-9 | PISTON RING | 2 | €7.79 | 1-4 weeks to ship | |
| 324463-9 | PISTON RING | 2 | €7.79 | 1-4 weeks to ship | ||
| 324463-9 | PISTON RING | 2 | €7.79 | 1-4 weeks to ship | ||
| 113 | 183944-0 | CYLINDER SET | 1 | €235.16 | 1-4 weeks to ship | |
| 183944-0 | CYLINDER SET | 1 | €235.16 | 1-4 weeks to ship | ||
| 183944-0 | CYLINDER SET | 1 | €235.16 | 1-4 weeks to ship | ||
| 114 | 317813-5 | FLYWHEEL | 1 | €35.62 | 1-4 weeks to ship | |
| 317813-5 | FLYWHEEL | 1 | €35.62 | 1-4 weeks to ship | ||
| 317813-5 | FLYWHEEL | 1 | €35.62 | 1-4 weeks to ship | ||
| 115 | 231671-4 | TORSION SPRING | 2 | €0.83 | 1-4 weeks to ship | |
| 231671-4 | TORSION SPRING | 2 | €0.83 | 1-4 weeks to ship | ||
| 231671-4 | TORSION SPRING | 2 | €0.83 | 1-4 weeks to ship | ||
| 116 | 345453-9 | RACHET | 2 | €2.09 | 1-4 weeks to ship | |
| 345453-9 | RACHET | 2 | €2.09 | 1-4 weeks to ship | ||
| 345453-9 | RACHET | 2 | €2.09 | 1-4 weeks to ship | ||
| 117 | 266342-4 | HEX.SOCKET BUTTON BOLT M5X | 2 | €2.09 | 1-4 weeks to ship | |
| 266342-4 | HEX.SOCKET BUTTON BOLT M5X | 2 | €2.09 | 1-4 weeks to ship | ||
| 266342-4 | HEX.SOCKET BUTTON BOLT M5X | 2 | €2.09 | 1-4 weeks to ship | ||
| 118 | 942201-3 | SPRING WASHER 8 | 1 | €0.83 | 1-4 weeks to ship | |
| 942201-3 | SPRING WASHER 8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 942201-3 | SPRING WASHER 8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 119 | 931403-6 | HEX. NUT M8 | 1 | €0.56 | 1-4 weeks to ship | |
| 931403-6 | HEX. NUT M8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 931403-6 | HEX. NUT M8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 120 | 418714-1 | SPACER | 2 | €2.78 | 1-4 weeks to ship | |
| 418714-1 | SPACER | 2 | €2.78 | 1-4 weeks to ship | ||
| 418714-1 | SPACER | 2 | €2.78 | 1-4 weeks to ship | ||
| 121 | 125278-5 | IGNITION COIL ASS'Y | 1 | €51.21 | 1-4 weeks to ship | |
| 125278-5 | IGNITION COIL ASS'Y | 1 | €51.21 | 1-4 weeks to ship | ||
| 125278-5 | IGNITION COIL ASS'Y | 1 | €51.21 | 1-4 weeks to ship | ||
| 126 | WJ00096325 | SCREW | 4 | €4.45 | 1-4 weeks to ship | |
| WJ00096325 | SCREW | 4 | €4.45 | 1-4 weeks to ship | ||
| WJ00096325 | SCREW | 4 | €4.45 | 1-4 weeks to ship | ||

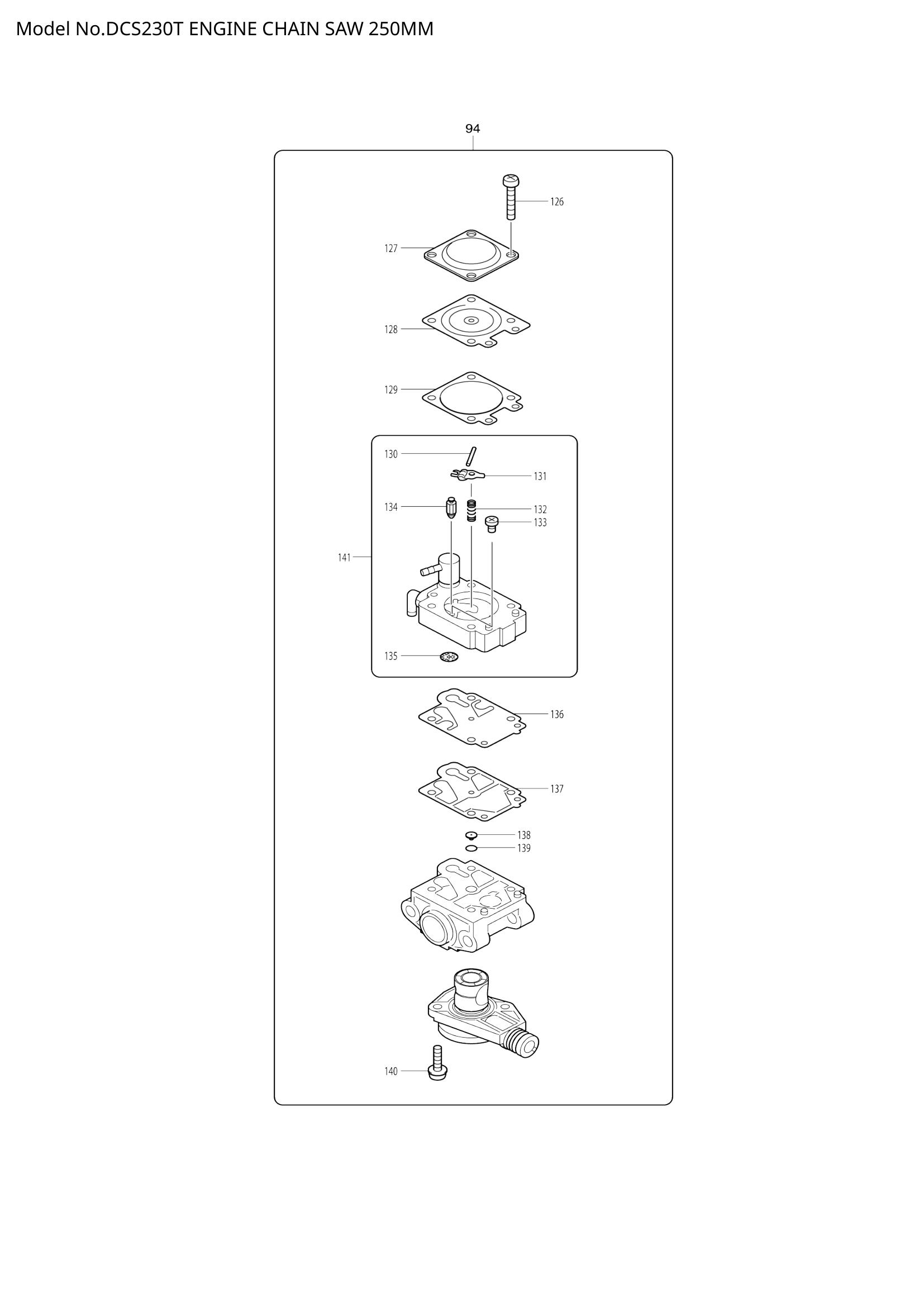

| 127 | WJ00021158 | METERING DIAPHRAGM COVER | 1 | €4.45 | 1-4 weeks to ship | |
| WJ00021158 | METERING DIAPHRAGM COVER | 1 | €4.45 | 1-4 weeks to ship | ||
| WJ00021158 | METERING DIAPHRAGM COVER | 1 | €4.45 | 1-4 weeks to ship | ||
| 128 | WJ00095586 | DIAPHRAGM ASS'Y | 1 | €17.53 | 1-4 weeks to ship | |
| WJ00095586 | DIAPHRAGM ASS'Y | 1 | €17.53 | 1-4 weeks to ship | ||
| WJ00095586 | DIAPHRAGM ASS'Y | 1 | €17.53 | 1-4 weeks to ship | ||
| 130 | WJ00014477 | METERING LEVER PIN | 1 | €2.78 | 1-4 weeks to ship | |
| WJ00014477 | METERING LEVER PIN | 1 | €2.78 | 1-4 weeks to ship | ||
| WJ00014477 | METERING LEVER PIN | 1 | €2.78 | 1-4 weeks to ship | ||
| 131 | WJ00016648 | LEVER | 1 | €1.67 | 1-4 weeks to ship | |
| WJ00016648 | LEVER | 1 | €1.67 | 1-4 weeks to ship | ||
| WJ00016648 | LEVER | 1 | €1.67 | 1-4 weeks to ship | ||
| 132 | WJ00983160 | SPRING | 1 | €4.45 | 1-4 weeks to ship | |
| WJ00983160 | SPRING | 1 | €4.45 | 1-4 weeks to ship | ||
| WJ00983160 | SPRING | 1 | €4.45 | 1-4 weeks to ship | ||
| 133 | WJ00096424 | SCREW | 1 | €2.78 | 1-4 weeks to ship | |
| WJ00096424 | SCREW | 1 | €2.78 | 1-4 weeks to ship | ||
| WJ00096424 | SCREW | 1 | €2.78 | 1-4 weeks to ship | ||
| 134 | WJ00008282 | INLET NEEDLE VALVE | 1 | €8.35 | 1-4 weeks to ship | |
| WJ00008282 | INLET NEEDLE VALVE | 1 | €8.35 | 1-4 weeks to ship | ||
| WJ00008282 | INLET NEEDLE VALVE | 1 | €8.35 | 1-4 weeks to ship | ||
| 135 | WJ00014070 | INLET SCREEN | 1 | €2.78 | 1-4 weeks to ship | |
| WJ00014070 | INLET SCREEN | 1 | €2.78 | 1-4 weeks to ship | ||
| WJ00014070 | INLET SCREEN | 1 | €2.78 | 1-4 weeks to ship | ||
| 136 | WJ00009599 | PUMP DIAPHRAGM | 1 | €6.26 | 1-4 weeks to ship | |
| WJ00009599 | PUMP DIAPHRAGM | 1 | €6.26 | 1-4 weeks to ship | ||
| WJ00009599 | PUMP DIAPHRAGM | 1 | €6.26 | 1-4 weeks to ship | ||
| 138 | WJ00112241 | JET | 1 | €12.11 | 1-4 weeks to ship | |
| WJ00112241 | JET | 1 | €12.11 | 1-4 weeks to ship | ||
| WJ00112241 | JET | 1 | €12.11 | 1-4 weeks to ship | ||
| 139 | WJ00016104 | O RING | 1 | €4.45 | 1-4 weeks to ship | |
| WJ00016104 | O RING | 1 | €4.45 | 1-4 weeks to ship | ||
| WJ00016104 | O RING | 1 | €4.45 | 1-4 weeks to ship | ||
| 140 | WJ00096364 | SCREW M3X8 WITH WASHER | 2 | €4.45 | 1-4 weeks to ship | |
| WJ00096364 | SCREW M3X8 WITH WASHER | 2 | €4.45 | 1-4 weeks to ship | ||
| WJ00096364 | SCREW M3X8 WITH WASHER | 2 | €4.45 | 1-4 weeks to ship | ||
| 141 | WJ00052903 | PUMP BODY ASS'Y | 1 | €27.55 | 1-4 weeks to ship | |
| WJ00052903 | PUMP BODY ASS'Y | 1 | €27.55 | 1-4 weeks to ship | ||
| WJ00052903 | PUMP BODY ASS'Y | 1 | €27.55 | 1-4 weeks to ship | ||
| 142 | 324616-0 | HOSE CLAMP | 1 | €1.25 | 1-4 weeks to ship | |
| 324616-0 | HOSE CLAMP | 1 | €1.25 | 1-4 weeks to ship | ||
| 324616-0 | HOSE CLAMP | 1 | €1.25 | 1-4 weeks to ship | ||
| 145 | 253929-1 | CUP WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 253929-1 | CUP WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 253929-1 | CUP WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | ||
