DCO180
DCO180

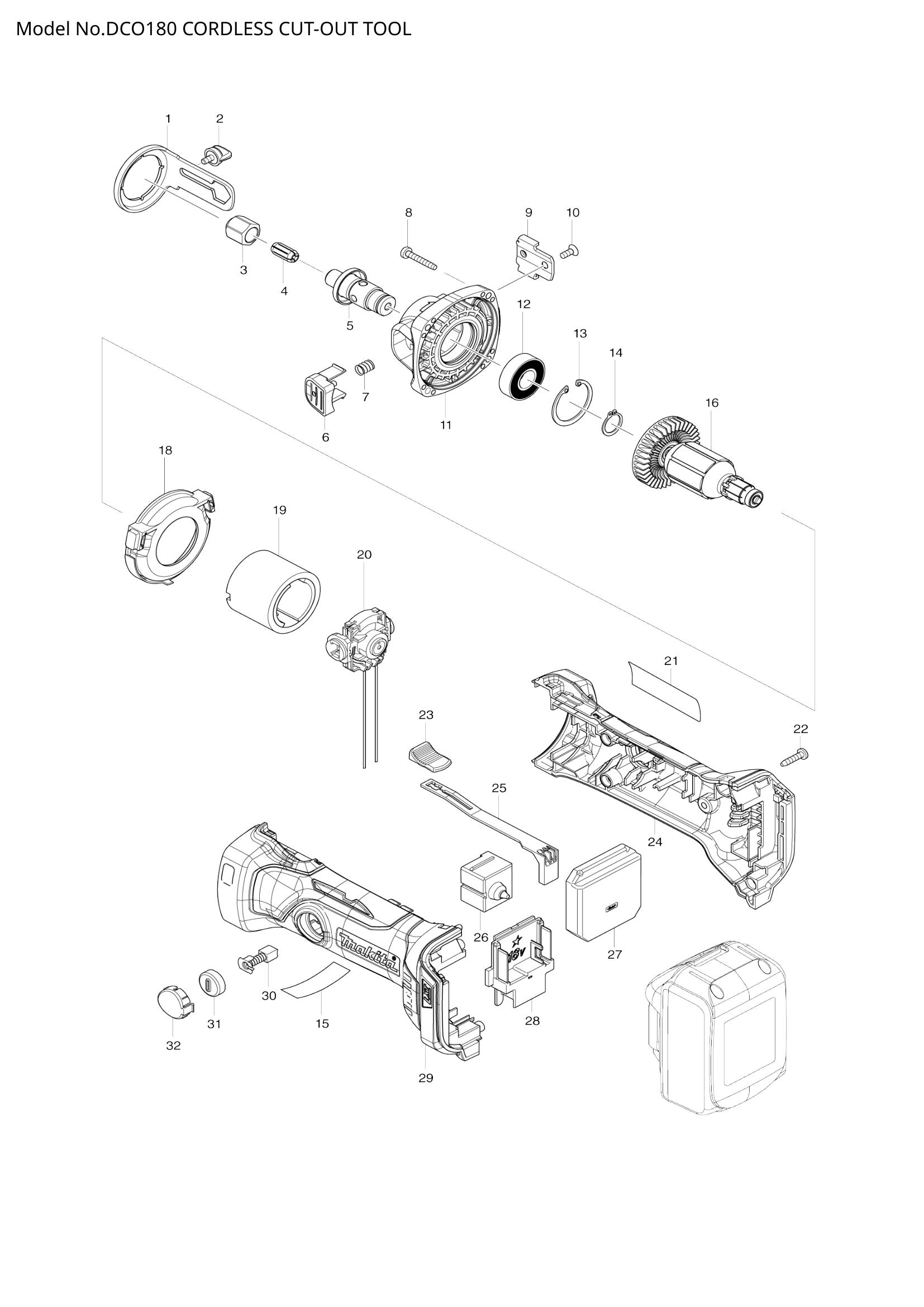

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 346796-2 | SHOE PLATE | 1 | €3.06 | 1-4 weeks to ship | |
| 002 | 266898-7 | THUMB SCREW M4X8 | 1 | €1.81 | 1-4 weeks to ship | |
| 004 | 763677-9 | COLLET CONE 3.18 | 1 | €14.19 | 1-4 weeks to ship | |
| 005 | 142656-4 | SPINDLE COMPLETE | 1 | €12.11 | 1-4 weeks to ship | |
| 006 | 455181-9 | SHAFT LOCK | 1 | €1.67 | 1-4 weeks to ship | |
| 455181-9 | SHAFT LOCK | 1 | €1.67 | 1-4 weeks to ship | ||
| 007 | 234332-5 | COMPRESSION SPRING 7 | 1 | €0.14 | 1-4 weeks to ship | |
| 008 | 266374-1 | TAPPING SCREW 4X25 | 4 | €0.56 | 1-4 weeks to ship | |
| 009 | 346795-4 | SHOE SUPPORT | 1 | €1.67 | 1-4 weeks to ship | |
| 010 | 912107-9 | COUNTERSUNK HEAD SCREW M4 | 1 | €0.56 | 1-4 weeks to ship | |
| 912107-9 | COUNTERSUNK HEAD SCREW M4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 011 | 142655-6 | BEARING BOX COMPLETE | 1 | €16.70 | 1-4 weeks to ship | |
| 012 | 211236-8 | BALL BEARING 6002DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 013 | 962151-6 | RETAINING RING R-32 | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | 961055-9 | RETAINING RING S-15 | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | 619344-3 | ARMATURE | 1 | €17.25 | 1-4 weeks to ship | |
| 619344-3 | ARMATURE | 1 | €17.25 | 1-4 weeks to ship | ||
| 018 | 455182-7 | BAFFLE PLATE | 1 | €2.50 | 1-4 weeks to ship | |
| 455182-7 | BAFFLE PLATE | 1 | €2.50 | 1-4 weeks to ship | ||
| 019 | 638627-2 | YOKE UNIT | 1 | €19.48 | 1-4 weeks to ship | |
| 020 | 632C14-5 | ENDBELL COMPLETE | 1 | €2.92 | 1-4 weeks to ship | |
| 632C14-5 | ENDBELL COMPLETE | 1 | €2.92 | 1-4 weeks to ship | ||
| 021 | DCO180 NAME PLATE | 1 | Not available in store | |||
| 022 | 266326-2 | TAPPING SCREW 4X18 | 5 | €0.56 | 1-4 weeks to ship | |
| 023 | 419566-3 | SWITCH KNOB | 1 | €0.56 | 1-4 weeks to ship | |
| 024 | 187871-3 | HOUSING SET | 1 | €20.04 | 1-4 weeks to ship | |
| 025 | 419519-2 | SWITCH LEVER | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | 620308-2 | CONTROLLER | 1 | €65.82 | 1-4 weeks to ship | |
| 620308-2 | CONTROLLER | 1 | €65.82 | 1-4 weeks to ship | ||
| 028 | 643860-3 | TERMINAL | 1 | €4.17 | 1-4 weeks to ship | |
| 029 | 187871-3 | HOUSING SET | 1 | €20.04 | 1-4 weeks to ship | |
| 030 | 191971-3 | CARBON BRUSH CB-430 | 1 | €2.78 | 1-4 weeks to ship | |
| 031 | 643929-3 | BRUSH HOLDER CAP | 2 | €0.56 | 1-4 weeks to ship | |
| 032 | 455183-5 | HOLDER CAP COVER | 2 | €0.56 | 1-4 weeks to ship | |
| 455183-5 | HOLDER CAP COVER | 2 | €0.56 | 1-4 weeks to ship | ||
