4305
4305

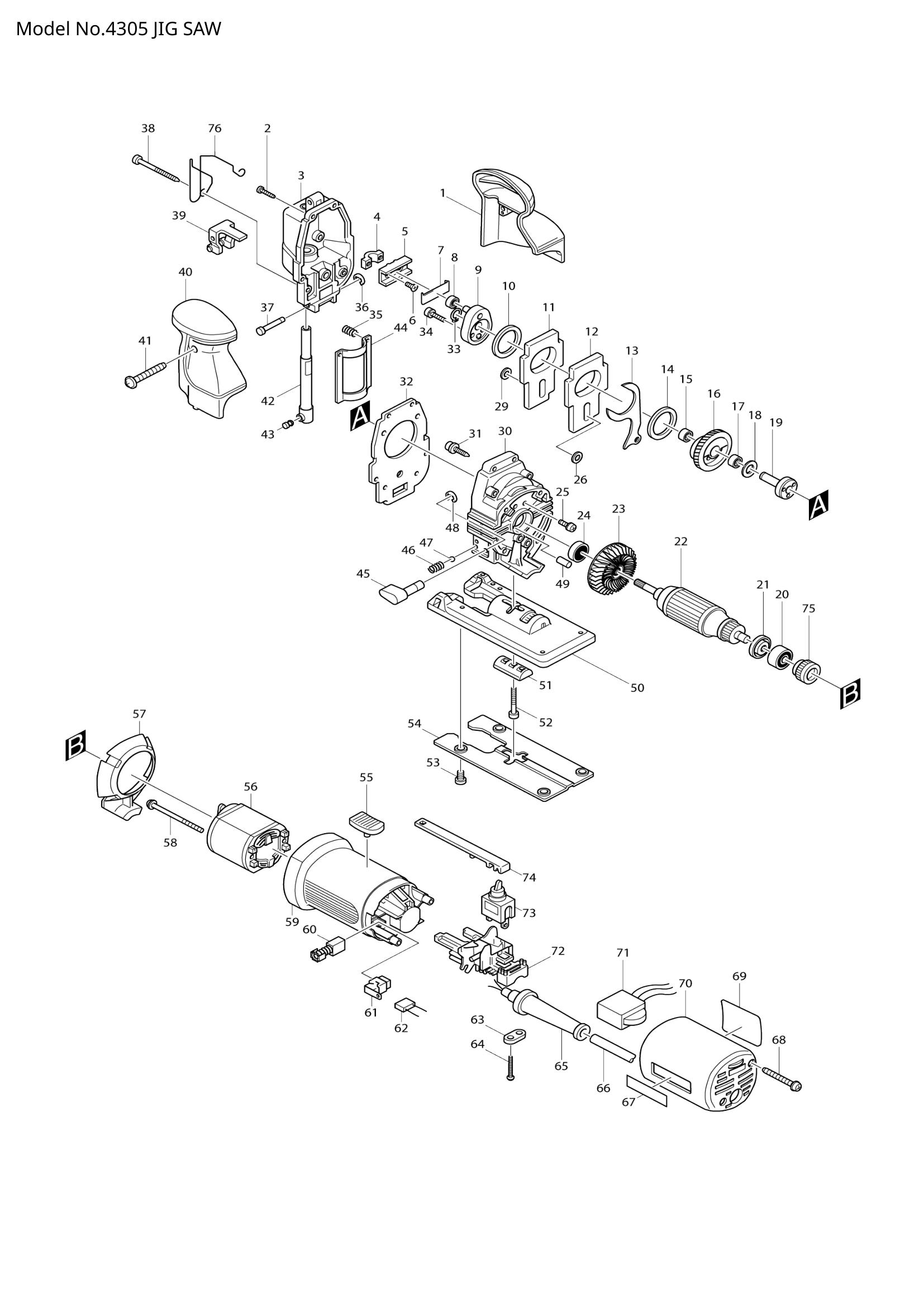

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 182681-3 | HEAD COVER SET | 1 | €12.52 | 1-4 weeks to ship | |
| 182681-3 | HEAD COVER SET | 1 | €12.52 | 1-4 weeks to ship | ||
| 002 | 266034-5 | TAPPING SCREW CT 4X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 266034-5 | TAPPING SCREW CT 4X16 | 2 | €0.56 | 1-4 weeks to ship | ||
| 004 | 316608-3 | HOLDER | 1 | €11.13 | 1-4 weeks to ship | |
| 316608-3 | HOLDER | 1 | €11.13 | 1-4 weeks to ship | ||
| 006 | 265035-0 | COUNTERSUNK HEAD SCREW M4 | 2 | €0.56 | 1-4 weeks to ship | |
| 265035-0 | COUNTERSUNK HEAD SCREW M4 | 2 | €0.56 | 1-4 weeks to ship | ||
| 007 | 344232-2 | THRUST PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 344232-2 | THRUST PLATE | 1 | €0.56 | 1-4 weeks to ship | ||
| 008 | 212010-7 | NEEDLE BEARING 607 | 1 | €13.92 | 1-4 weeks to ship | |
| 212010-7 | NEEDLE BEARING 607 | 1 | €13.92 | 1-4 weeks to ship | ||
| 009 | 152454-8 | CRANK COMPLETE | 1 | €8.35 | 1-4 weeks to ship | |
| 152454-8 | CRANK COMPLETE | 1 | €8.35 | 1-4 weeks to ship | ||
| 010 | 253792-2 | FLAT WASHER 26 | 1 | €0.56 | 1-4 weeks to ship | |
| 253792-2 | FLAT WASHER 26 | 1 | €0.56 | 1-4 weeks to ship | ||
| 013 | 344134-2 | PUSH PLATE | 1 | €4.17 | 1-4 weeks to ship | |
| 344134-2 | PUSH PLATE | 1 | €4.17 | 1-4 weeks to ship | ||
| 014 | 253792-2 | FLAT WASHER 26 | 1 | €0.56 | 1-4 weeks to ship | |
| 253792-2 | FLAT WASHER 26 | 1 | €0.56 | 1-4 weeks to ship | ||
| 016 | 226428-6 | HELICAL GEAR 51 | 1 | €30.61 | 1-4 weeks to ship | |
| 226428-6 | HELICAL GEAR 51 | 1 | €30.61 | 1-4 weeks to ship | ||
| 018 | 253139-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 253139-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 019 | 322691-0 | GEAR SHAFT | 1 | €25.05 | 1-4 weeks to ship | |
| 322691-0 | GEAR SHAFT | 1 | €25.05 | 1-4 weeks to ship | ||
| 020 | 211021-9 | BALL BEARING 607LLB | 1 | €5.57 | 1-4 weeks to ship | |
| 211021-9 | BALL BEARING 607LLB | 1 | €5.57 | 1-4 weeks to ship | ||
| 021 | 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 024 | 211031-6 | BALL BEARING 608LLB | 1 | €1.67 | 1-4 weeks to ship | |
| 211031-6 | BALL BEARING 608LLB | 1 | €1.67 | 1-4 weeks to ship | ||
| 025 | 911111-5 | PAN HEAD SCREW M4X10 WITH | 3 | €0.56 | 1-4 weeks to ship | |
| 911111-5 | PAN HEAD SCREW M4X10 WITH | 3 | €0.56 | 1-4 weeks to ship | ||
| 026 | 253715-0 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 253715-0 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 029 | 253715-0 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 253715-0 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 033 | 961004-6 | RETAINING RING (EXT) S-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 961004-6 | RETAINING RING (EXT) S-8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 035 | 231314-8 | COMPRESSION SPRING 4 | 2 | €0.56 | 1-4 weeks to ship | |
| 231314-8 | COMPRESSION SPRING 4 | 2 | €0.56 | 1-4 weeks to ship | ||
| 036 | 961017-7 | STOP RING E-3 | 1 | €0.56 | 1-4 weeks to ship | |
| 961017-7 | STOP RING E-3 | 1 | €0.56 | 1-4 weeks to ship | ||
| 037 | 256693-3 | PIN 4 | 1 | €2.78 | 1-4 weeks to ship | |
| 256693-3 | PIN 4 | 1 | €2.78 | 1-4 weeks to ship | ||
| 040 | 182681-3 | HEAD COVER SET | 1 | €12.52 | 1-4 weeks to ship | |
| 182681-3 | HEAD COVER SET | 1 | €12.52 | 1-4 weeks to ship | ||
| 042 | 165089-6 | ROD | 1 | €33.40 | 1-4 weeks to ship | |
| 165089-6 | ROD | 1 | €33.40 | 1-4 weeks to ship | ||
| 043 | 265894-2 | H.S.SET SCREW(CUP POINT) M6X | 1 | €0.56 | 1-4 weeks to ship | |
| 265894-2 | H.S.SET SCREW(CUP POINT) M6X | 1 | €0.56 | 1-4 weeks to ship | ||
| 044 | 344137-6 | SLIDE PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 344137-6 | SLIDE PLATE | 1 | €2.78 | 1-4 weeks to ship | ||
| 045 | 272231-3 | LEVER 17 | 1 | €8.91 | 1-4 weeks to ship | |
| 272231-3 | LEVER 17 | 1 | €8.91 | 1-4 weeks to ship | ||
| 046 | 231314-8 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 231314-8 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 047 | 216008-6 | STEEL BALL 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 216008-6 | STEEL BALL 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 048 | 961018-5 | STOP RING E-5 | 1 | €0.56 | 1-4 weeks to ship | |
| 961018-5 | STOP RING E-5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 049 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 051 | 331435-7 | CLAMP PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 331435-7 | CLAMP PLATE | 1 | €2.78 | 1-4 weeks to ship | ||
| 052 | 922146-1 | HEX. SOCKET HEAD BOLT M4X25 | 1 | €0.56 | 1-4 weeks to ship | |
| 922146-1 | HEX. SOCKET HEAD BOLT M4X25 | 1 | €0.56 | 1-4 weeks to ship | ||
| 053 | 266055-7 | HEX. SOCKET HEAD BOLT M5X8 | 4 | €0.56 | 1-4 weeks to ship | |
| 266055-7 | HEX. SOCKET HEAD BOLT M5X8 | 4 | €0.56 | 1-4 weeks to ship | ||
| 055 | SWITCH LEVER | 1 | Not available in store | |||
| SWITCH LEVER | 1 | Not available in store | ||||
| 057 | 415535-2 | BAFFLE PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 415535-2 | BAFFLE PLATE | 1 | €2.78 | 1-4 weeks to ship | ||
| 061 | 643923-5 | BRUSH HOLDER | 2 | €1.11 | 1-4 weeks to ship | |
| 643923-5 | BRUSH HOLDER | 2 | €1.11 | 1-4 weeks to ship | ||
| 067 | 819063-3 | MAKITA LABEL | 1 | €0.56 | 1-4 weeks to ship | |
| 819063-3 | MAKITA LABEL | 1 | €0.56 | 1-4 weeks to ship | ||
| 069 | NAME PLATE 4305 | 1 | Not available in store | |||
| NAME PLATE 4305 | 1 | Not available in store | ||||
| 070 | 415531-0 | REAR COVER | 1 | €9.46 | 1-4 weeks to ship | |
| 415531-0 | REAR COVER | 1 | €9.46 | 1-4 weeks to ship | ||
| 072 | 687070-2 | SUPPORT | 1 | €3.34 | 1-4 weeks to ship | |
| 687070-2 | SUPPORT | 1 | €3.34 | 1-4 weeks to ship | ||
| 687070-2 | SUPPORT | 1 | €3.34 | 1-4 weeks to ship | ||
| 687070-2 | SUPPORT | 1 | €3.34 | 1-4 weeks to ship | ||
| 074 | SWITCH ROD | 1 | Not available in store | |||
| SWITCH ROD | 1 | Not available in store | ||||
| 075 | 421494-0 | RUBBER RING 19 | 1 | €4.17 | 1-4 weeks to ship | |
| 421494-0 | RUBBER RING 19 | 1 | €4.17 | 1-4 weeks to ship | ||
| 076 | 322893-8 | SAFETY WIRE | 1 | €2.78 | 1-4 weeks to ship | |
| 322893-8 | SAFETY WIRE | 1 | €2.78 | 1-4 weeks to ship | ||
| 077 | 344784-3 | SEAL PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 344784-3 | SEAL PLATE | 1 | €0.56 | 1-4 weeks to ship | ||
| 078 | 443106-5 | FELT 10-20 | 1 | €0.56 | 1-4 weeks to ship | |
| 443106-5 | FELT 10-20 | 1 | €0.56 | 1-4 weeks to ship | ||
