DCG140
DCG140

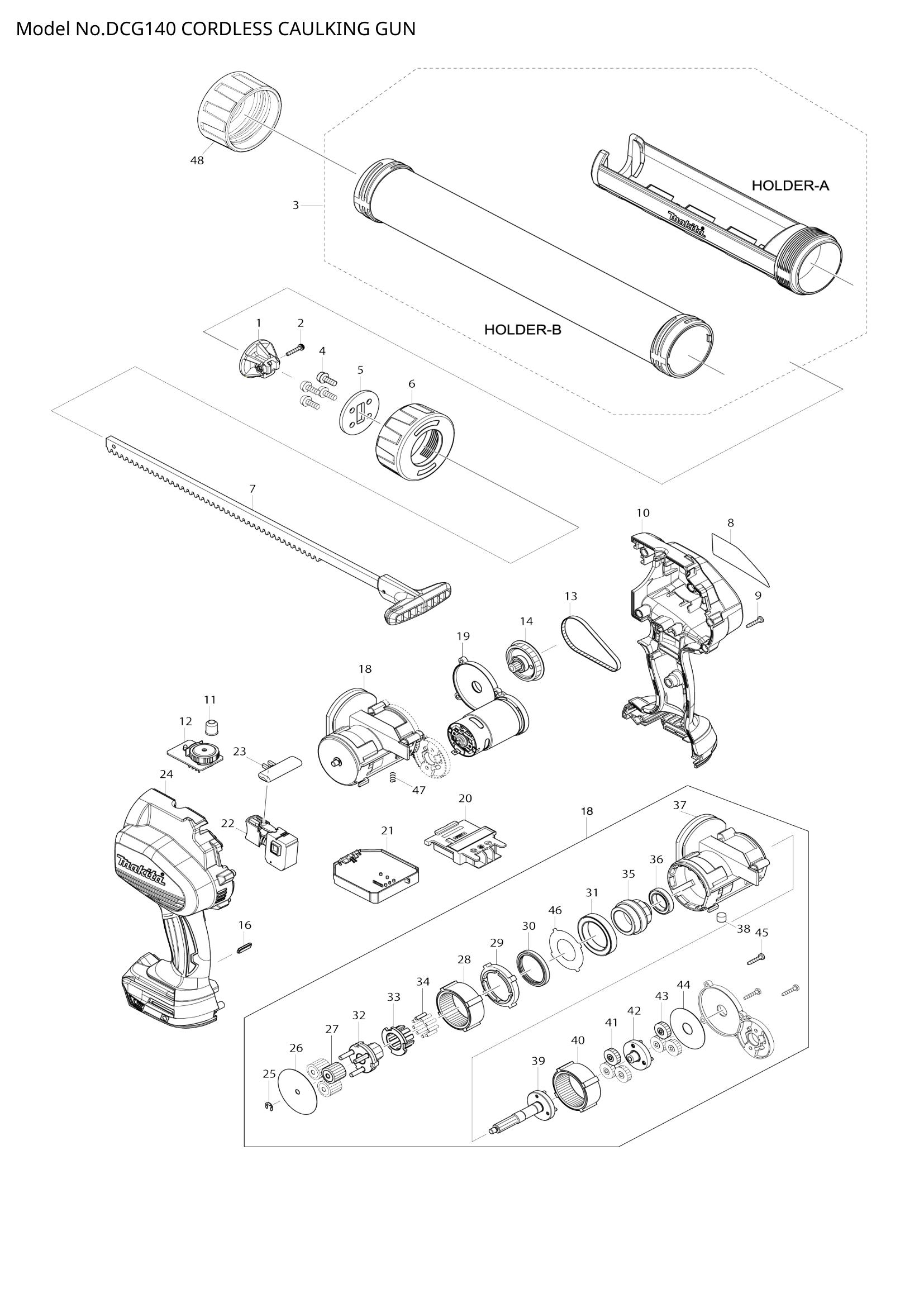

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 142072-0 | PISTON B COMPLETE | 1 | €5.57 | 1-4 weeks to ship | |
| 142071-2 | PISTON A COMPLETE | 1 | €4.17 | 1-4 weeks to ship | ||
| 142072-0 | PISTON B COMPLETE | 1 | €5.57 | 1-4 weeks to ship | ||
| 142071-2 | PISTON A COMPLETE | 1 | €4.17 | 1-4 weeks to ship | ||
| 002 | 266827-0 | PAN HEAD SCREW M3X18 WITH | 1 | €0.56 | 1-4 weeks to ship | |
| 266827-0 | PAN HEAD SCREW M3X18 WITH | 1 | €0.56 | 1-4 weeks to ship | ||
| 003 | 454275-7 | HOLDER A | 1 | €11.13 | 1-4 weeks to ship | |
| 454275-7 | HOLDER A | 1 | €11.13 | 1-4 weeks to ship | ||
| 454275-7 | HOLDER A | 1 | €11.13 | 1-4 weeks to ship | ||
| 454275-7 | HOLDER A | 1 | €11.13 | 1-4 weeks to ship | ||
| 004 | 265074-0 | PAN HEAD SCREW M5X16 | 4 | €0.28 | 1-4 weeks to ship | |
| 265074-0 | PAN HEAD SCREW M5X16 | 4 | €0.28 | 1-4 weeks to ship | ||
| 005 | 346649-5 | PLATE | 1 | €0.70 | 1-4 weeks to ship | |
| 346649-5 | PLATE | 1 | €0.70 | 1-4 weeks to ship | ||
| 006 | 454223-6 | HOLDER JOINT A | 1 | €5.57 | 1-4 weeks to ship | |
| 454223-6 | HOLDER JOINT A | 1 | €5.57 | 1-4 weeks to ship | ||
| 454223-6 | HOLDER JOINT A | 1 | €5.57 | 1-4 weeks to ship | ||
| 454223-6 | HOLDER JOINT A | 1 | €5.57 | 1-4 weeks to ship | ||
| 007 | 142041-1 | RACK 42 COMPLETE | 1 | €36.18 | 1-4 weeks to ship | |
| 142042-9 | RACK 64 COMPLETE | 1 | €44.53 | 1-4 weeks to ship | ||
| 142041-1 | RACK 42 COMPLETE | 1 | €36.18 | 1-4 weeks to ship | ||
| 142042-9 | RACK 64 COMPLETE | 1 | €44.53 | 1-4 weeks to ship | ||
| 008 | DCG140 NAME PLATE | 1 | Not available in store | |||
| DCG140 NAME PLATE | 1 | Not available in store | ||||
| 010 | 187616-9 | HOUSING SET | 1 | €39.38 | 1-4 weeks to ship | |
| 187616-9 | HOUSING SET | 1 | €39.38 | 1-4 weeks to ship | ||
| 011 | 418821-0 | LENS | 1 | €0.97 | 1-4 weeks to ship | |
| 418821-0 | LENS | 1 | €0.97 | 1-4 weeks to ship | ||
| 012 | 620180-2 | SUB CONTROLLER | 1 | €16.70 | 1-4 weeks to ship | |
| 620180-2 | SUB CONTROLLER | 1 | €16.70 | 1-4 weeks to ship | ||
| 013 | 225097-0 | SYNCHRO BELT 4-176 | 1 | €4.04 | 1-4 weeks to ship | |
| 225097-0 | SYNCHRO BELT 4-176 | 1 | €4.04 | 1-4 weeks to ship | ||
| 014 | 142038-0 | SPUR GEAR 9A COMPLETE | 1 | €24.21 | 1-4 weeks to ship | |
| 142038-0 | SPUR GEAR 9A COMPLETE | 1 | €24.21 | 1-4 weeks to ship | ||
| 016 | 454230-9 | LENS | 1 | €1.39 | 1-4 weeks to ship | |
| 454230-9 | LENS | 1 | €1.39 | 1-4 weeks to ship | ||
| 018 | 126253-4 | GEAR ASSEMBLY | 1 | €111.32 | 1-4 weeks to ship | |
| 126253-4 | GEAR ASSEMBLY | 1 | €111.32 | 1-4 weeks to ship | ||
| 019 | 142044-5 | MOTOR COMPLETE | 1 | €47.31 | 1-4 weeks to ship | |
| 142044-5 | MOTOR COMPLETE | 1 | €47.31 | 1-4 weeks to ship | ||
| 020 | 643850-6 | TERMINAL | 1 | €4.17 | 1-4 weeks to ship | |
| 643850-6 | TERMINAL | 1 | €4.17 | 1-4 weeks to ship | ||
| 022 | 650632-9 | SWITCH | 1 | €19.48 | 1-4 weeks to ship | |
| 650632-9 | SWITCH | 1 | €19.48 | 1-4 weeks to ship | ||
| 023 | 451162-1 | LOCK LEVER | 1 | €5.15 | 1-4 weeks to ship | |
| 451162-1 | LOCK LEVER | 1 | €5.15 | 1-4 weeks to ship | ||
| 024 | 187616-9 | HOUSING SET | 1 | €39.38 | 1-4 weeks to ship | |
| 187616-9 | HOUSING SET | 1 | €39.38 | 1-4 weeks to ship | ||
| 025 | 961011-9 | STOP RING E-4 | 1 | €0.56 | 1-4 weeks to ship | |
| 961011-9 | STOP RING E-4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 026 | 267465-1 | FLAT WASHER 5 | 1 | €0.83 | 1-4 weeks to ship | |
| 267465-1 | FLAT WASHER 5 | 1 | €0.83 | 1-4 weeks to ship | ||
| 027 | 227311-0 | SPUR GEAR 19B | 3 | €1.81 | 1-4 weeks to ship | |
| 227311-0 | SPUR GEAR 19B | 3 | €1.81 | 1-4 weeks to ship | ||
| 028 | 227309-7 | INTERNAL GEAR 48 | 1 | €7.65 | 1-4 weeks to ship | |
| 227309-7 | INTERNAL GEAR 48 | 1 | €7.65 | 1-4 weeks to ship | ||
| 031 | 211294-4 | BALL BEARING 6806LLU | 1 | €11.13 | 1-4 weeks to ship | |
| 211294-4 | BALL BEARING 6806LLU | 1 | €11.13 | 1-4 weeks to ship | ||
| 032 | 141860-2 | CARRIER A COMPLETE | 1 | €6.12 | 1-4 weeks to ship | |
| 141860-2 | CARRIER A COMPLETE | 1 | €6.12 | 1-4 weeks to ship | ||
| 033 | 313253-5 | CARRIER B | 1 | €4.04 | 1-4 weeks to ship | |
| 313253-5 | CARRIER B | 1 | €4.04 | 1-4 weeks to ship | ||
| 034 | 256255-7 | PIN 3 | 9 | €0.14 | 1-4 weeks to ship | |
| 256255-7 | PIN 3 | 9 | €0.14 | 1-4 weeks to ship | ||
| 035 | 227312-8 | SPUR GEAR 10 | 1 | €13.64 | 1-4 weeks to ship | |
| 227312-8 | SPUR GEAR 10 | 1 | €13.64 | 1-4 weeks to ship | ||
| 036 | 211482-3 | BALL BEARING 6803LLU | 1 | €6.12 | 1-4 weeks to ship | |
| 211482-3 | BALL BEARING 6803LLU | 1 | €6.12 | 1-4 weeks to ship | ||
| 037 | 454219-7 | GEAR HOUSING | 1 | €16.42 | 1-4 weeks to ship | |
| 454219-7 | GEAR HOUSING | 1 | €16.42 | 1-4 weeks to ship | ||
| 454219-7 | GEAR HOUSING | 1 | €16.42 | 1-4 weeks to ship | ||
| 454219-7 | GEAR HOUSING | 1 | €16.42 | 1-4 weeks to ship | ||
| 038 | 313257-7 | MAGNET | 1 | €3.20 | 1-4 weeks to ship | |
| 313257-7 | MAGNET | 1 | €3.20 | 1-4 weeks to ship | ||
| 039 | 141859-7 | SPUR GEAR 9C COMPLETE | 1 | €23.79 | 1-4 weeks to ship | |
| 141859-7 | SPUR GEAR 9C COMPLETE | 1 | €23.79 | 1-4 weeks to ship | ||
| 040 | 227309-7 | INTERNAL GEAR 48 | 1 | €7.65 | 1-4 weeks to ship | |
| 227309-7 | INTERNAL GEAR 48 | 1 | €7.65 | 1-4 weeks to ship | ||
| 041 | 227310-2 | SPUR GEAR 19A | 3 | €3.20 | 1-4 weeks to ship | |
| 227310-2 | SPUR GEAR 19A | 3 | €3.20 | 1-4 weeks to ship | ||
| 042 | 141858-9 | SPUR GEAR 9B COMPLETE | 1 | €3.62 | 1-4 weeks to ship | |
| 141858-9 | SPUR GEAR 9B COMPLETE | 1 | €3.62 | 1-4 weeks to ship | ||
| 043 | 227310-2 | SPUR GEAR 19A | 3 | €3.20 | 1-4 weeks to ship | |
| 227310-2 | SPUR GEAR 19A | 3 | €3.20 | 1-4 weeks to ship | ||
| 044 | 267466-9 | FLAT WASHER 12 | 1 | €0.83 | 1-4 weeks to ship | |
| 267466-9 | FLAT WASHER 12 | 1 | €0.83 | 1-4 weeks to ship | ||
| 046 | 346721-3 | PLATE 23 | 1 | €1.11 | 1-4 weeks to ship | |
| 346721-3 | PLATE 23 | 1 | €1.11 | 1-4 weeks to ship | ||
| 047 | 234315-5 | COMPRESSION SPRING 6 | 1 | €1.11 | 1-4 weeks to ship | |
| 234315-5 | COMPRESSION SPRING 6 | 1 | €1.11 | 1-4 weeks to ship | ||
